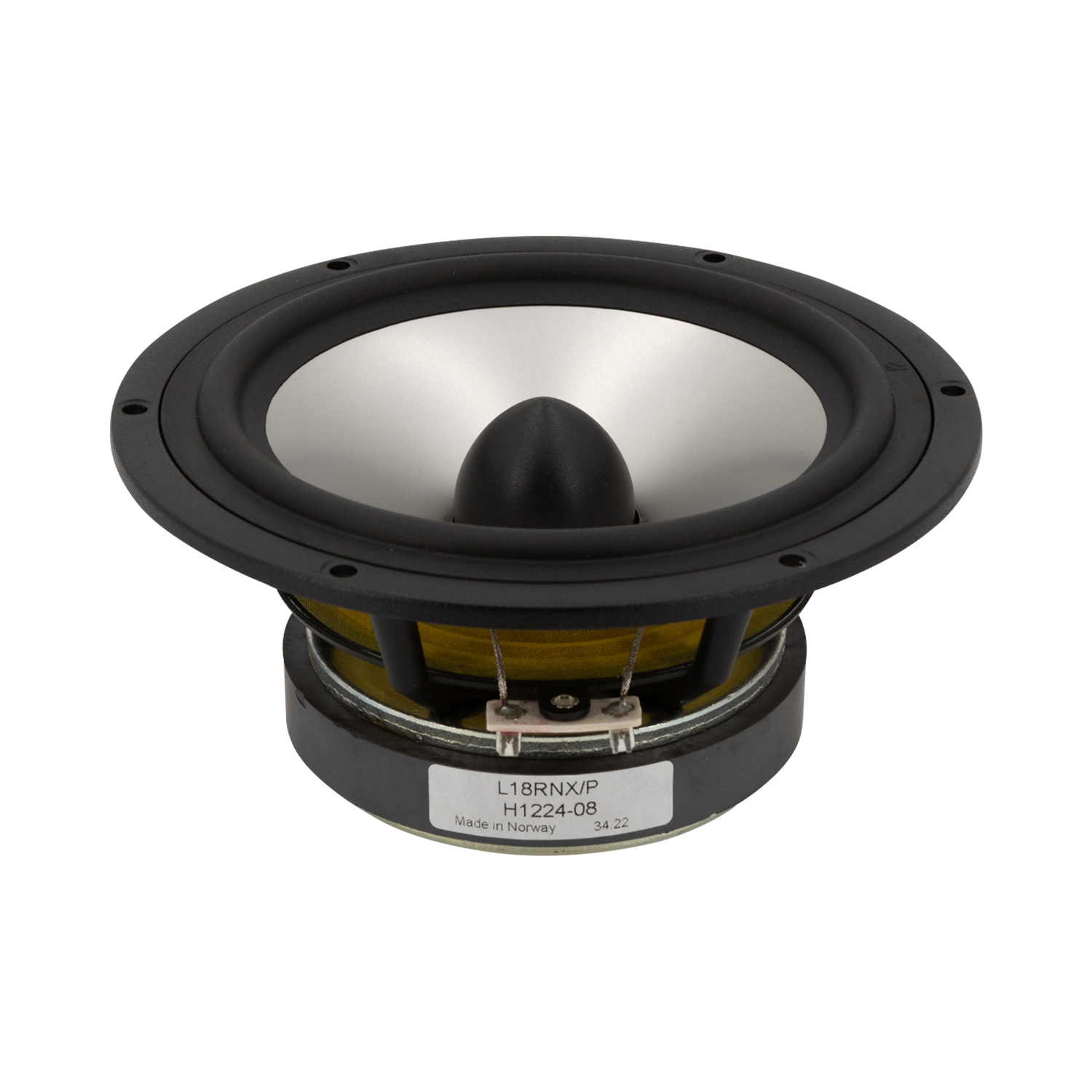

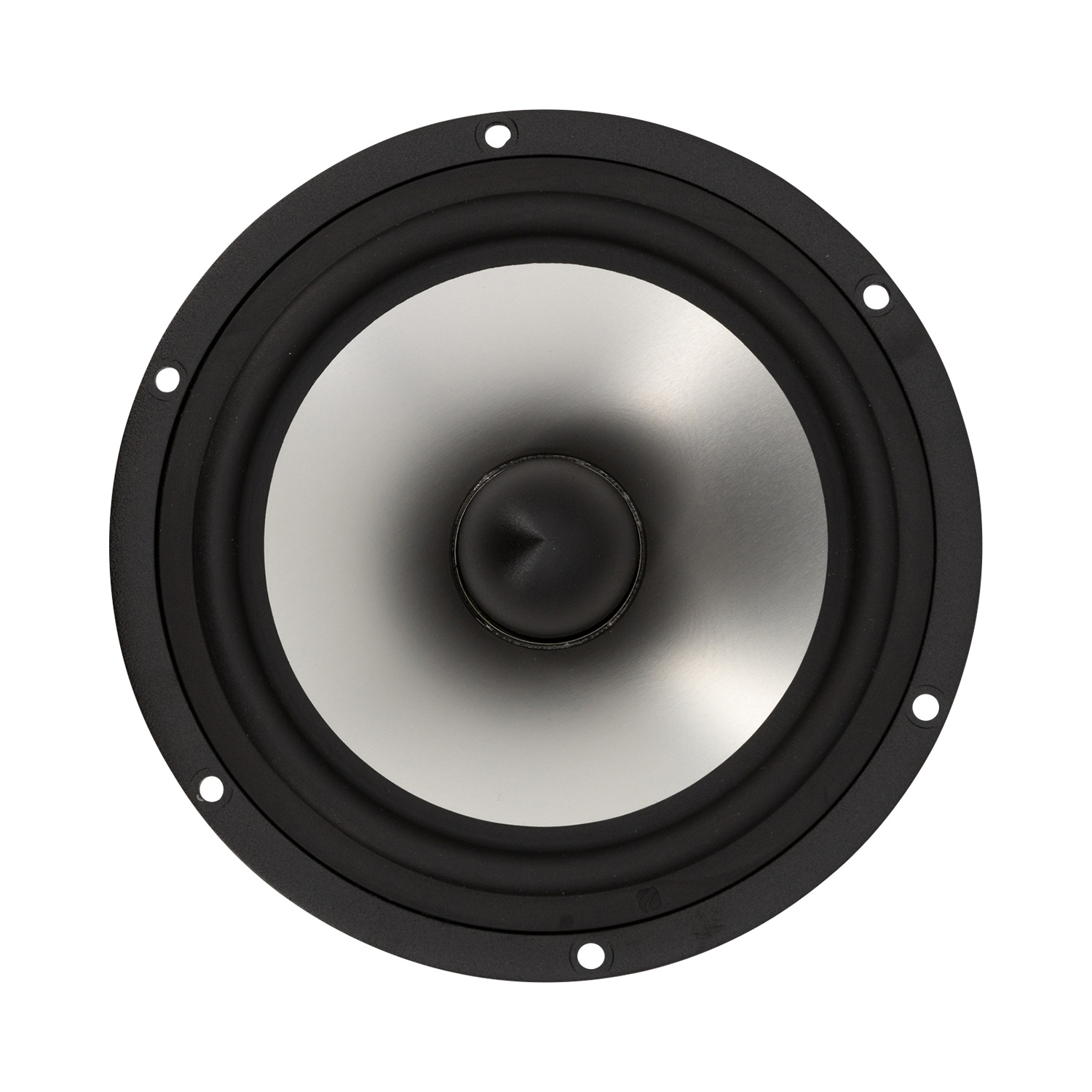

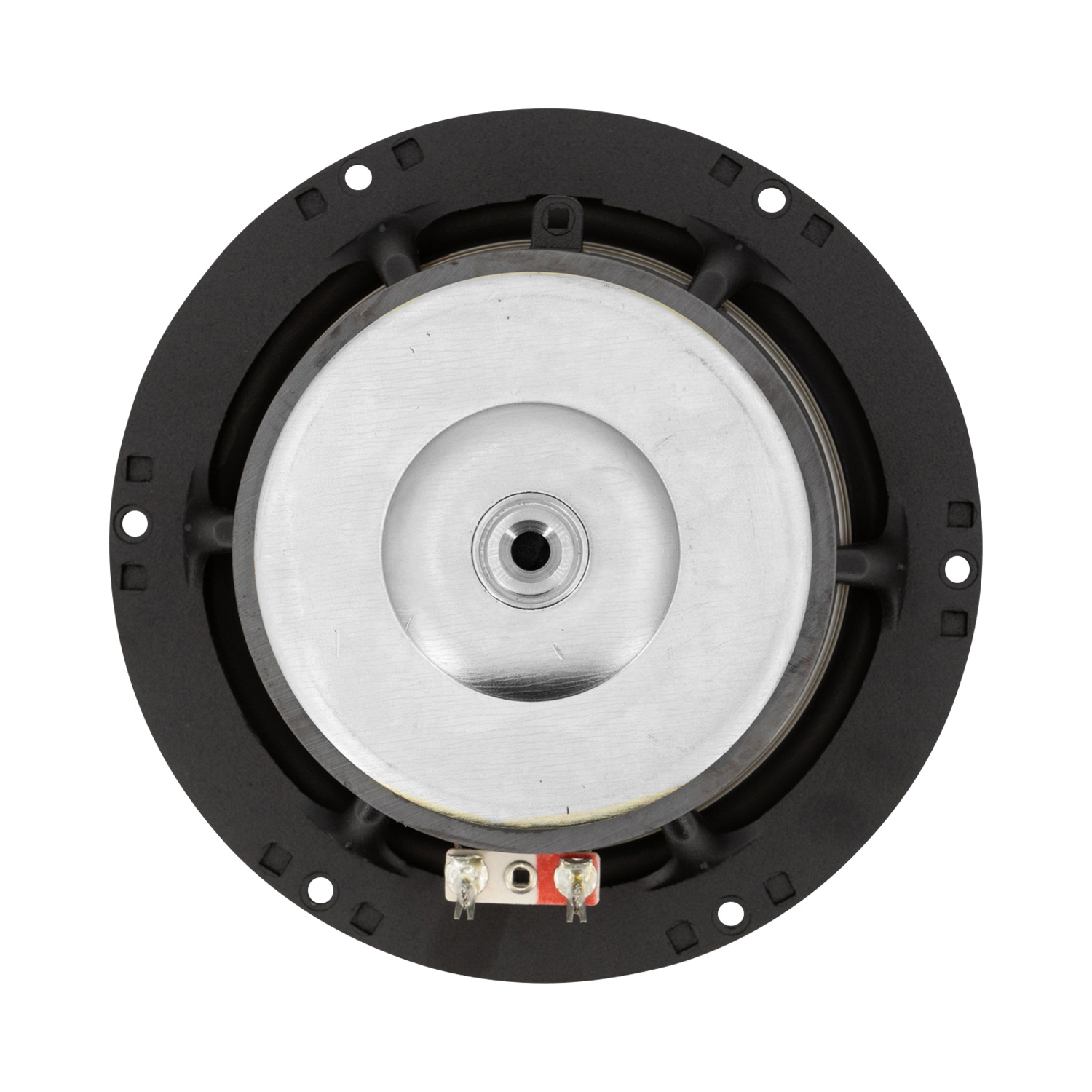

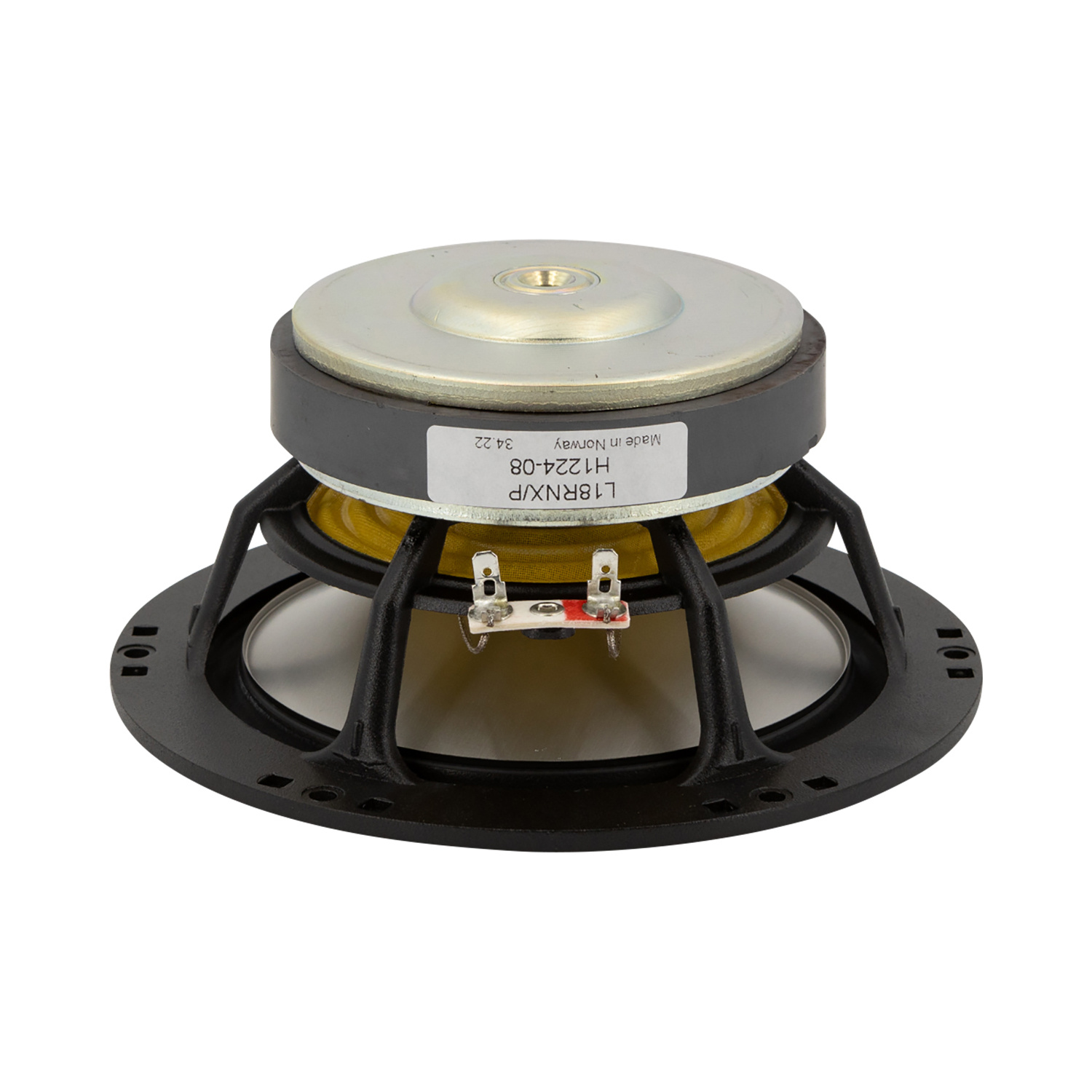

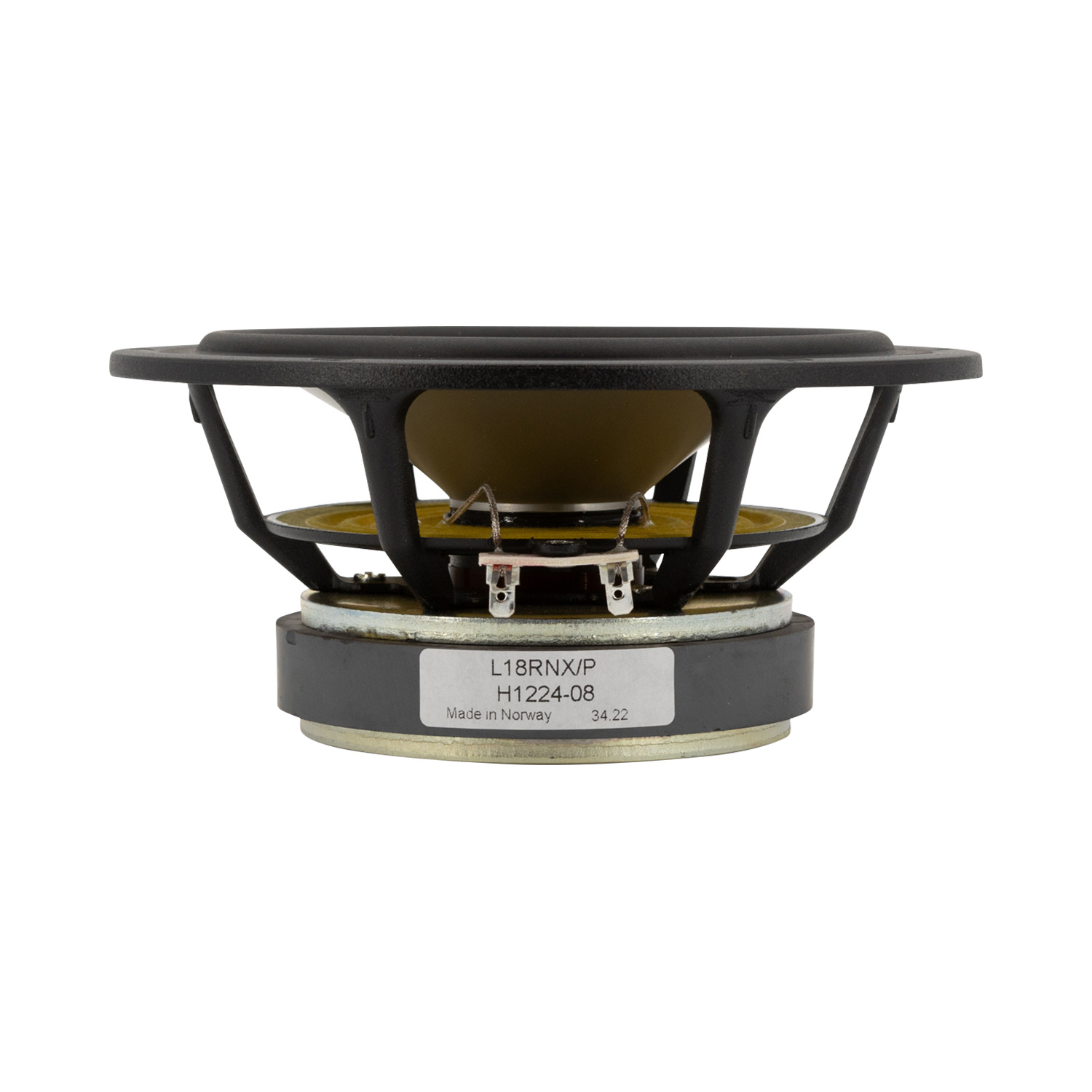

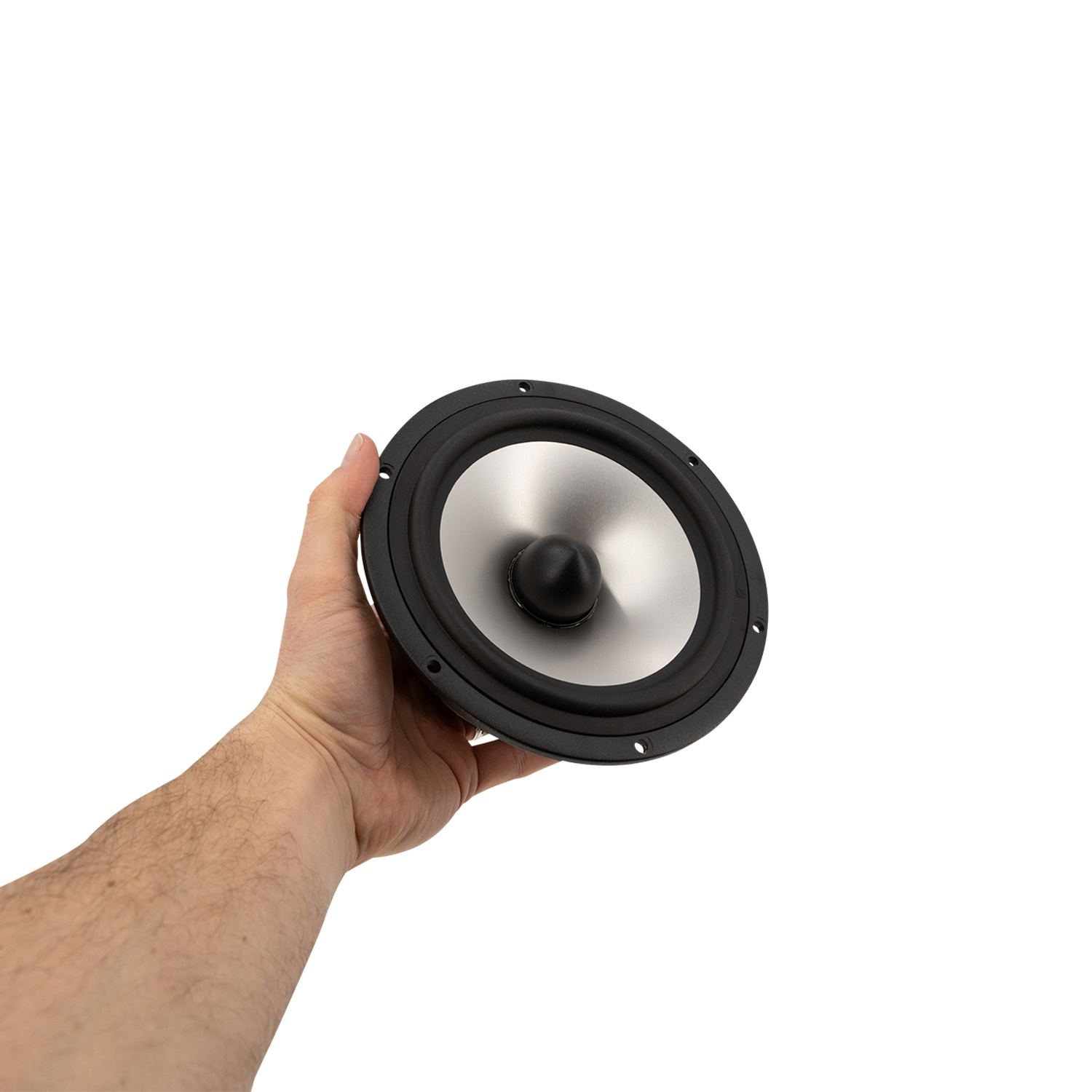

      SEAS Prestige L18RNX/P - H1224 7" Aluminum Cone Woofer

      € 95,-€ 114,95 5 In stock
      • -5% Order 4 for only € 109,20 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 100 Watts
      • Injection molded metal chassis, intended for bass reflex and transmission line designs
      • Seas SpiderRing® technology



      Product details

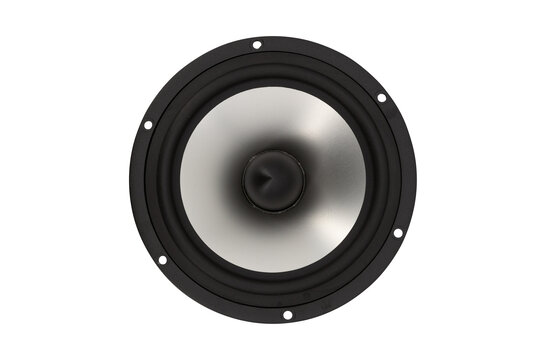

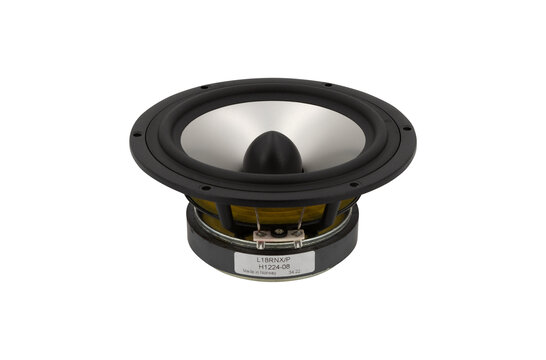

      L18RNX/P is a 6,5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.

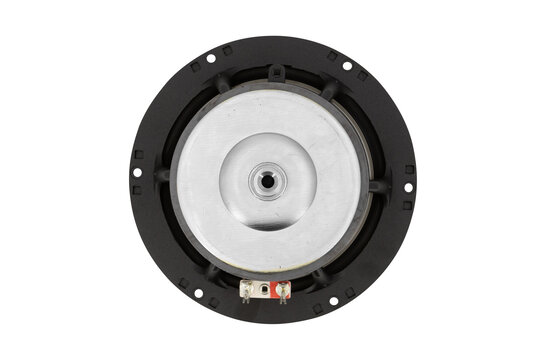

      The large magnet system gives a good transient response, and the bumped back plate together with the very long, and light weight copper clad aluminum voice coil allow for extreme coil excursion with low distortion.

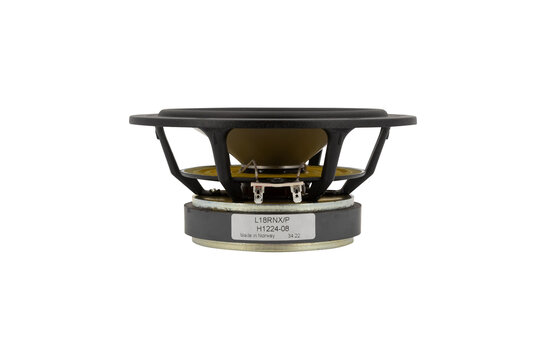

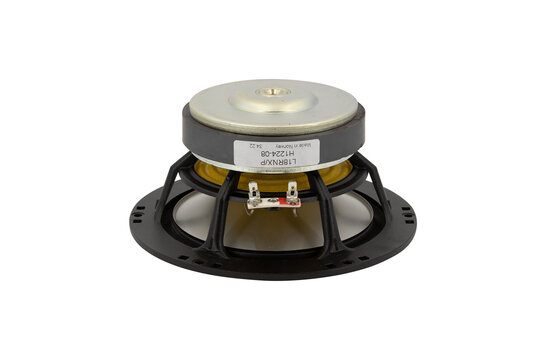

      Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Show more

      Specifications

      Article number
      L18RNX/P
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      7"
      Power Handling (RMS)
      100 Watts
      Power Handling (max)
      250 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB 2.83V/1m
      Frequency Response
      45 to 3,000 Hz
      Voice Coil Diameter
      1.54"
      Magnet Weight
      22.6 oz.
      DC Resistance (Re)
      5.8 ohms
      Voice Coil Inductance (Le)
      1.06 mH
      Resonant Frequency (Fs)
      36 Hz
      Mechanical Q (Qms)
      2.09
      Electromagnetic Q (Qes)
      0.36
      Total Q (Qts)
      0.31
      Diaphragm Mass Inc. Airload (Mms)
      13.6g
      Mechanical Compliance of Suspension (Cms)
      1.4 mm/N
      Compliance Equivalent Volume (Vas)
      0.88 ft.³
      Maximum Linear Excursion (Xmax)
      6 mm
      Overall Outside Diameter
      6.93"
      Overall Depth
      3.28"
      Baffle Cutout Diameter
      5.72"
      Bolt Circle Diameter
      6.54"
      # Mounting Holes
      6
      Mounting Hole Diameter
      0.2"

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Very clean open clear Bass and Mids from this woofer
      By Luis filipe Rocha Duarte on 21 August 2021
      5 of 5
      No description was given
      By ANTONIO M. on 2 May 2020
