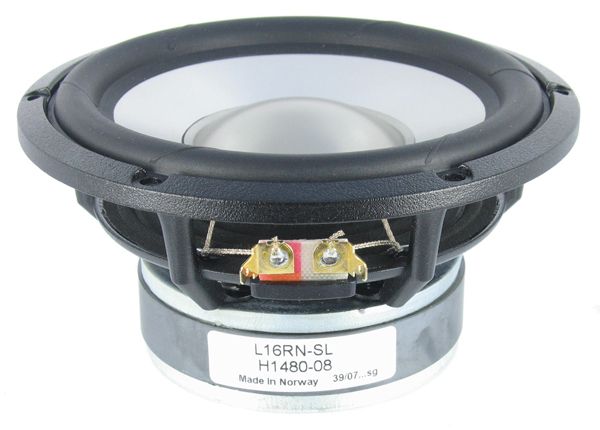

      SEAS Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer 8 Ohm

      € 95,-€ 114,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €109,20 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but also possible to use in standard bass reflex and transmission line designs
      • Extreme coil excursion with low distortion
      • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



      Product details

      Seas Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer



      The L16RN-SL is a 5" High Fidelity woofer with an injection molded metal chassis, specially designed in cooperation with Linkwitz Labs in Corte Medera, California. It is specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but can also be used in standard bass reflex and transmission line designs.



      Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones. A bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. A heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion. Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Specifications

      Article number
      L16RN-SL
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      5"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      250 Watts
      Continuous Program Power
      -
      Impedance (Z)
      8 ohms
      Sensitivity
      84 dB 2.83V/1m
      Frequency Response
      45 to 2,000 Hz
      Voice Coil Diameter
      39 mm
      Magnet Weight
      0.42 kg
      DC Resistance (Re)
      6 ohms
      Voice Coil Inductance (Le)
      0.64 mH
      Resonant Frequency (Fs)
      37 Hz
      Mechanical Q (Qms)
      2.48
      Electromagnetic Q (Qes)
      0.55
      Total Q (Qts)
      0.45
      Diaphragm Mass Inc. Airload (Mms)
      14.7 g
      Mechanical Compliance of Suspension (Cms)
      1.3 mm/N
      Surface Area of Cone (Sd)
      104 cm²
      Volume of Displacement (Vd)
      62.4 cm³
      BL Product (BL)
      6.1 N/A
      Compliance Equivalent Volume (Vas)
      19 liters
      Maximum Linear Excursion (Xmax)
      6 mm
      Driver's Mechanical Losses (Rms)
      -
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper-clad aluminum
      Voice Coil Former
      -
      Dual Voice Coil
      -
      Basket / Frame Material
      Injection molded metal
      Magnet Material
      -
      Shielded
      -
      Overall Outside Diameter
      146 mm
      Overall Depth
      76 mm
      Baffle Cutout Diameter
      127 mm
      Bolt Circle Diameter
      137 mm
      # Mounting Holes
      6
      Mounting Hole Diameter
      5 mm
      Sealed Volume
      -
      Sealed F3
      -
      Vented Volume
      -
      Vented F3
      -
