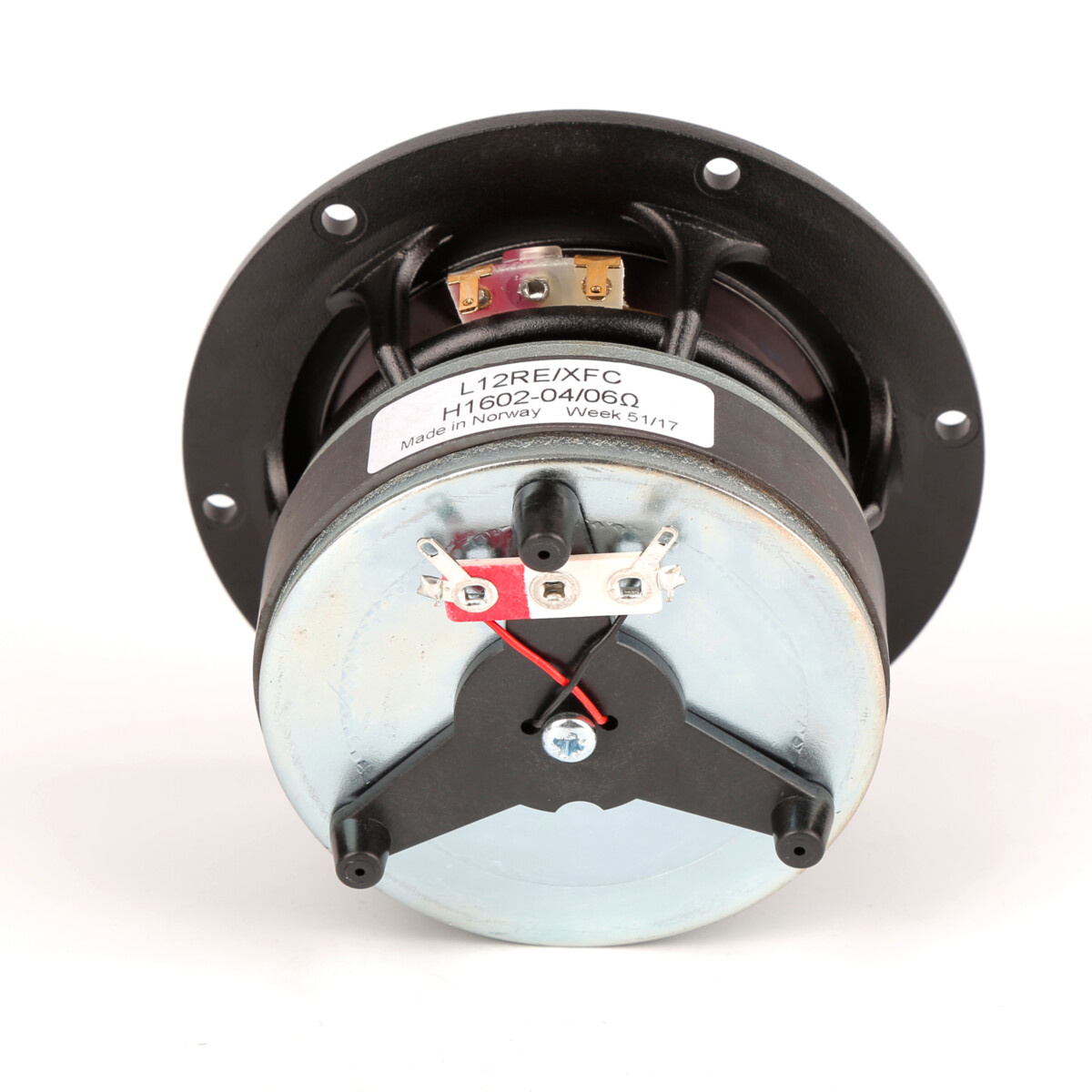

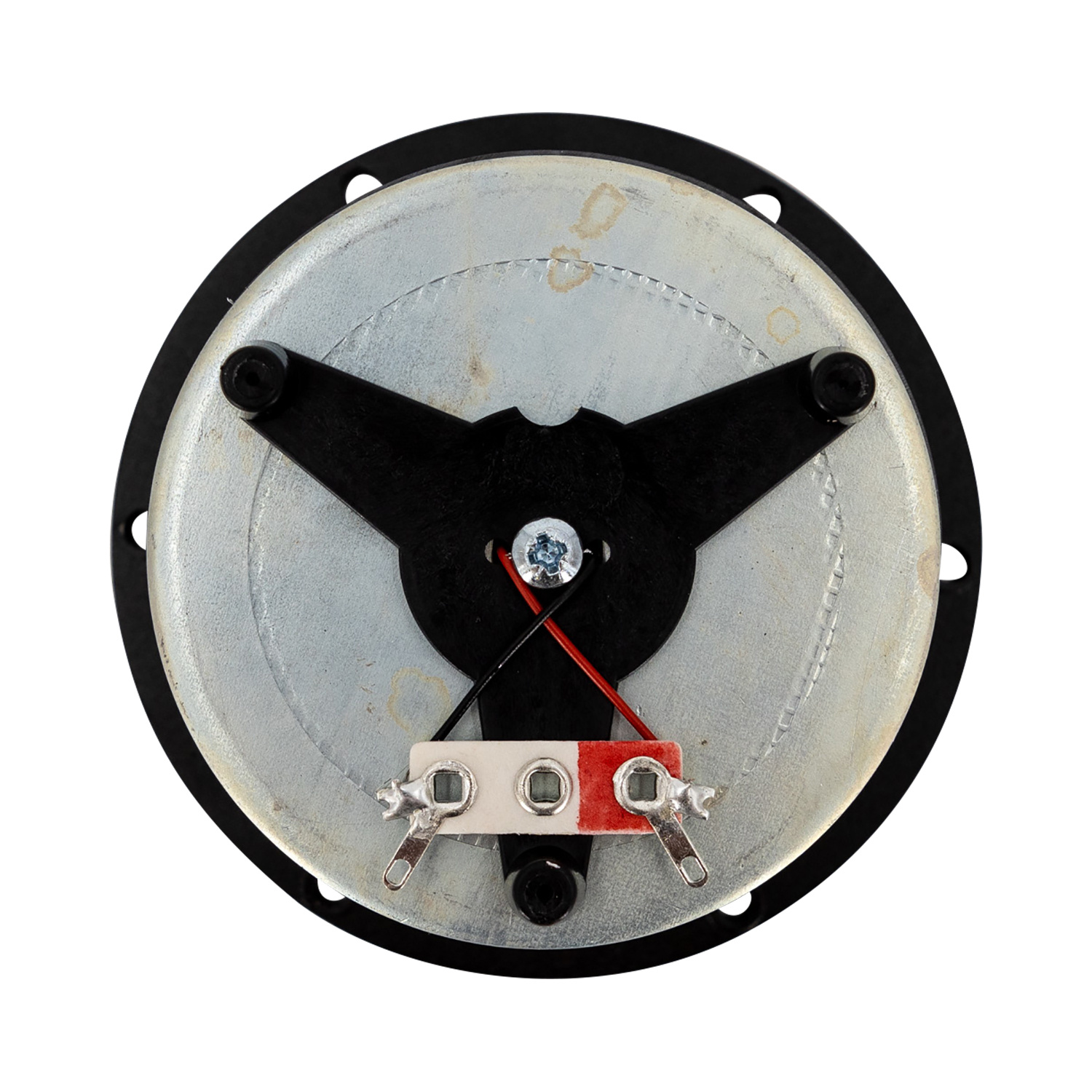

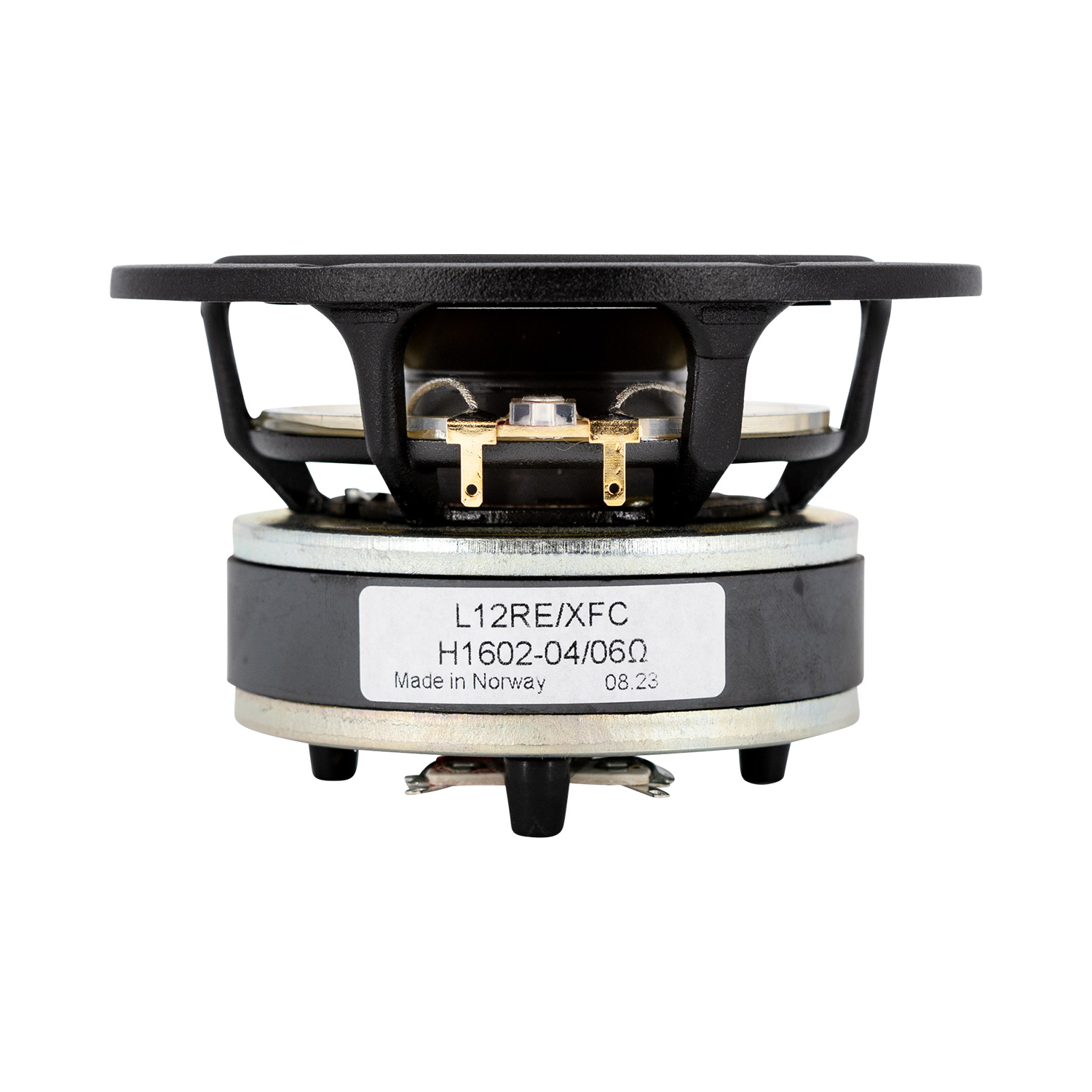

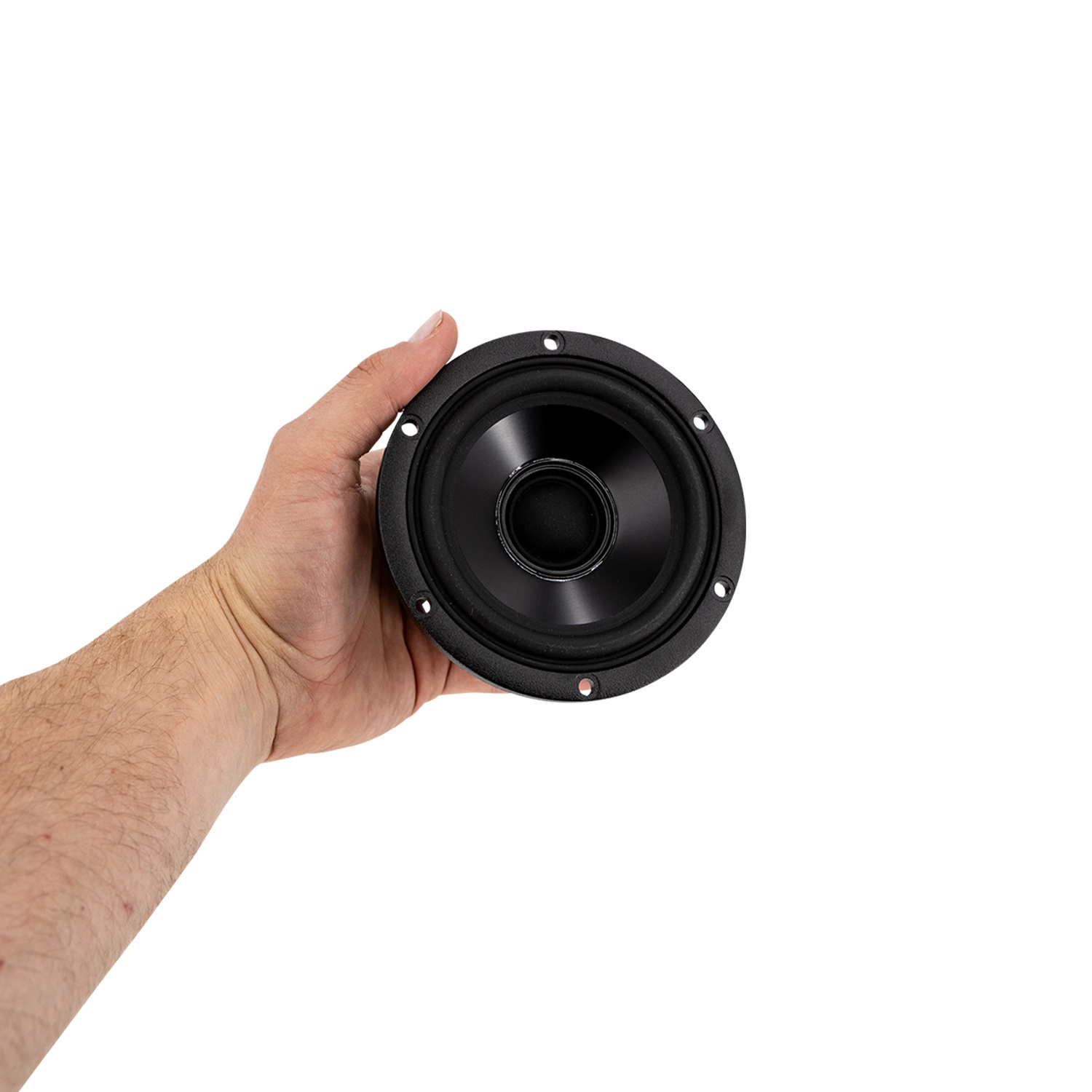

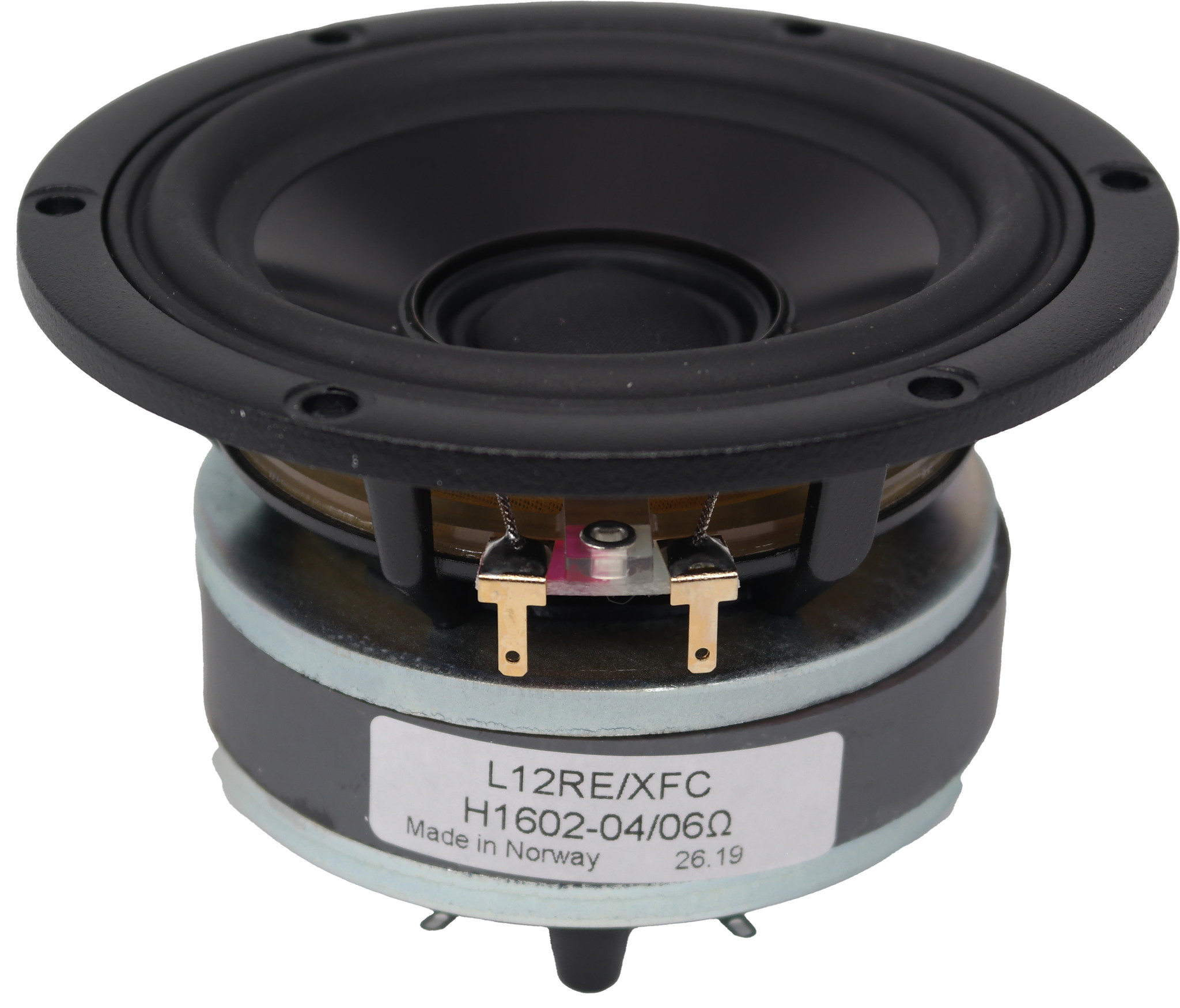

      SEAS Prestige L12RE/XFC - H1602-04/06 5" Alum/Fabric Coaxial Woofer

      € 156,98€ 189,95 4 In stock
      • -5% Order 4 for only € 180,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 80 Watts (Woofer) and 90 Watts (Tweeter)
      • Coaxial loudspeaker providing high quality sound in a very compact format
      • The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn



      Product details

      Seas Prestige L12RE/XFC - H1602-04/06 5" Alum/Fabric Coaxial Woofer



      The L12RE/XFC is a coaxial loudspeaker providing high quality sound in a very compact format. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source.



      Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.



      The stiff, yet light aluminum cone acts as a piston throughout the recommended frequency range.

      Show more

      Specifications

      Article number
      L12RE/XFC
      Woofer Series
      Prestige Series
      Woofer Type
      Coaxial
      Nominal Diameter
      5"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      250 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      86 dB 2.83V/1m
      Frequency Response
      60 - 25,000 Hz
      Voice Coil Diameter
      1.53"
      Magnet Weight
      14.8 oz.
      DC Resistance (Re)
      3.1 ohms
      Voice Coil Inductance (Le)
      0.48 mH
      Resonant Frequency (Fs)
      55 Hz
      Mechanical Q (Qms)
      2.99
      Electromagnetic Q (Qes)
      0.33
      Total Q (Qts)
      0.30
      Diaphragm Mass Inc. Airload (Mms)
      0.19g
      Mechanical Compliance of Suspension (Cms)
      0.9 mm/N
      Compliance Equivalent Volume (Vas)
      0.10 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Overall Outside Diameter
      4.72"
      Overall Depth
      2.91"
      Baffle Cutout Diameter
      3.77"
      Bolt Circle Diameter
      4.36"
      # Mounting Holes
      6

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Sagenhafte Räumlichkeit, Bühne und Ablösung der Musik von den Lautsprechern. Der sogenannte ''Sweetspot'' ist hier sehr weit gefächert, selbst wenn man seitlich er Lautsprecher sitzt, hat man noch ein ordentliches Stereobild mit guter Bühne. Absolut empfehlenswert für Drei-Wege Konstruktionen mit entsprechender Unterstützung durch einen Tieftöner in der Box.
      By Harald L. on 18 November 2020
      Prestige L12RE/XFC - H1602-04/06 5" Alum/Fabric Coaxial Woofer
