      SEAS Exotic W8 W8 - X2-08 8" Midrange Woofer Alnico Magnet

      € 578,47€ 699,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 664,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • High sensitivity and low distortion
      • Special foam rubber surround
      • The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability



      Product Details

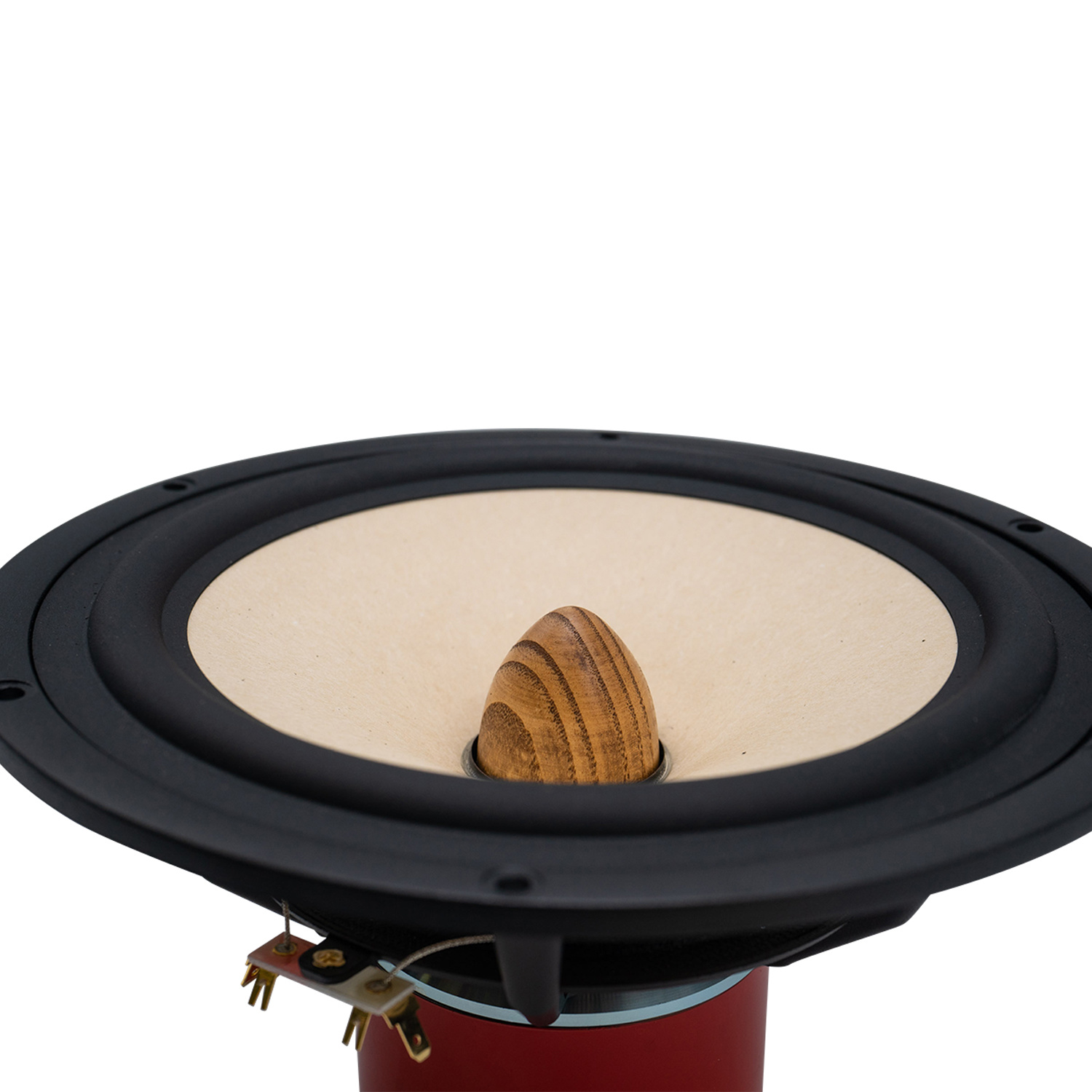

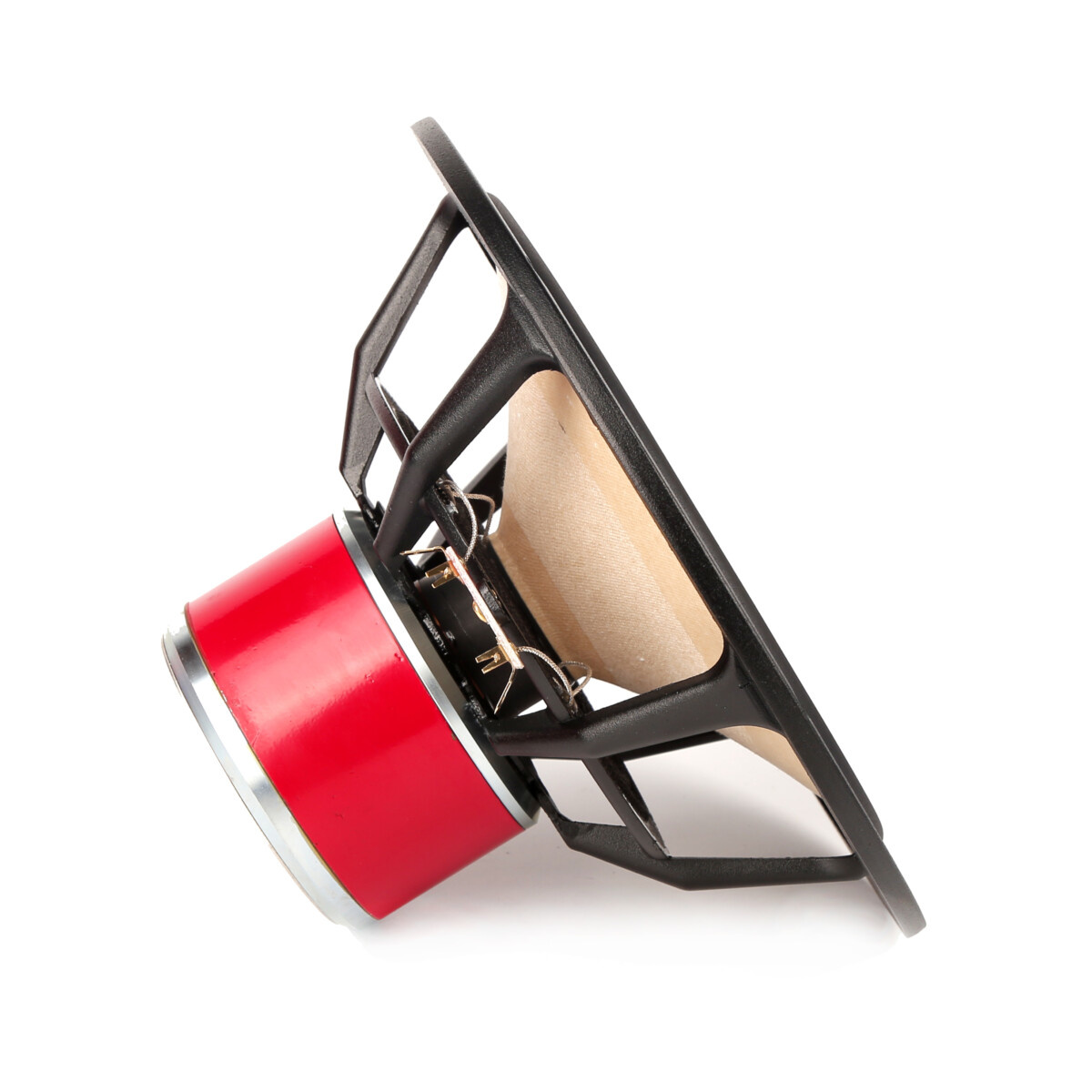

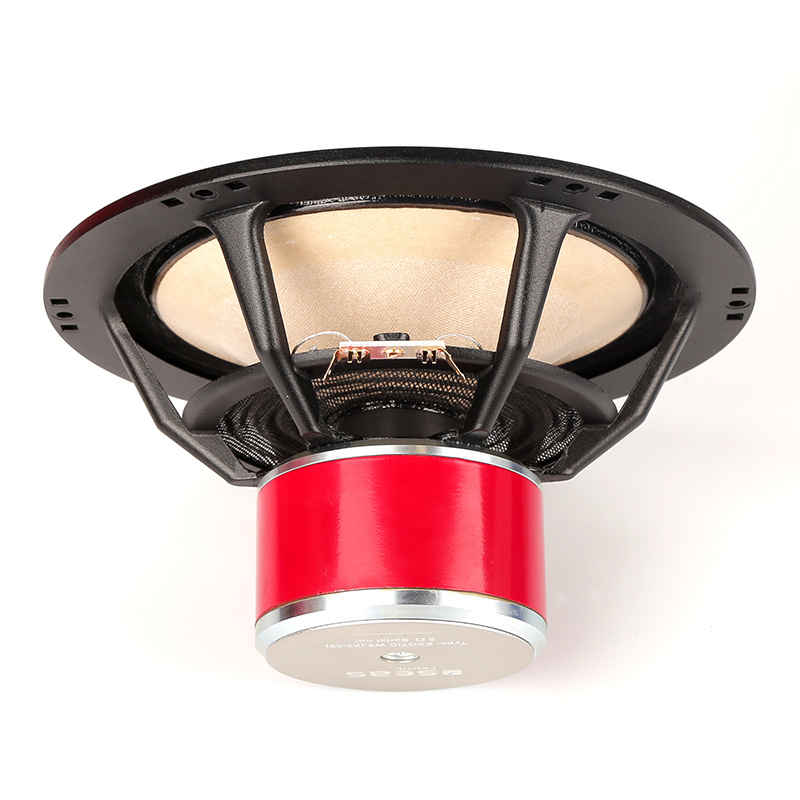

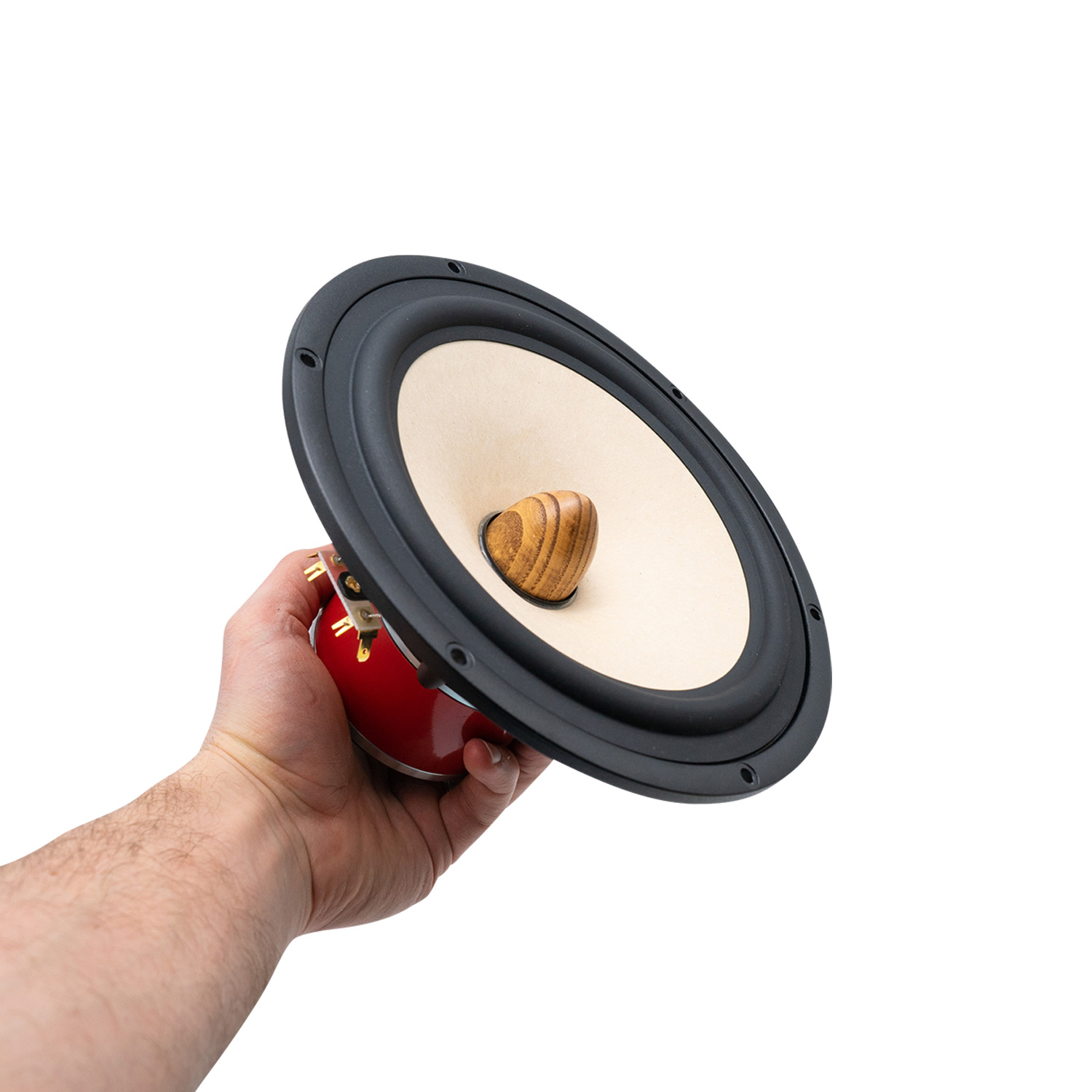

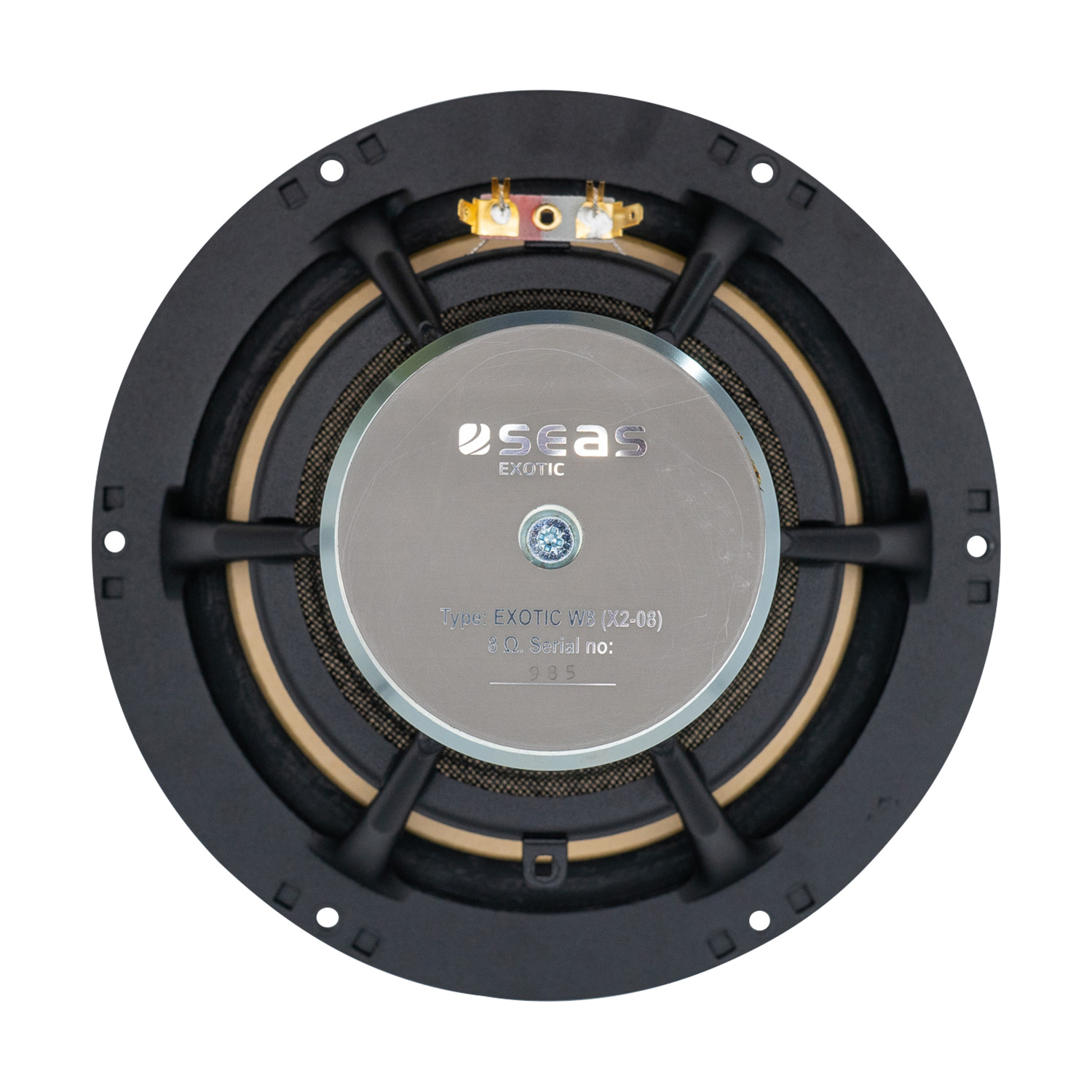

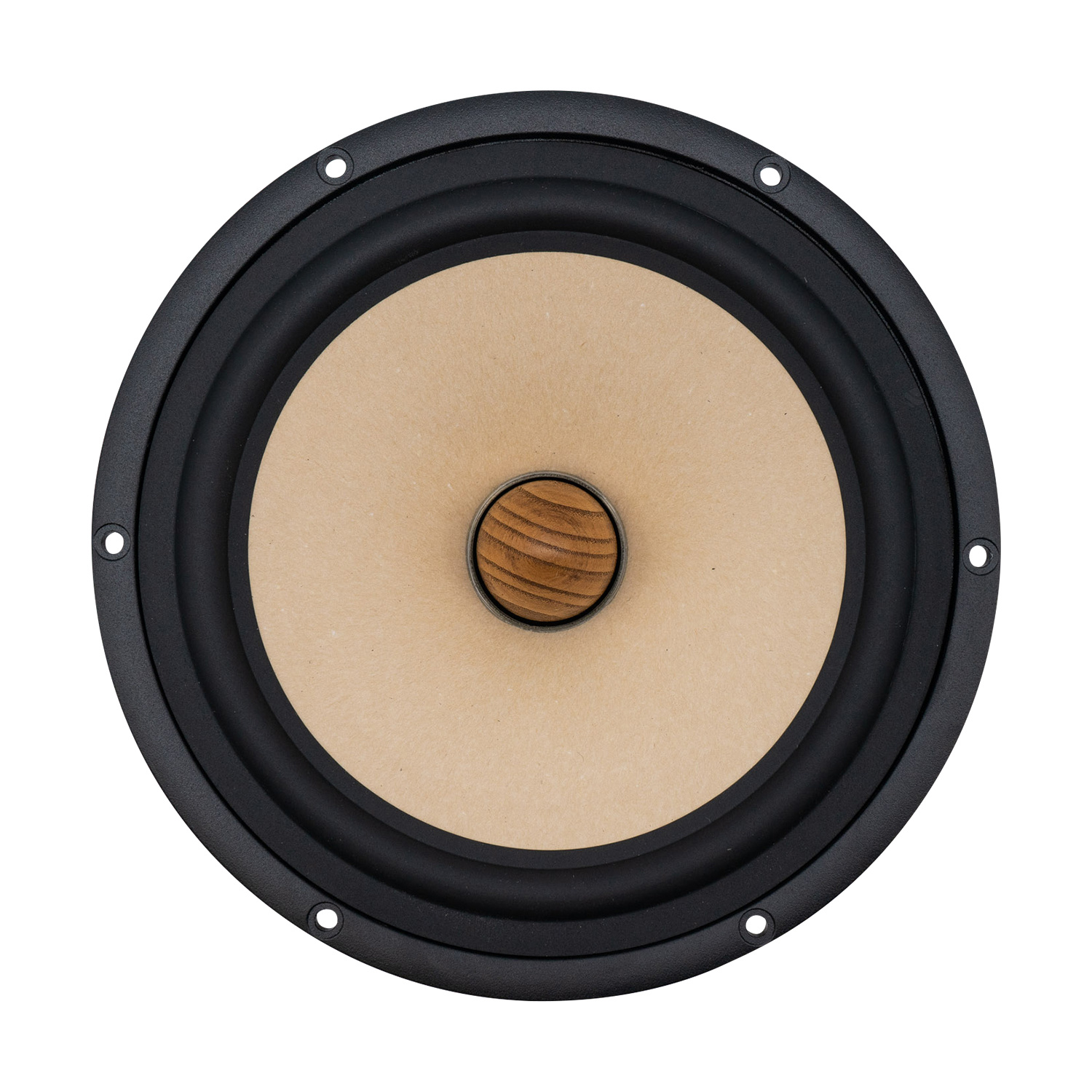

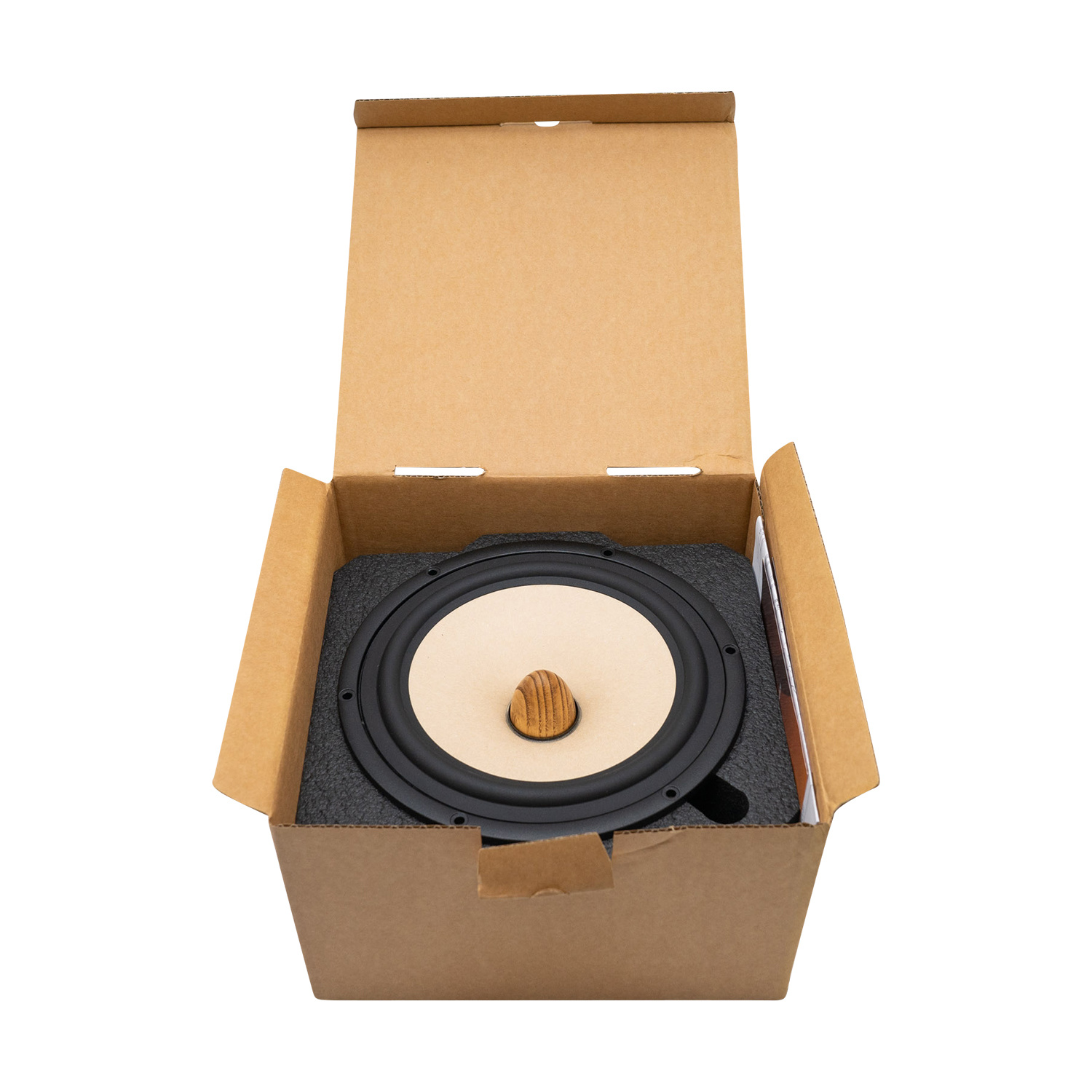

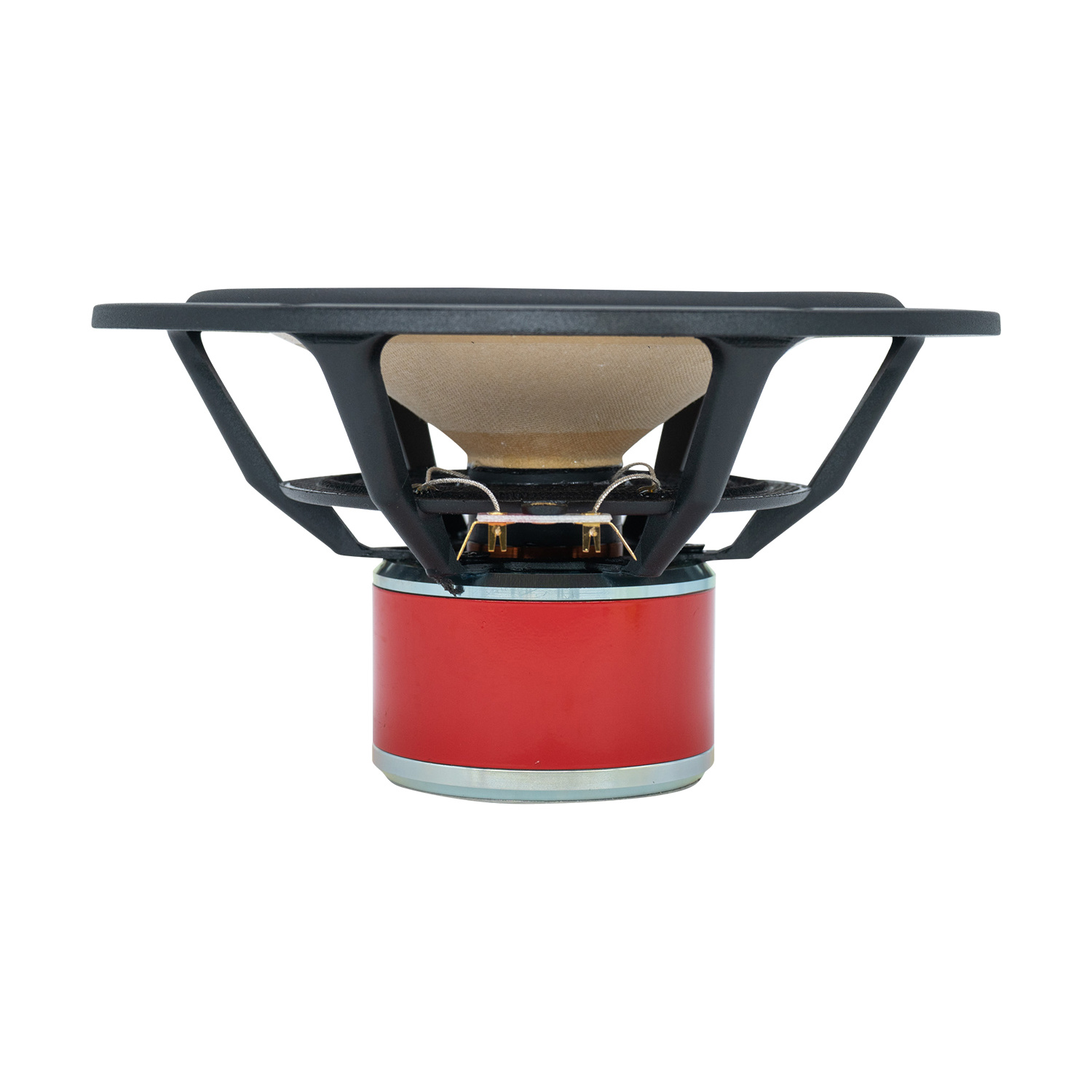

      Seas Exotic W8 X2-08 8" Midrange Woofer - Alnico Magnet



      The Exotic W8 is an 8-inch woofer-midrange driver designed for smooth, wide frequency response, high sensitivity and low distortion. The special paper cone is embedded with papyrus fibers to optimize stiffness and damping. A special foam rubber surround reduces mass by 40% compared to conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties. Unlike most plastic foam materials, this material is stable and will offer decades of trouble-free operation. A new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally generated by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs. A high-temperature copper voice coil is wound on a rigid, non-conductive glass fiber former. High-quality H2 lead-out wires eliminate noise due to roping and resonances. The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability. Massive copper rings above and below the magnet gap lower distortion due to eddy currents and flux modulation. A hand-turned phase plug made from ash offers optimal radiation conditions for the critical mid-frequency band. A stiff and stable injection moulded zinc basket keeps the critical components in perfect alignment. Generous windows both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

      Specifications

      Article number
      EXOTIC W8
      Woofer Series
      Exotic
      Woofer Type
      Midrange
      Nominal Diameter
      8"
      Power Handling (RMS)
      100 W
      Power Handling (max)
      100 W
      Impedance (Z)
      8 Ohms
      Sensitivity
      (2,83V, 1m) 94 dB
      Voice Coil Diameter
      39 mm
      Magnet Weight
      0.8 kg
      DC Resistance (Re)
      6 Ohms
      Voice Coil Inductance (Le)
      0.43 mH
      Resonant Frequency (Fs)
      36 Hz
      Mechanical Q (Qms)
      5.10
      Electromagnetic Q (Qes)
      0.25
      Total Q (Qts)
      0.24
      Diaphragm Mass Inc. Airload (Mms)
      13.9 g
      Moving Mass Of Diaphragm (Mmd)
      11.6 g
      Mechanical Compliance of Suspension (Cms)
      1200 µm/N
      Surface Area of Cone (Sd)
      212 cm²
      Volume of Displacement (Vd)
      63.6 cm³
      BL Product (BL)
      9.2 T·m
      Compliance Equivalent Volume (Vas)
      78 Litres
      Maximum Linear Excursion (Xmax)
      ± 3 mm
      Driver's Mechanical Losses (Rms)
      0.7 N·s/m
      Cone / Diaphragm Material
      Paper
