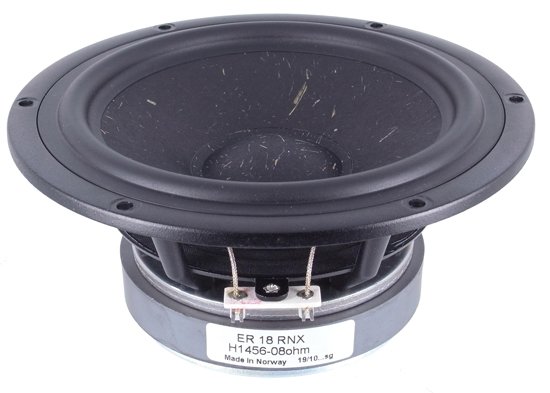

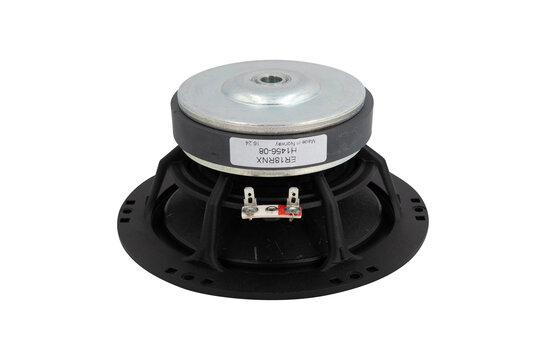

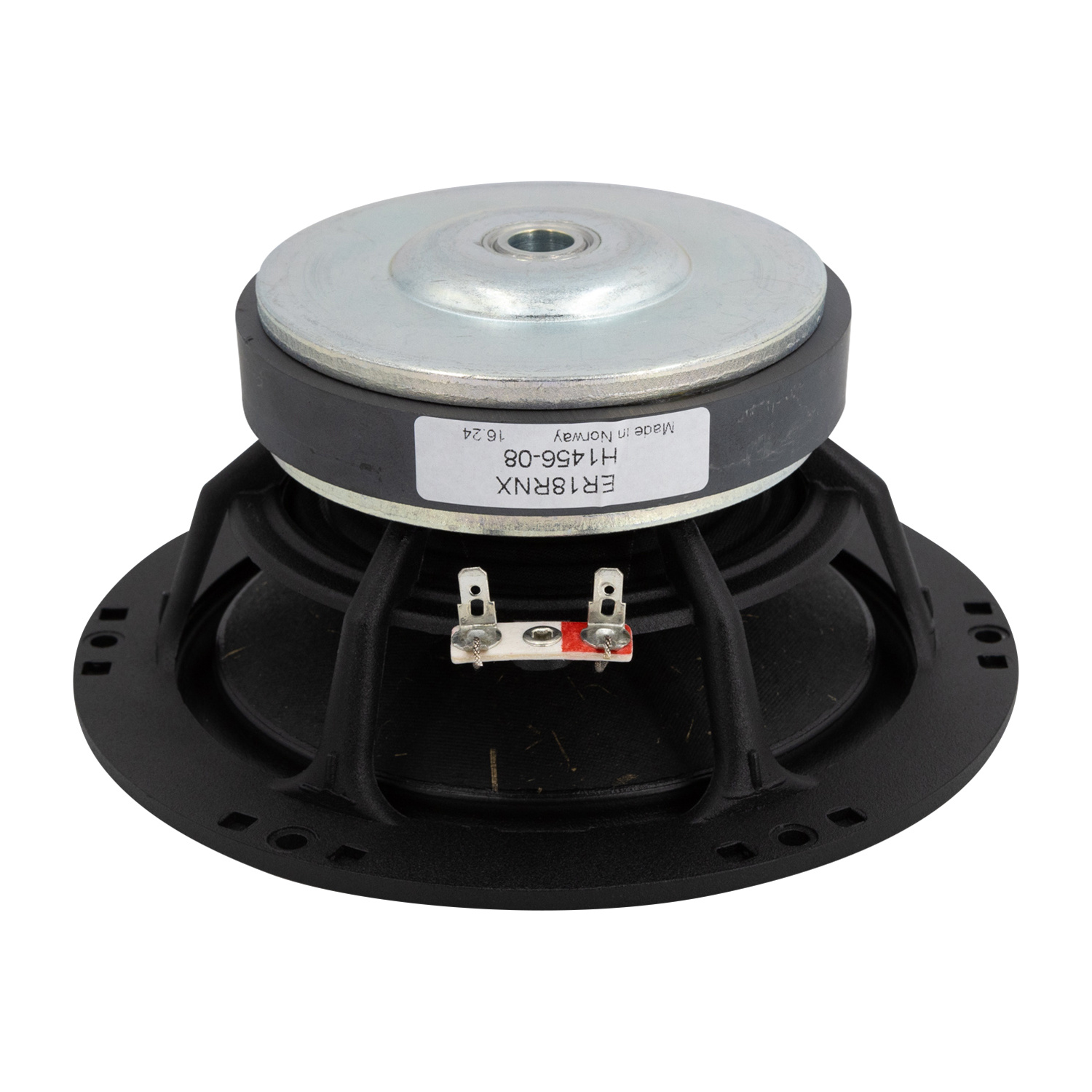

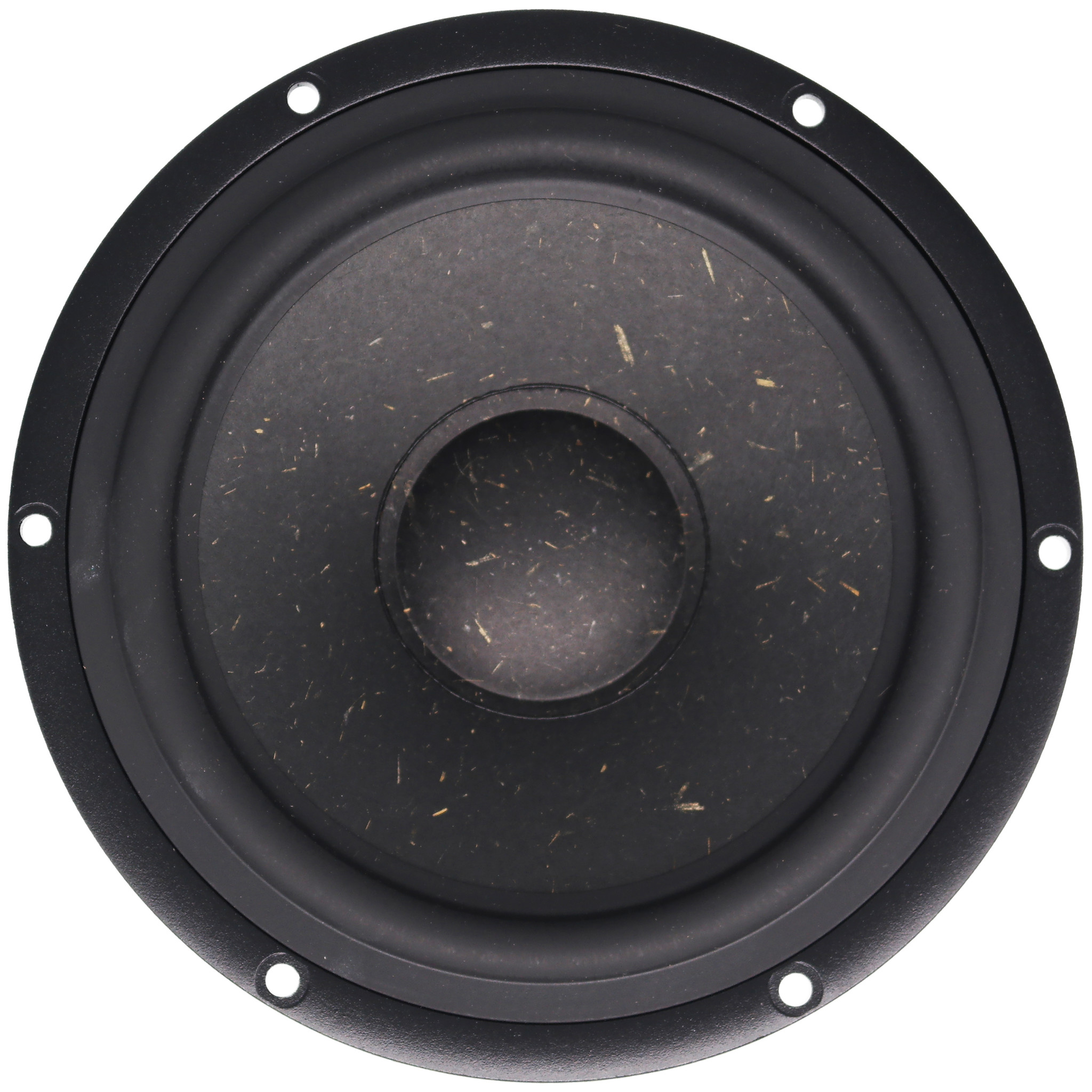

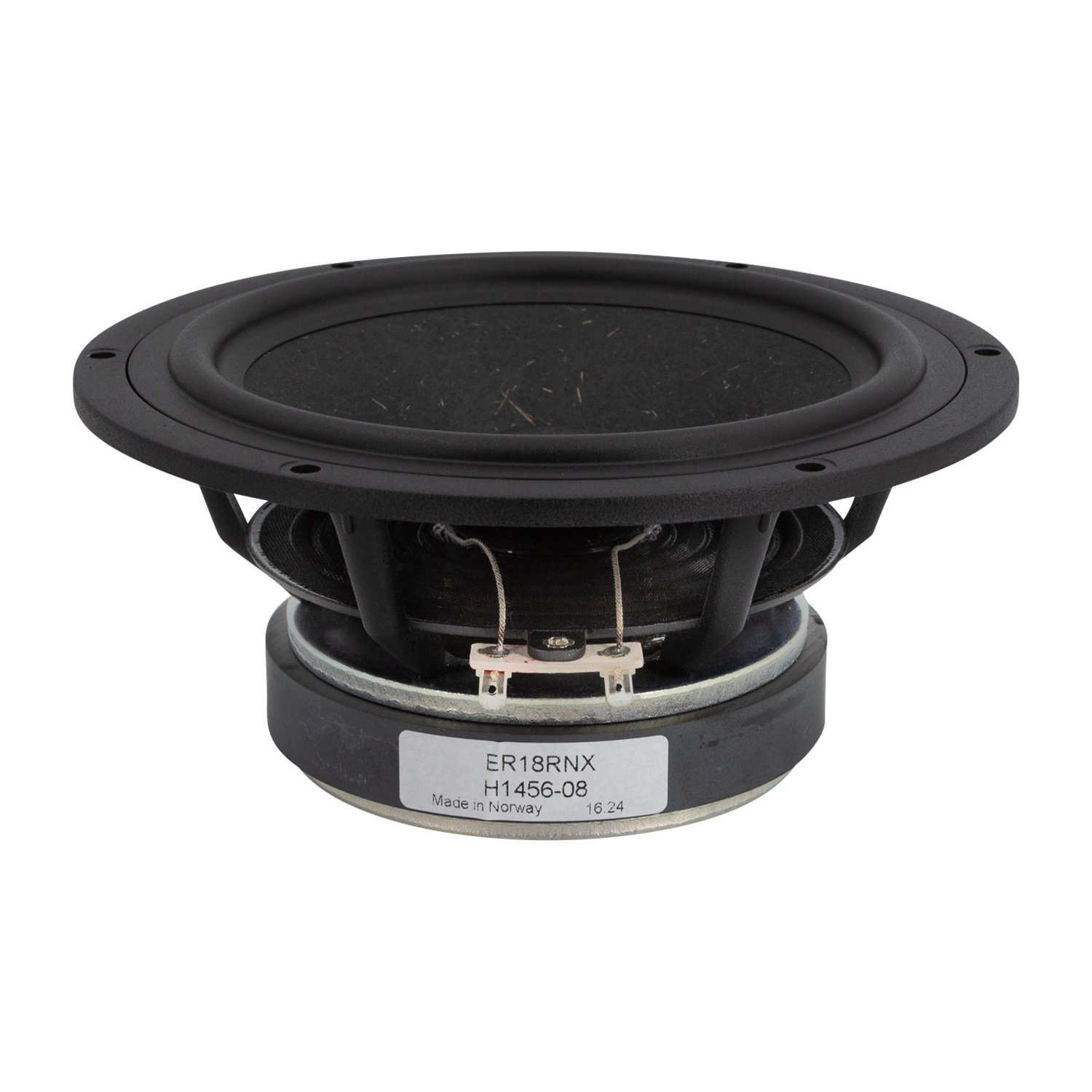

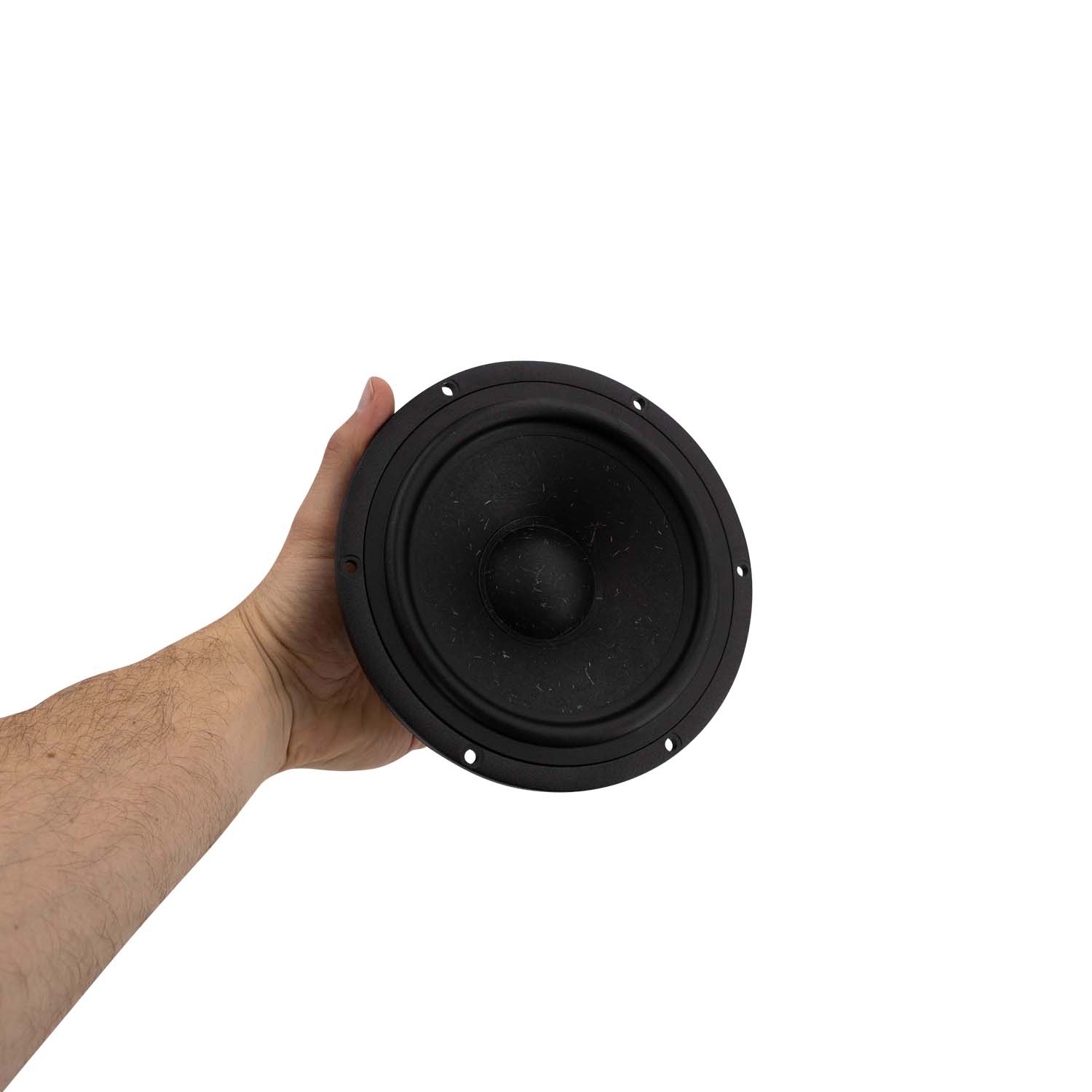

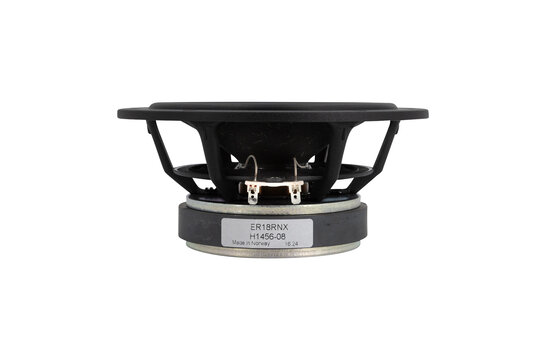

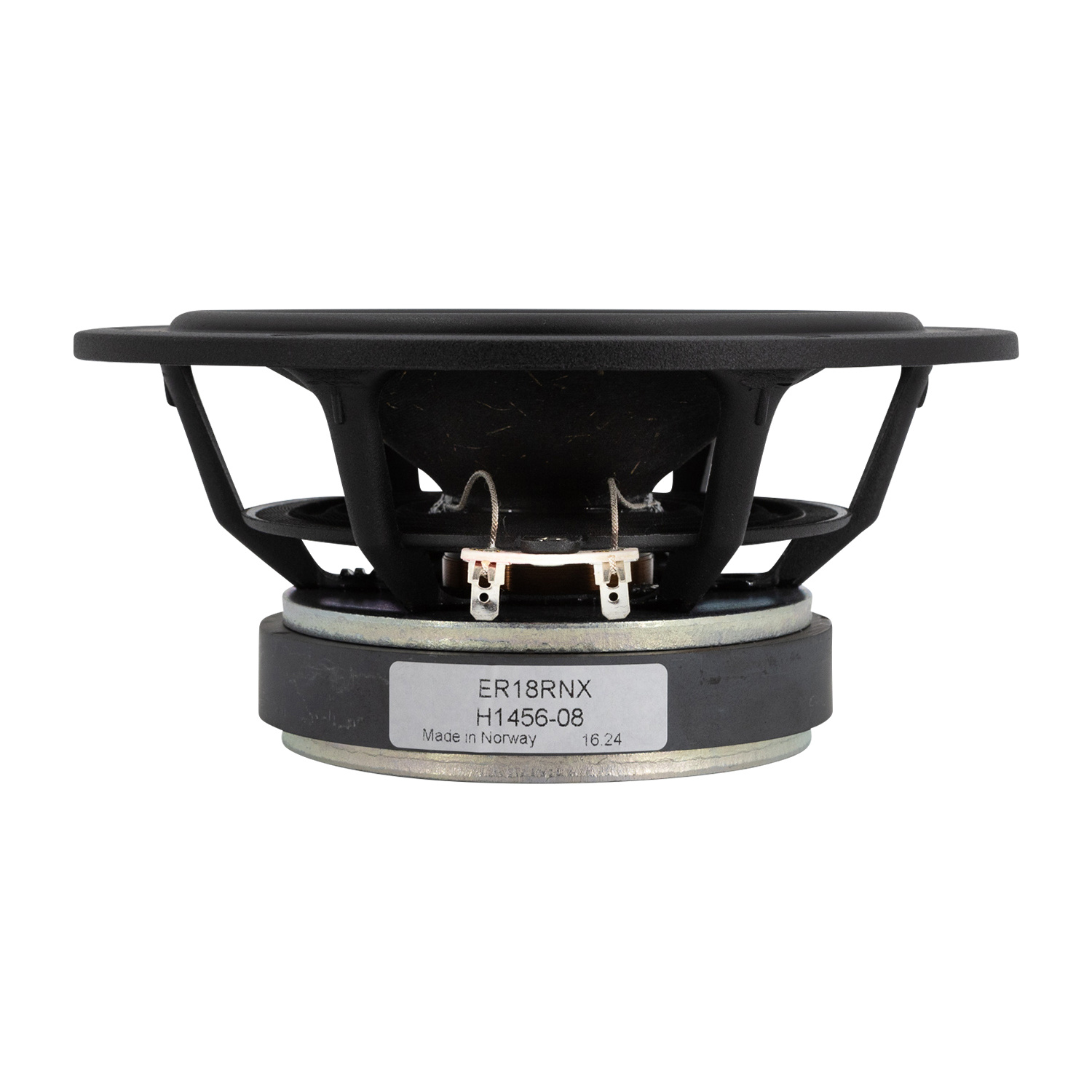

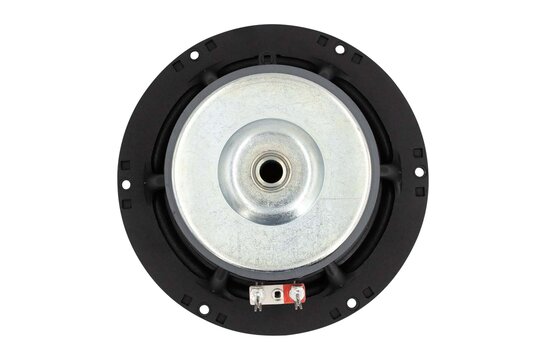

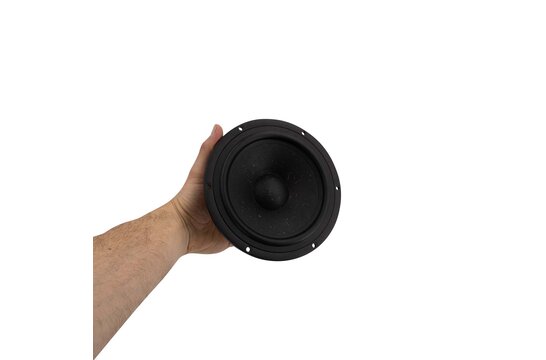

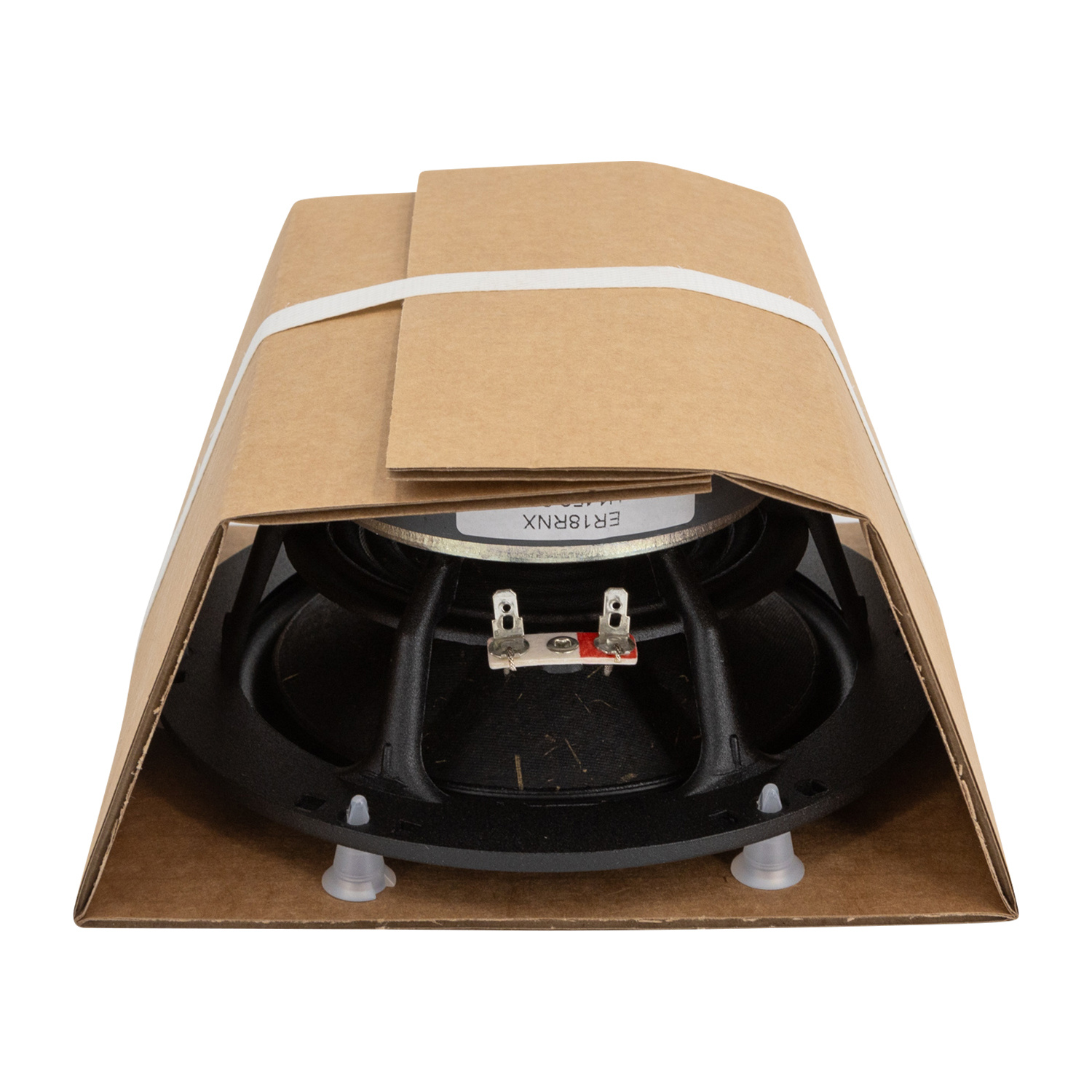

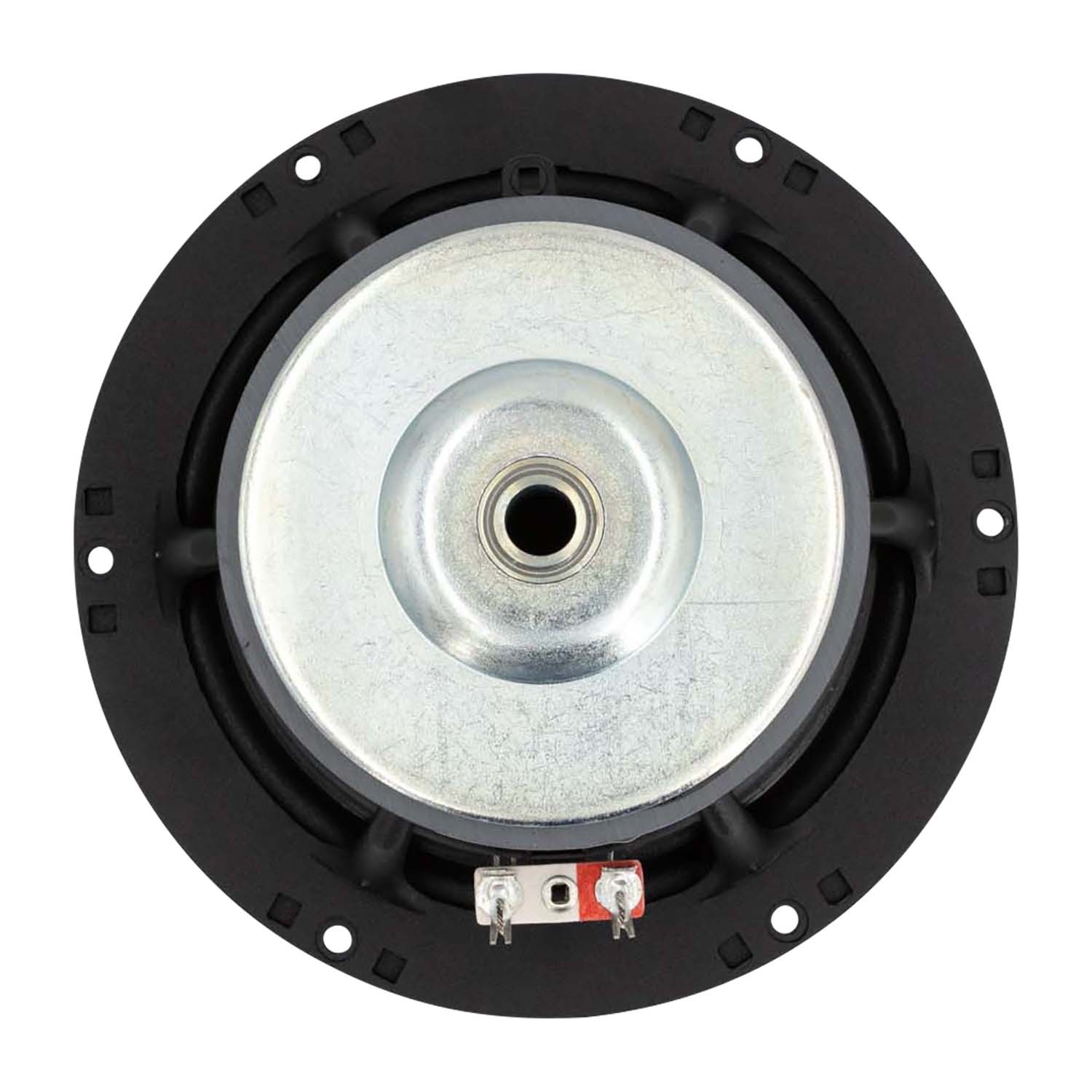

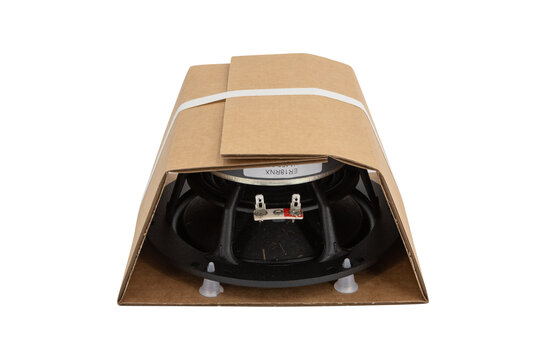

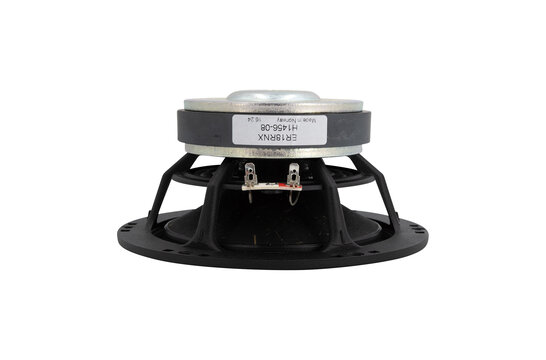

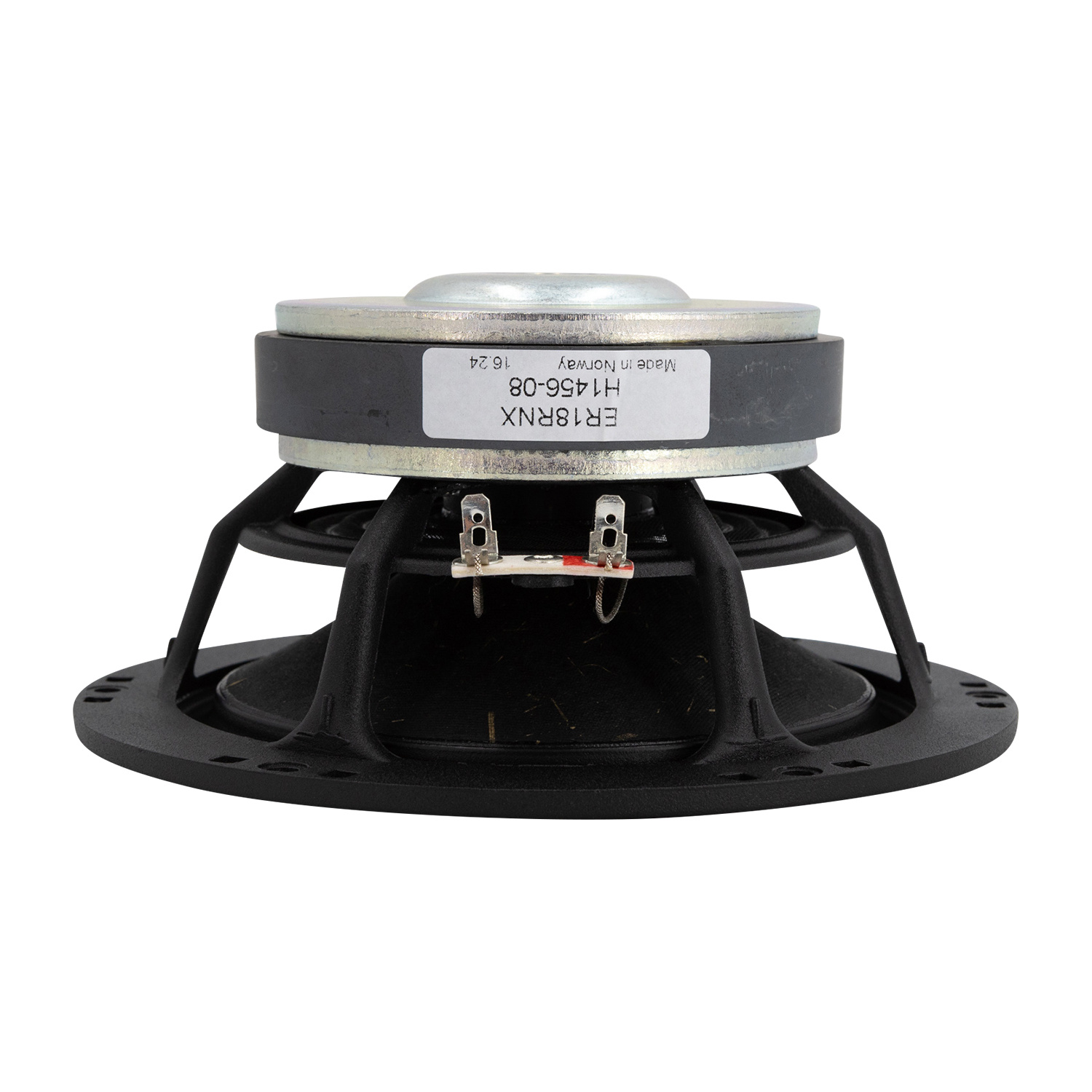

    SEAS Prestige ER18RNX-8 - H1456-08 7" Reed Paper Cone Woofer

    € 82,60€ 99,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €94,95 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Long term power handling (RMS) is 80 Watts
    • Smooth, extended frequency response
    • Heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion



    Product details

    Seas Prestige ER18RNX-8 - H1456-08 7" Reed Paper Cone Woofer



    The ER18RNX is a 6,5’’ cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone together with perfectly matched moving parts gives a smooth, extended frequency response.



    Bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. Heavy copper ring below the T-shaped pole piece will reduce nonlinear and modulation distortion.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specifications

    Article number
    ER18RNX-8
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    250 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    88.5 dB 2.83V/1m
    Frequency Response
    45 to 3,000 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    22.5 oz.
    DC Resistance (Re)
    5.9 ohms
    Voice Coil Inductance (Le)
    0.67 mH
    Resonant Frequency (Fs)
    37 Hz
    Mechanical Q (Qms)
    1.58
    Electromagnetic Q (Qes)
    0.39
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    14g
    Mechanical Compliance of Suspension (Cms)
    1.3 mm/N
    Compliance Equivalent Volume (Vas)
    1.13 ft.³
    Maximum Linear Excursion (Xmax)
    6 mm
    Overall Outside Diameter
    6.93"
    Overall Depth
    3.28"
    Baffle Cutout Diameter
    5.72"
    Bolt Circle Diameter
    6.54"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
