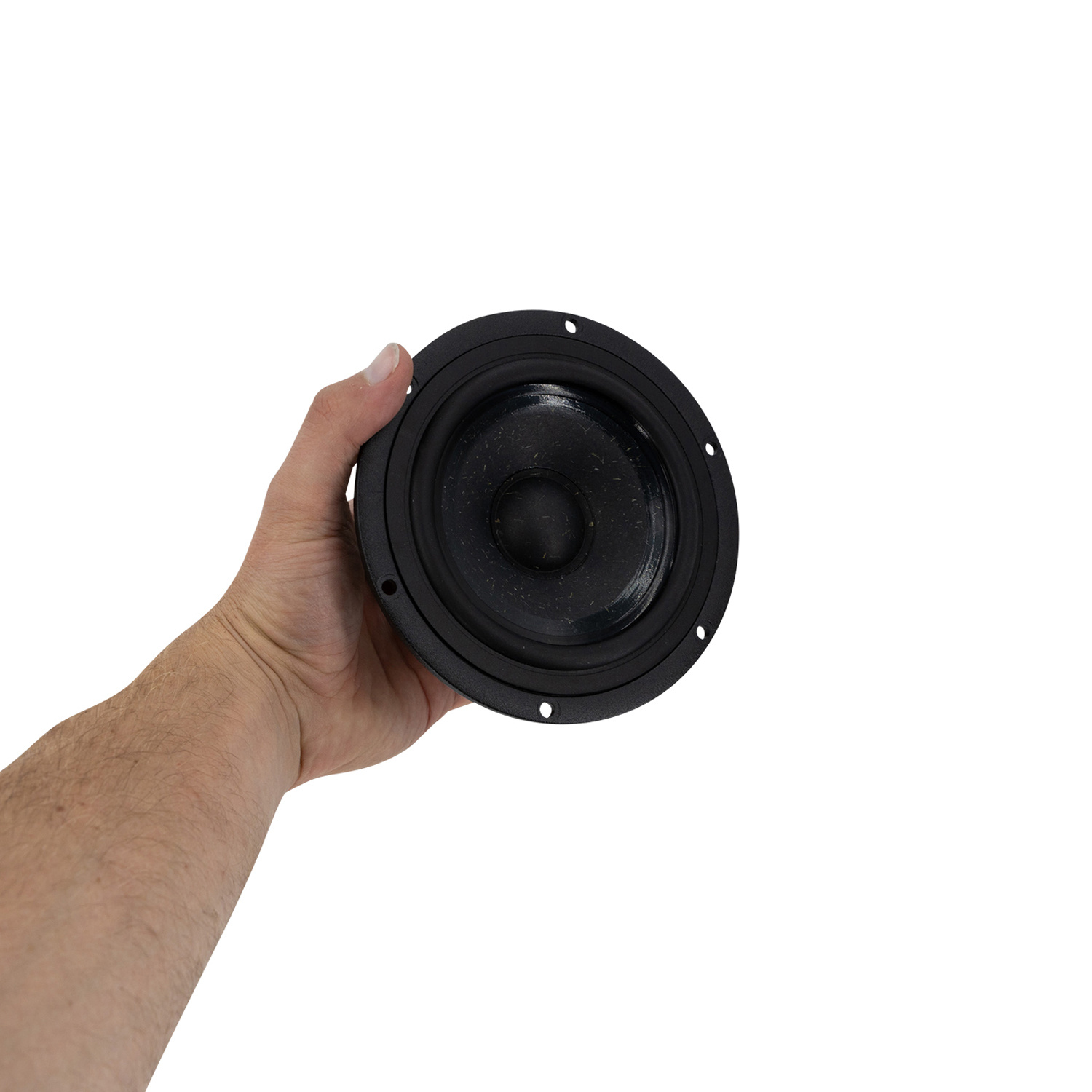

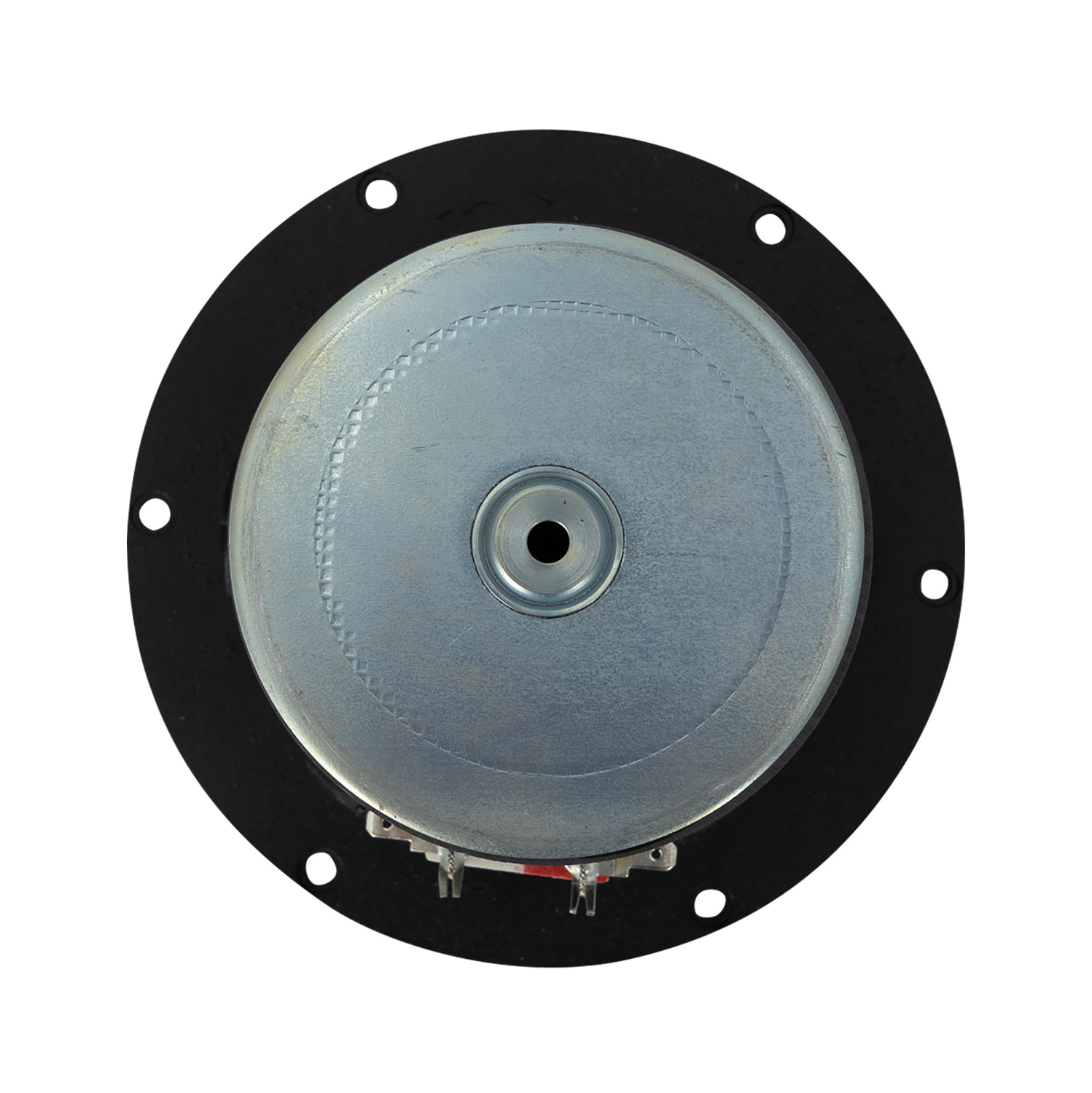

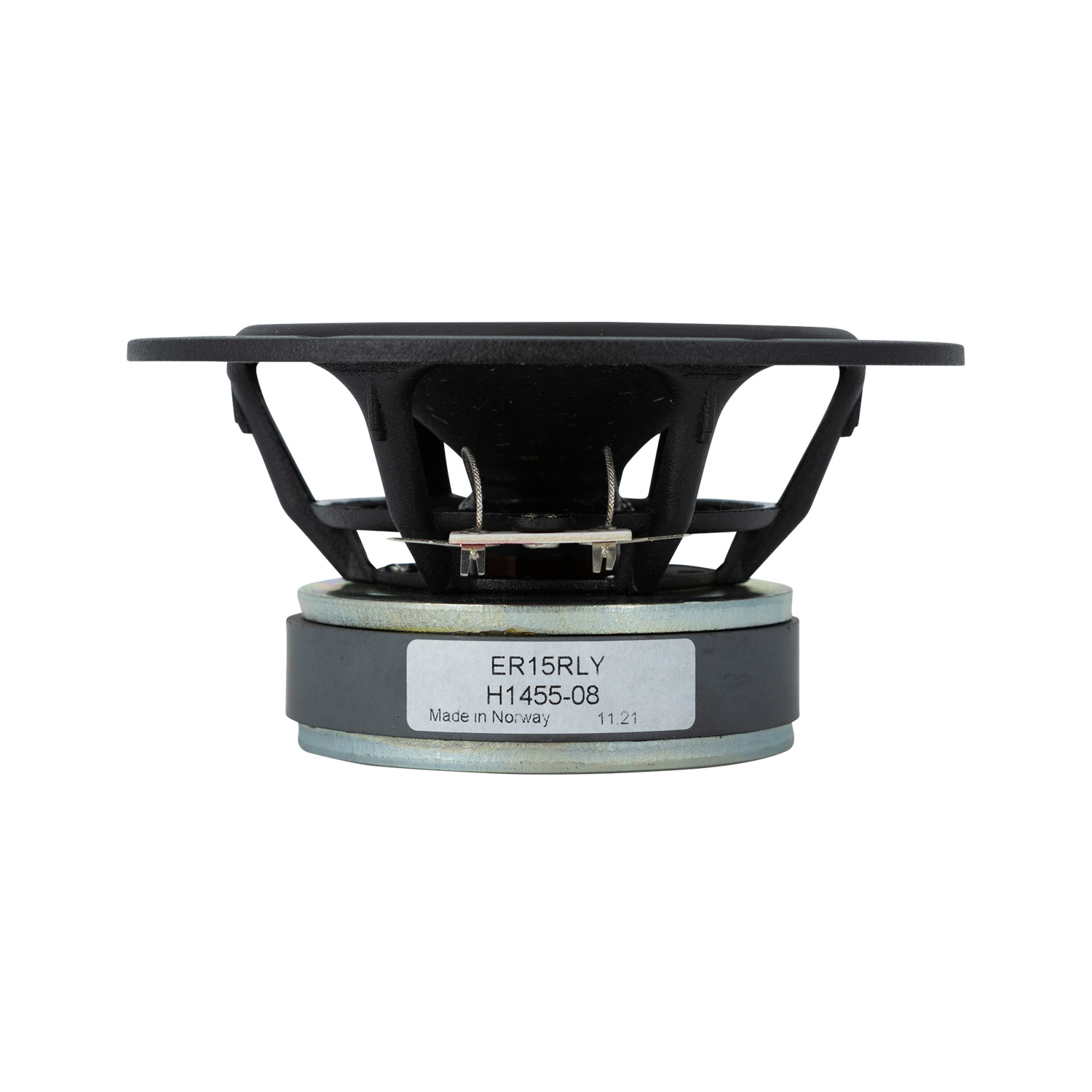

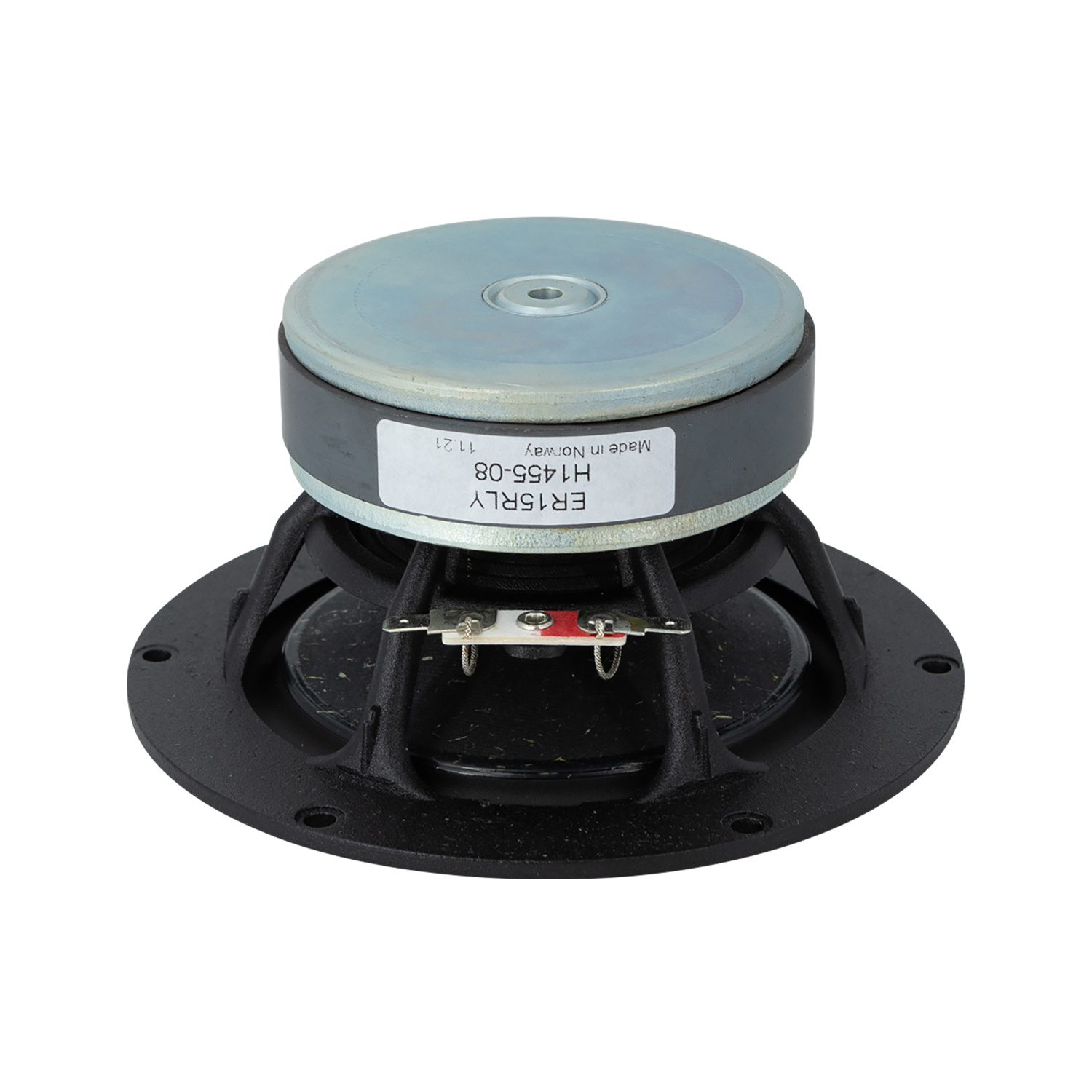

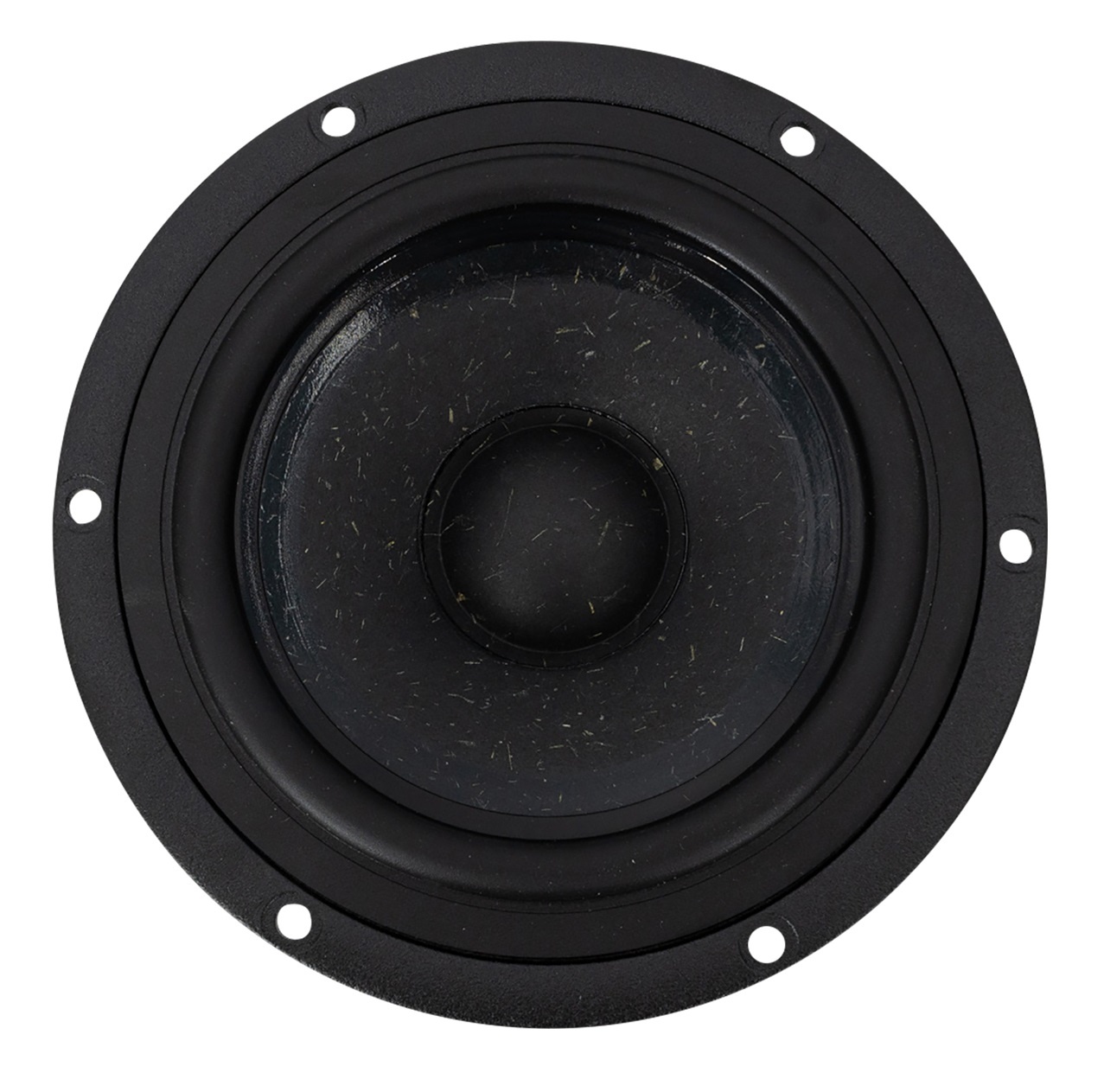

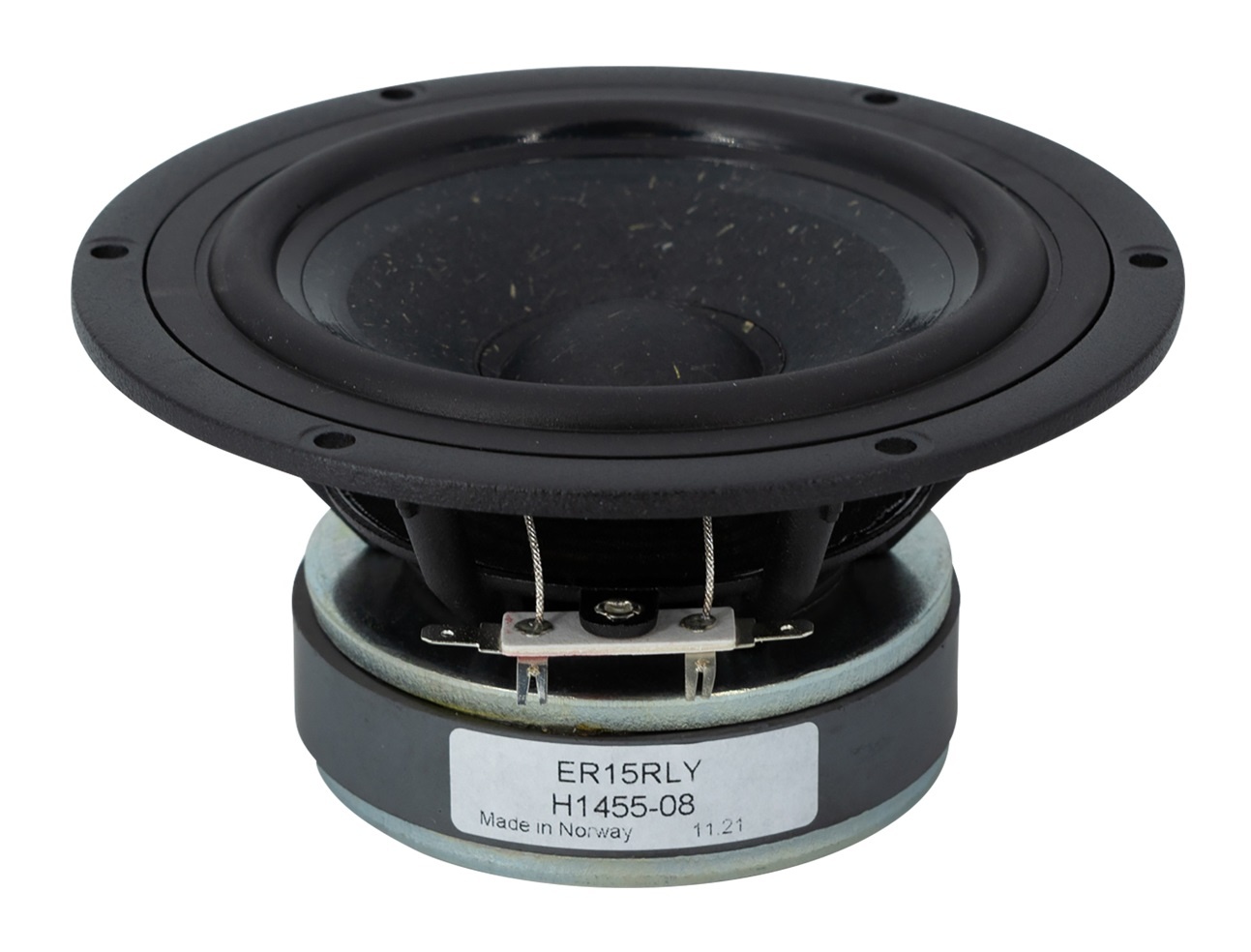

        Prestige ER15RLY - H1455-08 5.5" Reed Paper Cone Woofer

        Prestige ER15RLY - H1455-08 5.5" Reed Paper Cone Woofer

        €109,95

        SEAS Prestige ER15RLY - H1455-08 5.5" Reed Paper Cone Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 90,87€ 109,95 10+ In stock
        • -5% Purchase 4 for only € 104,45 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Developed for use as a long throw high fidelity woofer or woofer/midrange unit
        • Smooth, extended frequency response
        • Good coil excursion with low distortion and good transient response



        Product details

        Seas Prestige ER15RLY - H1455-08 5.5" Reed Paper Cone Woofer



        The ER15RLY is a 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone, together with perfectly matched moving parts gives a smooth, extended frequency response.



        Large magnet system, together with a very long and light weight copper clad aluminum voice coil allow good coil excursion with low distortion and good transient response. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        ER15RLY
        Woofer Series
        Prestige Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5.5"
        Power Handling (RMS)
        60 Watts
        Power Handling (max)
        250 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Frequency Response
        50 to 4,000 Hz
        Voice Coil Diameter
        1"
        Magnet Weight
        14 oz.
        DC Resistance (Re)
        5.6 ohms
        Voice Coil Inductance (Le)
        0.73 mH
        Resonant Frequency (Fs)
        44 Hz
        Mechanical Q (Qms)
        1.55
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.32
        Diaphragm Mass Inc. Airload (Mms)
        7.6g
        Mechanical Compliance of Suspension (Cms)
        1.7 mm/N
        Compliance Equivalent Volume (Vas)
        0.52 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm
        Overall Outside Diameter
        5.75"
        Overall Depth
        2.82"
        Baffle Cutout Diameter
        4.41"
        Bolt Circle Diameter
        5.37"
        # Mounting Holes
        6
        Mounting Hole Diameter
        0.2"

        Show more

        5 of 5
        This is not a speaker It's a miracle.
        It sounds amazing as full range, ok it has not enough high frequencies, but everything comes out from this speaker is wonderfull.
        I bought this speaker by mistake, but now I know I'm a lucky guy.
        I'm going to build a great bookshelf in union with the Audio Note silver tweeter.
        As always Seas proves his value. 10+++++
        By Bruno P. on 16 June 2020
