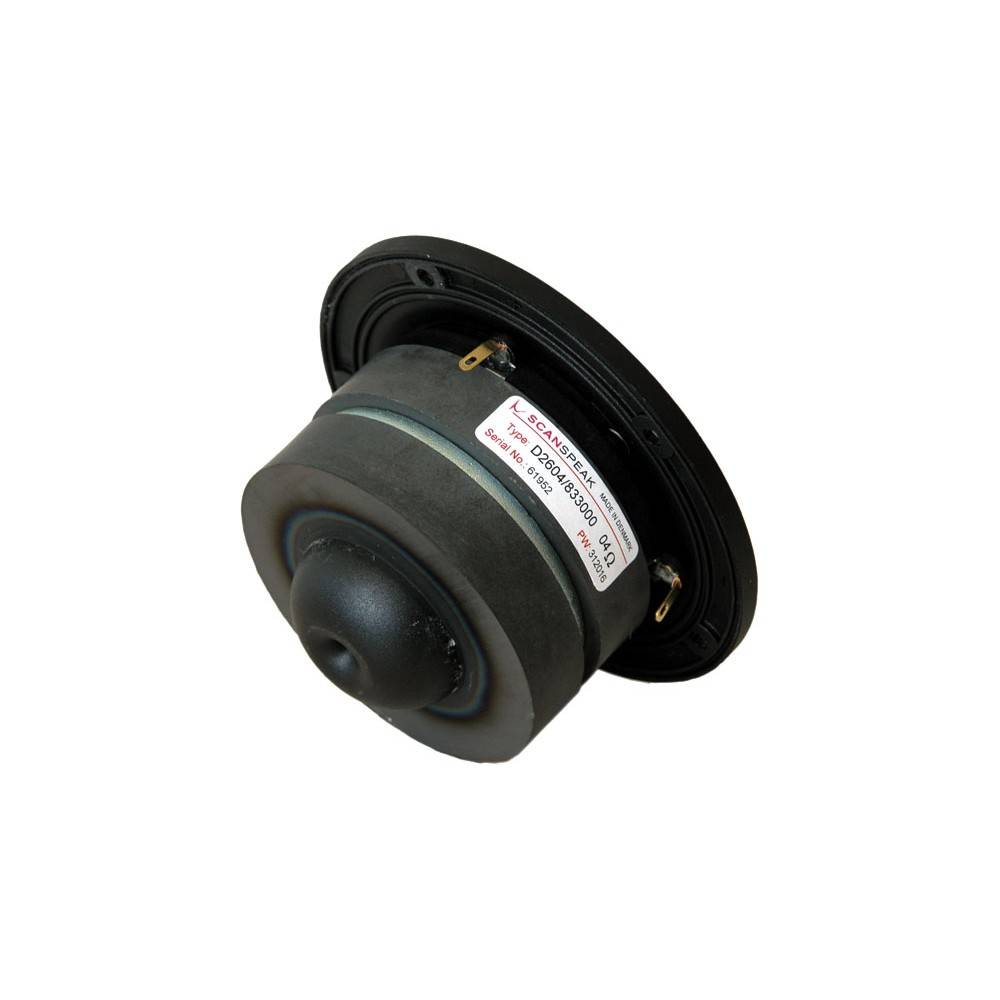

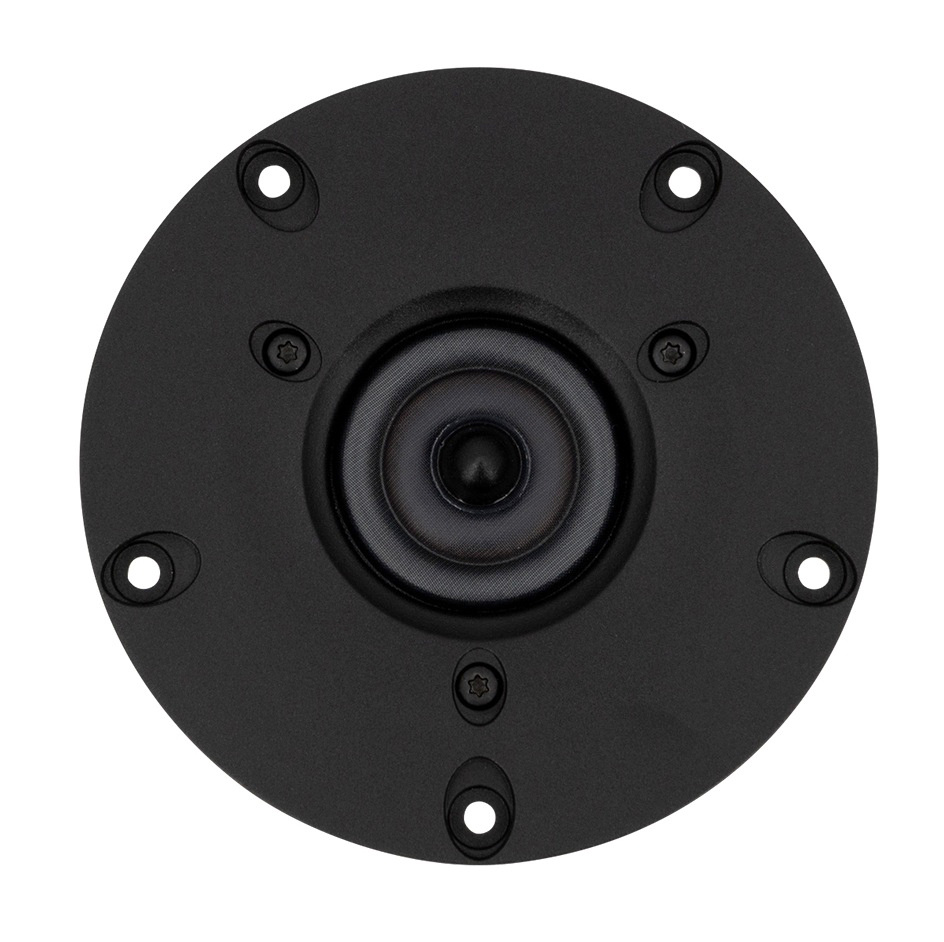

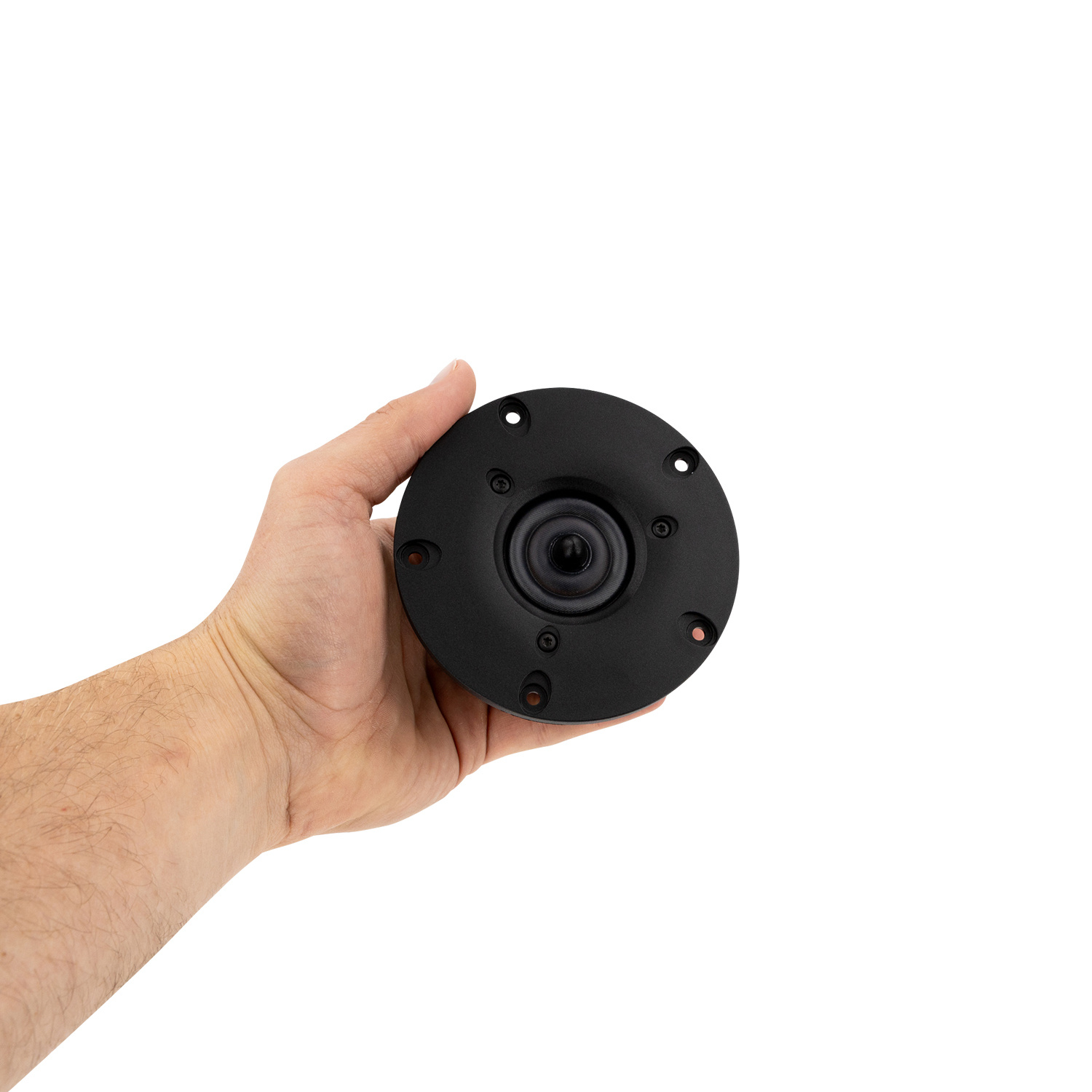

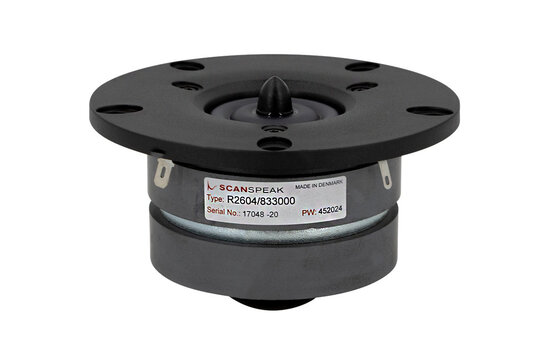

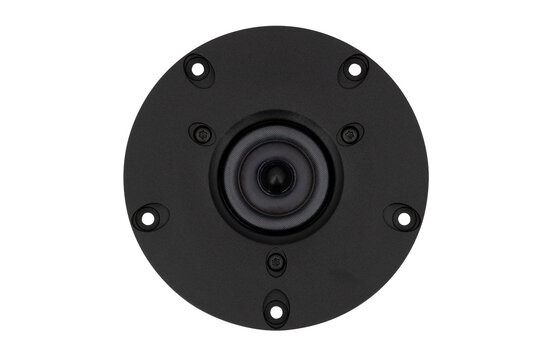

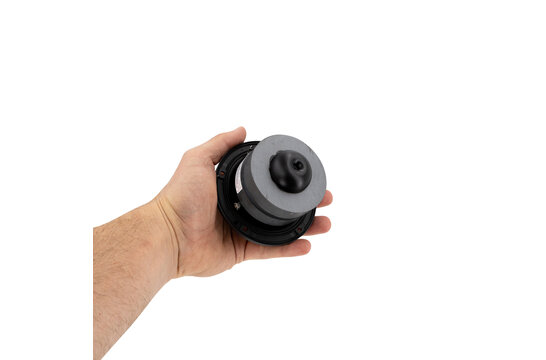

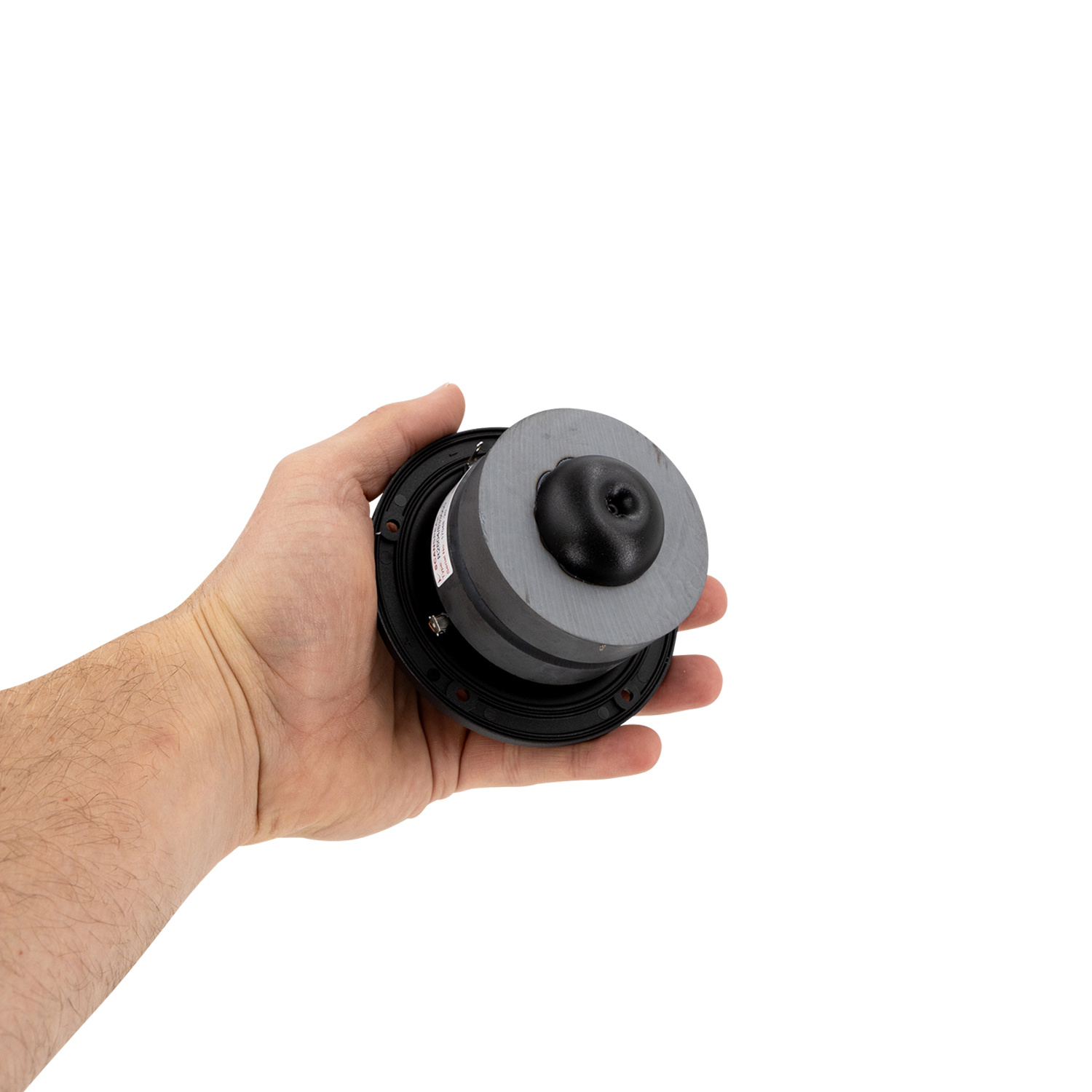

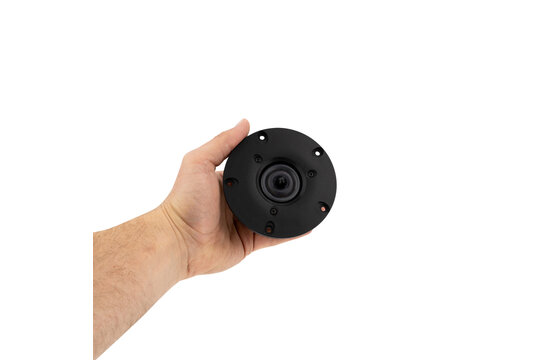

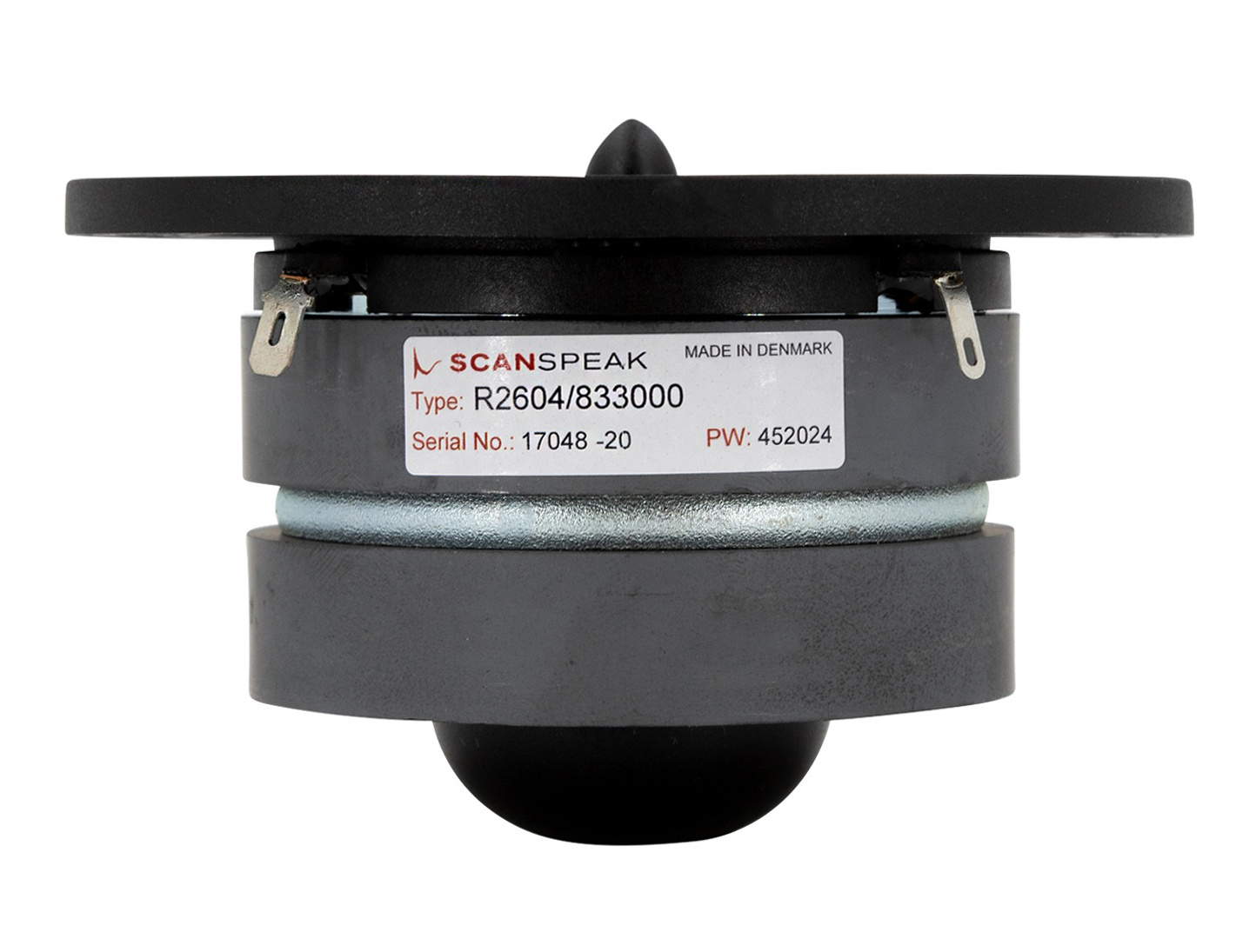

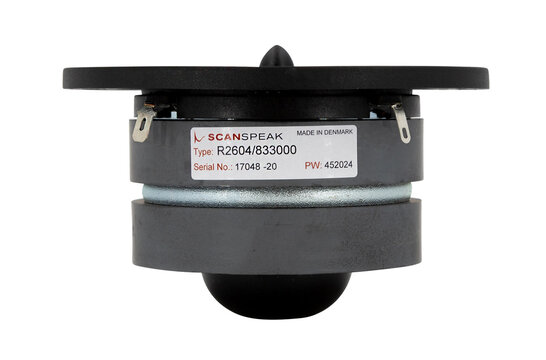

        Discovery R2604/833000 Ring Radiator Tweeter

        Discovery R2604/833000 Ring Radiator Tweeter

        €62,45

        Scan-Speak Discovery R2604/833000 Ring Radiator Tweeter

        4 reviews
        5 from 5
        4 reviews
        5 stars
        75%
        4 stars
        25%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 51,61€ 62,45 10+ In stock
        • -5% Purchase 4 for only € 59,33 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Dual Ring Radiator Diaphragm (Patented)
        • Wave-guide centre plug (Patented)
        • Extended frequency to above 40kHz
        • High Sensitivity - 92dB
        • Low Resonance Frequency - 440Hz
        • Low Distortion
        • Double Magnet
        • Copper Clad Alu-wire



        Product details

        Scan-Speak Discovery R2604/833000 1” Ring Radiator



        The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz.  The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency.   This tweeter is an excellent choice for any high-end home or automotive system.



        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.44 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.4 cm2

        Show more

        Specifications

        Article number
        R2604/833000
        Tweeter Type
        Ring Radiator
        Tweeter Series
        Discovery Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Resonant Frequency (Fs)
        440 Hz
        DC Resistance (Re)
        2.9 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.18
        Electromagnetic Q (Qes)
        0.46
        Total Q (Qts)
        0.38
