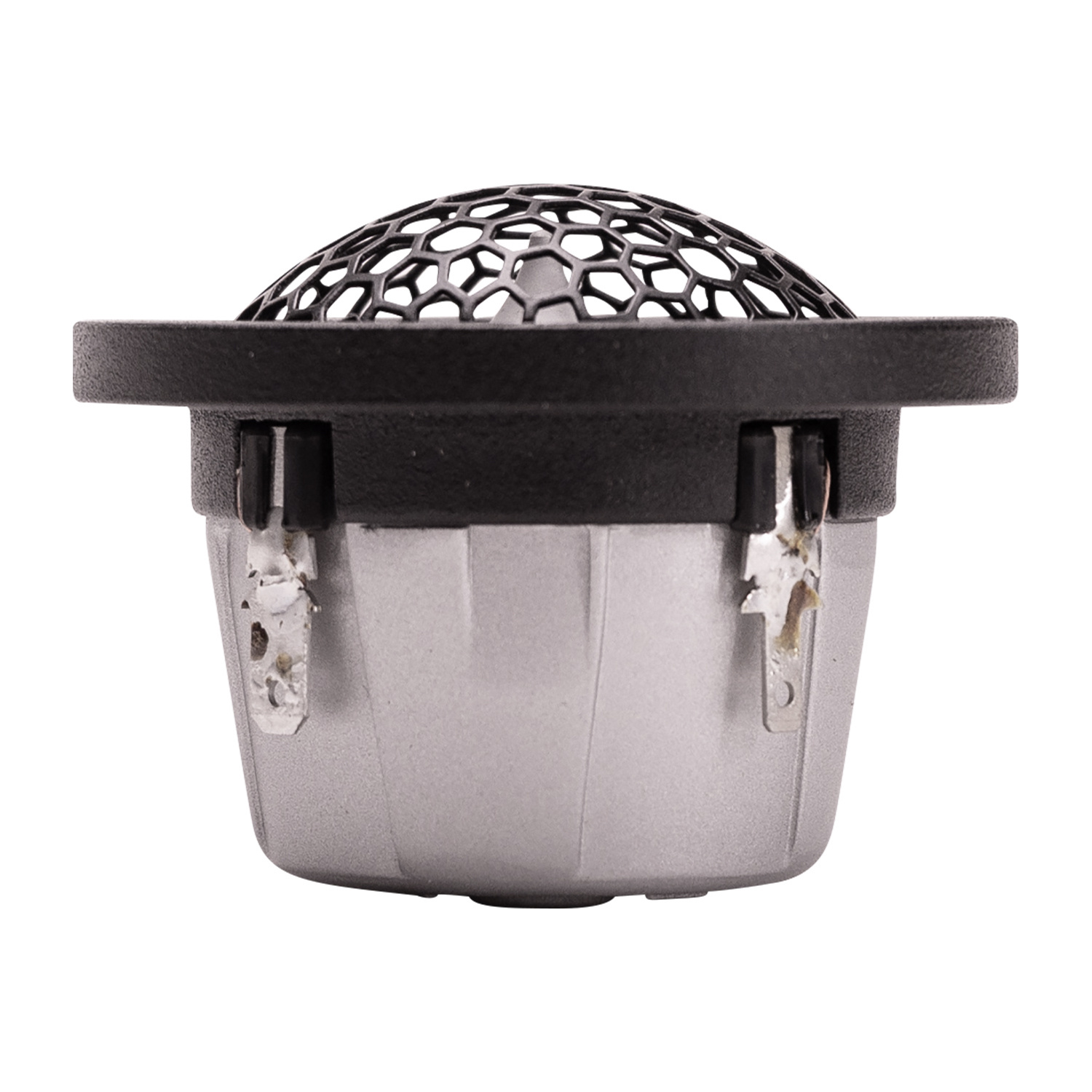

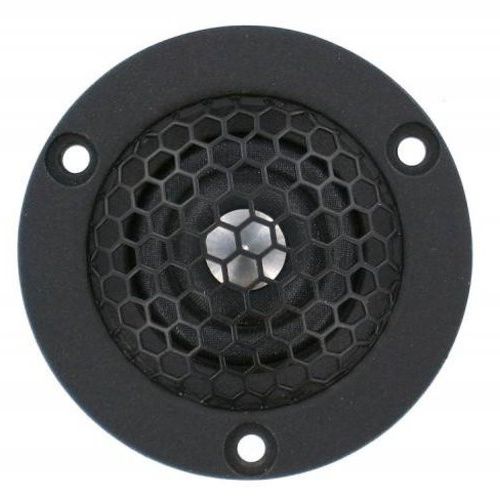

        Illuminator R2004/602000 Ring Radiator Tweeter

        Illuminator R2004/602000 Ring Radiator Tweeter


        Scan-Speak Illuminator R2004/602000 Ring Radiator Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Scan-Speak
        € 136,32€ 164,95 7 In stock
        • -5% Purchase 4 for only € 156,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description


        • 3/4" Soft Ring Dome
        • Ring Neodymium Magnet
        • Aluminum Face Plate and Housing
        • Patented Symmetrical Drive (SD-2) motor
        • Patented Phase Plug Design
        • Sound Transparent Protective Grill
        • Shallow Non Resonant Alu Rear Chamber
        • 5mm (2.18") diameter flange with 29.3mm (1.15") depth
        • Excellent choice for both home hi-fi and autosound applications


        Product details

        Scan-Speak Illuminator R2004/602000 3/4" Ring Radiator


        The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

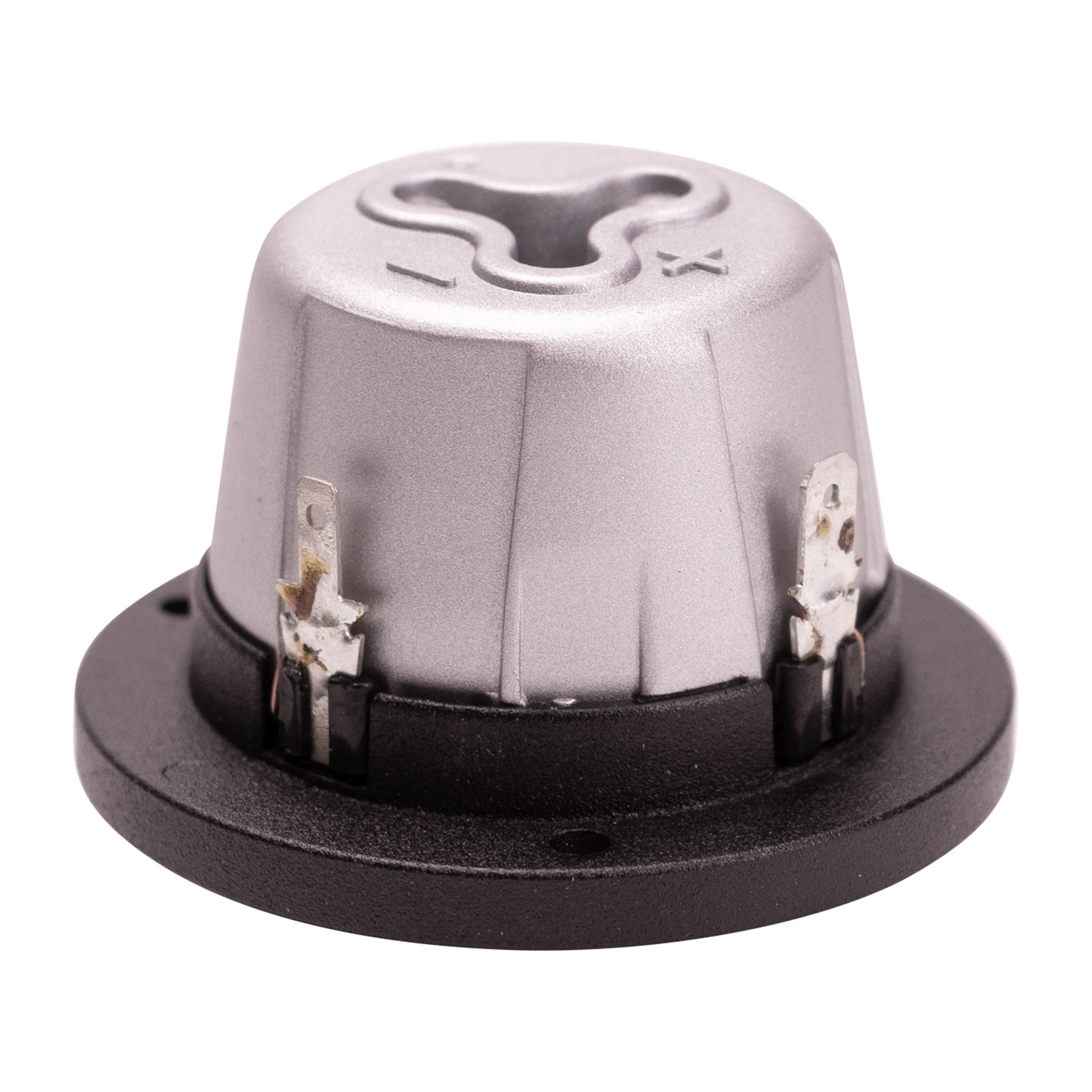

        The R2004/602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.


        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.3 Tm • Mechanical Compliance of Suspension (Cms): 0.25 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.22 g • Maximum Linear Excursion (Xmax): 0.4 mm • Surface Area of Cone (Sd): 3.8 cm2

        Show more


        Article number
        Tweeter Type
        Ring Radiator
        Tweeter Series
        Illuminator Series
        Cone / Dome Diameter
        19 mm | 3/4"
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Resonant Frequency (Fs)
        675 Hz
        DC Resistance (Re)
        2.8 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)

        Show more

        5 of 5
        de tweeter is er één die er met kop en schouders bovenuit spring ,ik heb deze tweeter bijgeplaatst in de B&O Beolab penta omdat ik het hoog iets te krap vind de tweeter heb ik rechtstreeks op de versterker aangesloten met een 10 úf condenstor er tussen ,en dat is zeker een heel goede aanvulling ,met vriendelijk groet johan
        By johan c. on 6 June 2020
