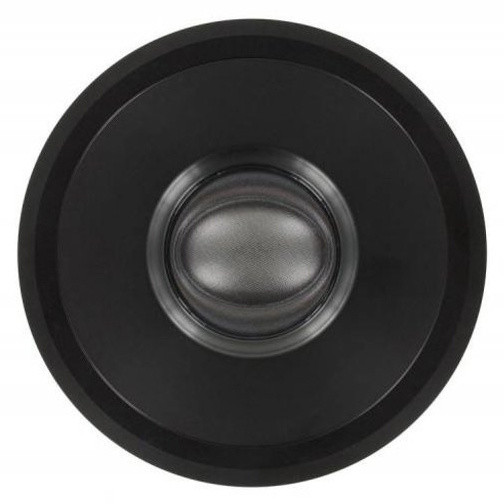

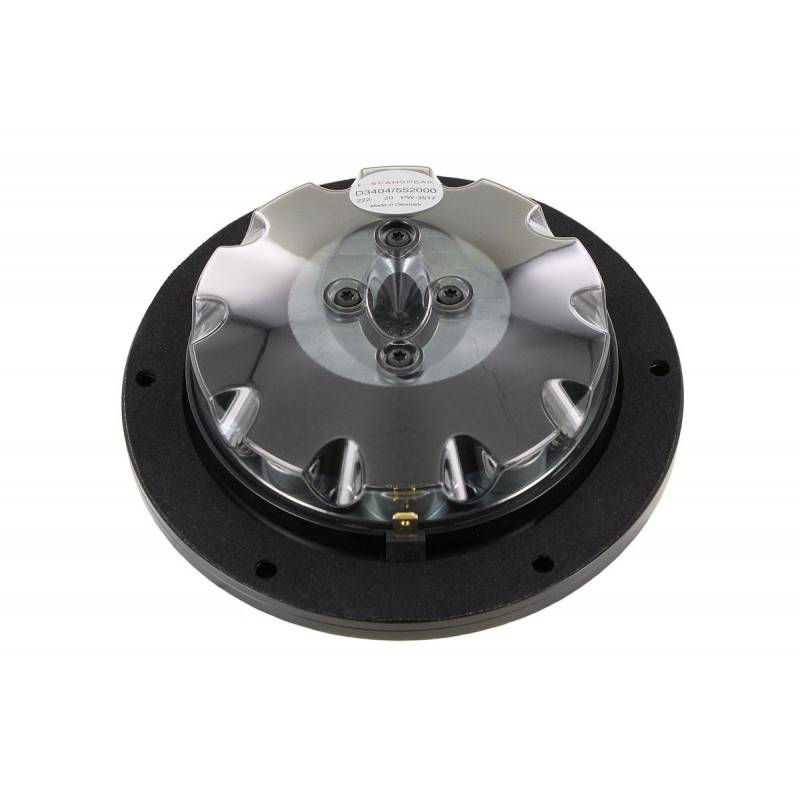

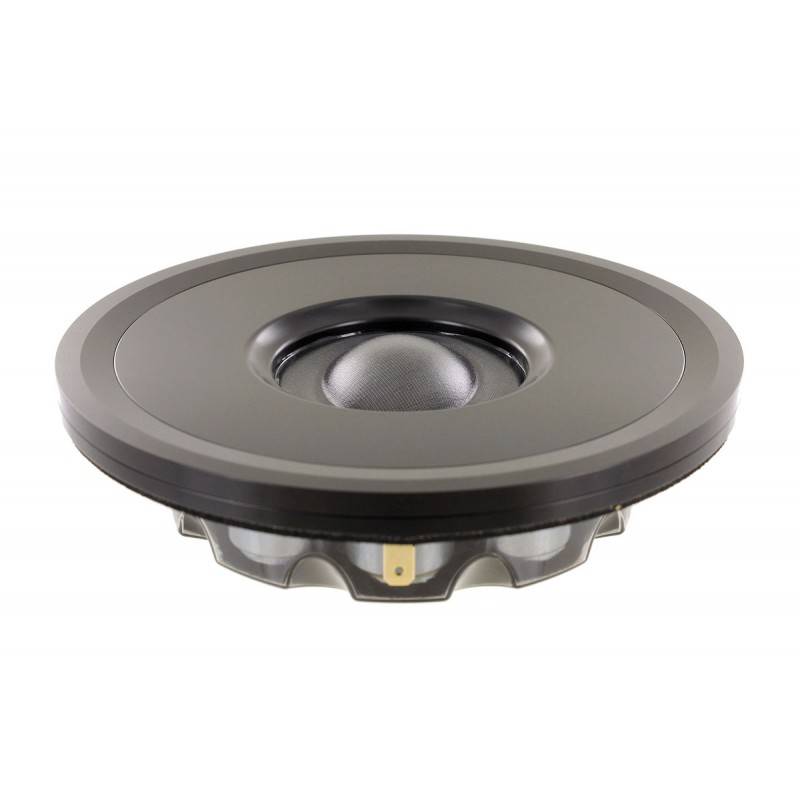

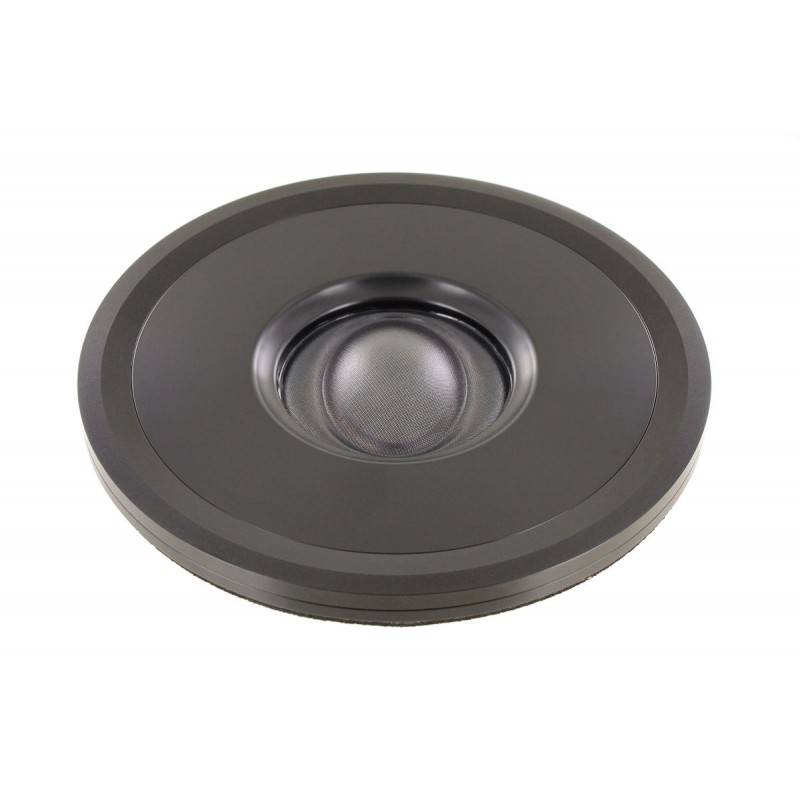

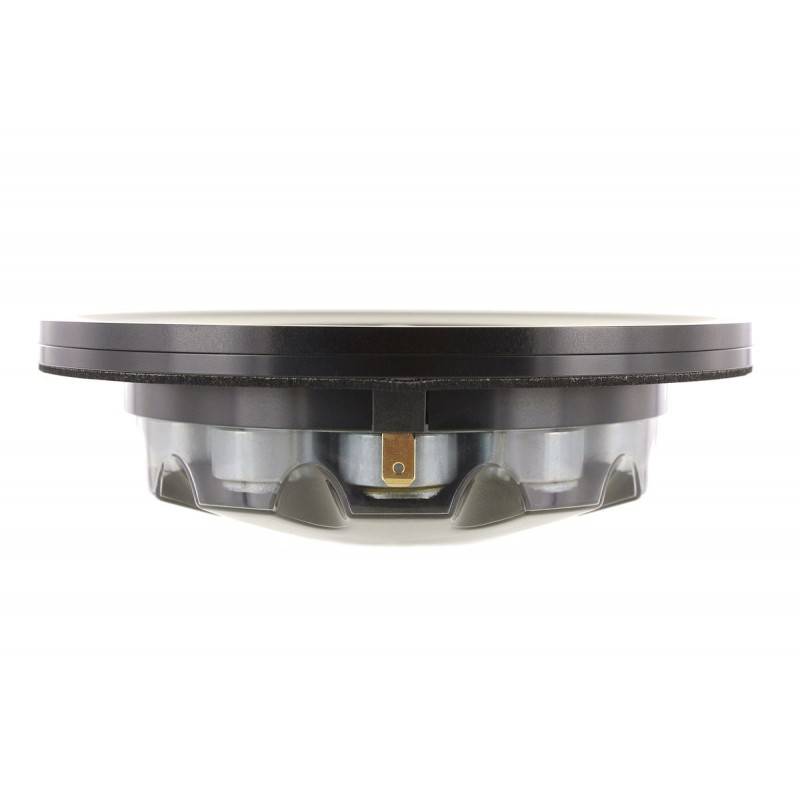

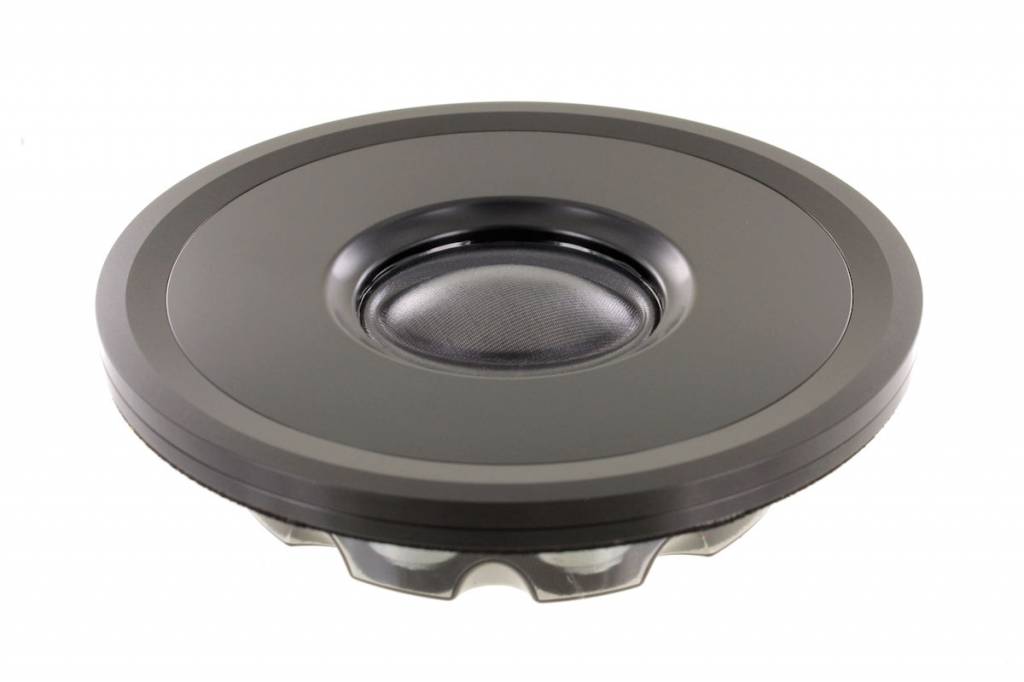

        Ellipticor D3404/552000 Dome Tweeter

        Ellipticor D3404/552000 Dome Tweeter

        €699,95

        Scan-Speak Ellipticor D3404/552000 Dome Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 578,47€ 699,95 4 In stock
        • -5% Purchase 4 for only € 664,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Elliptic voice coil
        • Low mechanical losses
        • High sensitivity (SPL)
        • AirCirc optimized magnet system
        • Unusually low distortion
        • Flexible optics with replaceable decor ring



        Product details

        Scan-Speak Ellipticor D3404/552000 1.5" Dome Tweeter



        With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D3404 has high sensitivity, very low distortion, and has an extremely fast response to transients.



        Above all a TRUE TO LIVE sound which makes D3404/552000 one of the very best tweeters on the market!



        Specifications: Compliance Equivalent Volume (Vas): 0.001 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.20 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.57g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 11.4 cm2

        Show more

        Specifications

        Article number
        D3404/552000
        Tweeter Type
        Dome
        Tweeter Series
        Ellipticor Series
        Cone / Dome Diameter
        38 mm | 1.5"
        Power Handling (RMS)
        180 Watts
        Power Handling (max)
        300 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        97 dB
        Resonant Frequency (Fs)
        475 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        5.25
        Electromagnetic Q (Qes)
        0.63
        Total Q (Qts)
        0.57

        Show more
