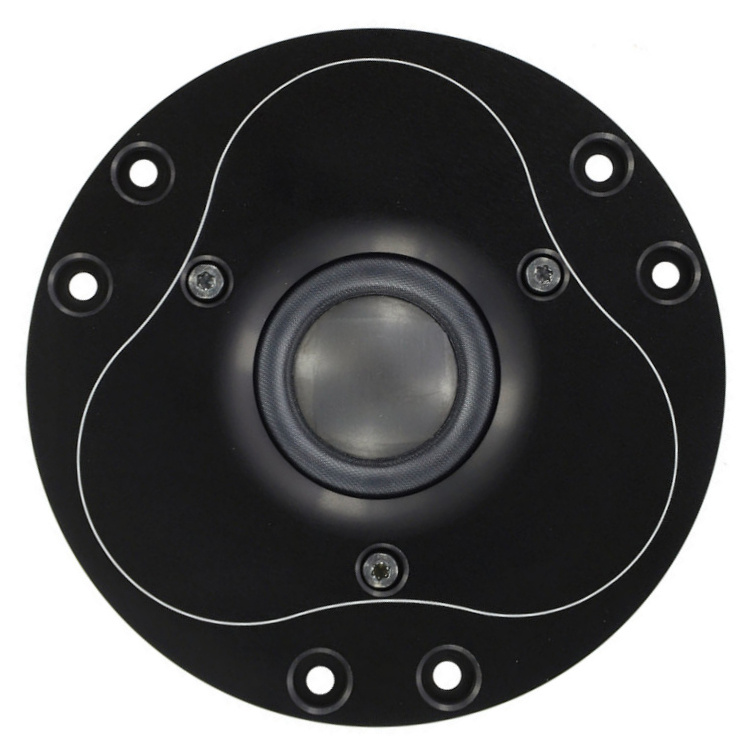

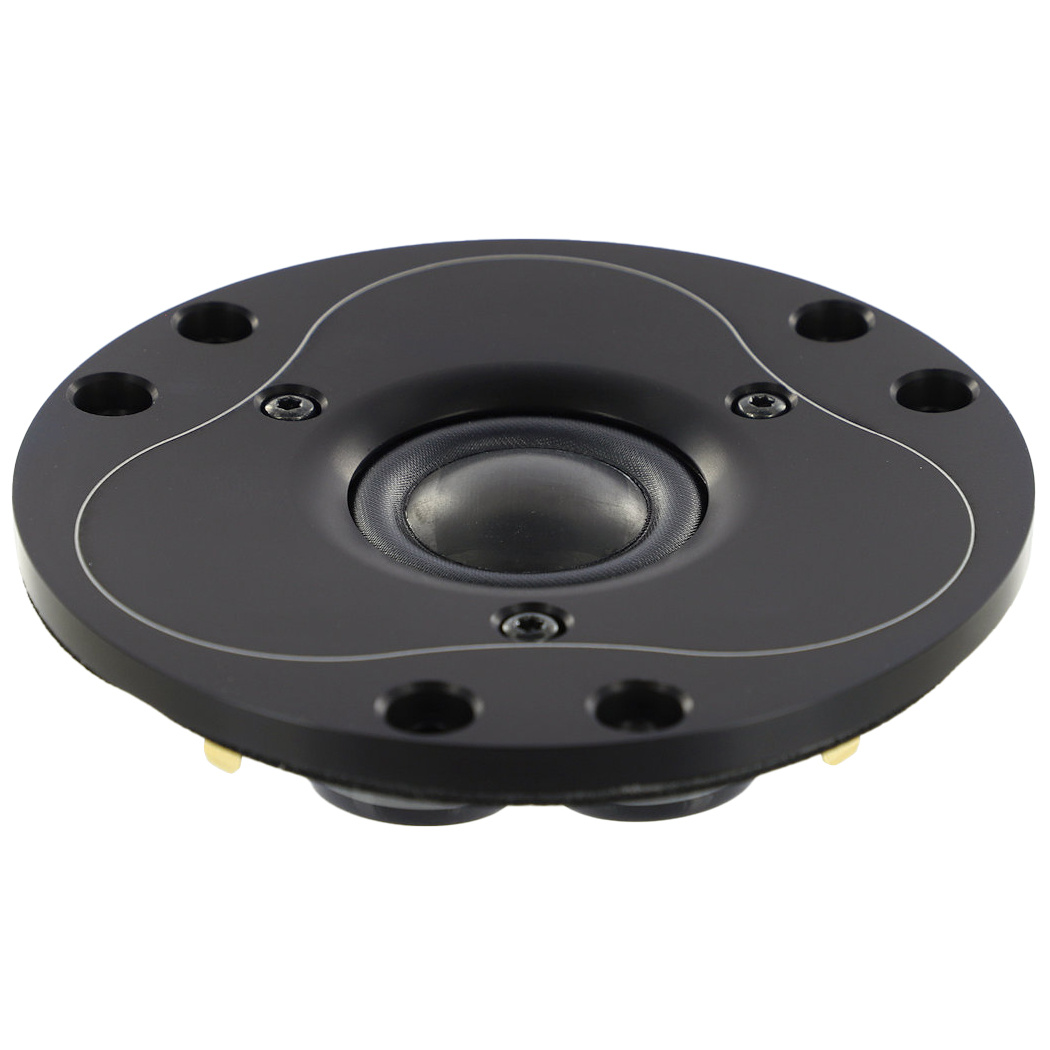

        Illuminator D3004/666000 Dome Tweeter

        Scan-Speak Illuminator D3004/666000 Dome Tweeter

        €449,95

        5 In stock10+ expected on 23-10-2026

        Add to cart

        Scan-Speak Illuminator D3004/666000 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Dome tweeter
        1" | 4 Ω
        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter
        € 371,86€ 449,95 5 In stock10+ expected on 23-10-2026
        • -5% Purchase 4 for only € 427,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter
        Illuminator D3004/666000 Dome Tweeter

        Product description Scan-Speak Illuminator D3004/666000 Dome Tweeter

        Audiophiles seeking pristine sound reproduction will appreciate the Scan-Speak Illuminator D3004/666000 dome tweeter. This high-end tweeter goes beyond replicating audible frequencies, reaching above 40 kHz to capture the subtle nuances of your music. This translates to a crisp and airy presence in the high notes, adding detail and a touch of brilliance.



        Highlights of the Scan-Speak Illuminator D3004/666000

        • Superb Vocal Rendition and Imaging: This tweeter is known for its ability to deliver clear and accurate vocals, along with excellent stereo imaging, ensuring a wide and realistic soundstage.
        • Extended Frequency Response: It boasts a frequency response that reaches above 40 kHz, exceeding the range of human hearing. This translates to a crisp and detailed reproduction of high frequencies, adding air and sparkle to your music.
        • Outstanding Off-Axis Dispersion: The tweeter design ensures that the sound remains consistent even when you're not sitting directly in front of it. This creates a more immersive listening experience for everyone in the room.
        • Large Roll Surround and Textile Dome Diaphragm: These construction elements contribute to the tweeter's smooth frequency response and low distortion, resulting in a clean and accurate sound.



        Product details Scan-Speak Illuminator D3004/666000

        Scan-Speak Illuminator D3004/666000 Dome Tweeter


        Beyond its extended frequency response, the Illuminator D3004/666000 excels in both clarity and dispersion. Its design ensures accurate vocal renditions and a wide, realistic stereo image. Listeners will experience a detailed soundscape no matter their position in the room, thanks to the tweeter's outstanding off-axis dispersion. This is achieved through a large roll surround and a textile dome diaphragm, both contributing to the tweeter's smooth response and minimal distortion.



        The Scan-Speak Illuminator D3004/666000 is a prime choice for audio systems prioritizing exceptional sound quality. Its ability to deliver clear highs, detailed imaging, and a spacious soundscape makes it a perfect upgrade for discerning listeners.

        Show more

        Specifications

        Article number
        D3004/666000
        Tweeter Type
        Dome
        Tweeter Series
        Illuminator
        Cone / Dome Diameter
        26 mm
        Power Handling (RMS)
        90 Watts
        Power Handling (max)
        150 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        91.5 dB
        Frequency Response
        2.500 - 40.000 Hz
        Resonant Frequency (Fs)
        500 Hz
        DC Resistance (Re)
        3 Ohm
        Voice Coil Inductance (Le)
        0.03 mH
        Mechanical Q (Qms)
        3.79
        Electromagnetic Q (Qes)
        0.62
        Total Q (Qts)
        0.54
        Overall Outside Diameter
        104 mm
        Cutout Diameter
        73.2 mm
        Depth
        28 mm

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        I hesitated a lot between tpcd and beryllium, but I don't regret staying with tpcd. Clean, transparent, light and extremely neutral. It reveals every little thing of the crossover and is especially revealing when replacing small parts. Therefore, the tuning process is longer than I had planned.
        By László on 3 June 2026
        5 of 5
        Natural, clear and pure vocal & instruments. Not harsh. Better than Beryllium.
        By Thet on 4 September 2025
