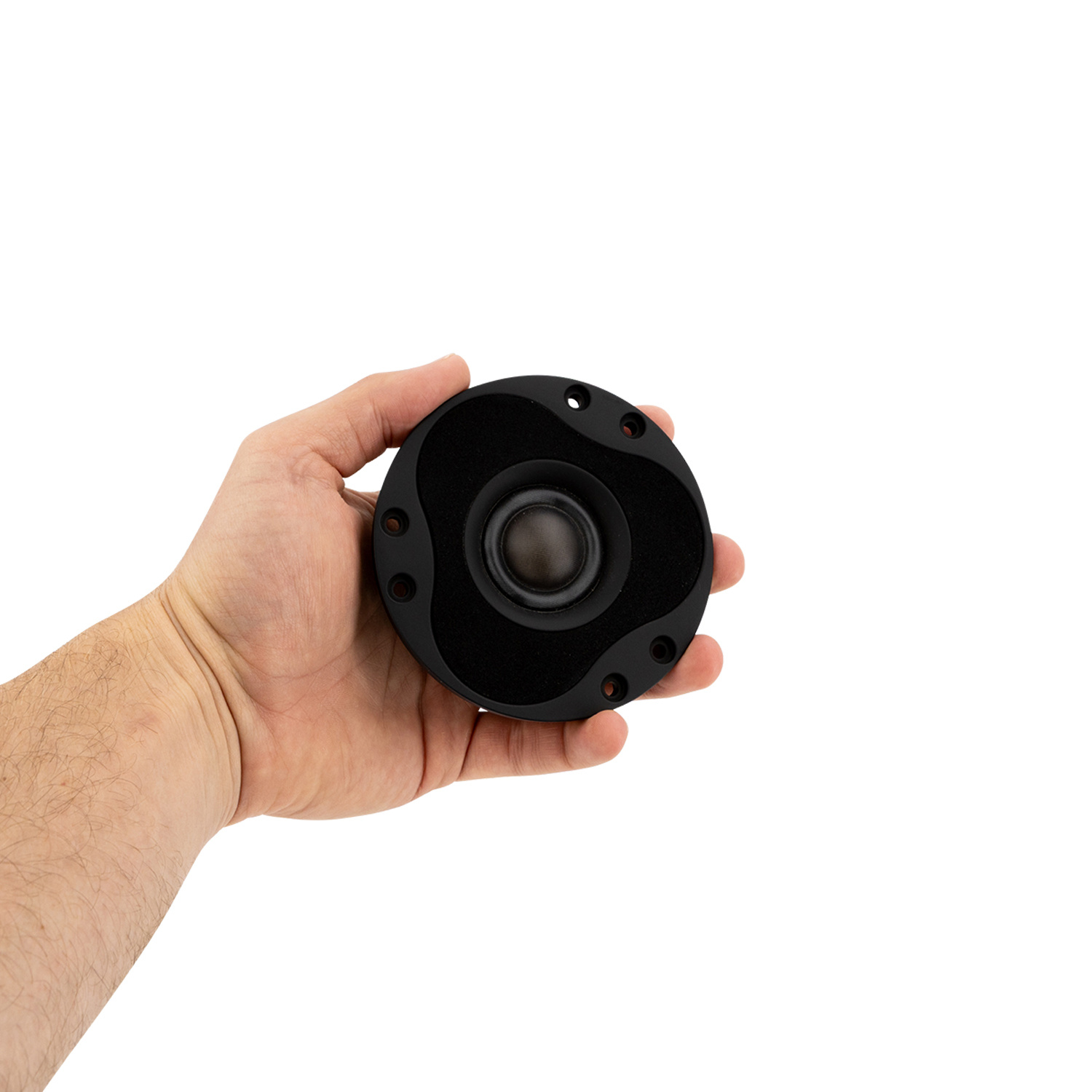

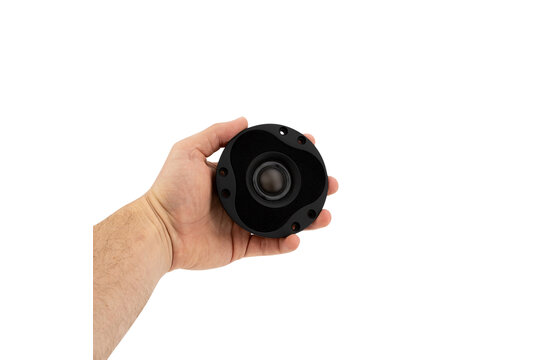

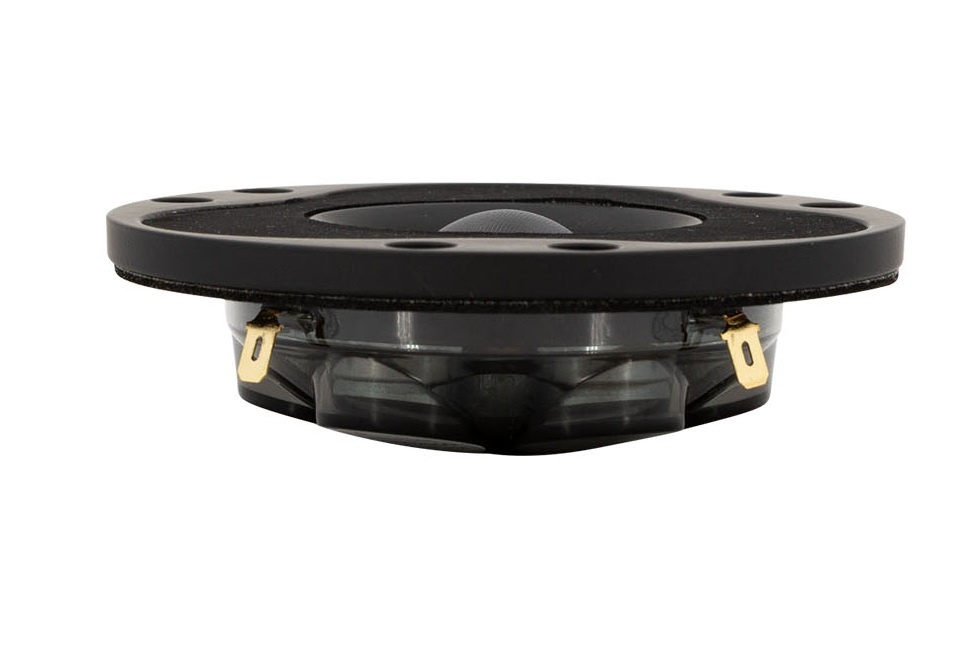

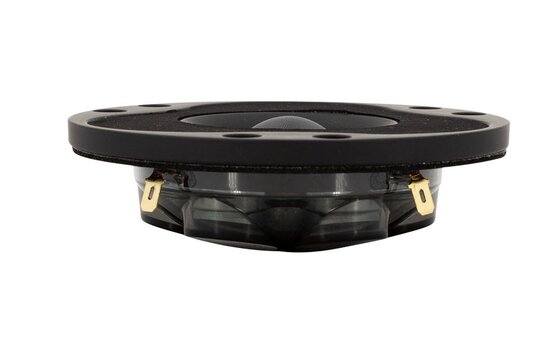

      Scan-Speak Illuminator D3004/662000 1" Textile Dome Tweeter

      € 198,31€ 239,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 227,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • 1" Textile Dome Diaphragm
      • Magnet System w. Alu Ring
      • Diffraction Damping Rubber Front
      • Large Roll Surround f. Wide Dispersion

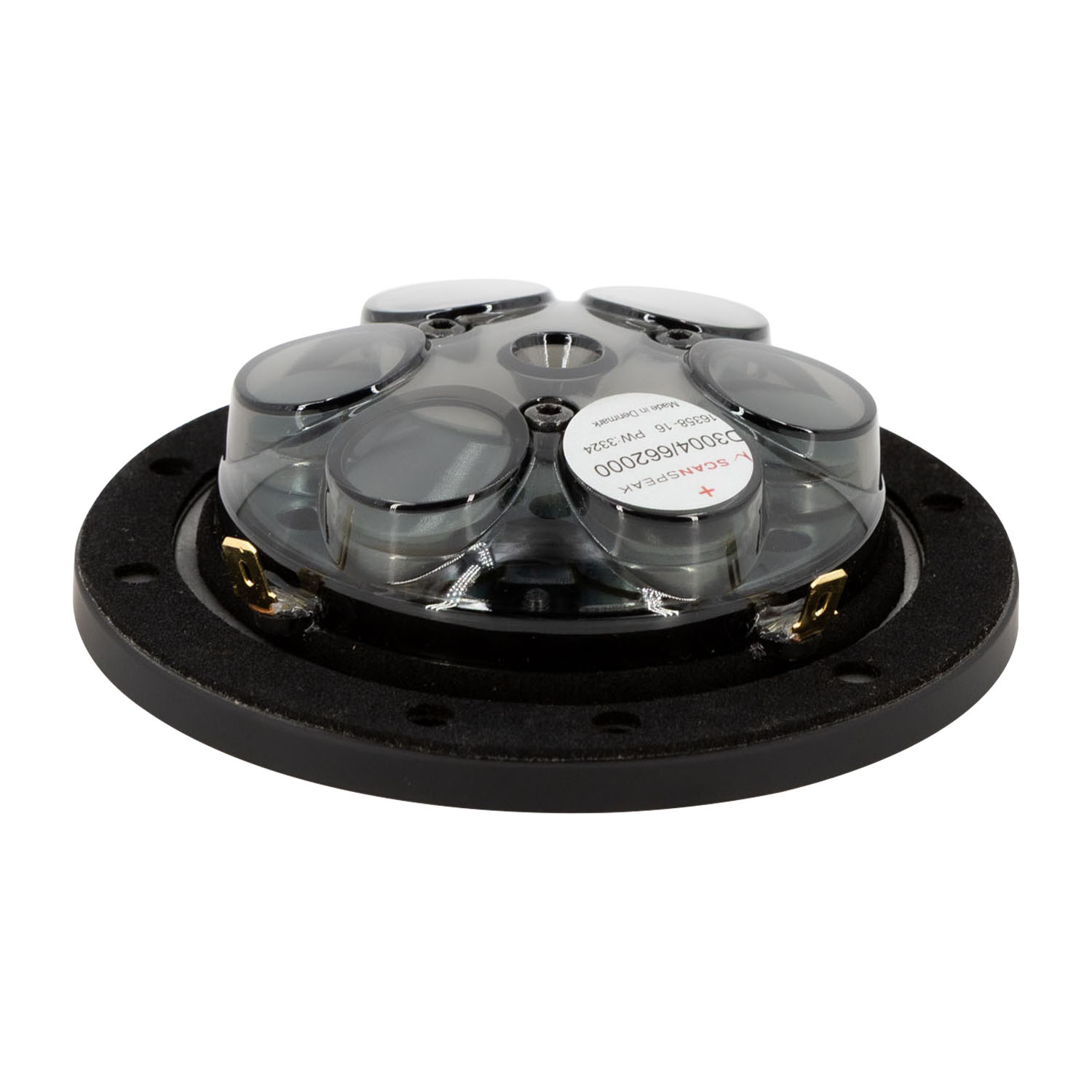

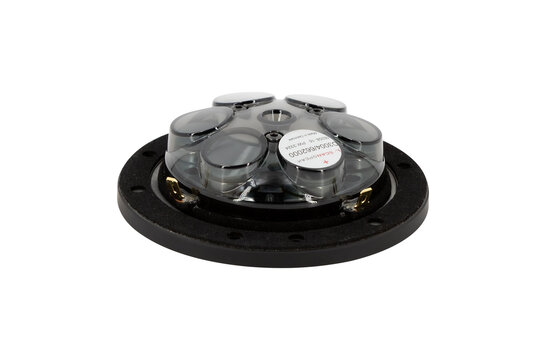

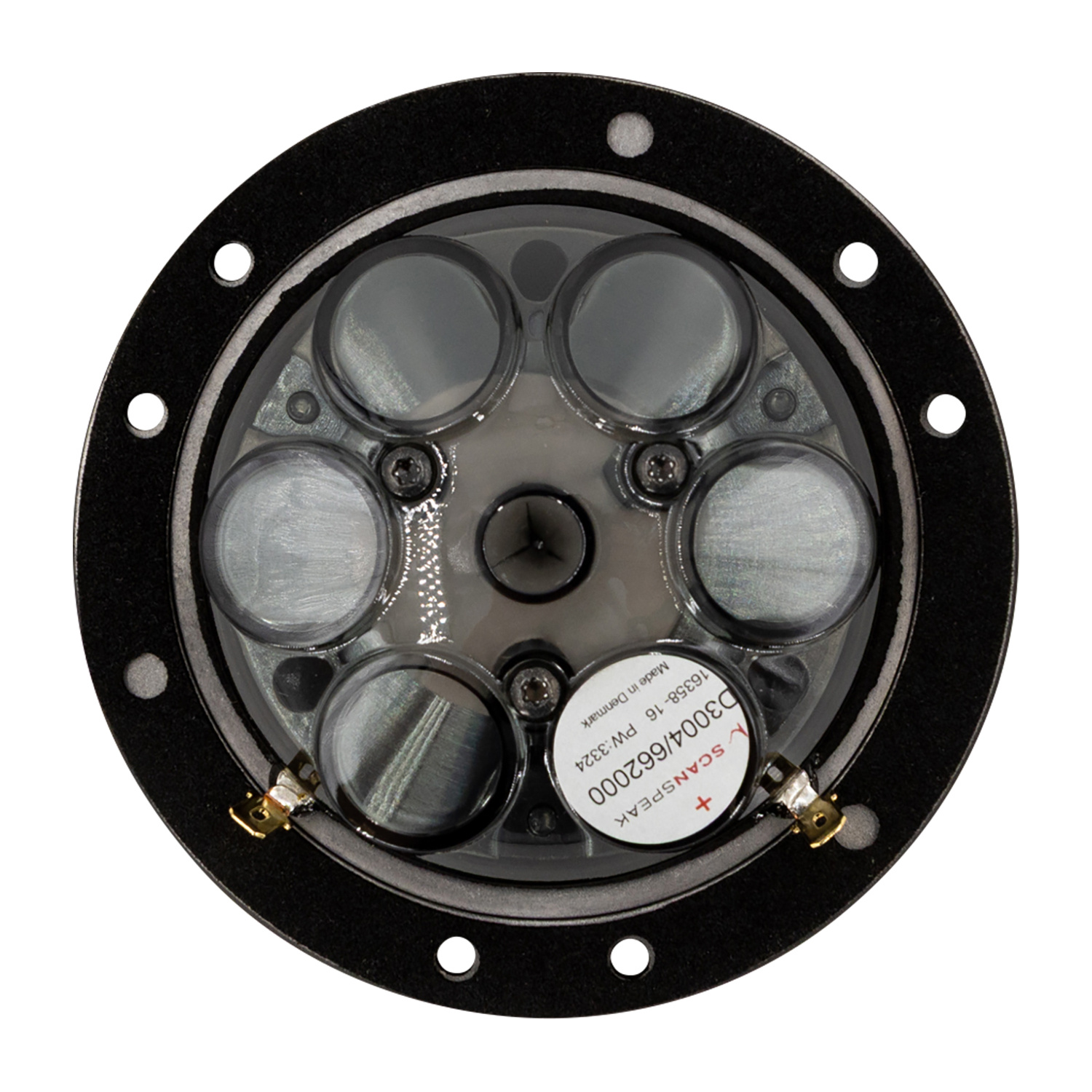

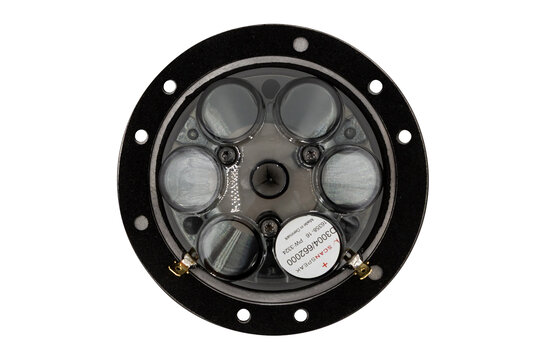

      • AirCirc Motor Design w. 6 Neo magnets

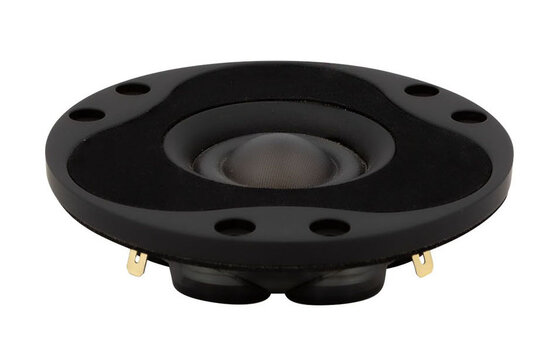

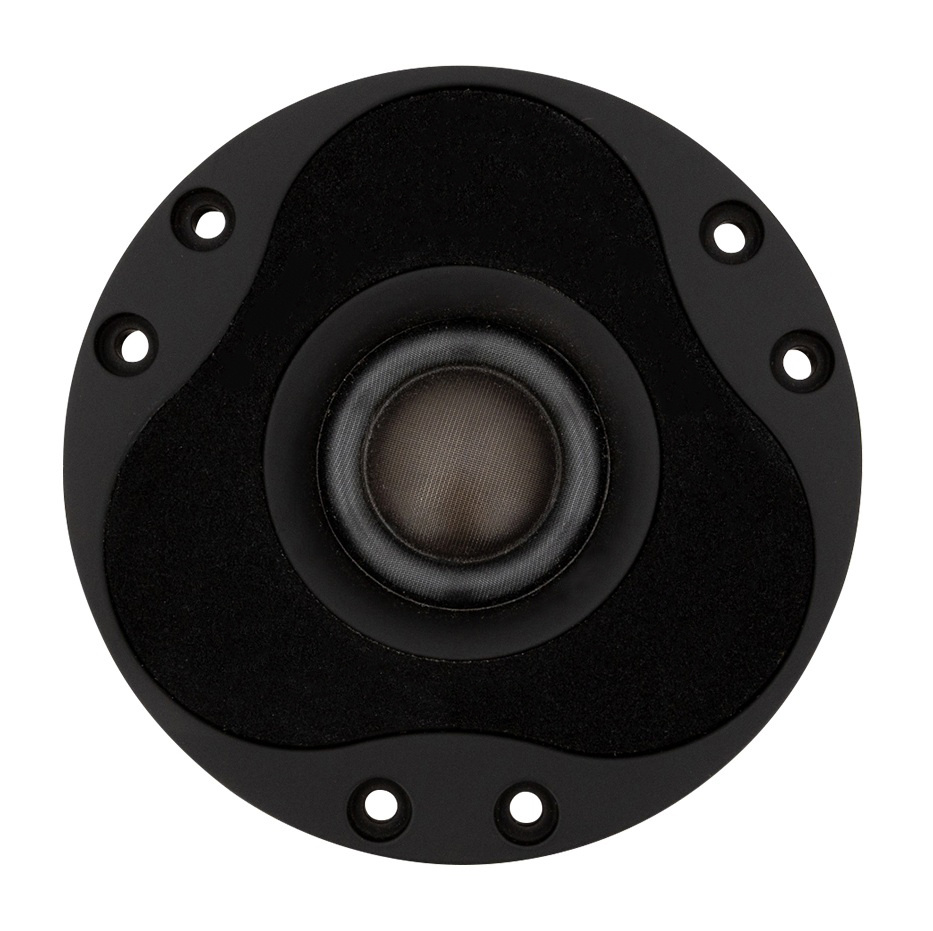

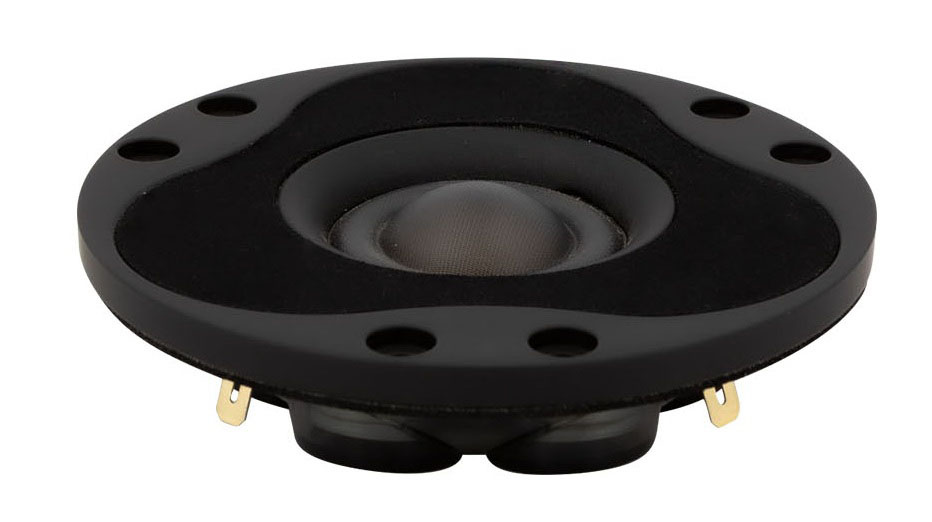

      • Die Cast Rubber Painted Alu Face Plate



      Product details

      Scan-Speak Illuminator D3004/662000 1" Textile Dome Tweeter



      The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.



      Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.29 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2

      Specifications

      Article number
      D3004/662000
      Tweeter Type
      Dome
      Tweeter Series
      Illuminator Series
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      90 Watts
      Power Handling (max)
      150 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      91.5 dB 2.83V/1m
      Resonant Frequency (Fs)
      500 Hz
      DC Resistance (Re)
      3 ohms
      Voice Coil Inductance (Le)
      0.03 mH
      Mechanical Q (Qms)
      3.79
      Electromagnetic Q (Qes)
      0.62
      Total Q (Qts)
      0.54
