        Illuminator D3004/660000 Dome Tweeter

        Illuminator D3004/660000 Dome Tweeter


        Scan-Speak Illuminator D3004/660000 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Scan-Speak
        € 173,51€ 209,95 Out of stock10 expected on 05-07-2024
        • -5% Purchase 4 for only € 199,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description


        • 1" Textile Dome Diaphragm
        • Patented Symmetrical Drive (SD-2) motor
        • Die Cast Rubber Painted Alu Face Plate
        • Large Roll Surround for Wide Dispersion

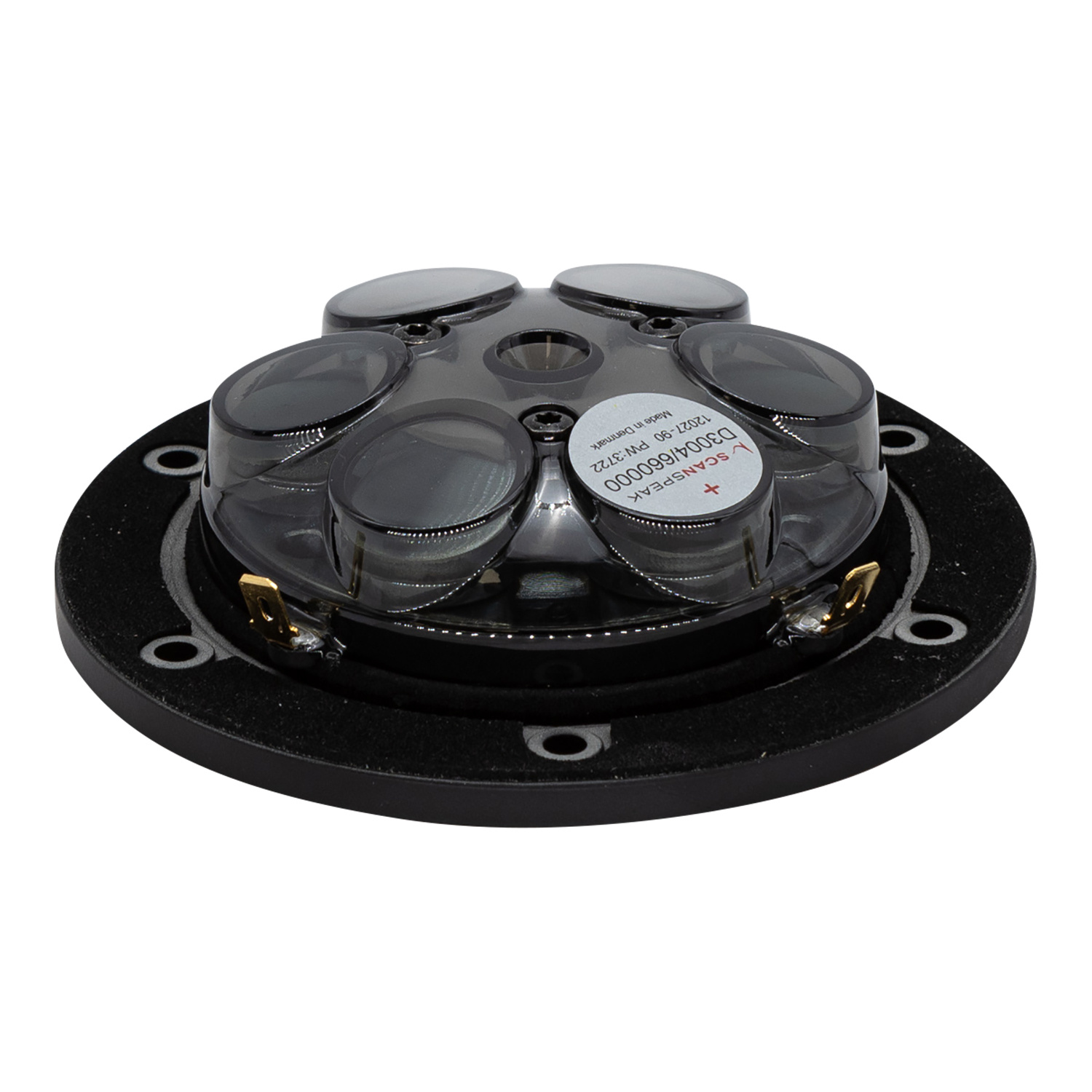

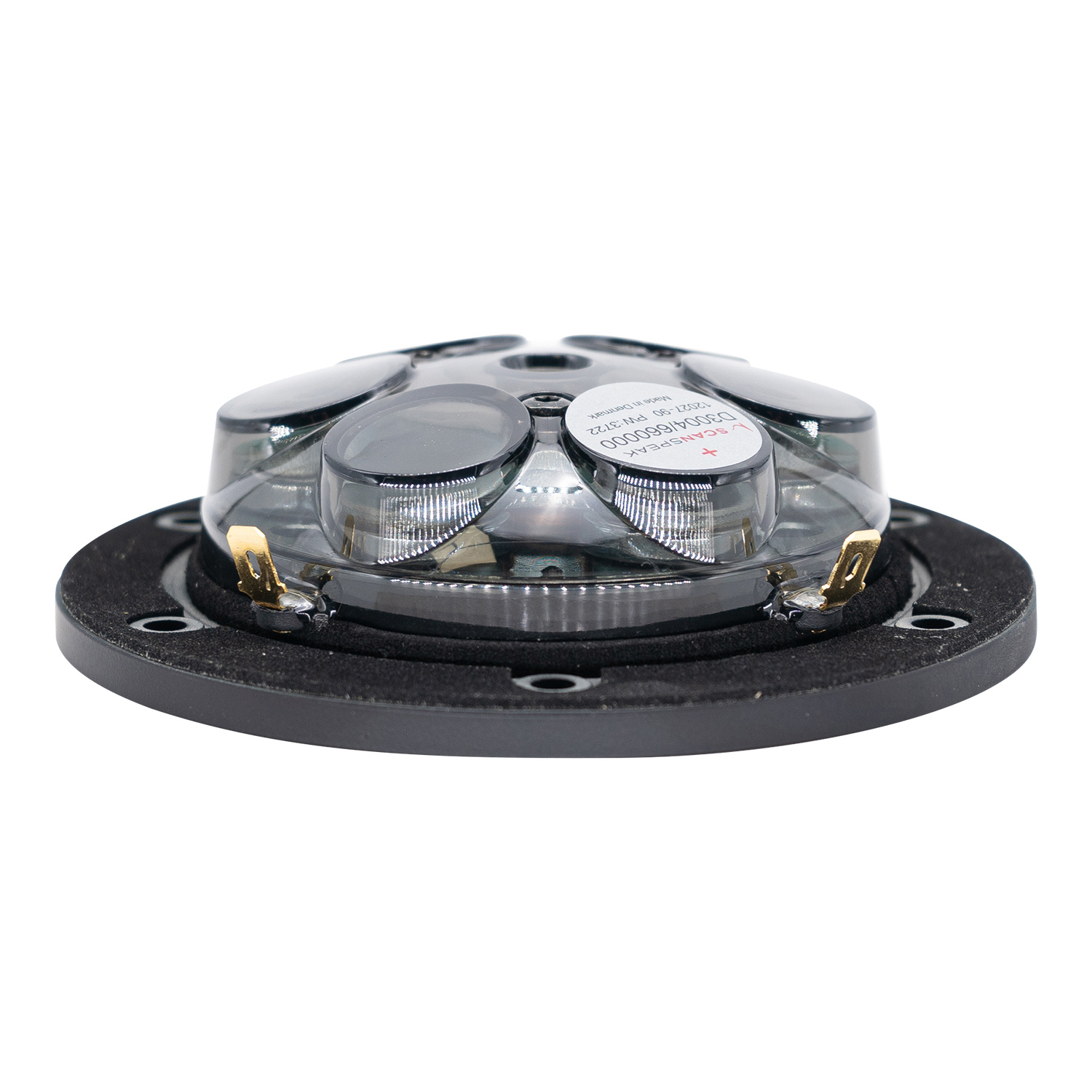

        • AirCirc Motor Design w. 6 Neo magnets


        Product details

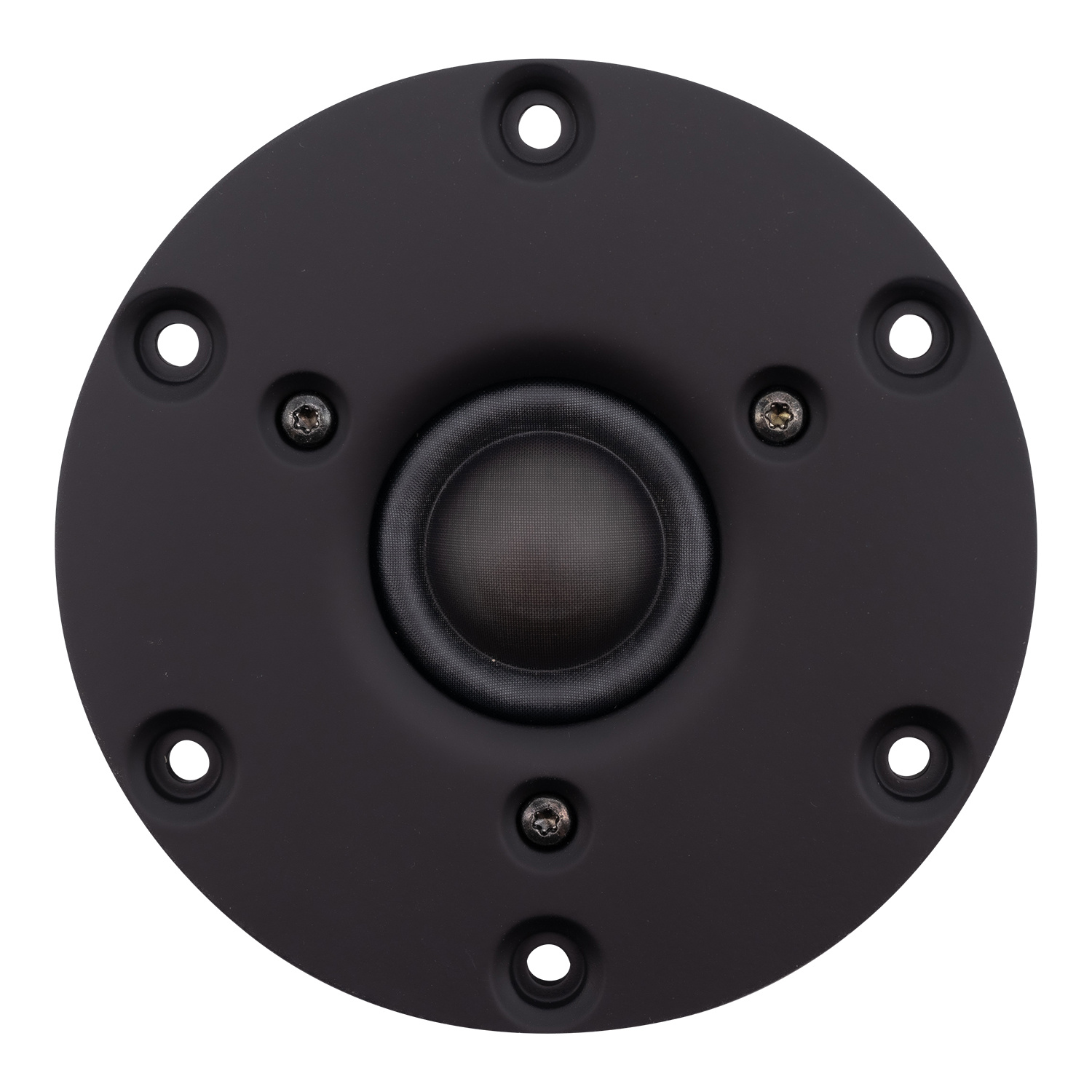

        Scan-Speak Illuminator D3004/660000 1" Textile Dome Tweeter


        The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.


        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.33 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm 2

        Show more


        Article number
        Tweeter Type
        Tweeter Series
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        90 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91.5 dB
        Resonant Frequency (Fs)
        470 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.03 mH
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)

        Show more

        5 of 5
        Zeer mooi gedetailleerd hoog. Een van de beste die ik ook mocht beluisteren. Goede prijs/kwaliteit-verhouding. Absoluut een aanrader!
        By John P. on 1 October 2020
        5 of 5
        No description was given
        By Adrian H. on 11 March 2020
