        Revelator D2905/990000 Dome Tweeter

        Revelator D2905/990000 Dome Tweeter

        €269,95

        Scan-Speak Revelator D2905/990000 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 223,10€ 269,95 10 In stock
        • -5% Purchase 4 for only € 256,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Excellent Sound Reproduction
        • Patented Symmetrical Drive (SD-2) motor
        • Large Wave Guide Front
        • 1" Textile Dome Diaphragm
        • Wide Surround Textile Diaphragm
        • Black Anodized Machined Alu Face Plate



        Product details

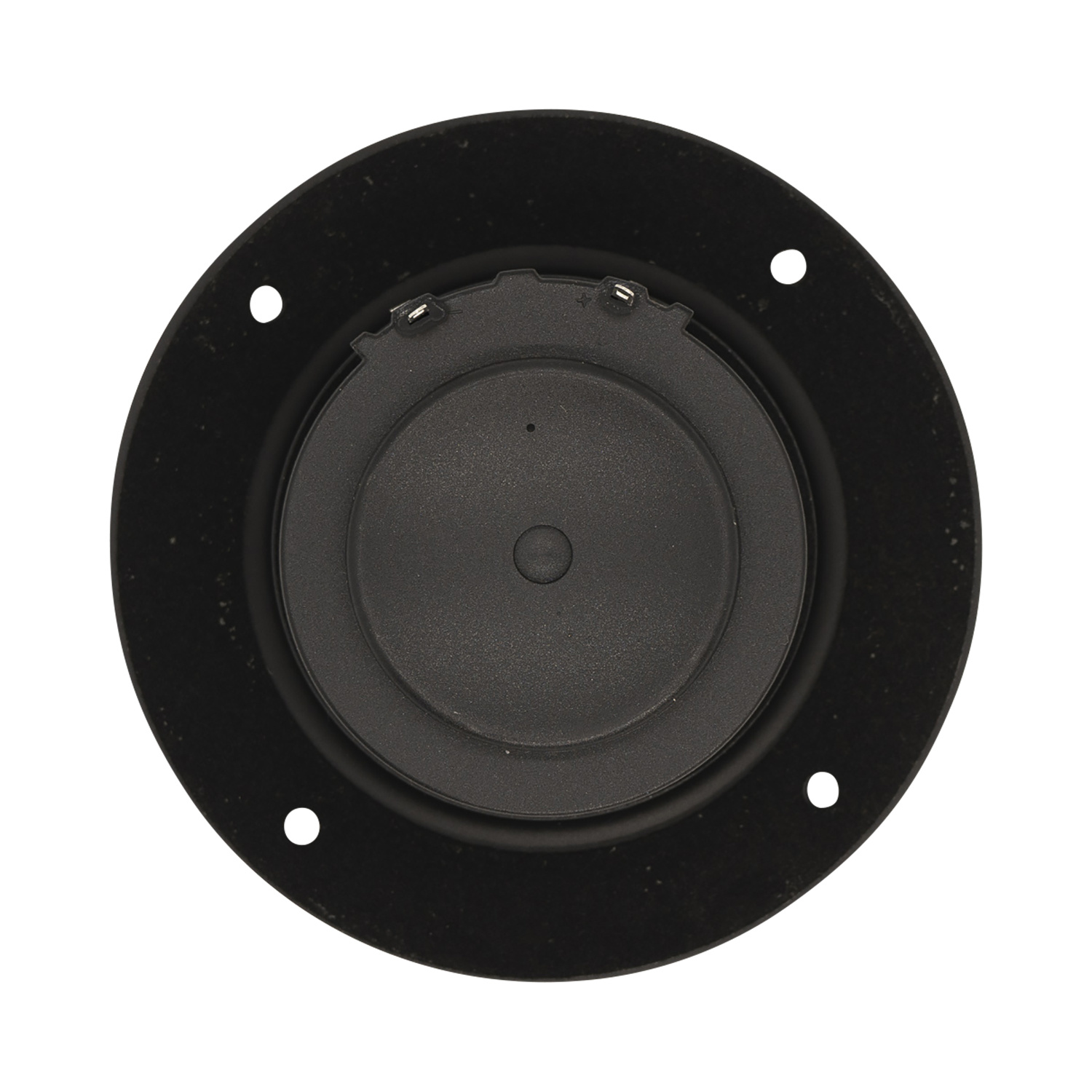

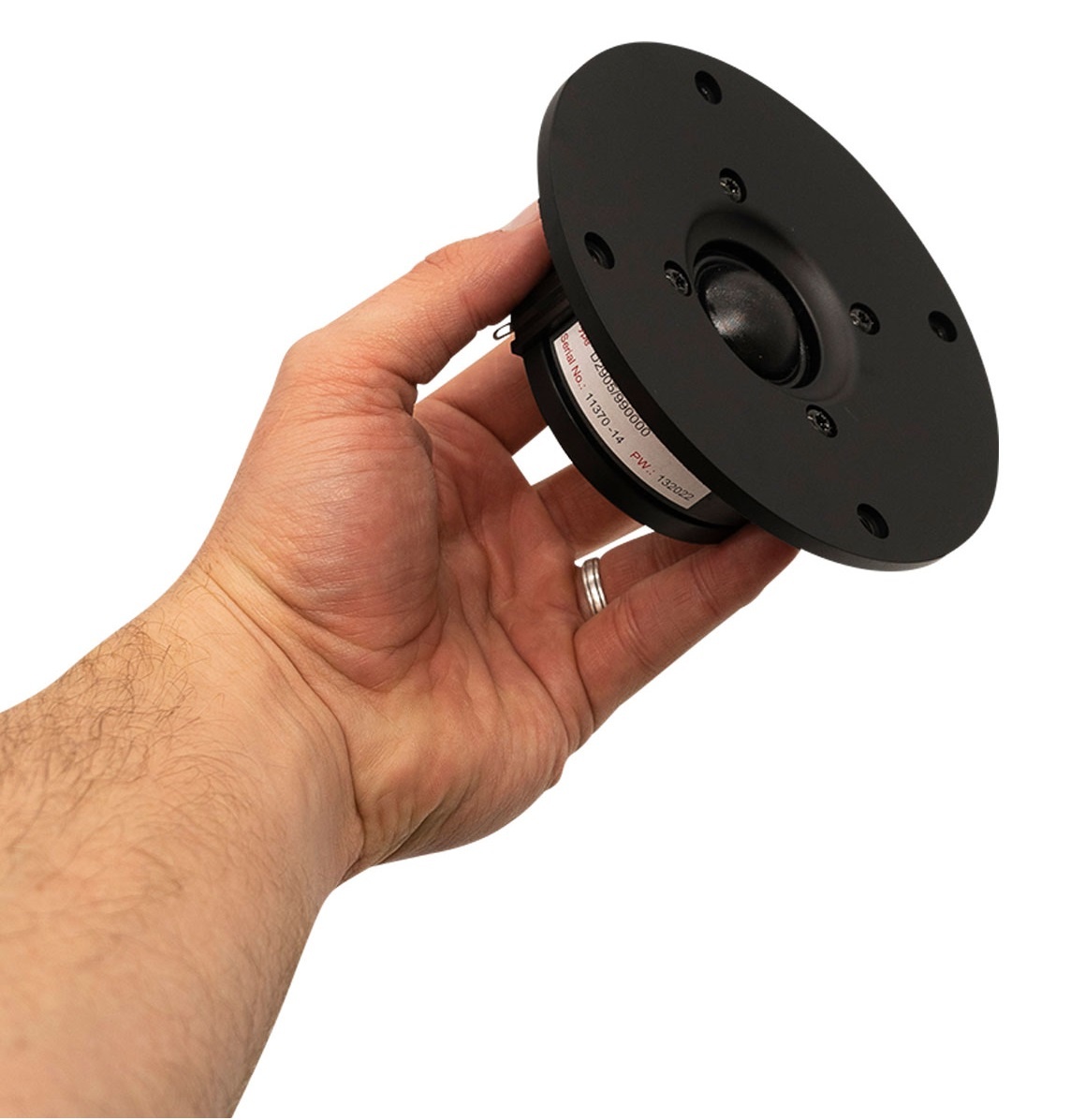

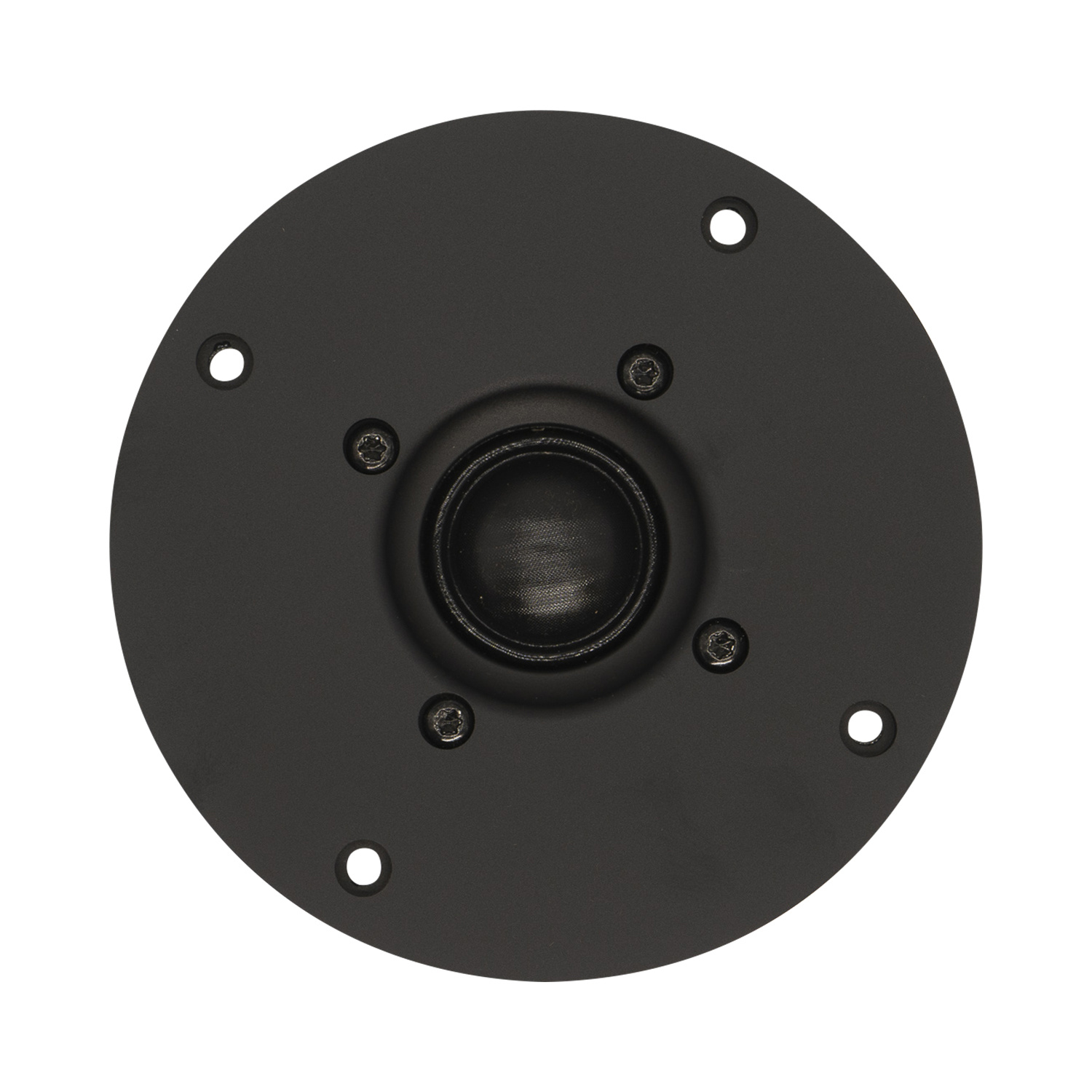

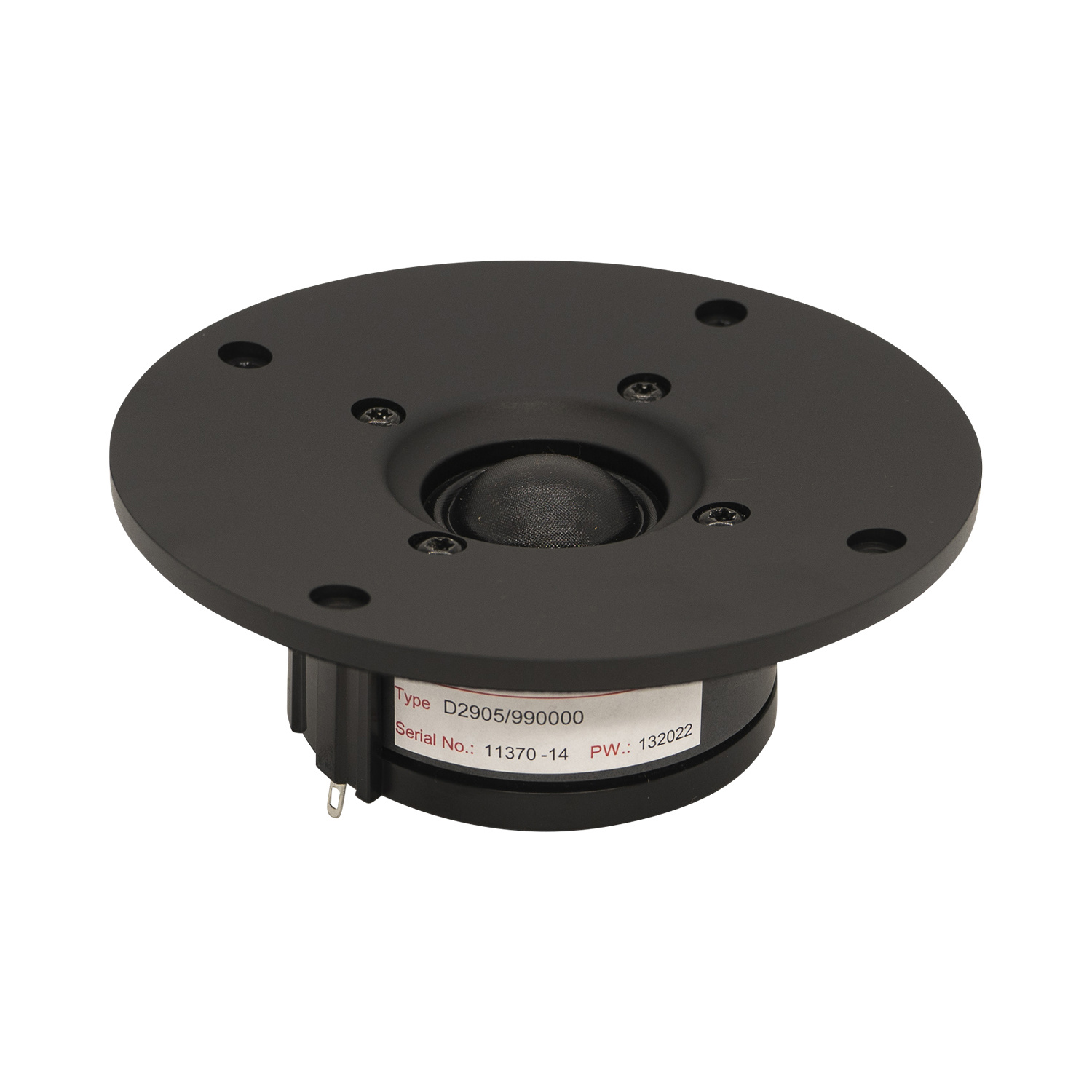

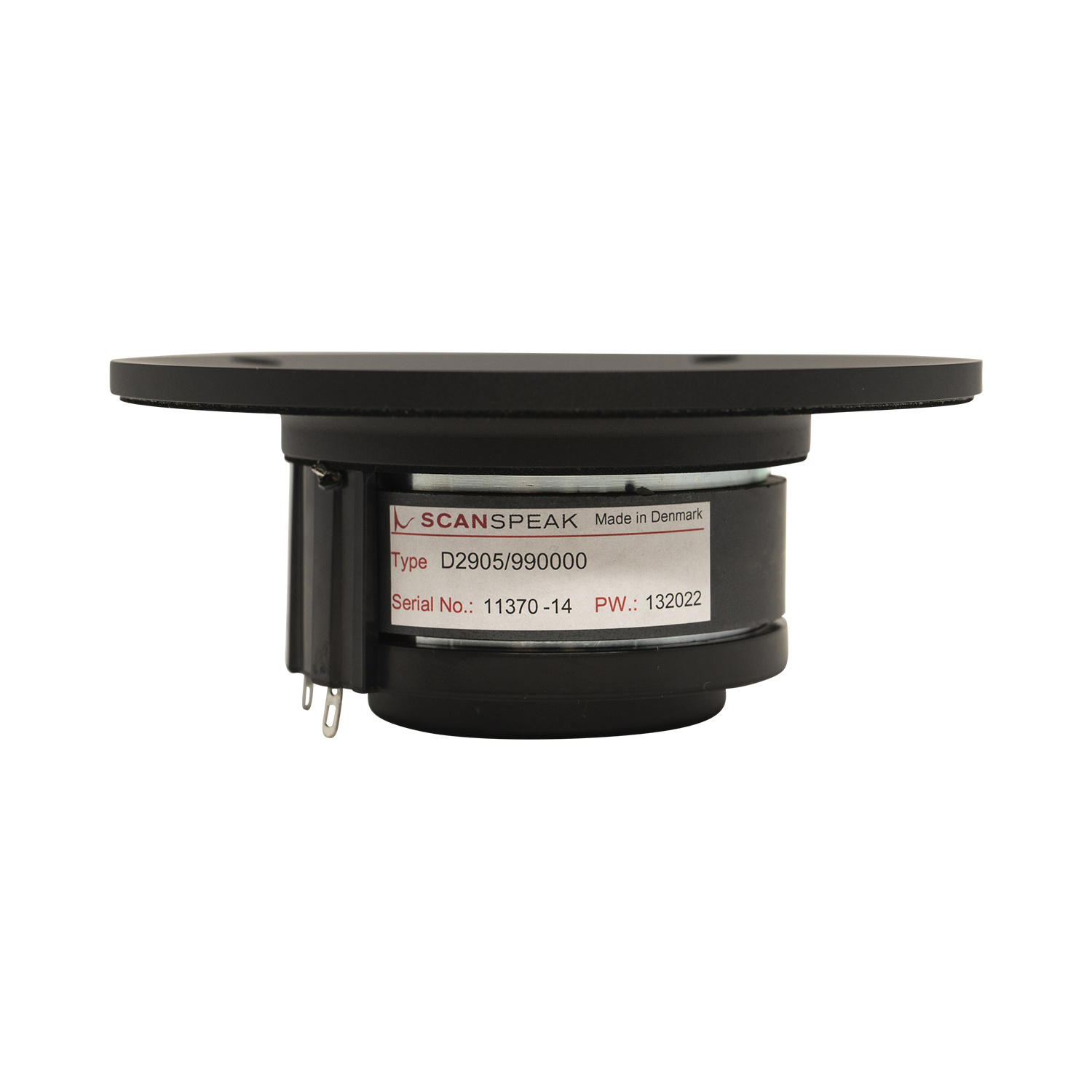

        Scan-Speak Revelator D2905/990000 1" Textile Dome Tweeter



        The Scan-speak D2905-990000 is our state of the art tweeter. This "revelation" is a 1" textile dome tweeter that will reach new borders within high-end loudspeaker drive units.



        The new magnet system with SD caps and rings that eliminate the electrical phase shift. The new chamber design reduces air noises and compression. The 130mm machined aluminum front plate has more controlled directivity (down to 2Khz). The textile dome is hand coated and a special device is placed behind it to reduce dynamic compression.



        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 3.5 Tm • Mechanical Compliance of Suspension (Cms): 0.23 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.4 mm • Surface Area of Cone (Sd): 8.5 cm2

        Show more

        Specifications

        Article number
        D2905/990000
        Tweeter Type
        Dome
        Tweeter Series
        Revelator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        225 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91 dB
        Resonant Frequency (Fs)
        500 Hz
        DC Resistance (Re)
        4.7 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        4.83
        Electromagnetic Q (Qes)
        0.72
        Total Q (Qts)
        0.63
