    Scan-Speak D2905-970000 1” Dome Tweeter 6 Ohms

    € 128,06€ 154,95 2 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €147,20 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Patented Symmetrical Drive (SD-2) motor
    • Hand coated 1" Textile Dome Diaphragm
    • Low Resonance Rear Chamber
    • Black Aluminium Face Plate
    • Low viscosity Ferro Fluid



    Product Details

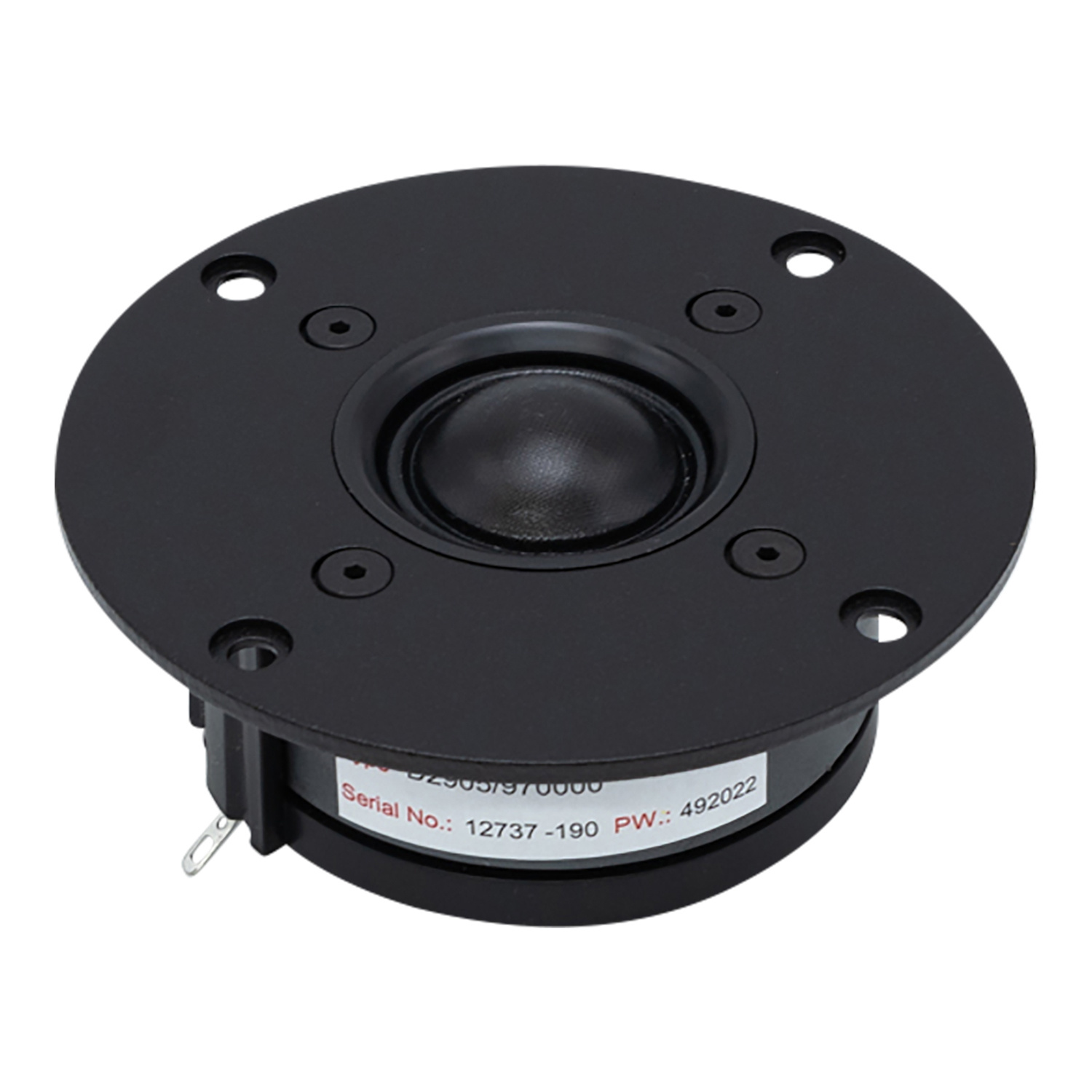

    Scan-Speak D2905-970000 1” Dome Tweeter 6 Ohms



    The Scanspeak D2905/970000 has a high power handling of 225W and a frequency response of above 30KHz. Features include a hand-coated 25mm soft textile dome, an airflow optimized copper capped pole piece and a tuned rear chamber with an integral resonance damping plug.



    This tweeter also benefits from the Scanspeak SD2 'Symmetrical Drive' system incorporating a copper capped and sleeved center pole piece;  this effectively forms a very low impedance shorted turn (called a Faraday ring) within the magnet circuit, the net result being that the voice coil impedance remains largely constant across it's operating frequency range resulting in a more linear output with greater top-end extension.



    This is a highly advanced design with a sweet, detailed sound. Found in many high-end designs and is a top choice for DIY high-performance loudspeakers.

    Specifications

    Article number
    D2905-970000
    Cone / Dome Diameter
    1"
    Power Handling (RMS)
    225 Watts
    Impedance (Z)
    6 ohms
    Sensitivity
    89.5 dB 2.83V/1m
    Resonant Frequency (Fs)
    500 Hz
    DC Resistance (Re)
    5.7 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Mechanical Q (Qms)
    3.45
    Electromagnetic Q (Qes)
    0.54
    Total Q (Qts)
    0.47
    Overall Outside Diameter
    104.3 mm
    Cutout Diameter
    75 mm
    Depth
    40.7 mm
    Mounting Type
    Screw
    Diaphragm Material
    Textile
