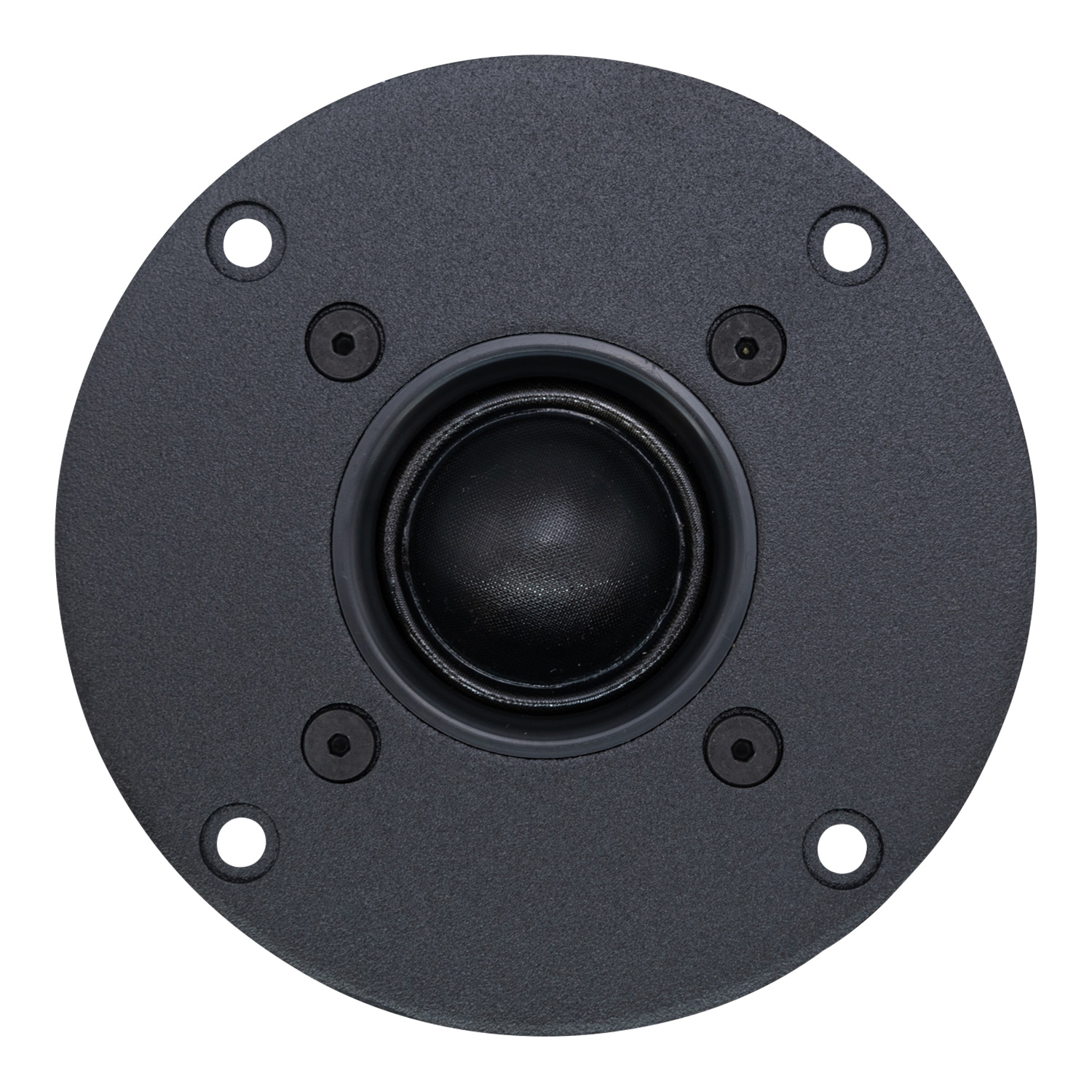

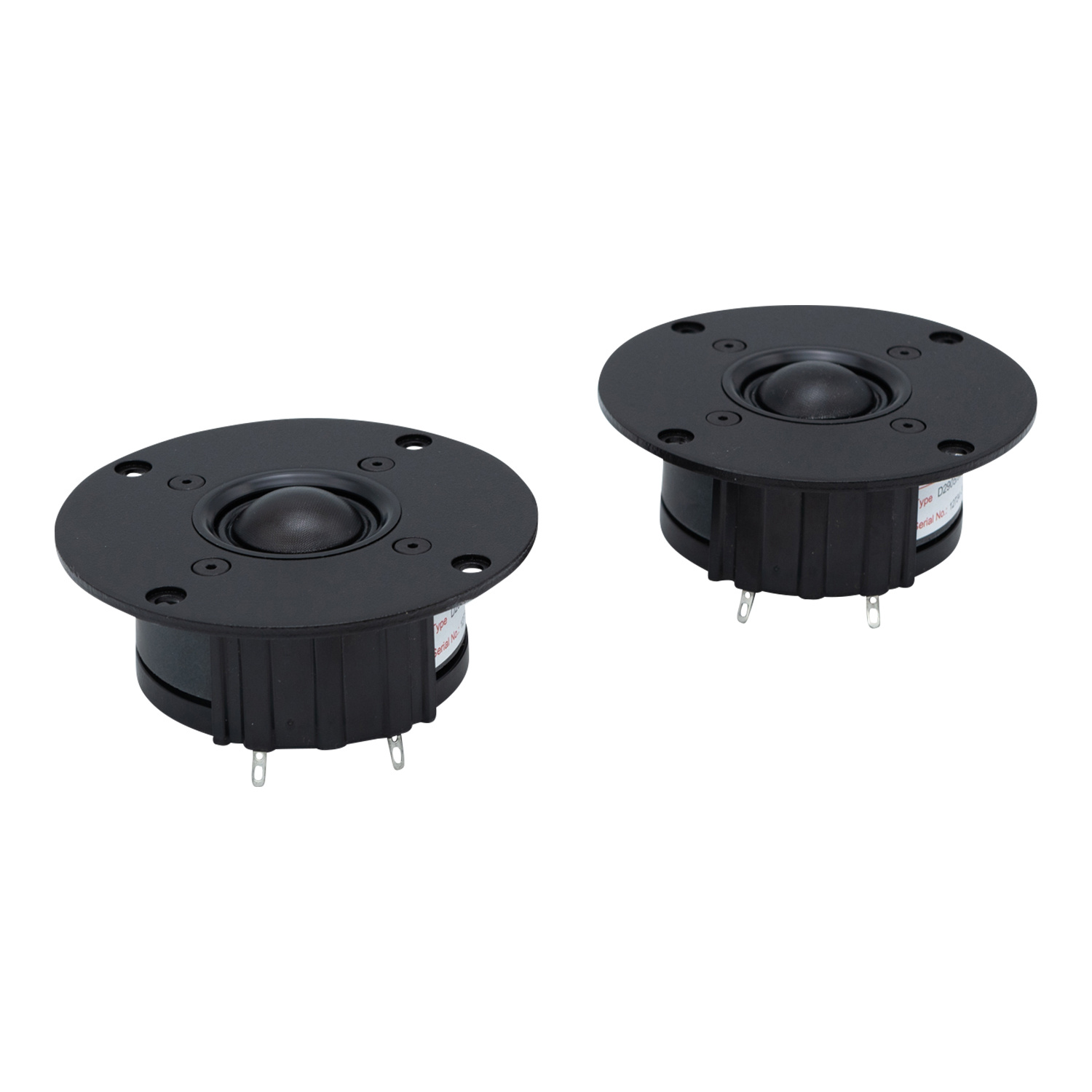

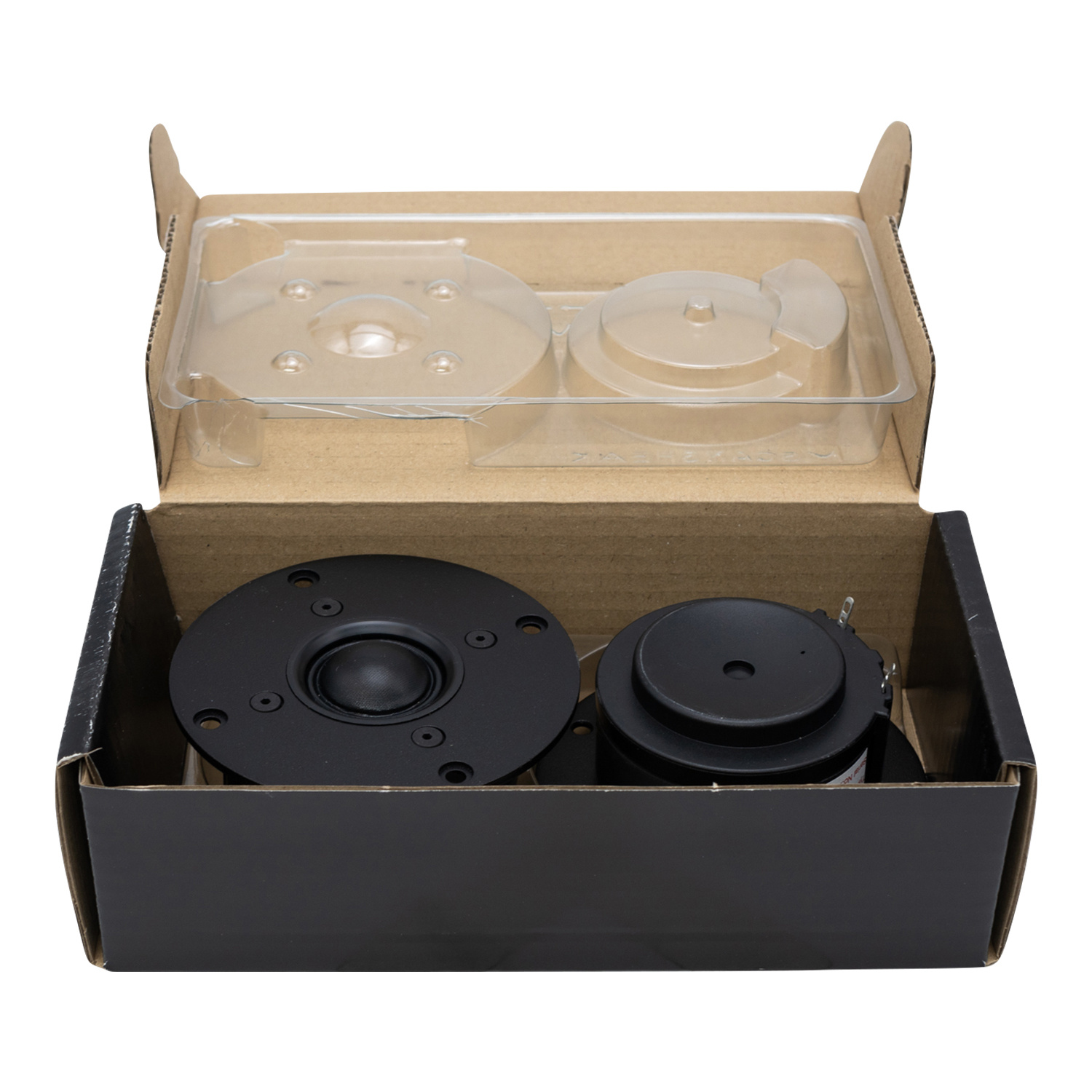

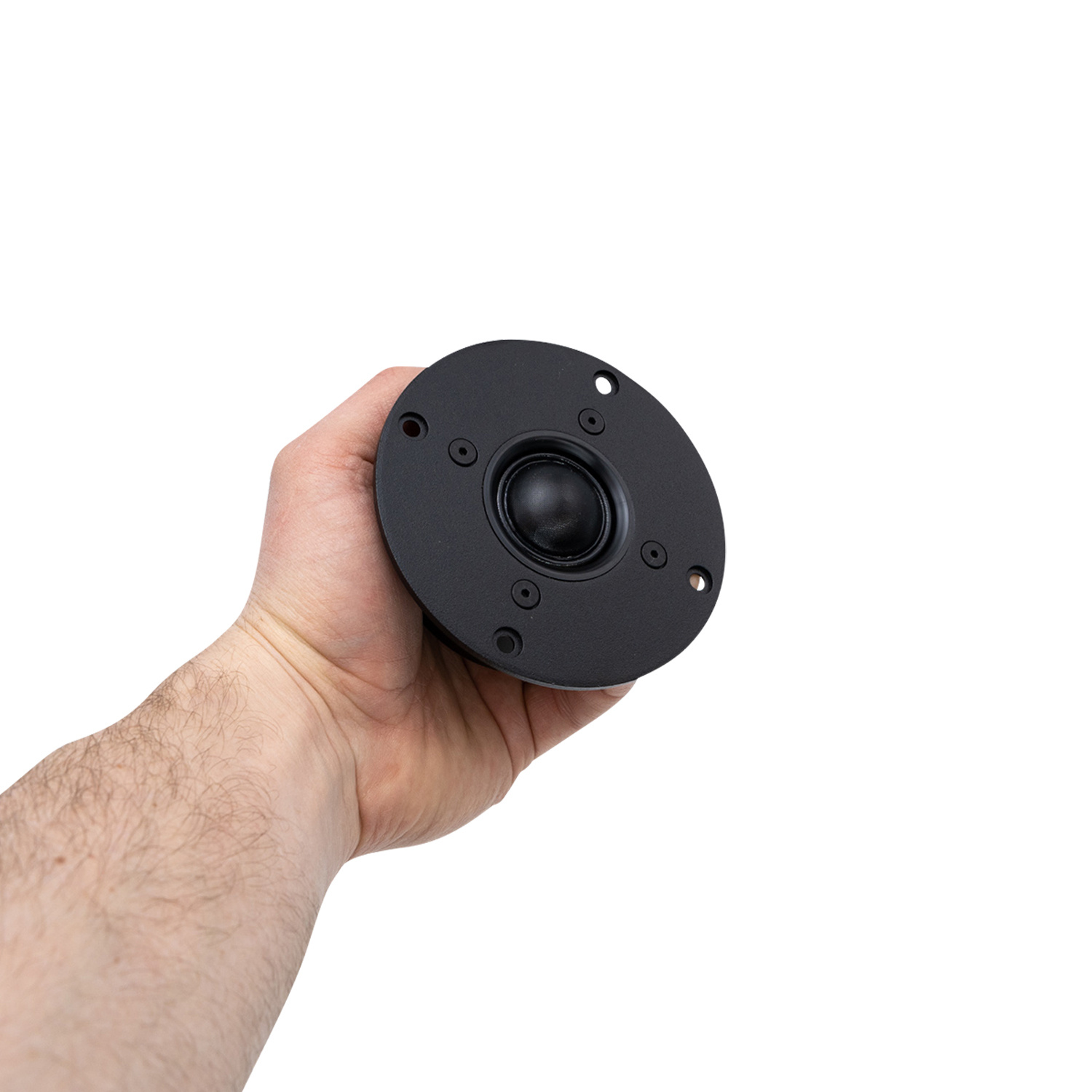

        Classic D2905/950000 Dome Tweeter

        Classic D2905/950000 Dome Tweeter

        €144,95

        Scan-Speak Classic D2905/950000 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 119,79€ 144,95 10 In stock
        • -5% Purchase 4 for only € 137,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • 1" Textile Dome Diaphragm
        • Low Resonant Rear Chamber
        • Ferro Fluid
        • Black Painted Alu Face Plate



        Product details

        Scan-Speak Classic D2905/950000 1" Textile Dome Tweeter



        The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the market still used in many top High-End speakers around the world.



        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 3.5 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.4 mm • Surface Area of Cone (Sd): 8.5 cm2

        Show more

        Specifications

        Article number
        D2905/950000
        Tweeter Type
        Dome
        Tweeter Series
        Classic Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        460 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Resonant Frequency (Fs)
        550 Hz
        DC Resistance (Re)
        4.7 ohms
        Voice Coil Inductance (Le)
        0.07 mH
        Mechanical Q (Qms)
        1.04
        Electromagnetic Q (Qes)
        0.60
        Total Q (Qts)
        0.38

        Show more

        5 of 5
        Een van de fijnste tweeters die ik ooit hebruikt heb in mijn zelfbouw projecten. Gedetaileerd zonder vermoeiend te worden. Grote klasse
        By avdvoorden on 21 April 2021
        5 of 5
        Still going strong. Fijne tweeter voor zelfbouw
        By Arie v. on 3 April 2021
