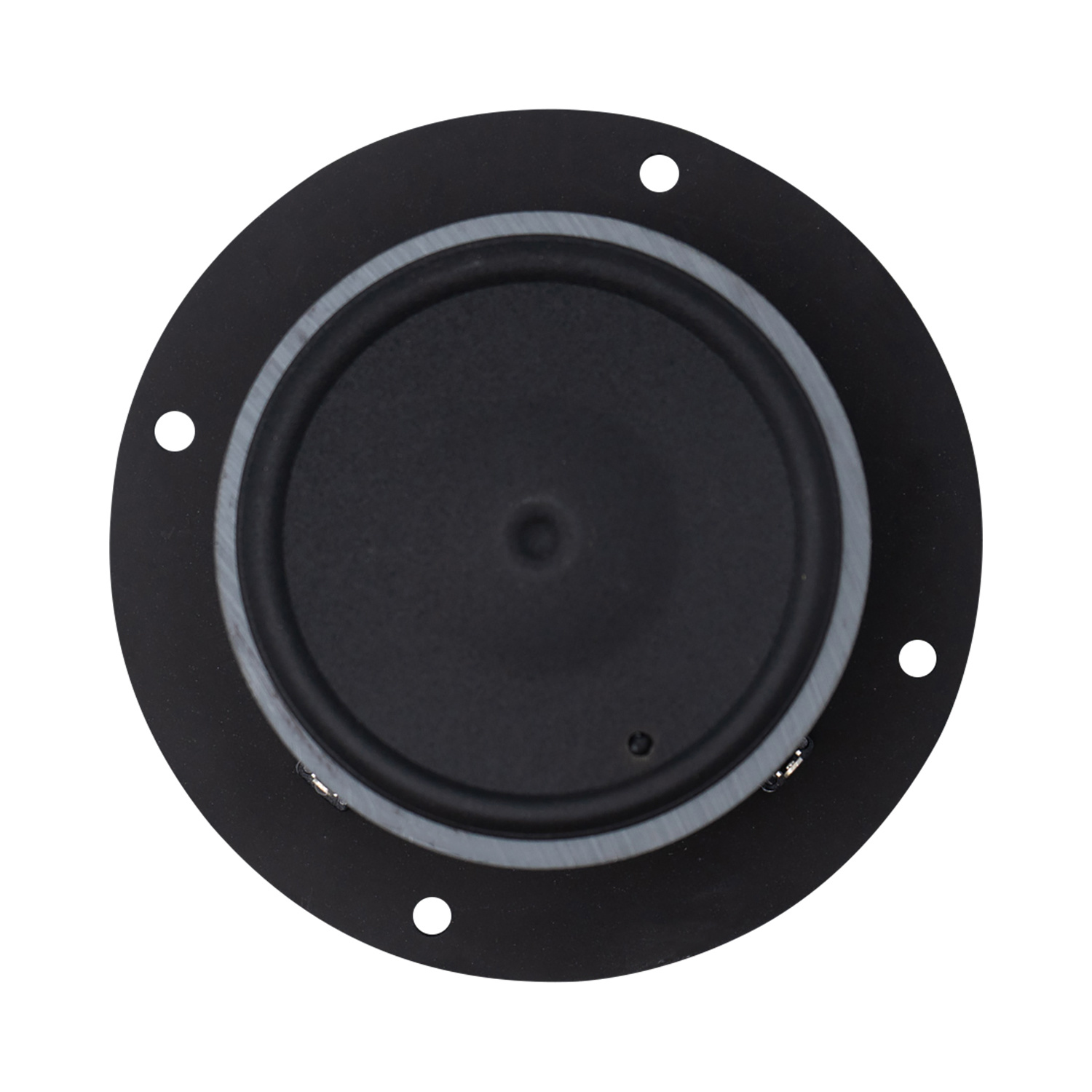

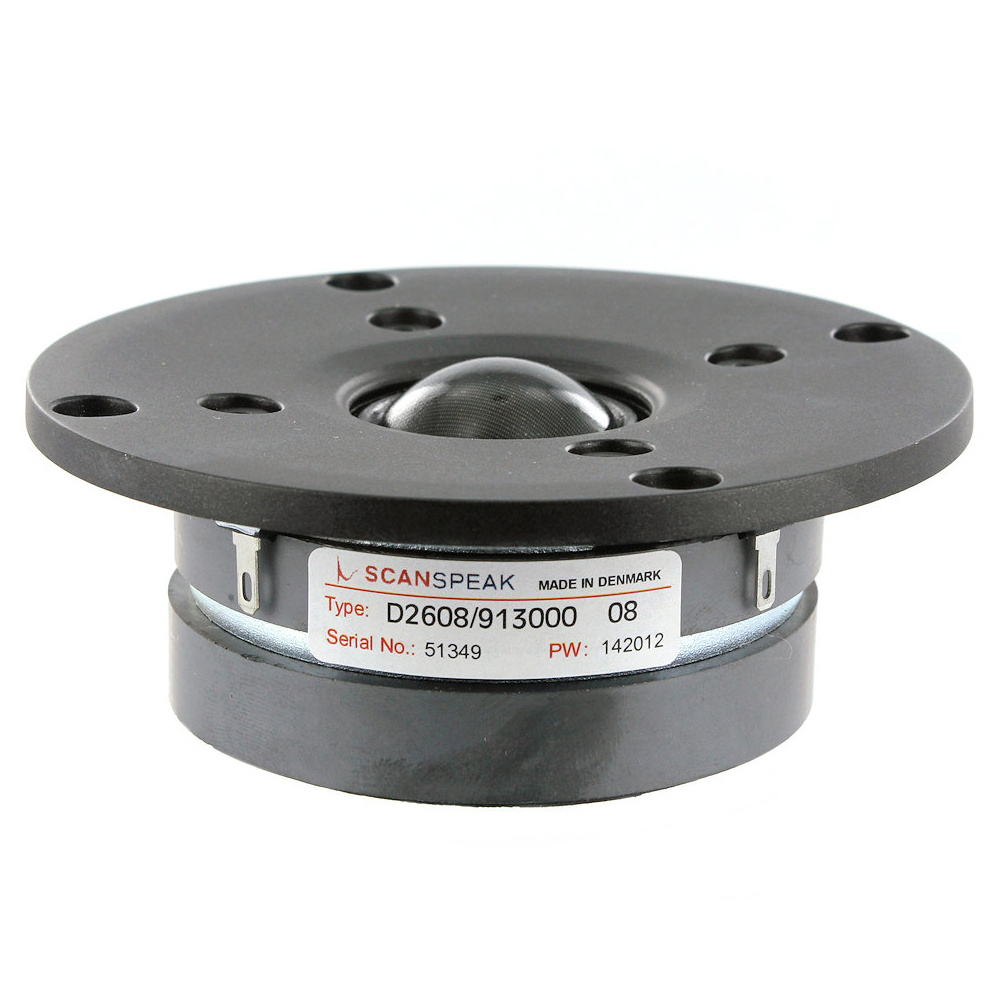

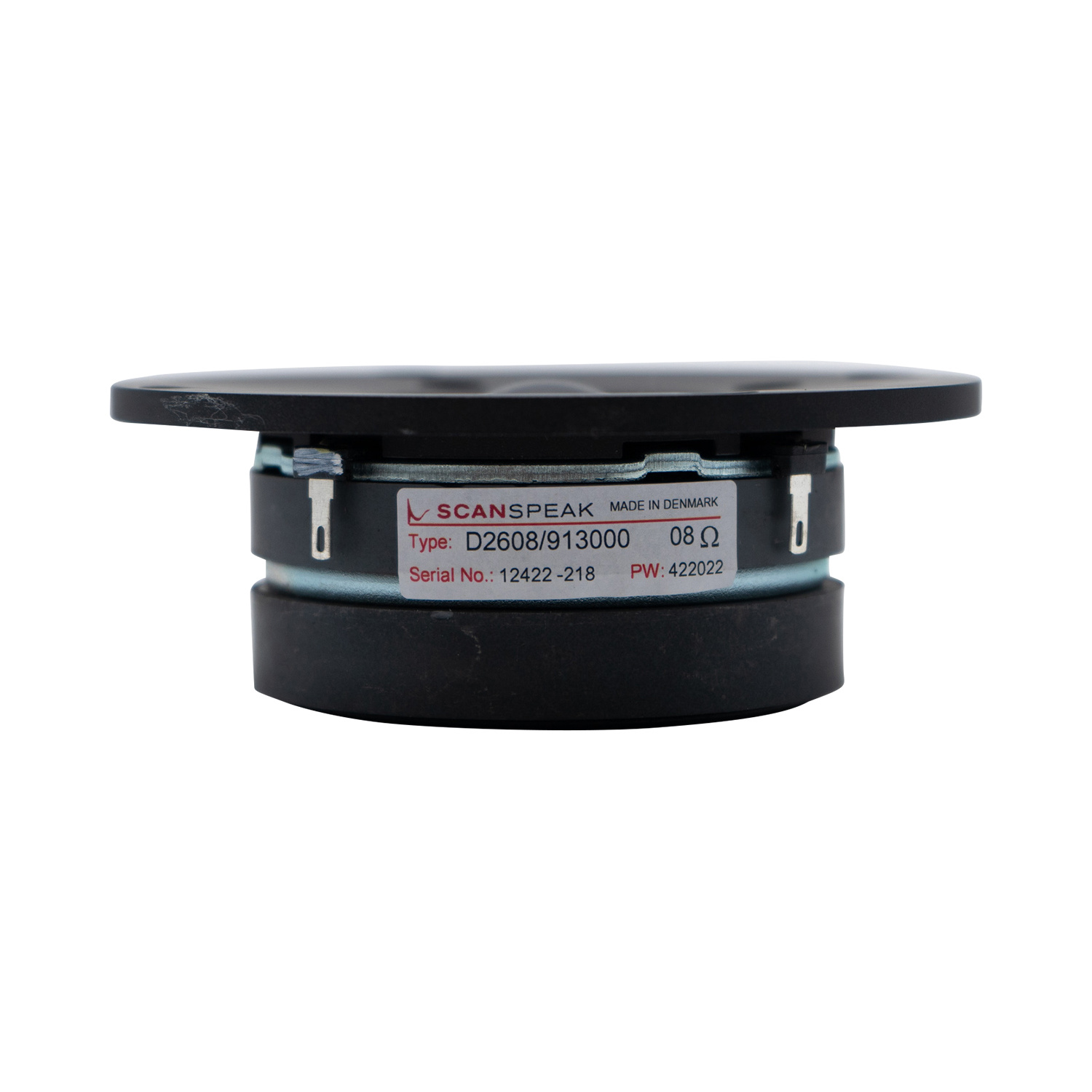

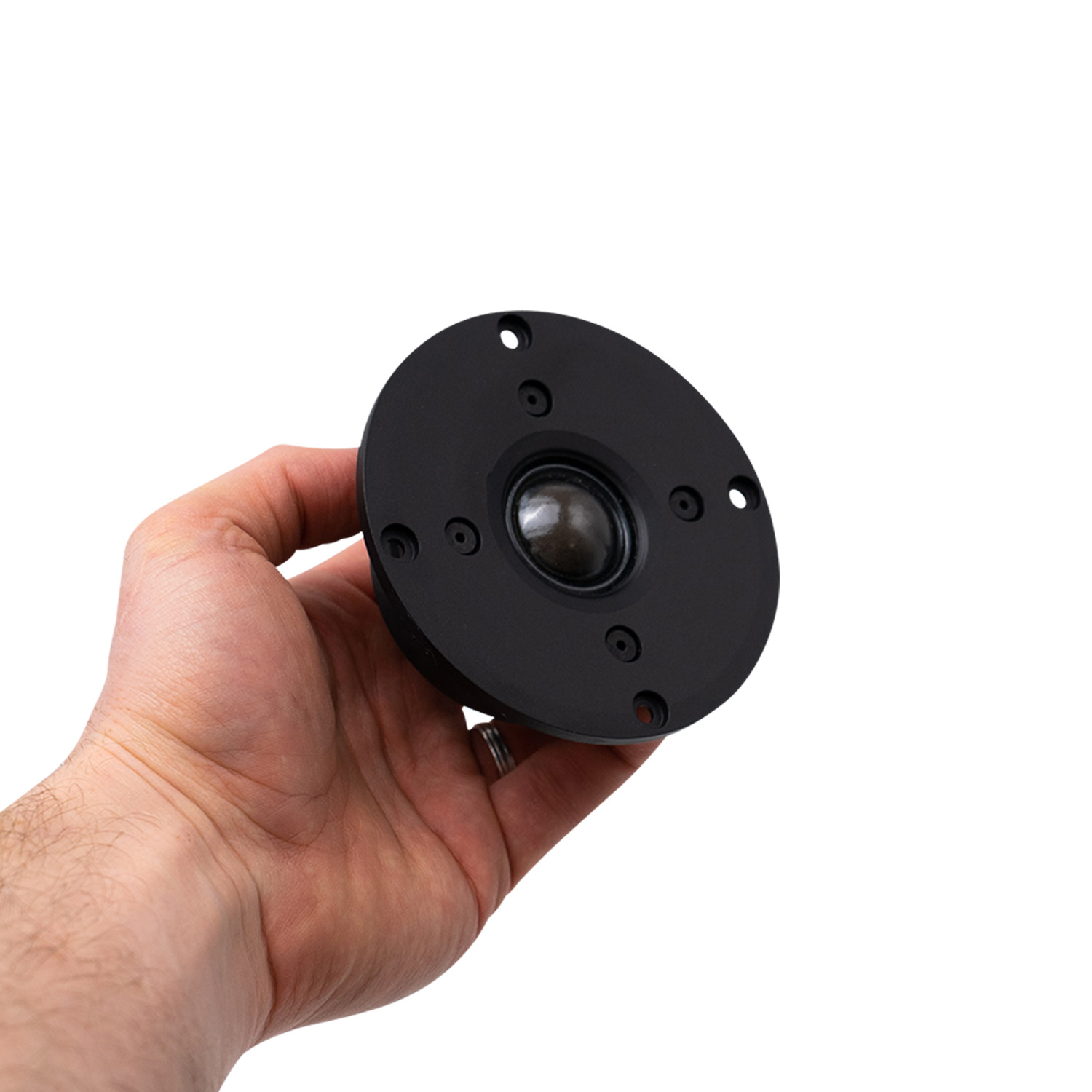

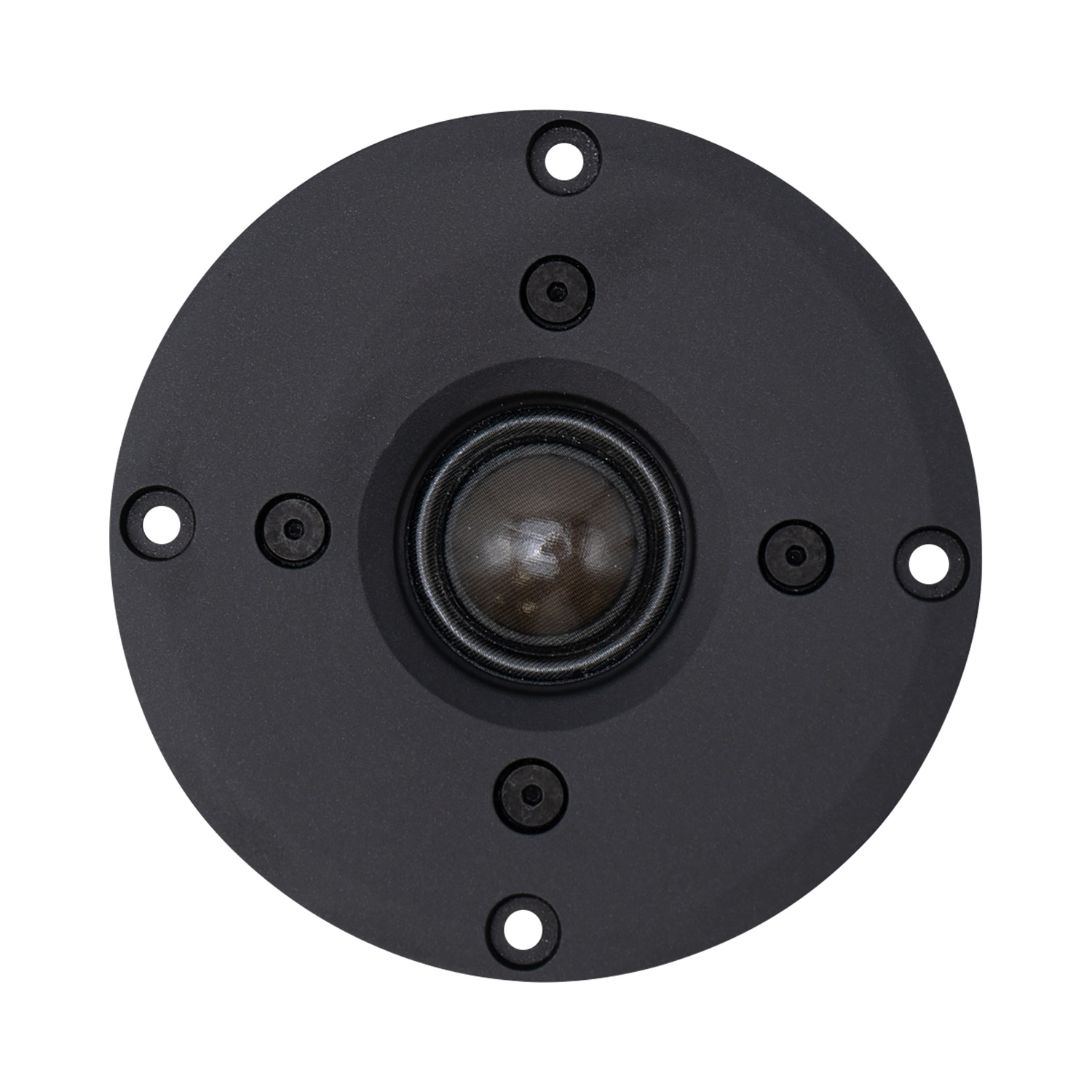

        Discovery D2608/913000 Dome Tweeter

        Discovery D2608/913000 Dome Tweeter


        Scan-Speak Discovery D2608/913000 Dome Tweeter

        5 reviews
        5 from 5
        5 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Scan-Speak
        € 77,23€ 93,45 10+ In stock
        • -5% Purchase 4 for only € 88,78 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description


        • Very low mass textile soft dome diaphragm
        • Optimized magnet system with double magnet
        • Low damping magnetic fluid cooling
        • Fully Vented Motor System for Low compression
        • 8 ohm, positive terminal with white paint mark
        • Replaceable voice coil assembly
        • Black Die-Cast Aluminum Face Plate
        • Made in Denmark


        Product details

        Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter


        The Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the Discovery tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system.


        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.6 Tm • Mechanical Compliance of Suspension (Cms): 0.29 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.18 g • Maximum Linear Excursion (Xmax): 0.5 mm • Surface Area of Cone (Sd): 7 cm2

        Show more


        Article number
        Tweeter Type
        Tweeter Series
        Discovery Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        400 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91.3 dB
        Resonant Frequency (Fs)
        700 Hz
        DC Resistance (Re)
        5.6 ohms
        Voice Coil Inductance (Le)
        0.04 mH
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)

        Show more
