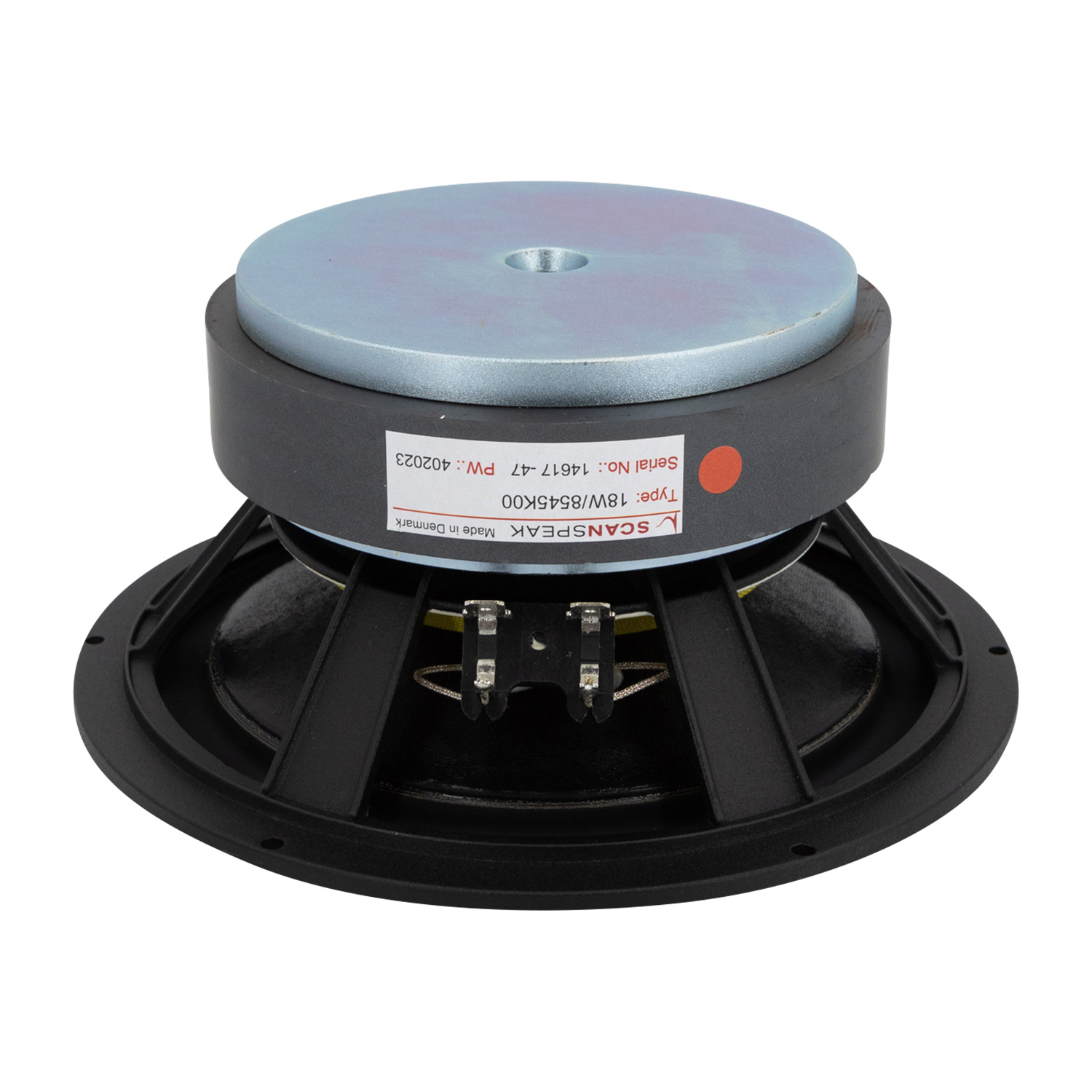

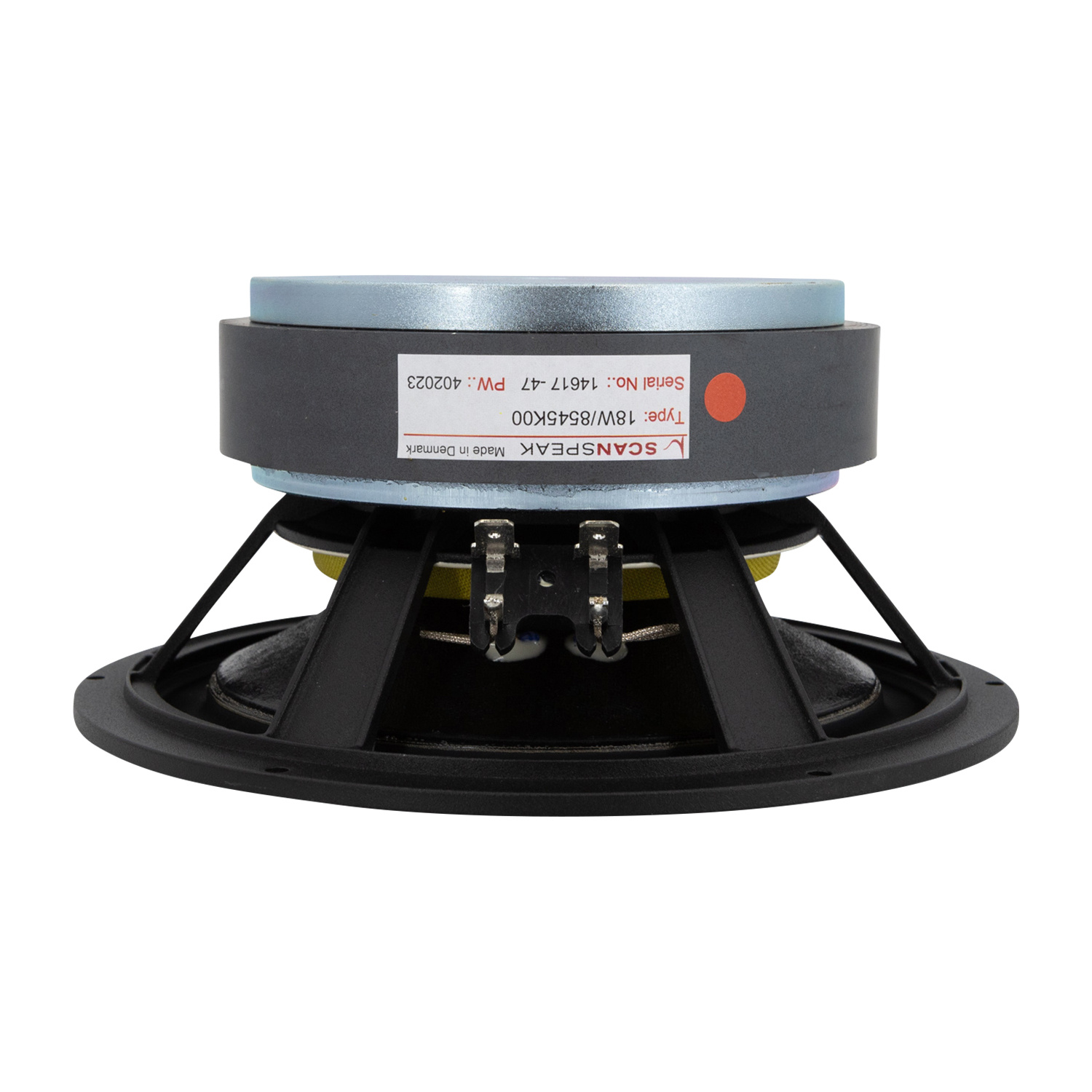

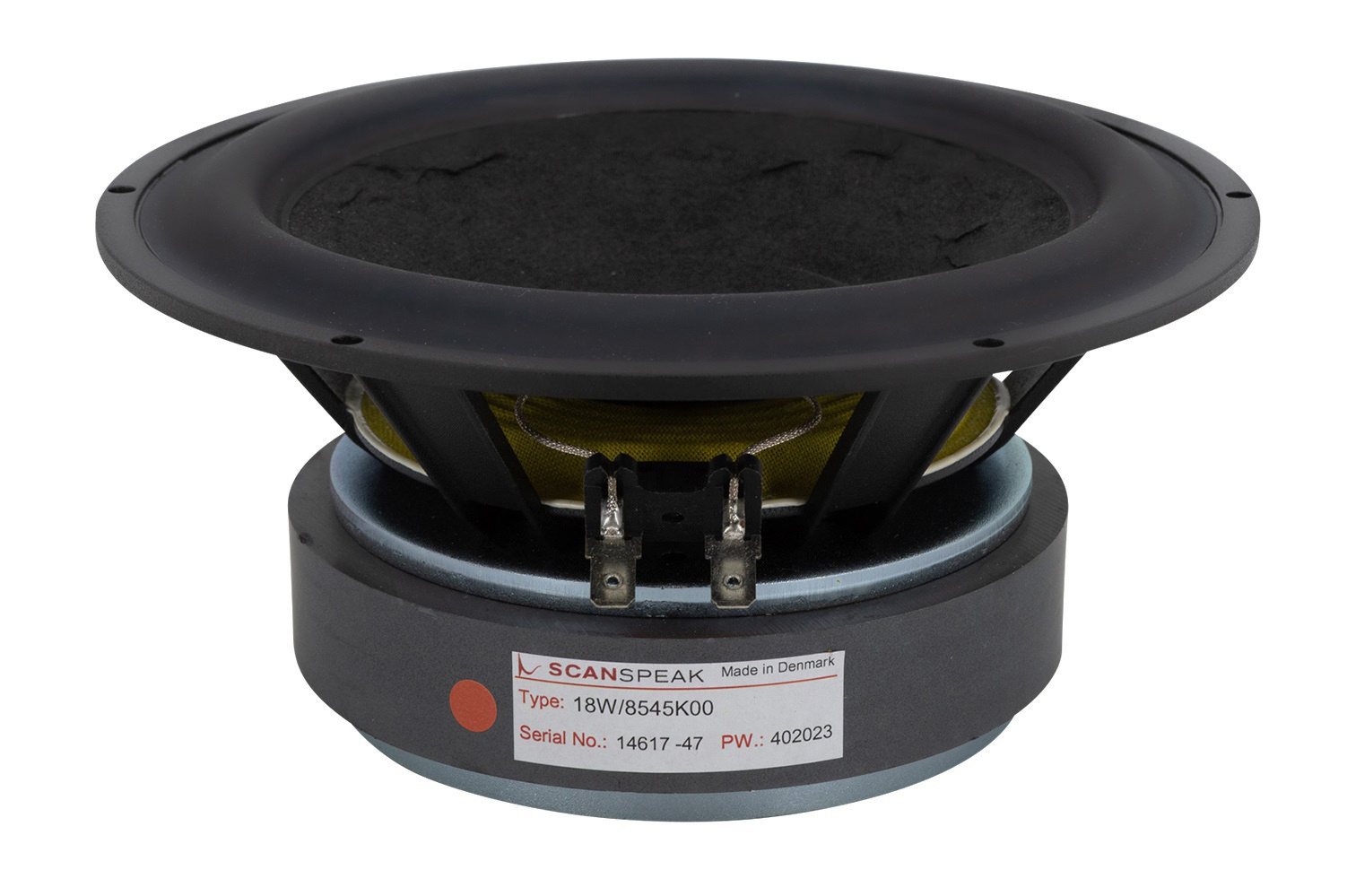

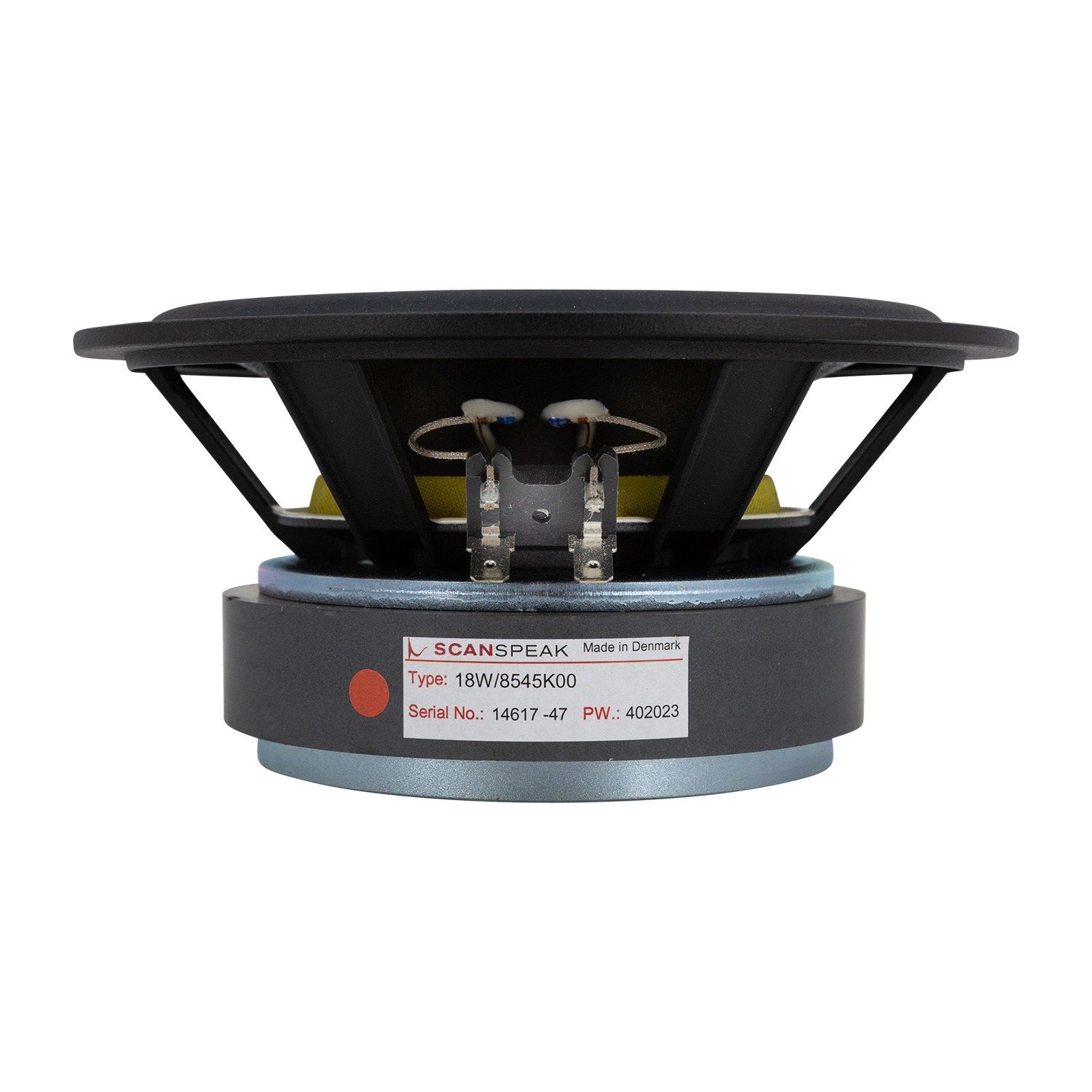

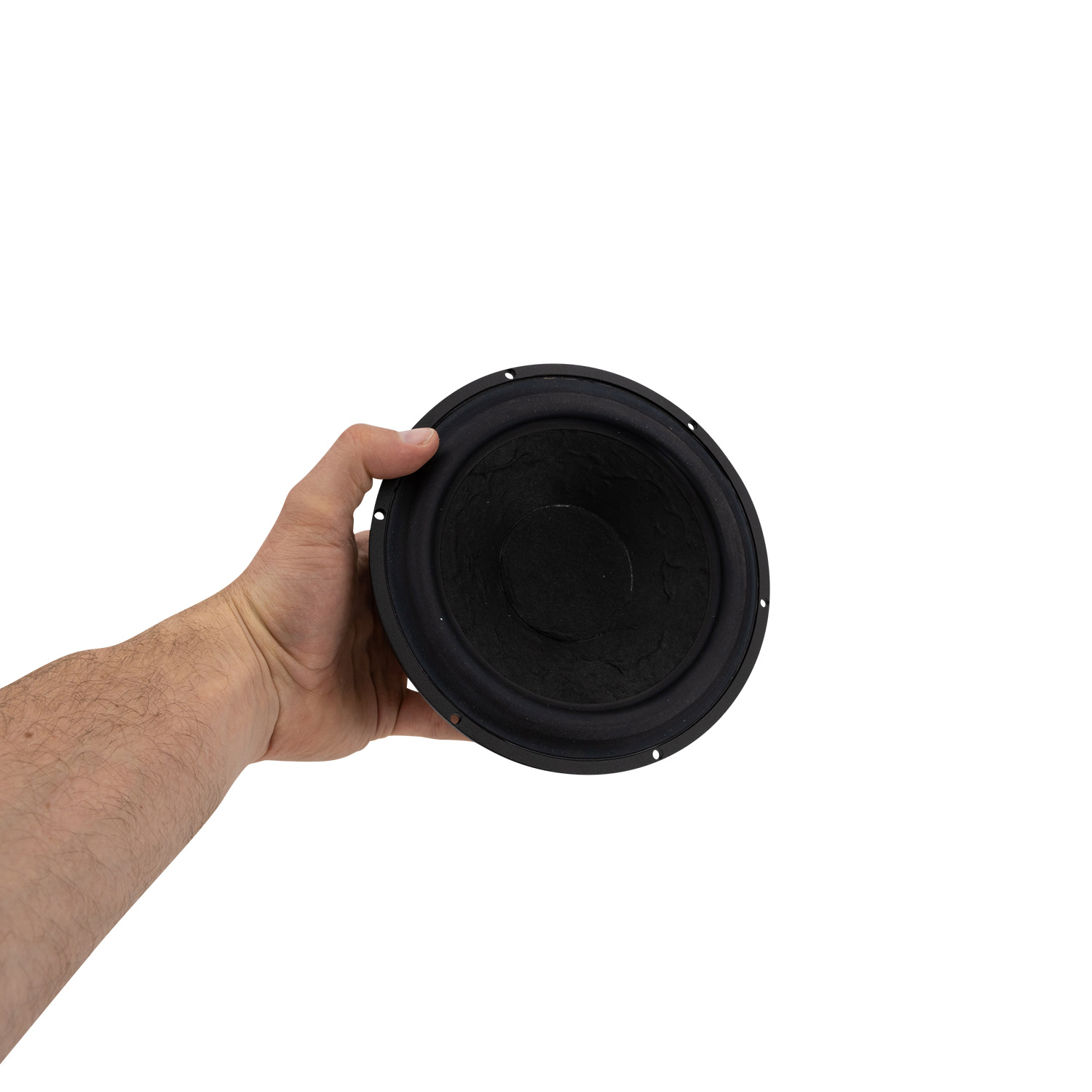

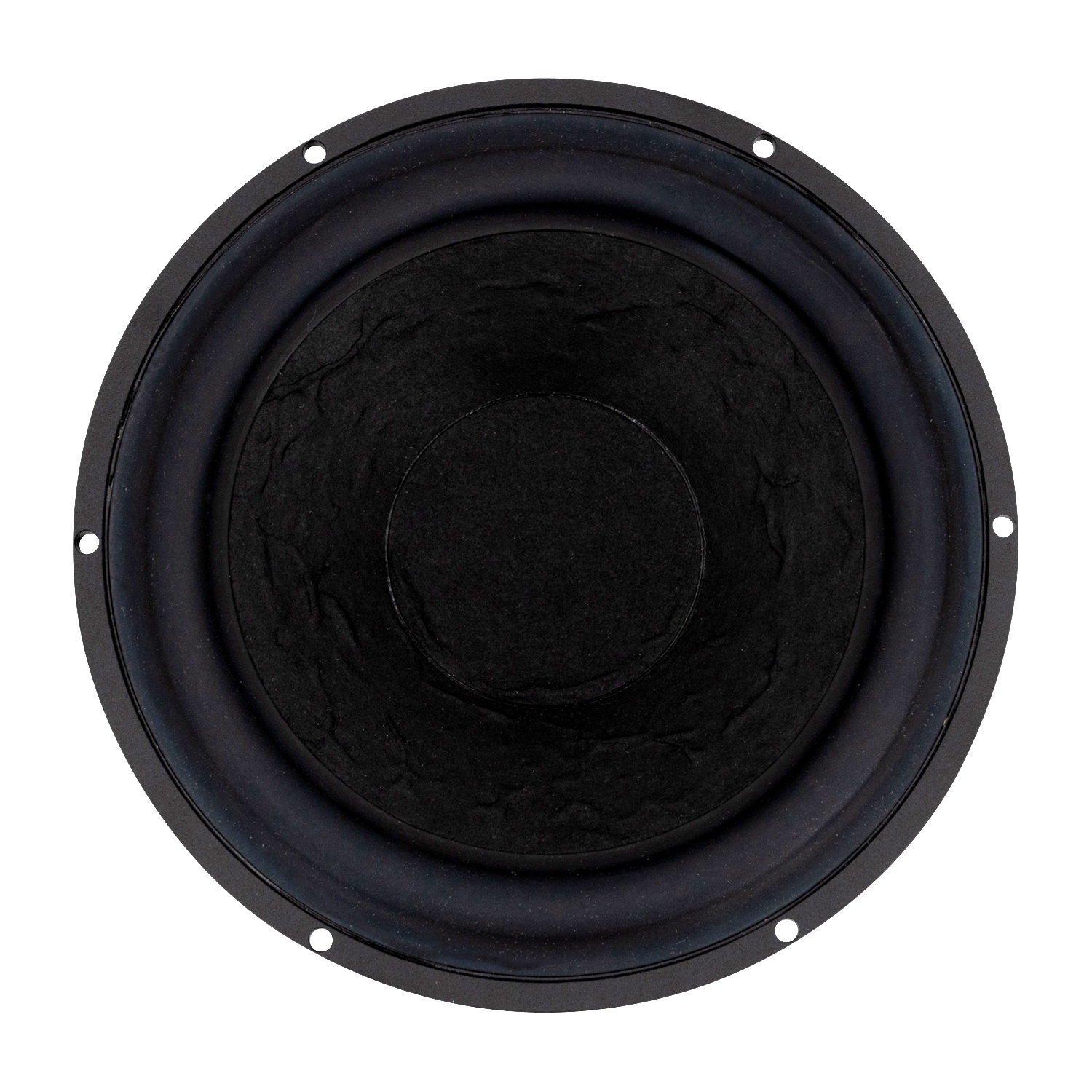

      Scan-Speak 18W/8545K00 Mid-range woofer

      € 156,98€ 189,95 2 In stock
      • -5% Order 4 for only € 180,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception.



      Highlights

      • Patented Symmetrical Drive Motor Design
      • Low-Loss linear suspension
      • Air Dried Paper/Carbon Fibre Cone
      • Low Damping SBR Rubber Surround
      • 42mm Voice Coil w. fiber glass foil



      Product details

      Scan-Speak 18W/8545K00 Woofer



      The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers. Some feature Kevlar cones others have the innovative Carbon fibre paper cones.

      Show more

      Specifications

      Article number
      18W/8545K00
      Woofer Series
      Classic
      Woofer Type
      Mid-range woofer
      Nominal Diameter
      7"
      Power Handling (RMS)
      100 Watts
      Power Handling (max)
      170 Watts
      Impedance (Z)
      8 Ω
      Sensitivity
      87.5 dB (2.83V/1m)
      Voice Coil Diameter
      42 mm
      DC Resistance (Re)
      5.5 Ω
      Voice Coil Inductance (Le)
      0.4mH
      Resonant Frequency (Fs)
      28 Hz
      Mechanical Q (Qms)
      5.20
      Electromagnetic Q (Qes)
      0.30
      Total Q (Qts)
      0.28
      Diaphragm Mass Inc. Airload (Mms)
      20.5 g
      Mechanical Compliance of Suspension (Cms)
      1.58 mm/N
      Surface Area of Cone (Sd)
      145 cm2
      BL Product (BL)
      8.2 Tm
      Compliance Equivalent Volume (Vas)
      46.4 L
      Overall Outside Diameter
      136 mm

      Show more

      Reviews

      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
