      SB Audience BIANCO-12OB150-01 Open Baffle Woofer

      € 74,34€ 89,95 10+ In stock
      • -5% Order 4 for only € 85,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house technical support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



      Highlights

      • Proprietary cone paper material with silk cotton tree and manila pulp
      • Minimum damping fiber glass voice coil former
      • 2.4" voice coil
      • Long life silver lead wires
      • Weather-proof coated cone paper
      • Designed for open baffle applications
      • Vented pole piece for reduced compression



      Product Details

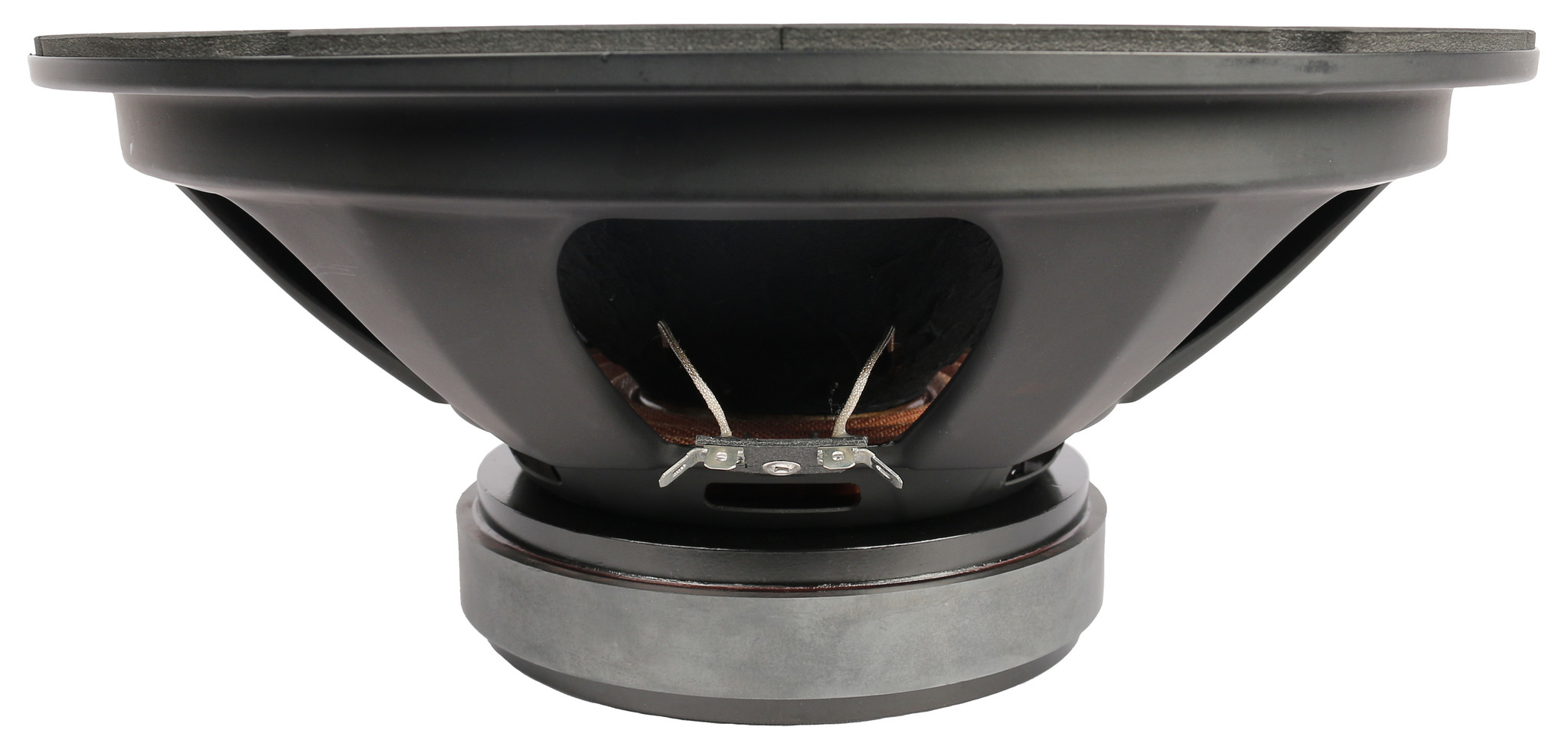

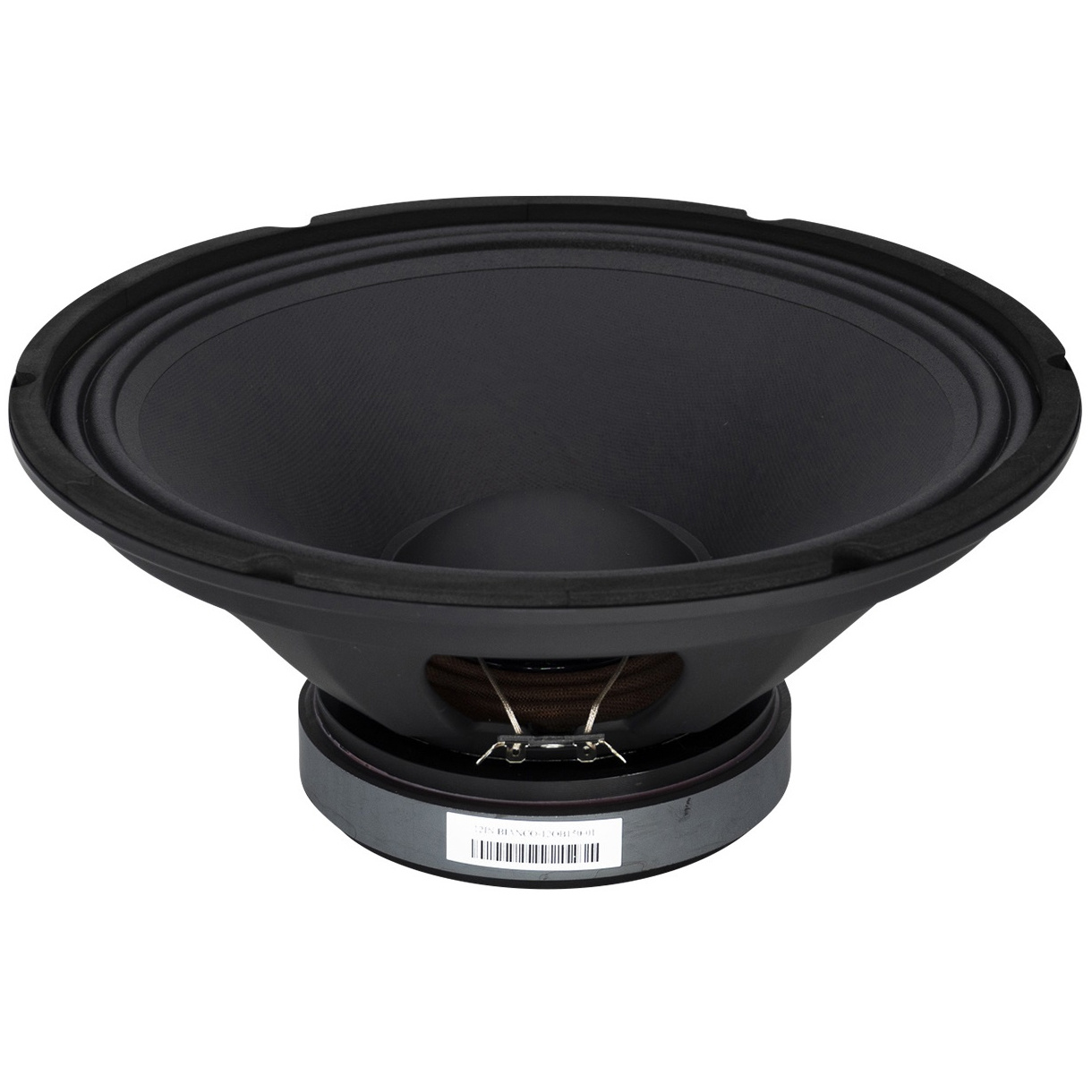

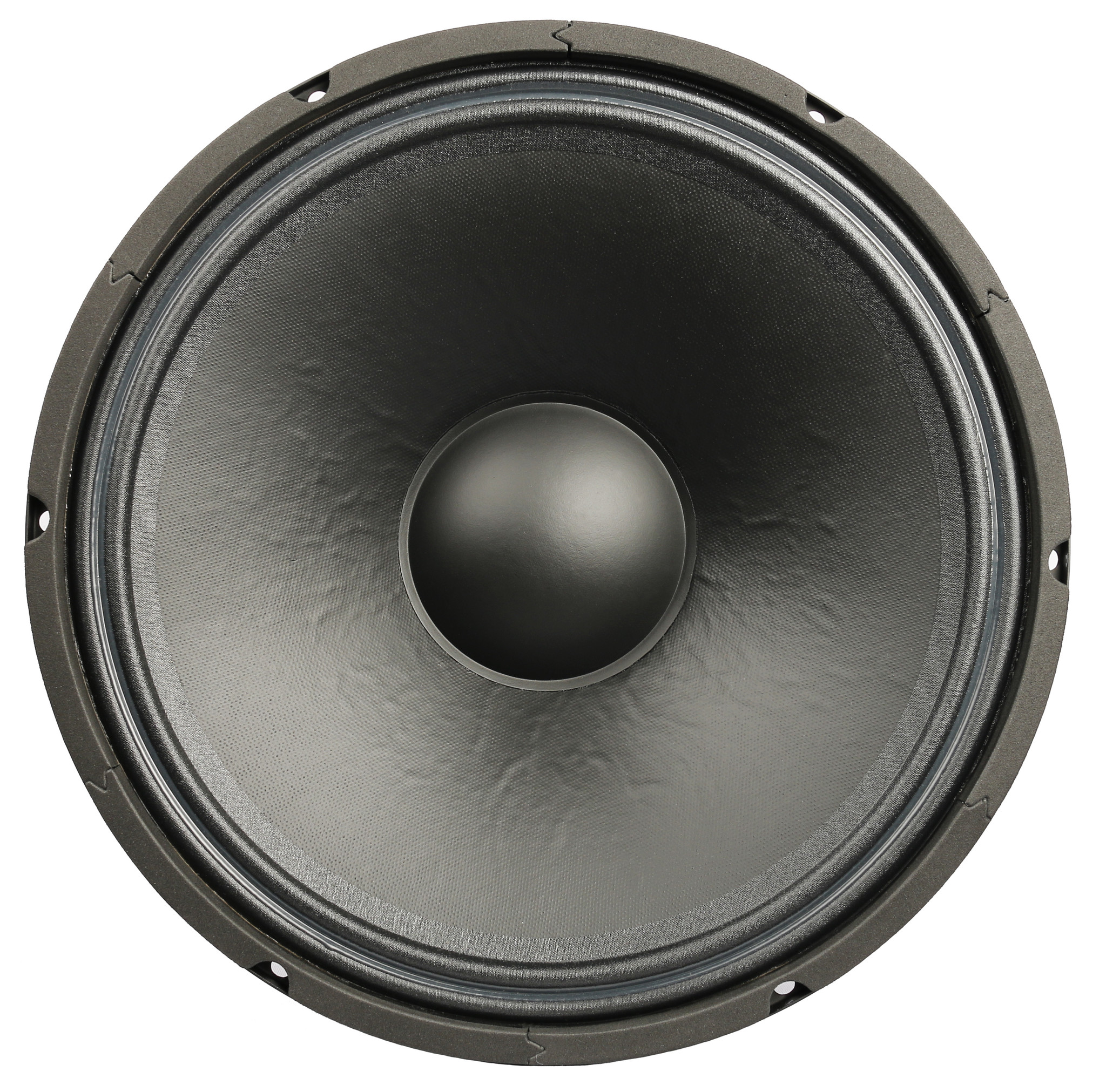

      SB Audience BIANCO-12OB150-01 Open Baffle Woofer



      SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



      There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

      Show more

      Specifications

      Article number
      BIANCO-12OB150-01
      Woofer Series
      BIANCO
      Woofer Type
      Open Baffle
      Nominal Diameter
      12”
      Power Handling (RMS)
      150 W
      Power Handling (max)
      300 W
      Impedance (Z)
      8 Ohm
      Sensitivity
      96 dB
      Frequency Response
      44 - 5550 Hz
      Voice Coil Diameter
      60.5 mm (2.4 in)
      DC Resistance (Re)
      7.2 Ohm
      Voice Coil Inductance (Le)
      1.18mH
      Resonant Frequency (Fs)
      44Hz
      Mechanical Q (Qms)
      6.39
      Electromagnetic Q (Qes)
      0.69
      Total Q (Qts)
      0.63
      Diaphragm Mass Inc. Airload (Mms)
      52.4g
      Mechanical Compliance of Suspension (Cms)
      0.25mm/N
      Surface Area of Cone (Sd)
      539.1cm²
      BL Product (BL)
      12.2 Tm
      Compliance Equivalent Volume (Vas)
      103.8liters
      Maximum Linear Excursion (Xmax)
      6.79 mm
      Driver's Mechanical Losses (Rms)
      2.26Kg/s
      Basket / Frame Material
      Stamped steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      305 mm (12.0 in)
      Baffle Cutout Diameter
      278 mm (10.94 in)
      Bolt Circle Diameter
      294 mm (11.57 in)

      Show more
