        SB Acoustics Satori WO24TX-8 Textreme 9,5" woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        € 256,16€ 309,95 4 In stock
        • -5% Order 4 for only € 294,45 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The new SB Acoustics 9.5" Satori WO24TX-4 and WO24TX-8 Textreme woofer models, with an increased rated power at 90W, are an important reinforcement for the Satori range, which now offers extensive options for speaker designers.



        • Advanced TeXtreme® cone for improved piston operation
        • Large optimized motor system with under-cut pole piece and dual shorting rings
        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression.
        • Soft low damping rubber surround for optimum transient response
        • Linear symmetric suspension design for improved dynamic performance
        • Non-conducting fibre glass voice coil former for minimum damping
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece for reduced compression
        • Low piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.


        Product details

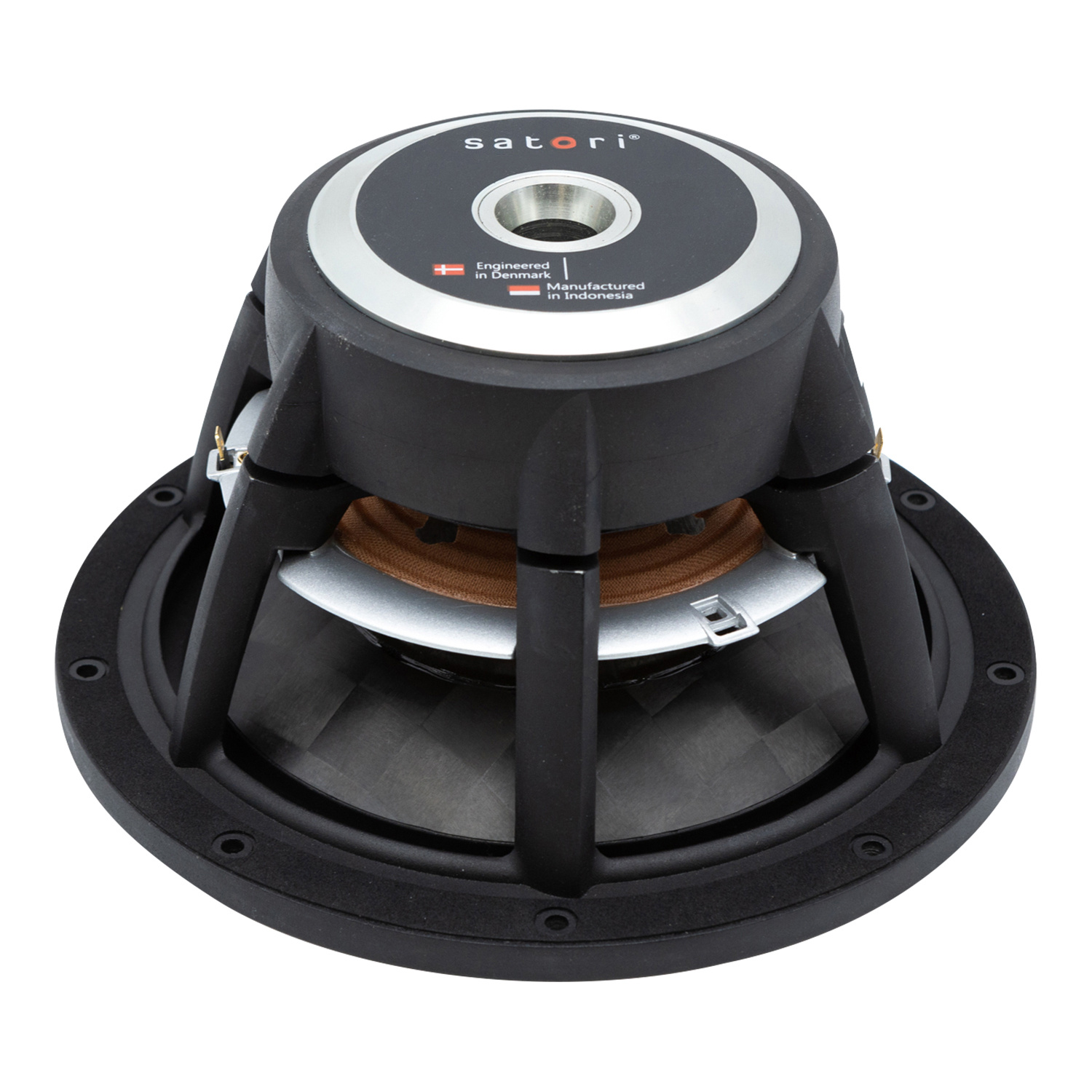

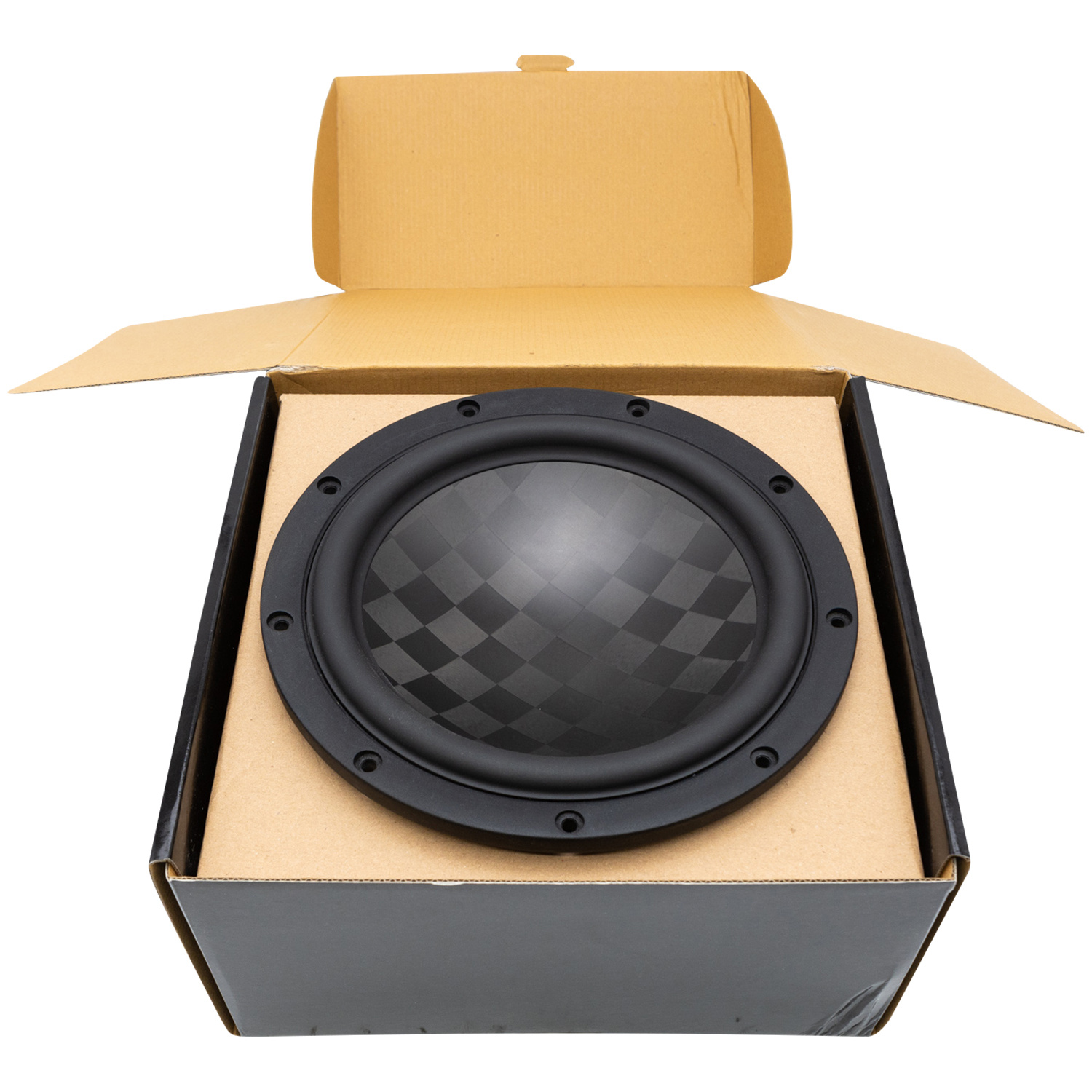

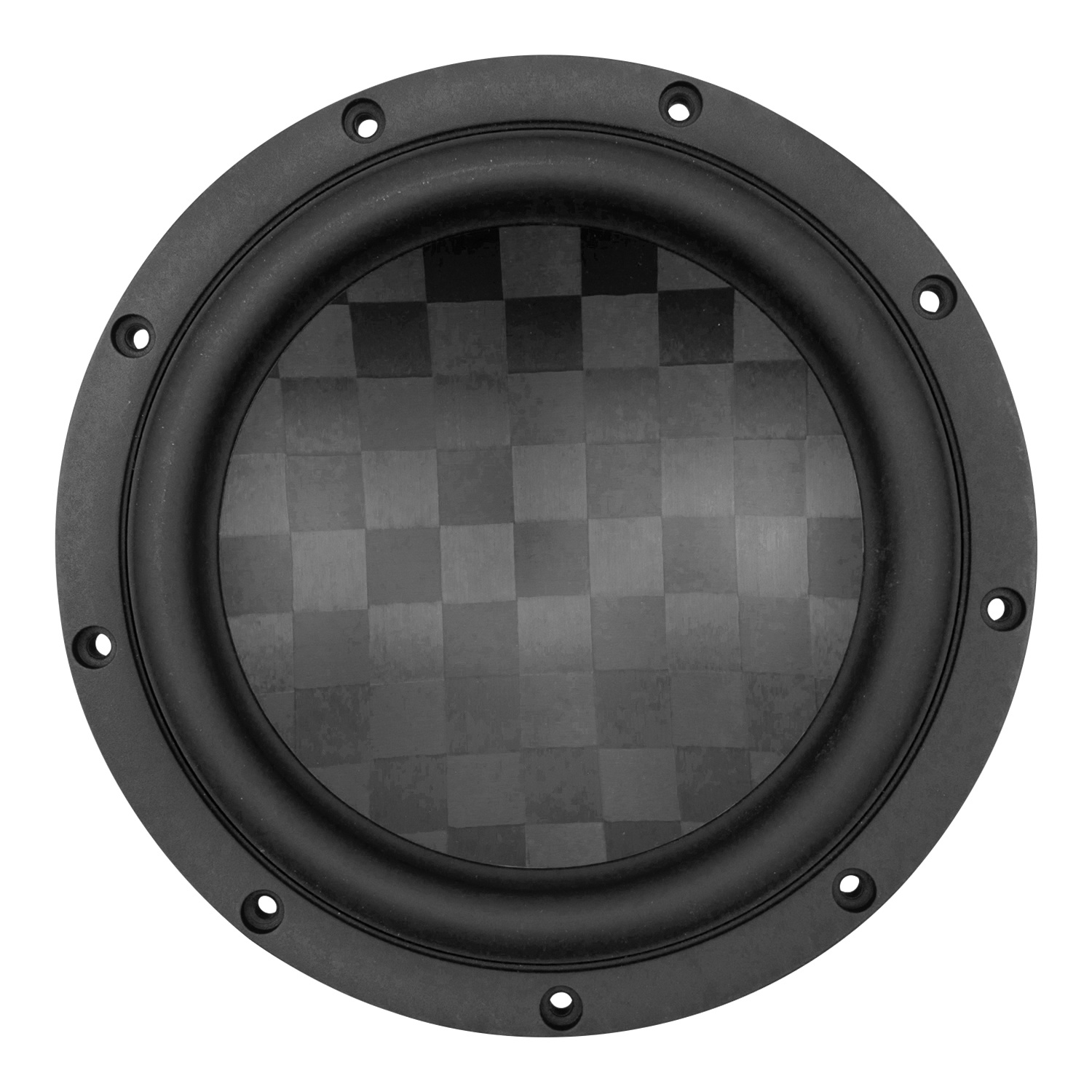

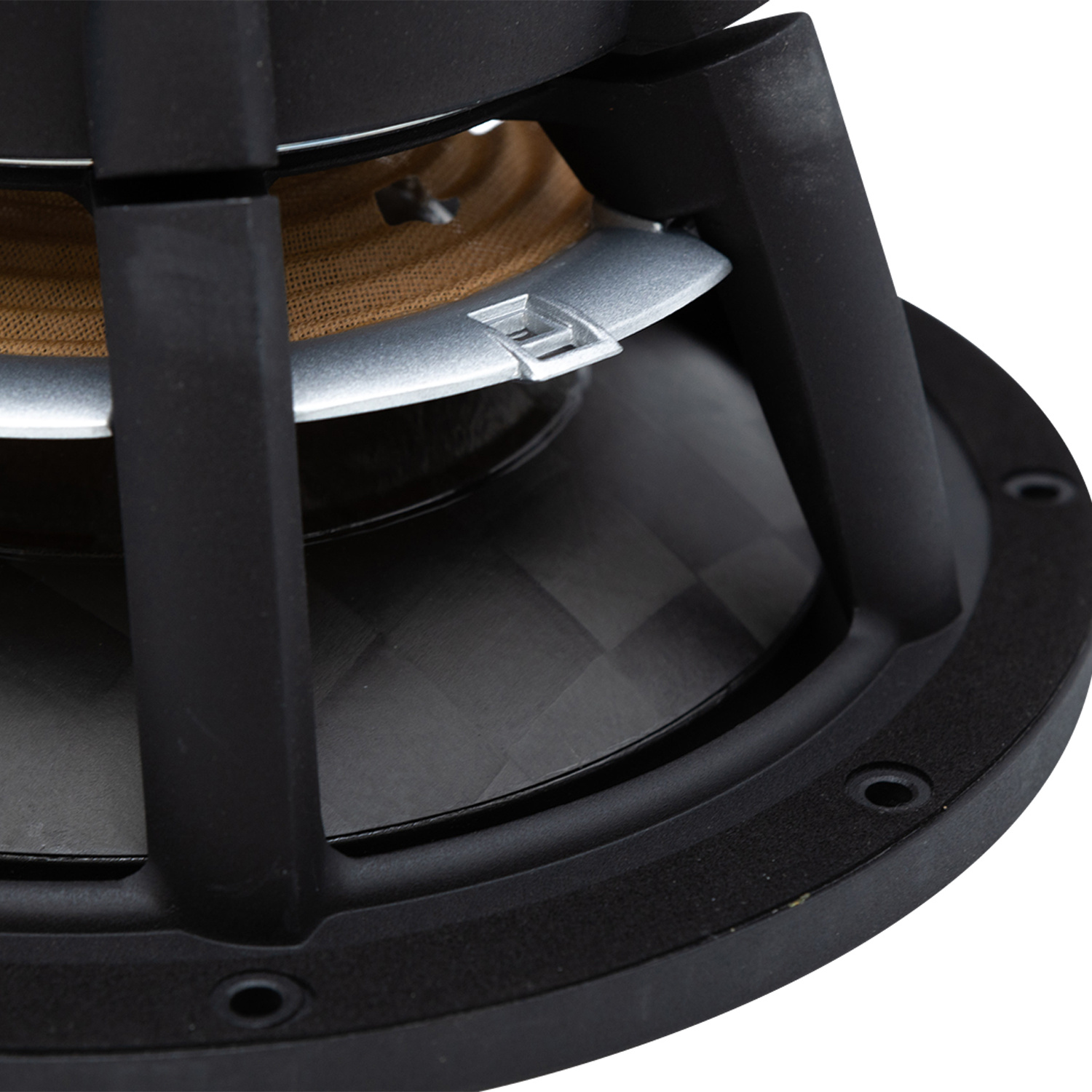

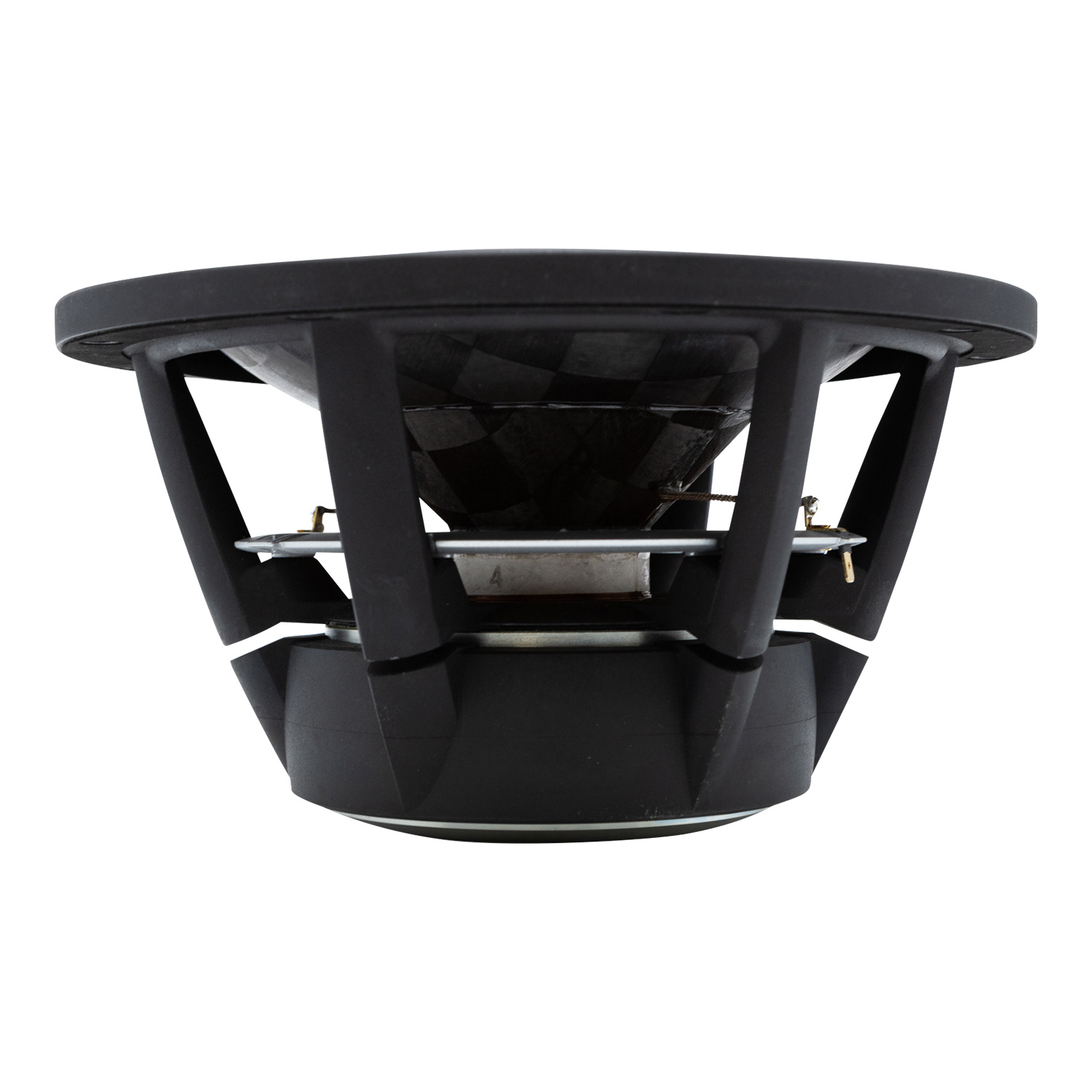

        SB Acoustics Satori WO24TX-8 Textreme woofer
        The company was one of the very first speaker driver manufacturers to announce the adoption of TeXtreme materials for cones and diaphragms and, although it wasn't first to market with TPCD material diaphragms it was probably the brand that most contributed to its market recognition and acceptance. The fact that SB Acoustics launched TeXtreme-based drivers in its Satori high-end audio range, designed by Danesian Audio, was a clear sign of the performance that Frank Nielson and Ulrik Schmidt managed to achieve.

        Show more


        Article number
        Woofer Series
        Woofer Type
        Textreme woofer
        Nominal Diameter
        Power Handling (RMS)
        90 W
        Impedance (Z)
        8 Ω
        88 dB
        Voice Coil Diameter
        49.5 mm
        DC Resistance (Re)
        5.8 Ω
        Voice Coil Inductance (Le)
        0.56 mH
        Resonant Frequency (Fs)
        24.5 Hz
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)
        Diaphragm Mass Inc. Airload (Mms)
        44.2 g
        Mechanical Compliance of Suspension (Cms)
        0.95 mm/N
        Surface Area of Cone (Sd)
        255 cm2
        BL Product (BL)
        10.45 Tm
        Compliance Equivalent Volume (Vas)
        88 liters
        Maximum Linear Excursion (Xmax)
        8.55 mm
        Driver's Mechanical Losses (Rms)
        1.2 kg/s
        Overall Outside Diameter
        242 mm
        Overall Depth
        131.4 mm

        Show more
