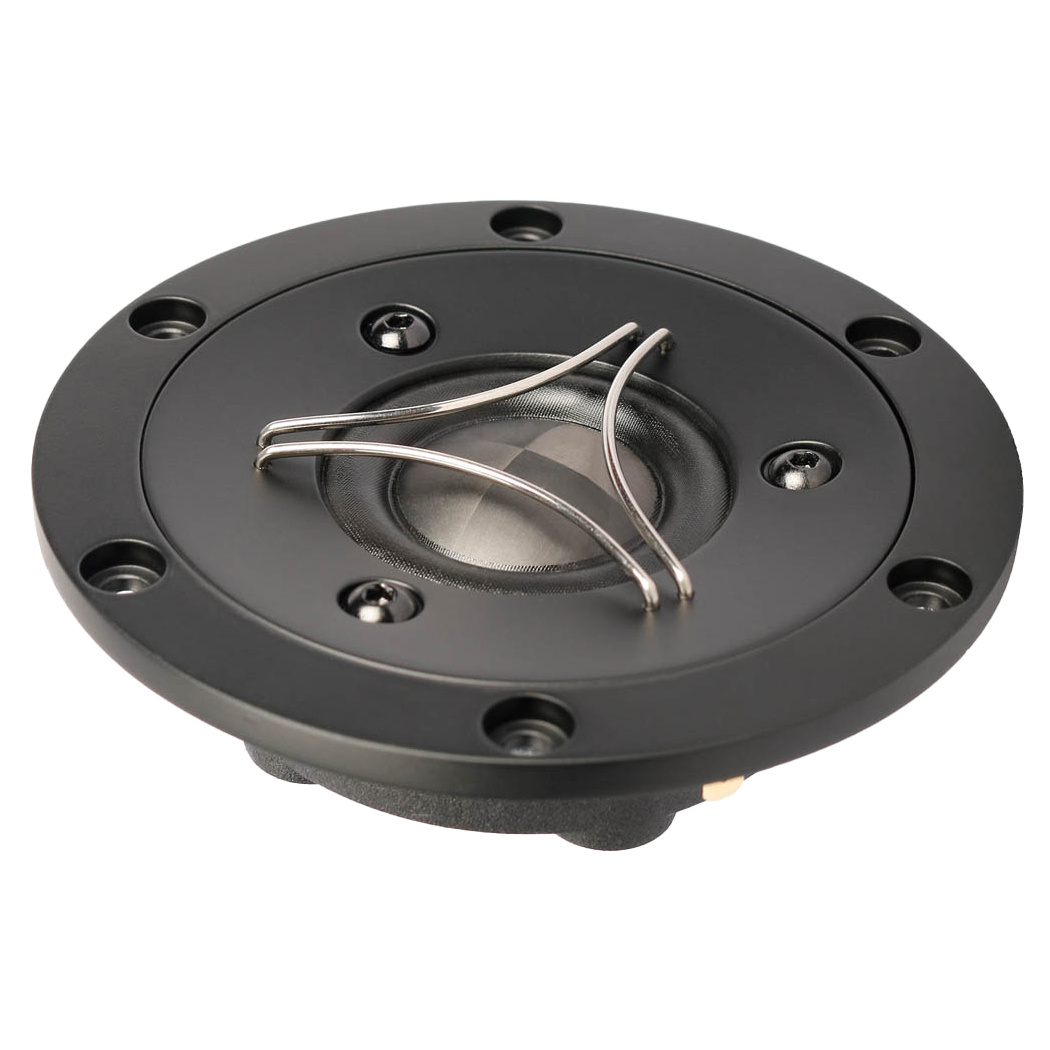

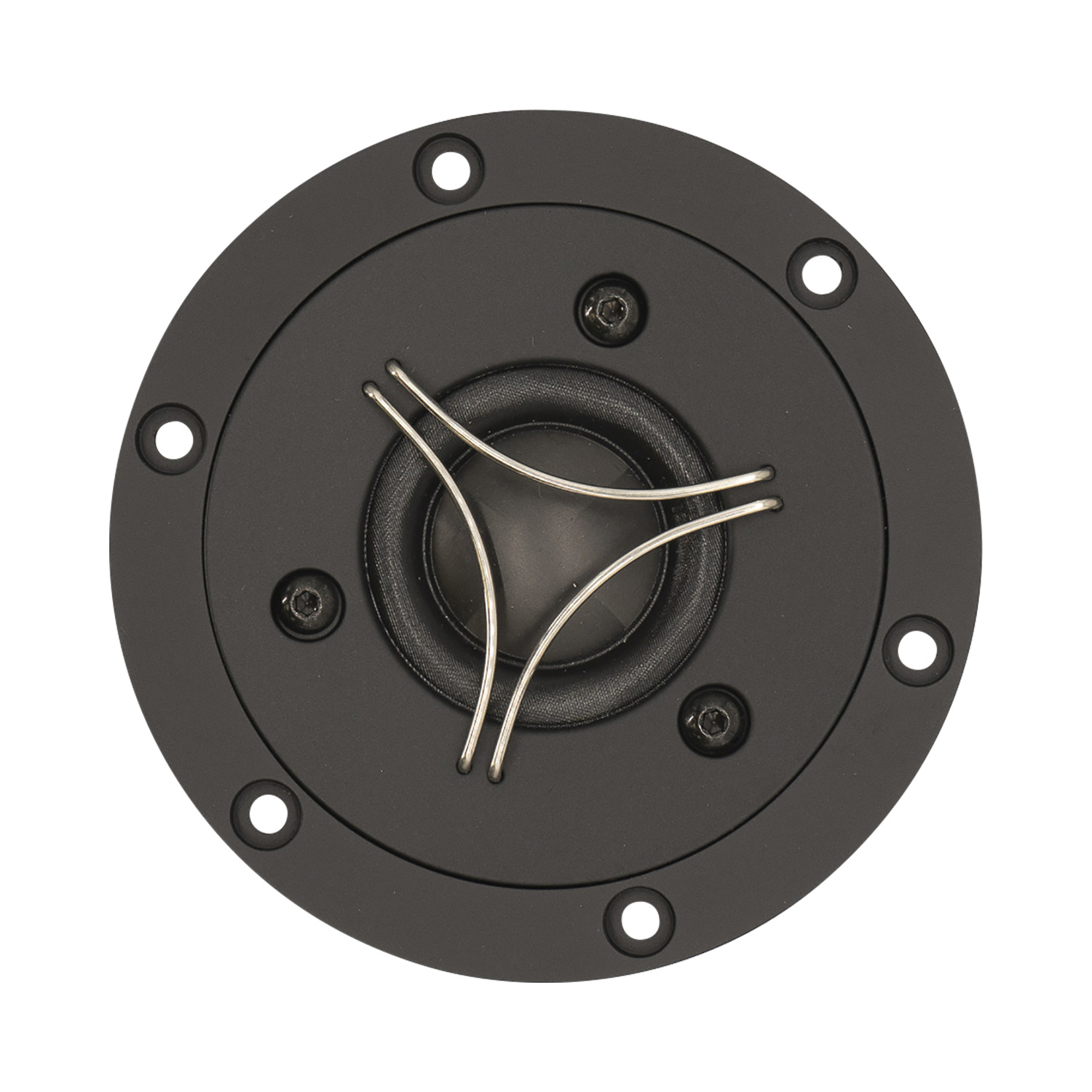

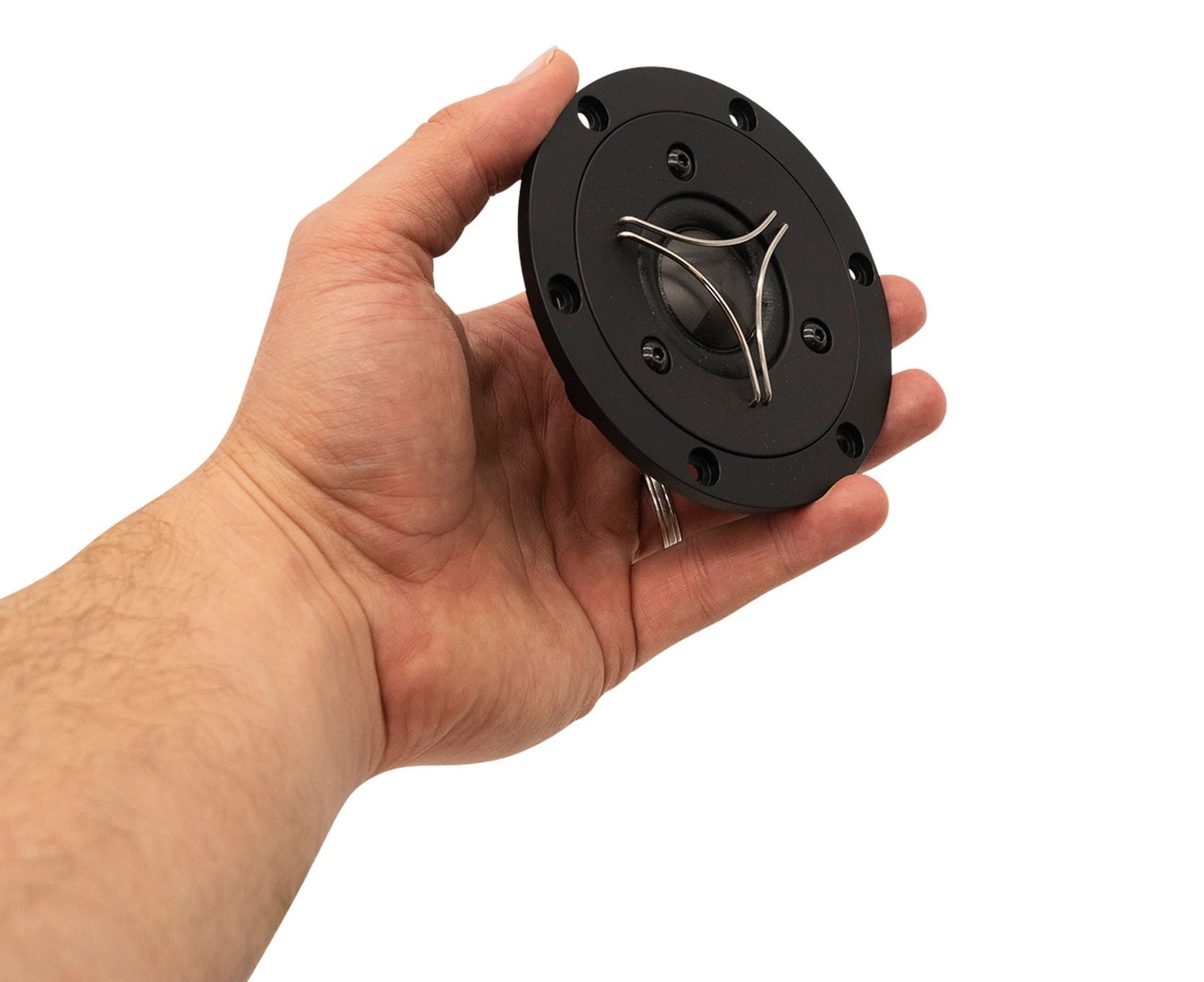

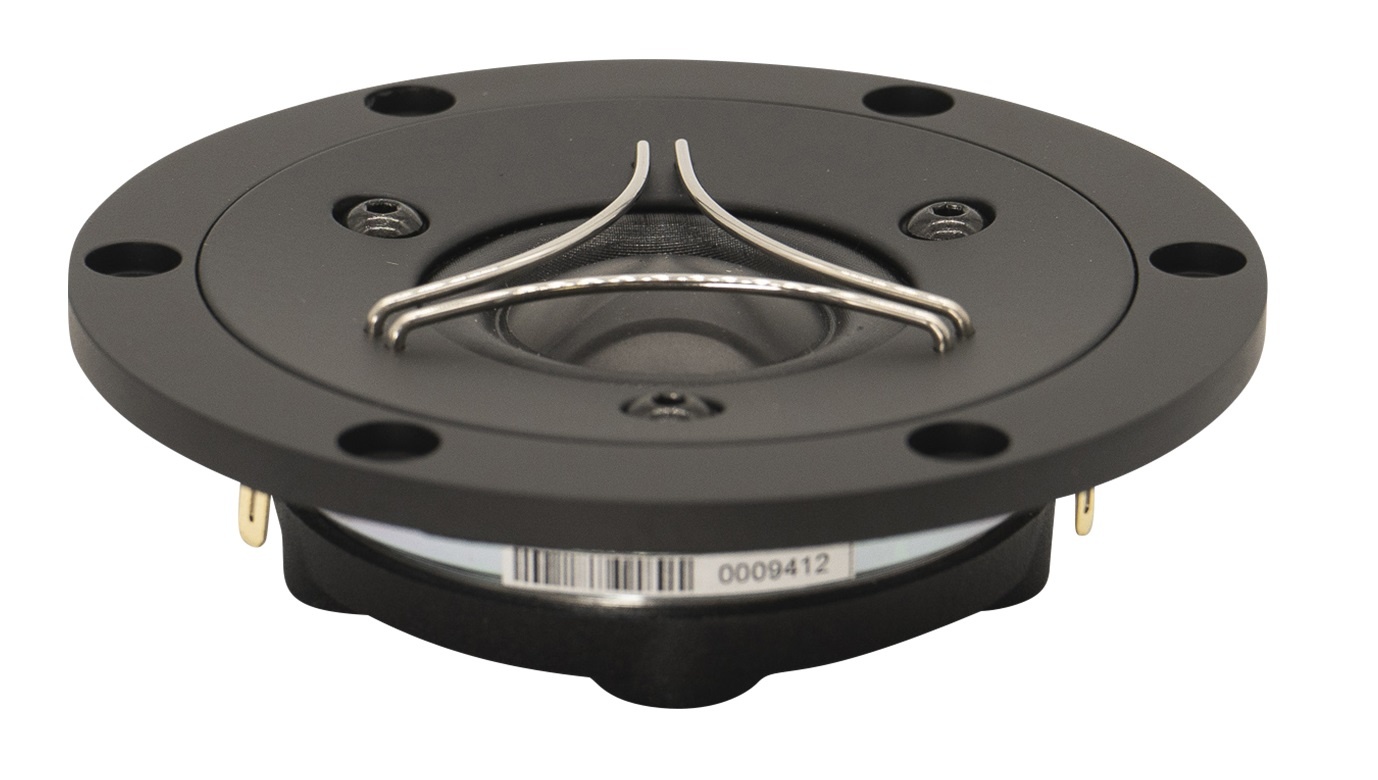

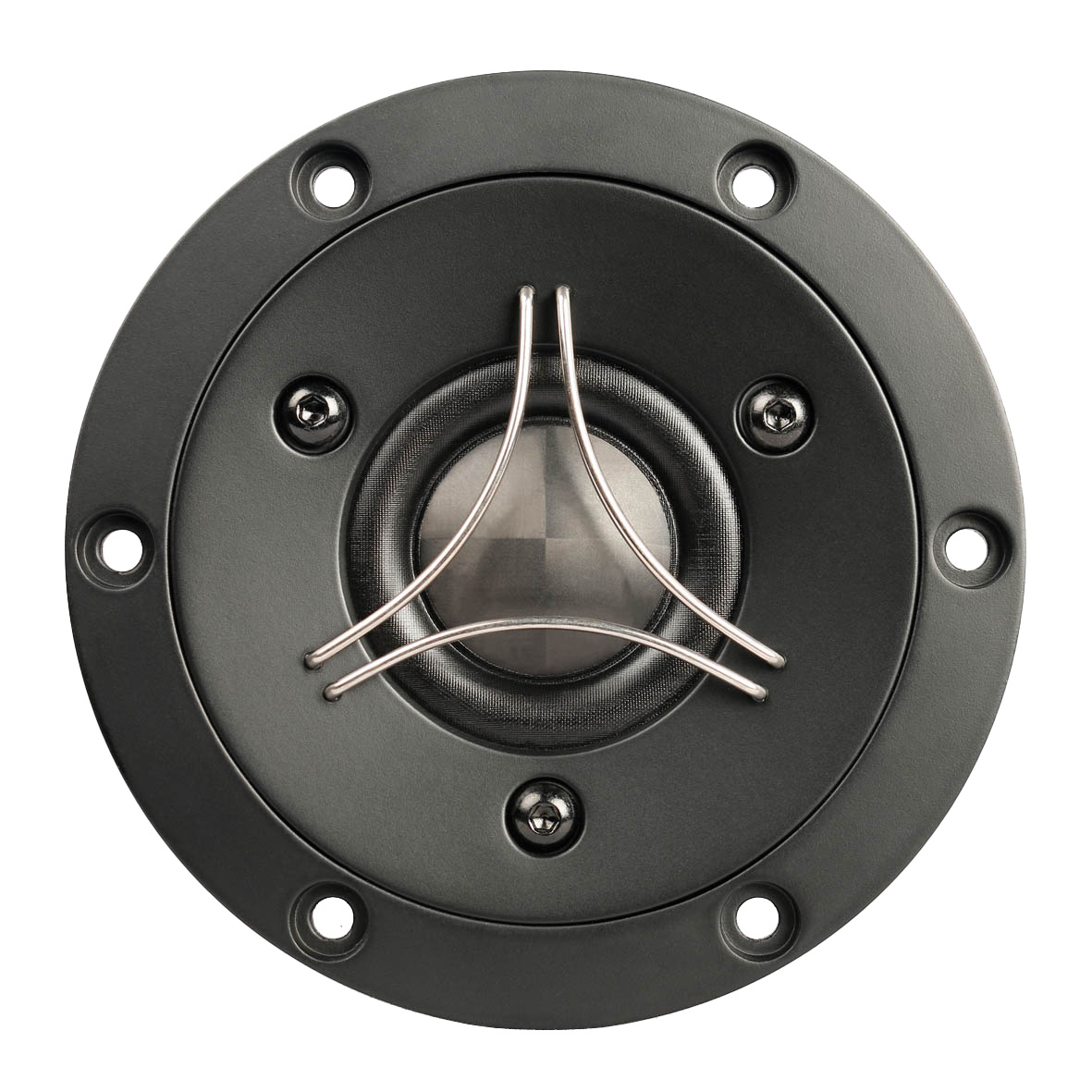

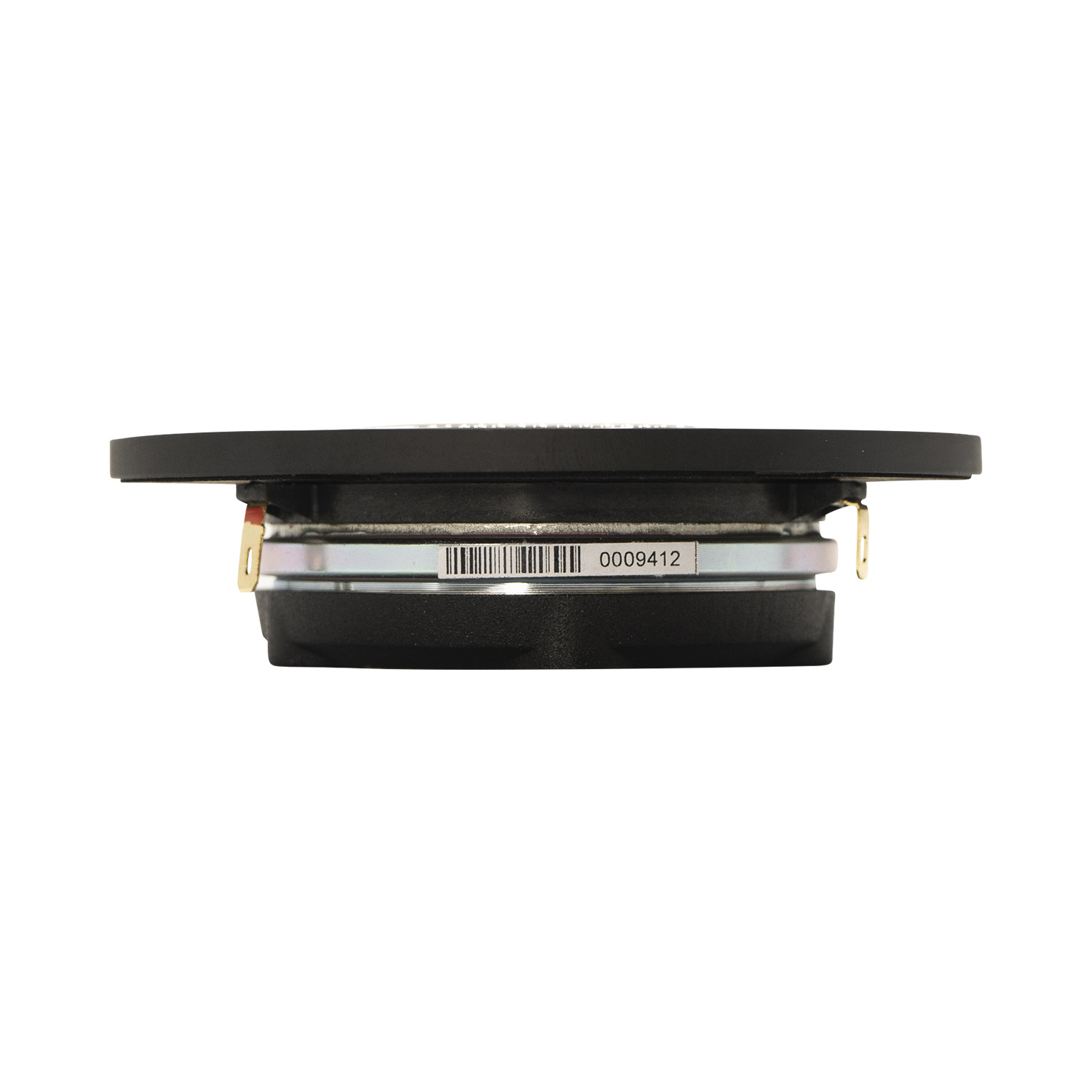

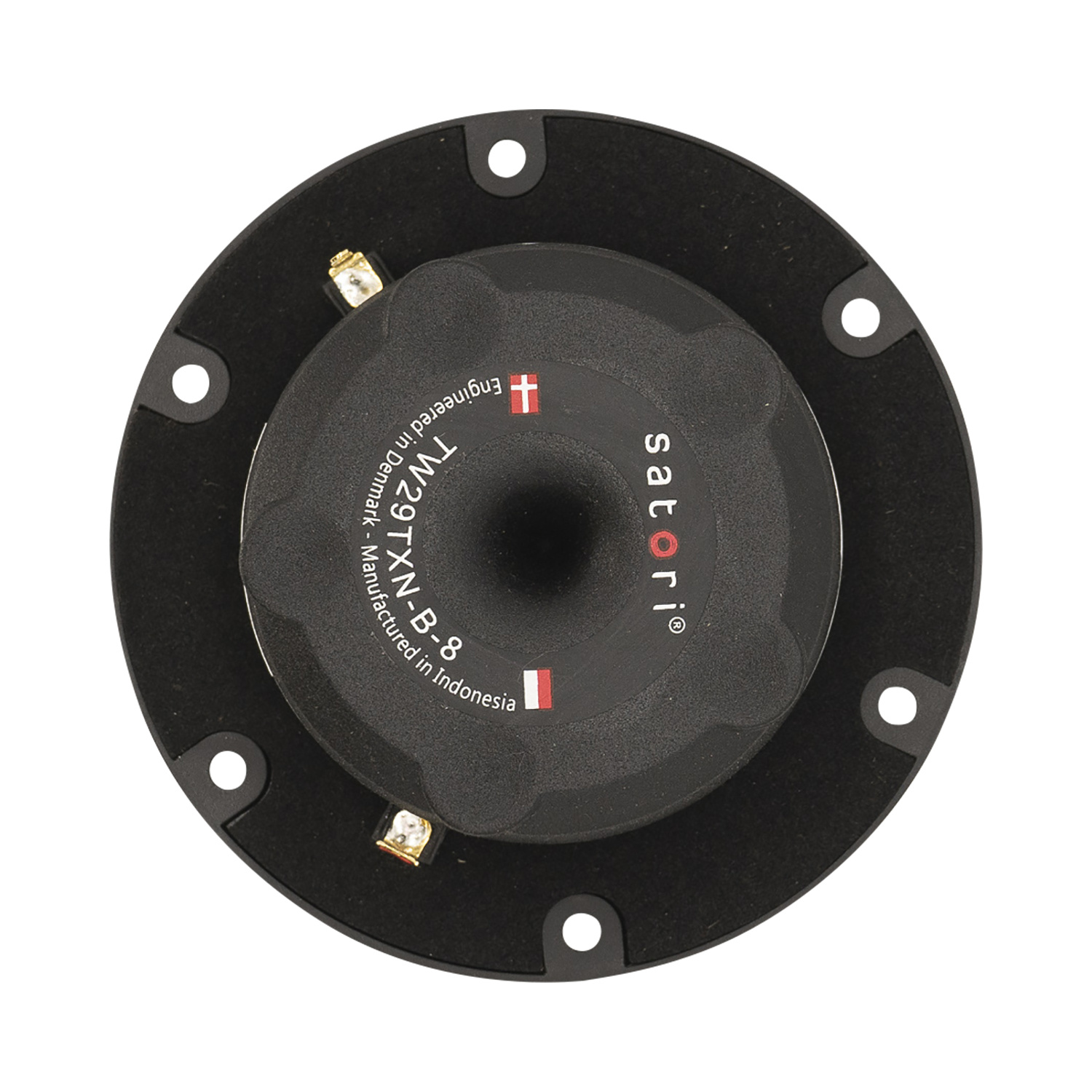

        Satori TW29TXN-B-8 TeXtreme Dome Tweeter

        SB Acoustics Satori TW29TXN-B-8 TeXtreme Dome Tweeter

        €264,95

        7 In stock

        SB Acoustics Satori TW29TXN-B-8 TeXtreme Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 218,97€ 264,95 7 In stock
        • -5% Purchase 4 for only € 251,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SB Acoustics Satori TW29TXN-B-8 TeXtreme Dome Tweeter



        Highlights

        • Advanced TeXtreme dome
        • Two part alumimium faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling tot rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics SATORI TW29TXN-B-8 TeXtreme Dome Tweeter



        TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a dome material allows for a very stiff and lightweight dome. Combined with a copper coated aluminium wire voice coil makes this a smaller moving mass. The added benefit of the Textreme material is its strength to weight ratio. Allowing for a efficient driver that doesn’t distort easily because it maintains optimum pistonic motion for longer.



        But new fancy materials mean nothing if they are not combined with a quality design. Which SB-acoustic offers with its SATORI line of product.  Creating a unique low-distortion high efficiency driver.

        Show more

        Specifications

        Article number
        TW29TXN-B-8
        EAN
        8785256837601
        Tweeter Type
        Dome
        Tweeter Series
        SATORI
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93.5 dB
        Resonant Frequency (Fs)
        680 Hz
        DC Resistance (Re)
        6.2 Ohms
        Voice Coil Inductance (Le)
        0.04 Mh
        Mechanical Q (Qms)
        1.63
        Electromagnetic Q (Qes)
        0.77
        Total Q (Qts)
        0.52
        Overall Outside Diameter
        103.8 mm
        Cutout Diameter
        70 mm
        Diaphragm Material
        TeXtreme
        Recommended cut frequency
        2600 Hz, 12 dB/oct

        Show more
