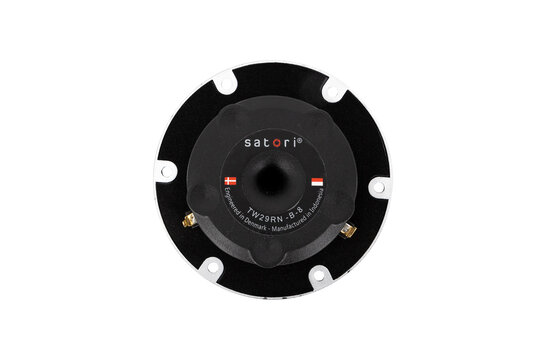

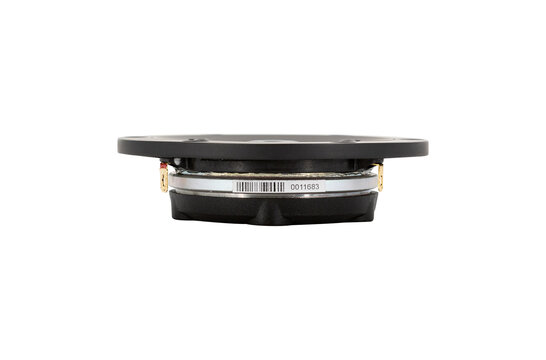

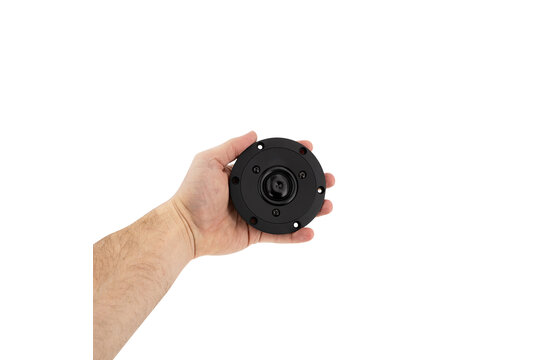

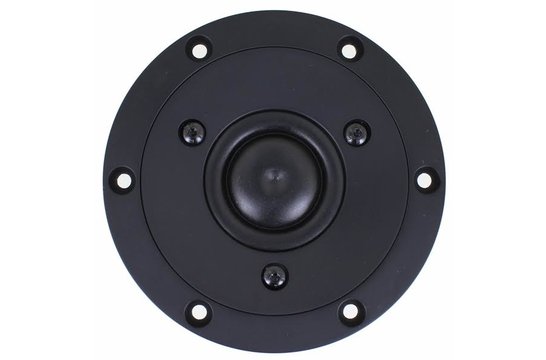

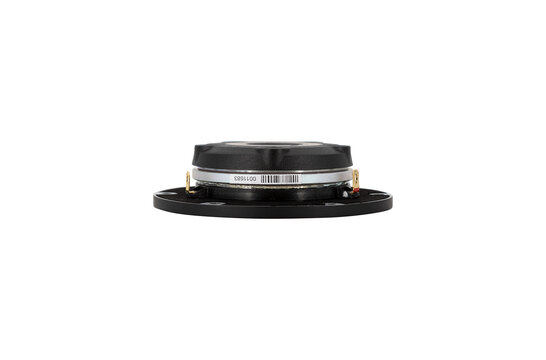

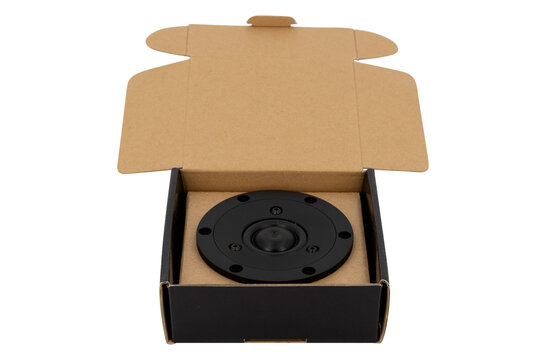

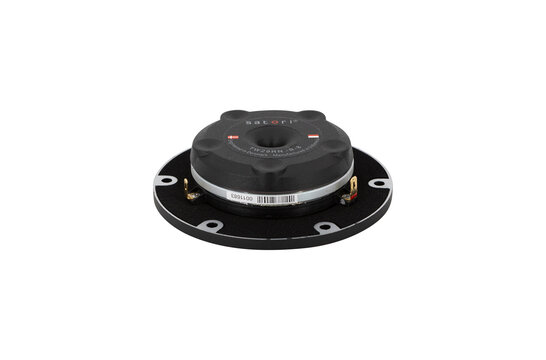

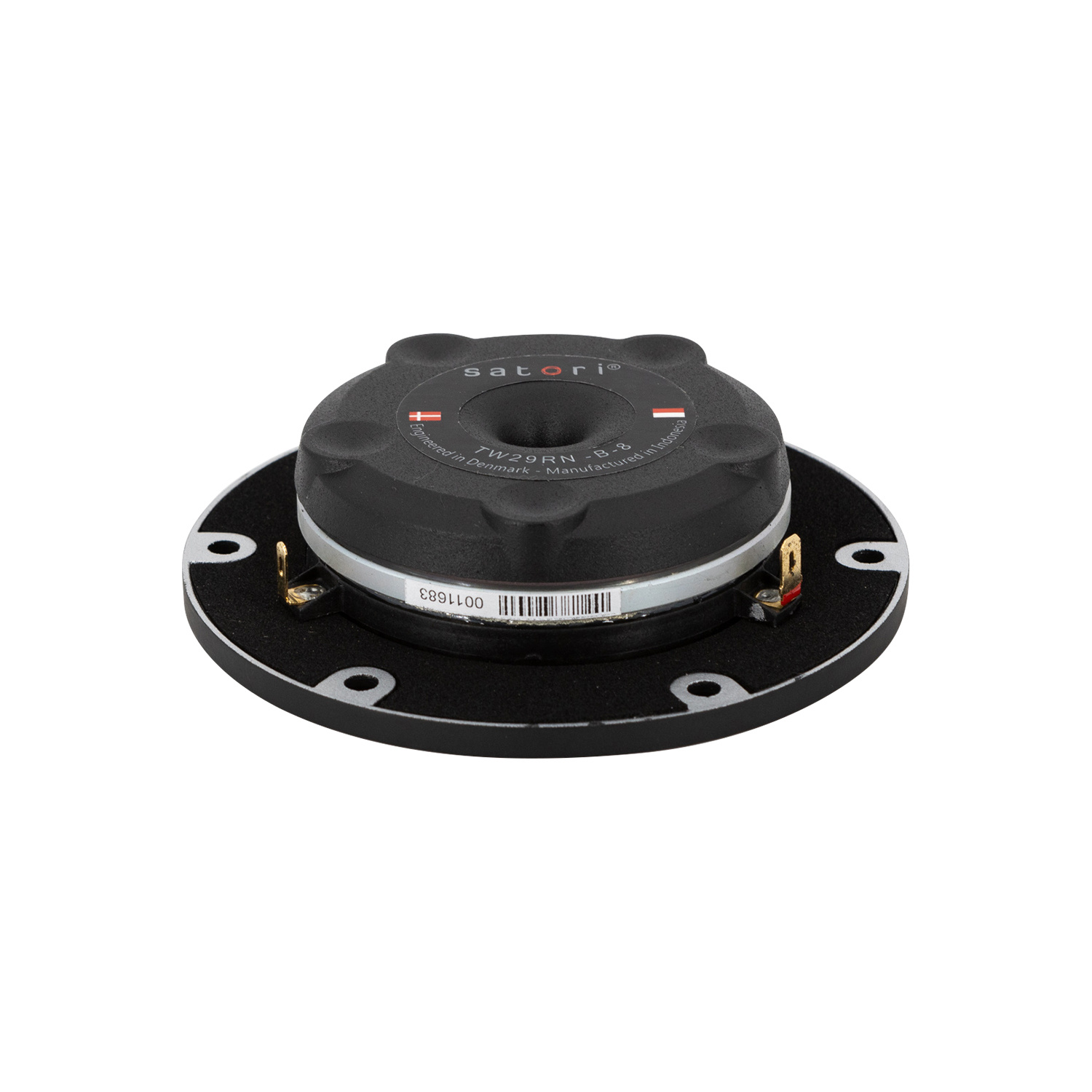

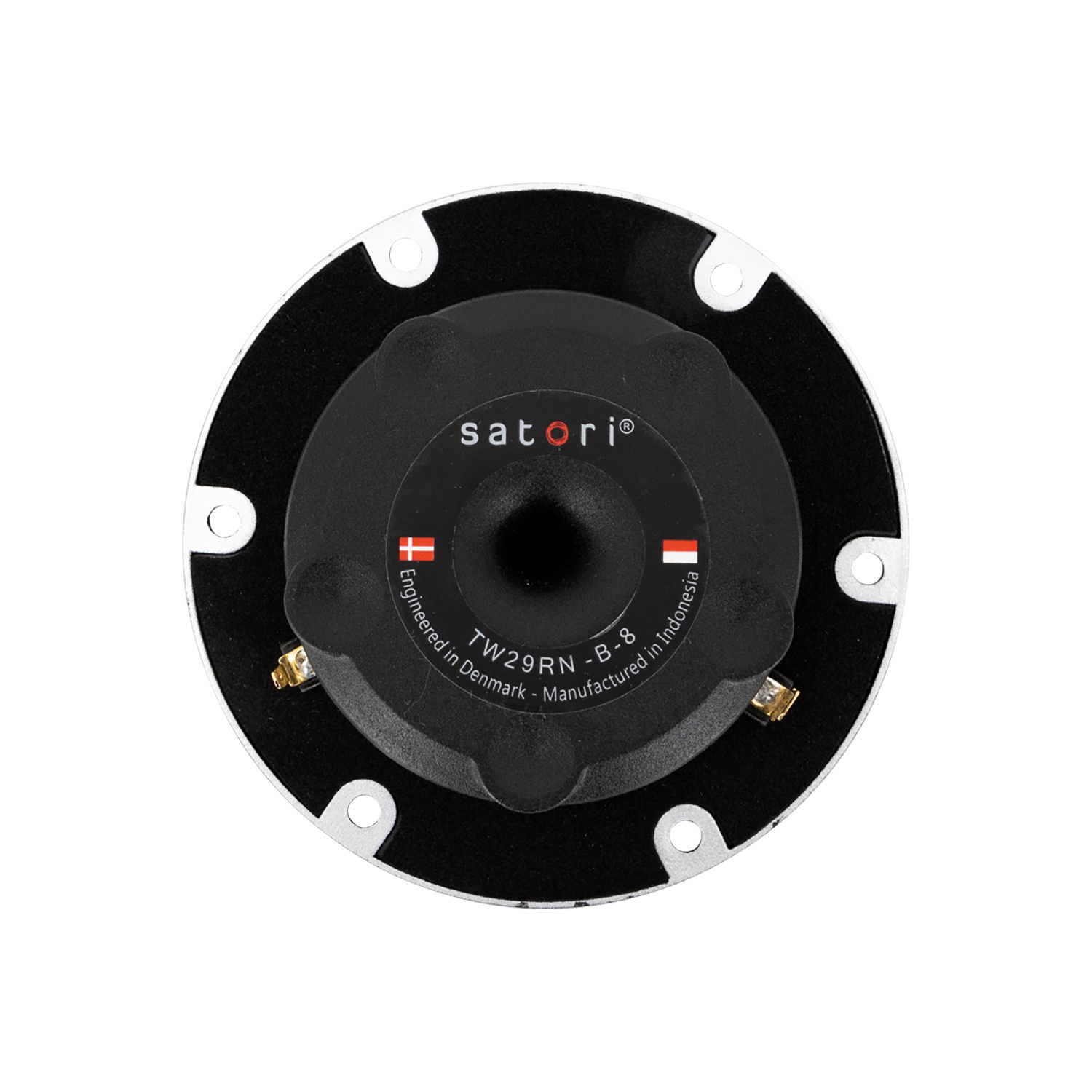

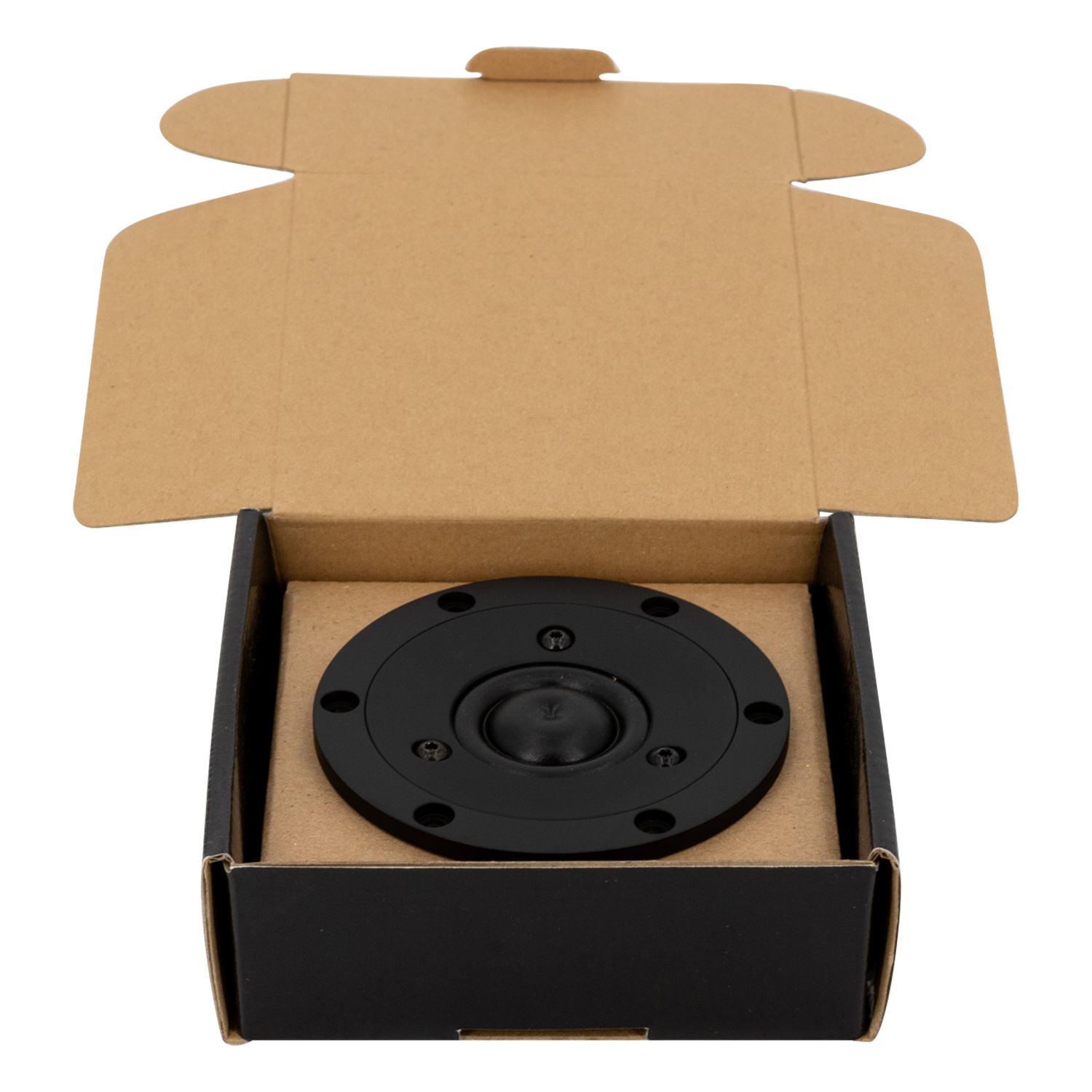

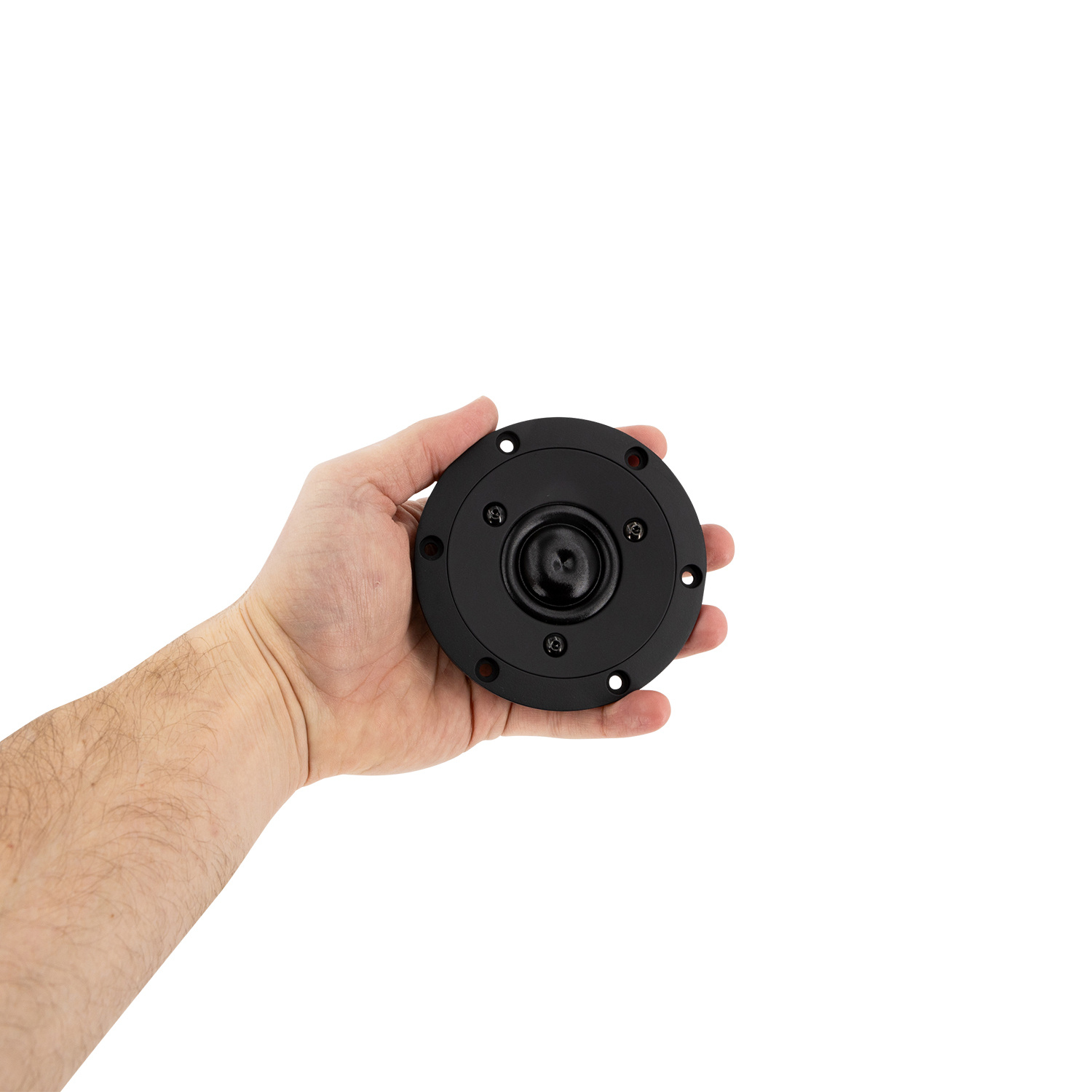

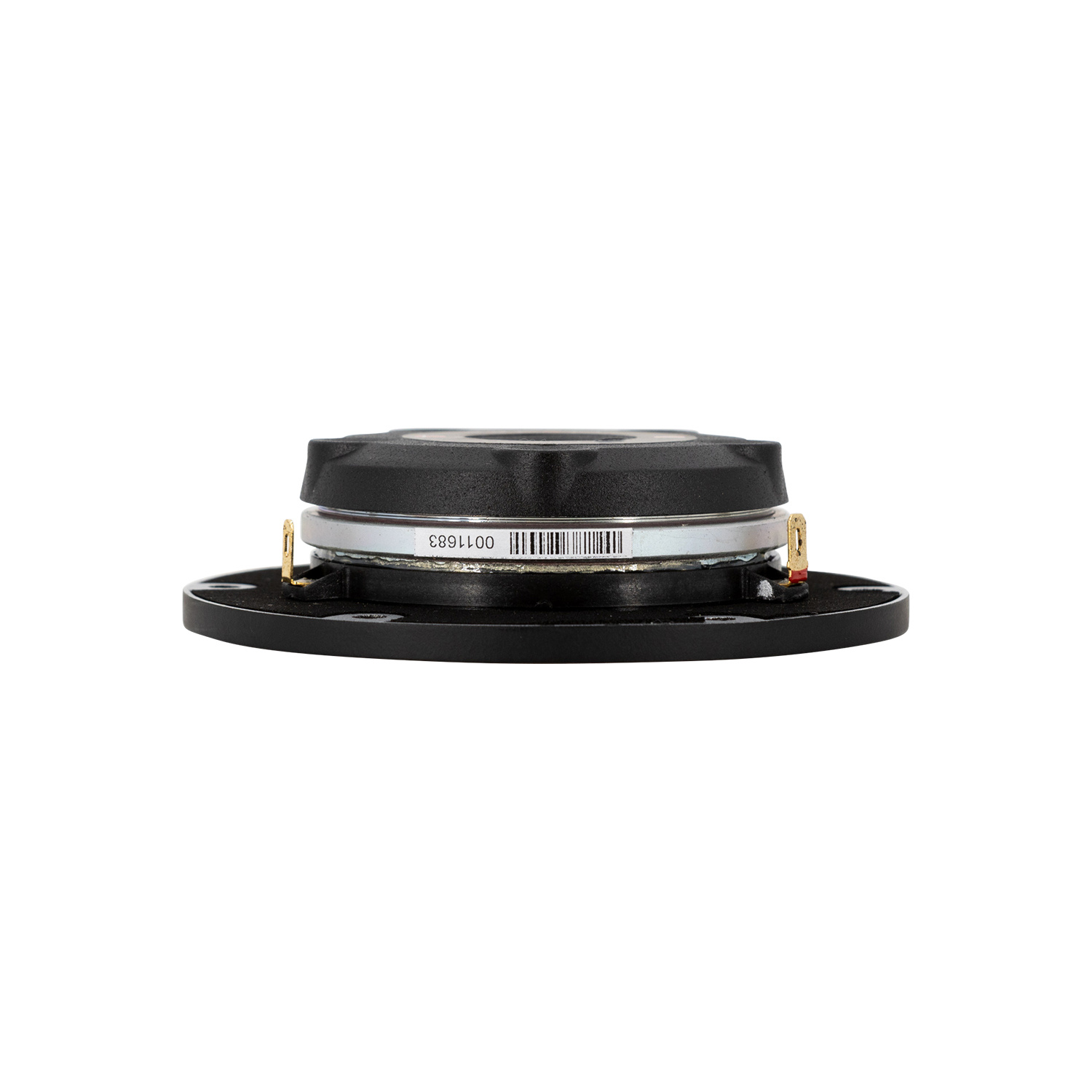

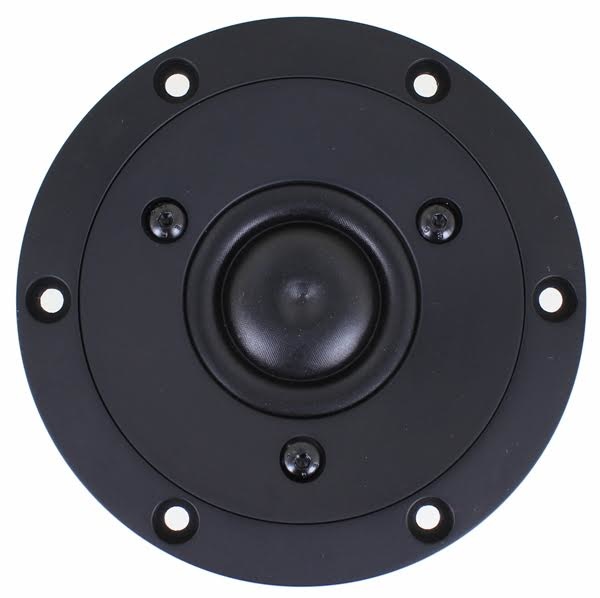

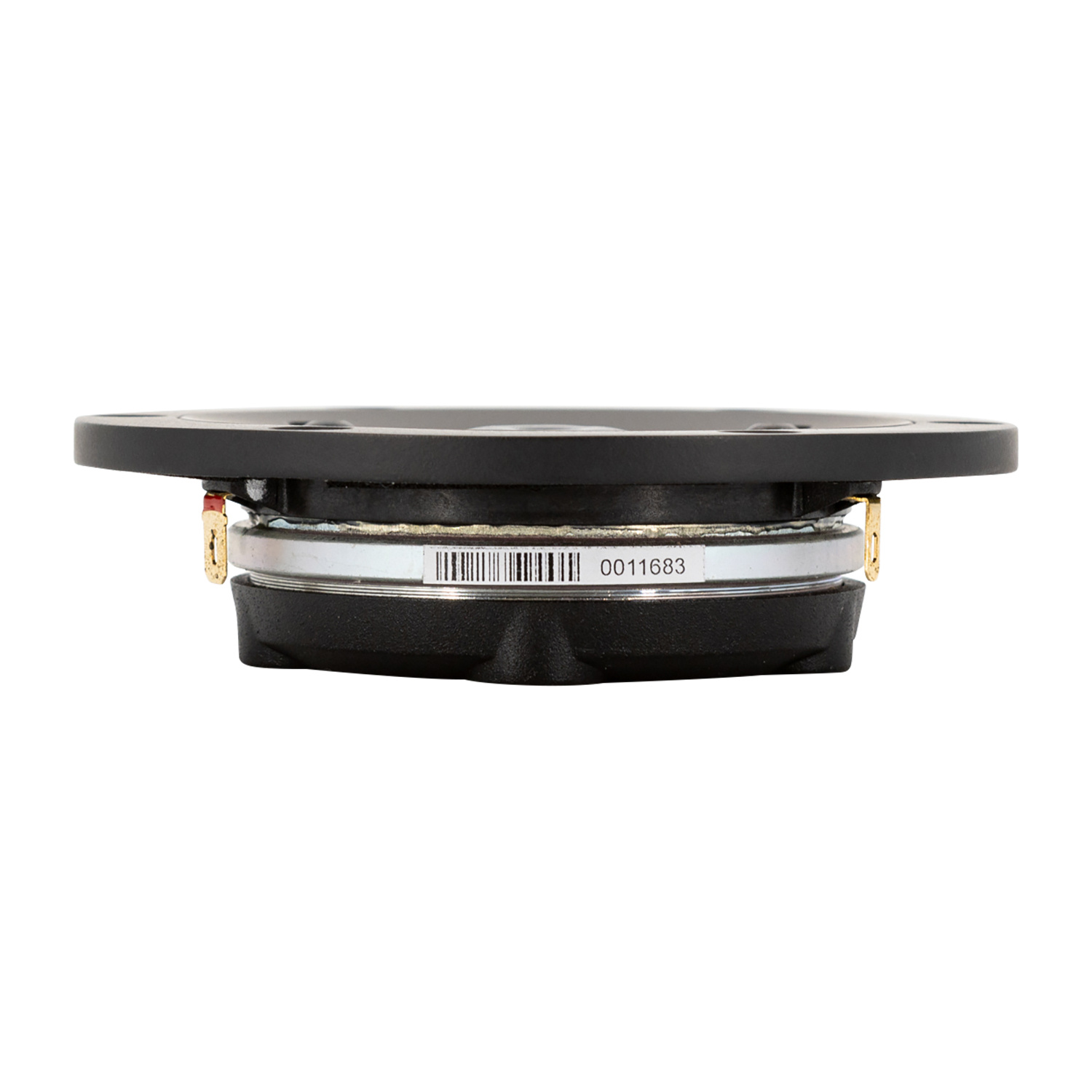

        SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter

        2 reviews
        Brand: SB Acoustics
        Show all Ring dome tweeter
        1⅛" | 8 Ω
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        € 132,19€ 159,95 2 In stock
        • -5% Order 4 for only € 151,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped on Monday
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter
        Satori TW29RN-B-8 Ring Dome Tweeter

        Product description

        Highlights

        • Non-resonant diaphragm design for minimum high frequency break-up
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion.
        • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter



        The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system. Compact neodymium magnet version (less than 1" depth from back of flange to base). 8 ohm version. Black faceplate.

        Show more

        Specifications

        Article number
        TW29RN-B-8
        Tweeter Type
        Ring Dome
        Tweeter Series
        Satori series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        8 Ω
        Sensitivity
        93 dB 2.83 V/m
        Frequency Response
        1,400 - 40,000 Hz
        Resonant Frequency (Fs)
        650 Hz
        DC Resistance (Re)
        6.2 Ohms
        Voice Coil Inductance (Le)
        0.04 mH
        Mechanical Q (Qms)
        1.74
        Electromagnetic Q (Qes)
        0.66
        Total Q (Qts)
        0.48
        Overall Outside Diameter
        103.8
        Cutout Diameter
        70 mm
        Depth
        26.7 mm
        Diaphragm Material
        Silk

        Show more

        Reviews

        2 reviews
        5 from 5Based on 2 reviews
        Review this product
        5 of 5
        Perfect, and delivery very fast !!
        By Robert T. on 19 March 2021
        4 of 5
        Very clean and natural sounding tweeters, great overall product quality. Nice service from soundimports aswell. Cheers!
        By Benjamin M. on 26 November 2020
