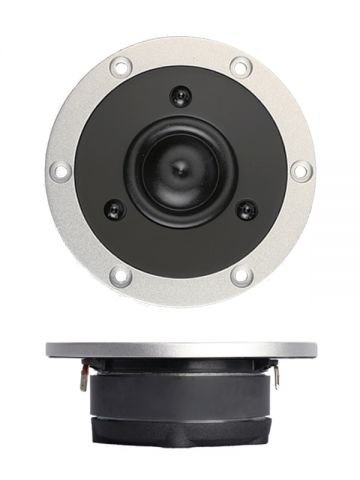

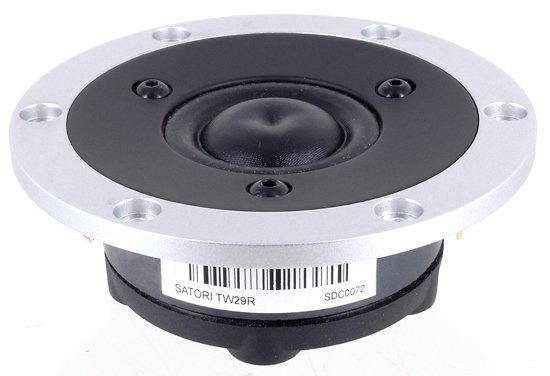

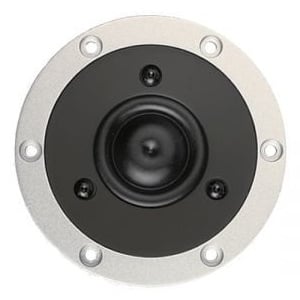

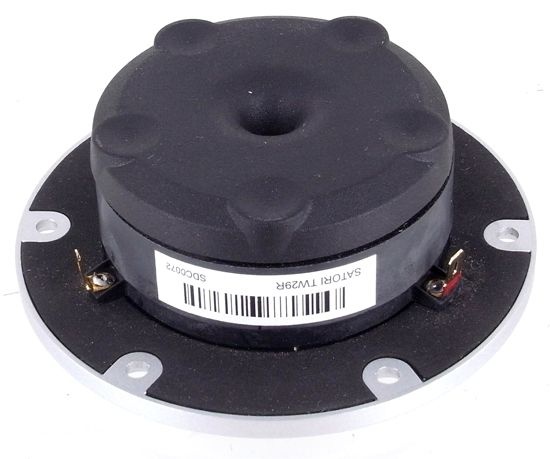

SB Acoustics Satori TW29R Ring Dome Tweeter

3 reviews

Brand: SB Acoustics

Show all Ring dome tweeter

Compare

1⅛" | 4 Ω

€ 122,27€ 147,95 4 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Non-resonant diaphragm design for minimum high frequency break-up
Two part aluminum faceplate with integrated mechanical decoupling
Dual balanced compression chambers for improved dynamics
Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
Saturation controlled motor system with T-shaped pole piece for lower distortion
Non-reflective cast alumimum chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency for extended range

Product details

SB Acoustics Satori TW29BN Ring Dome Tweeter

The TW29R is a premium ring dome tweeter offered by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output. This tweeter is a perfect choice in any high end system.

Specifications: BL Product (BL): 2.0 Tm • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm²

Specifications

Article number: TW29R-B
Tweeter Type: Dome
Tweeter Series: Satori Series
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 80 Watts
Impedance (Z): 4 Ω
Sensitivity: 95 dB 2.83V/1m
Frequency Response: 1.8 - 30kHz
Resonant Frequency (Fs): 600 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 2.0
Electromagnetic Q (Qes): 1.22
Total Q (Qts): 0.76

User manual

Reviews

3 reviews

5 from 5Based on 3 reviews

Review this product

5 of 5

Der TW92R paßt wunderbar zum MW6,5. Die TW29R ersetzen die TW29B-B. Letztere sind zwar unheimlich geradeaus, rollen aber nicht so smooth runter zu den Mitteltieftönern. Und der Metallklang ist auch weg.

By Rainer P. on 3 March 2020

5 of 5

Great tweeter, loving it.

By Kevin G. on 17 July 2019
