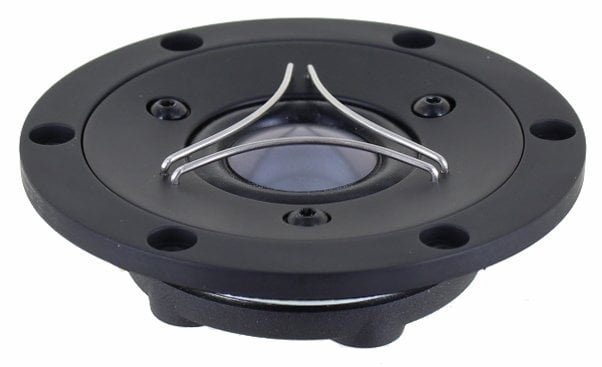

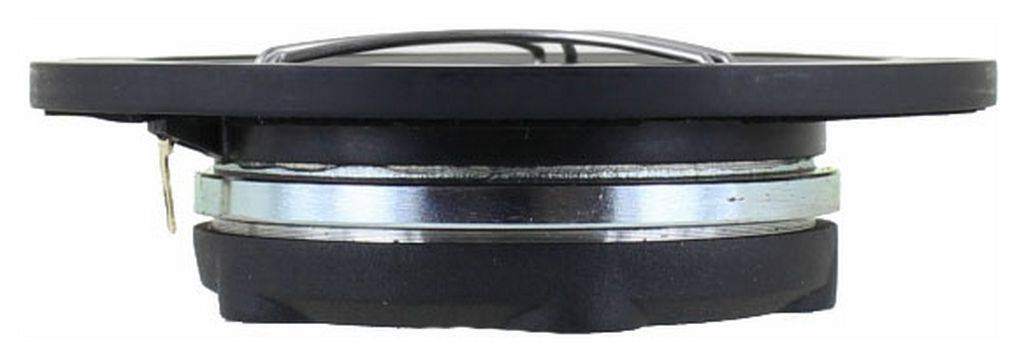

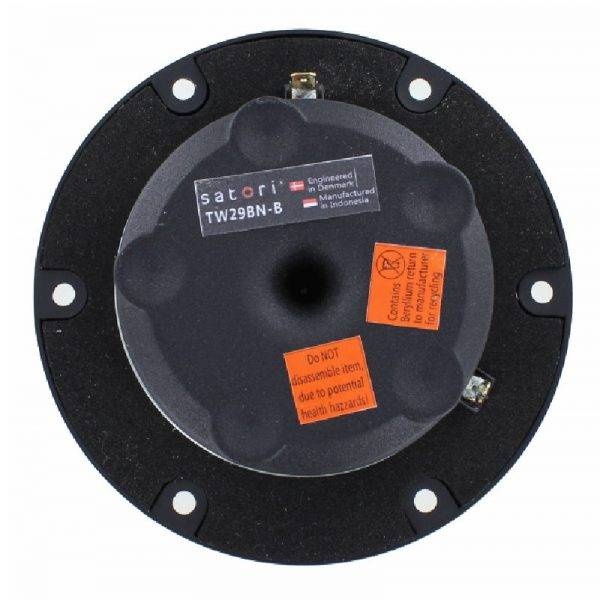

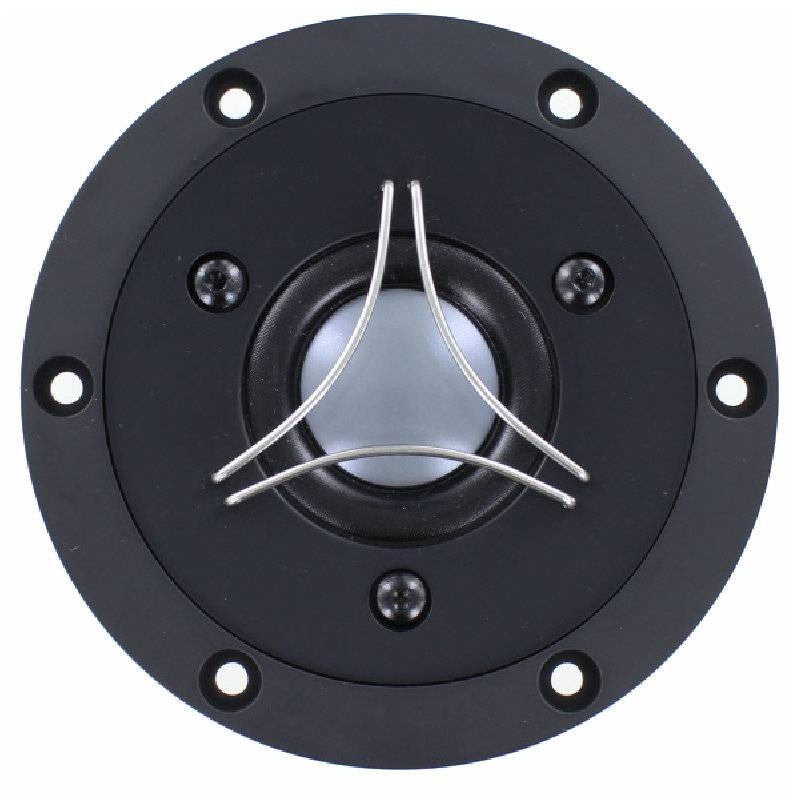

SB Acoustics Satori TW29BN Beryllium Dome Tweeter

1 reviews

Brand: SB Acoustics

Show all Tweeters

Compare

1⅛" | 4 Ω

€ 297,48€ 359,95 Out of stock: please contact us for accurate delivery times

Backorder

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Beryllium dome for non-resonant high frequency extension
Two part aluminum faceplate with integrated mechanical decoupling
Dual balanced compression chambers for improved dynamics
Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
High saturation neodymium motor system with T-shaped pole piece for lower distortion
Non-reflective cast aluminum chamber with optimized damping for improved dynamics
Shallow flow optimized magnet structure for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency for extended range

Product details

SB Acoustics Satori TW29BN Beryllium Dome Tweeter

The new Satori Beryllium dome tweeter has arrived! Beryllium is known for its open and spatial sound, often described as holographic. The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing an experience unlike all other dome materials.

Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm²

Specifications

Article number: TW29BN-B
Tweeter Type: Dome
Tweeter Series: Satori
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 80 Watts
Impedance (Z): 4 Ω
Sensitivity: 95 dB 2.83V/1m
Resonant Frequency (Fs): 725 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 2.1
Electromagnetic Q (Qes): 0.6
Total Q (Qts): 0.46

Data sheet

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Remarkable improvement compared to the already excellent TW 29 R. You'll be able to recognize much more details very easily without making you tired especially for long duration listening sessions. bang for the buck if you compare value for money.

By Tobias M. on 16 November 2019
