        Satori TW29BN-B-8 Dome Tweeter

        SB Acoustics Satori TW29BN-B-8 Dome Tweeter

        €409,95

        10+ In stock

        Add to cart

        SB Acoustics Satori TW29BN-B-8 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 4 Ω & 8 Ω

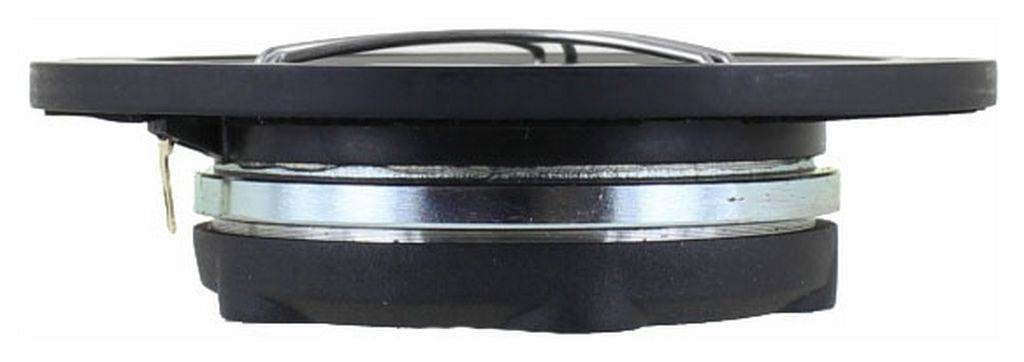

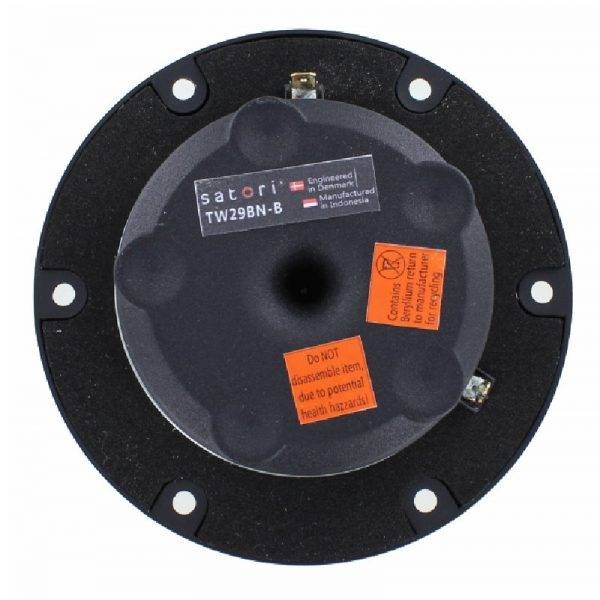

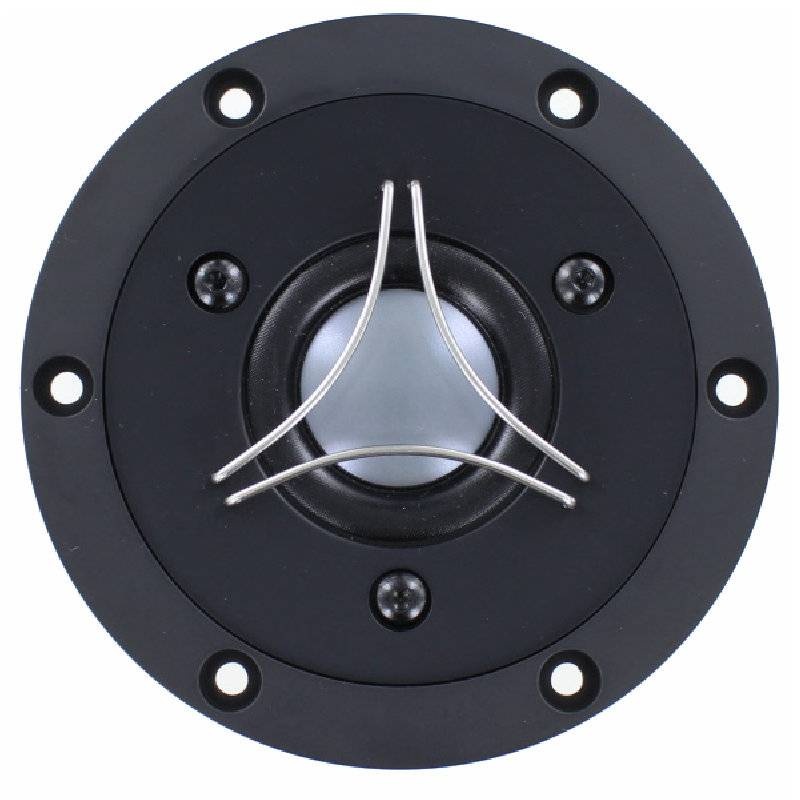

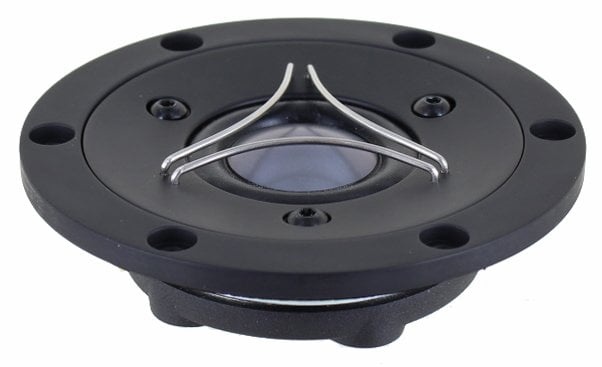

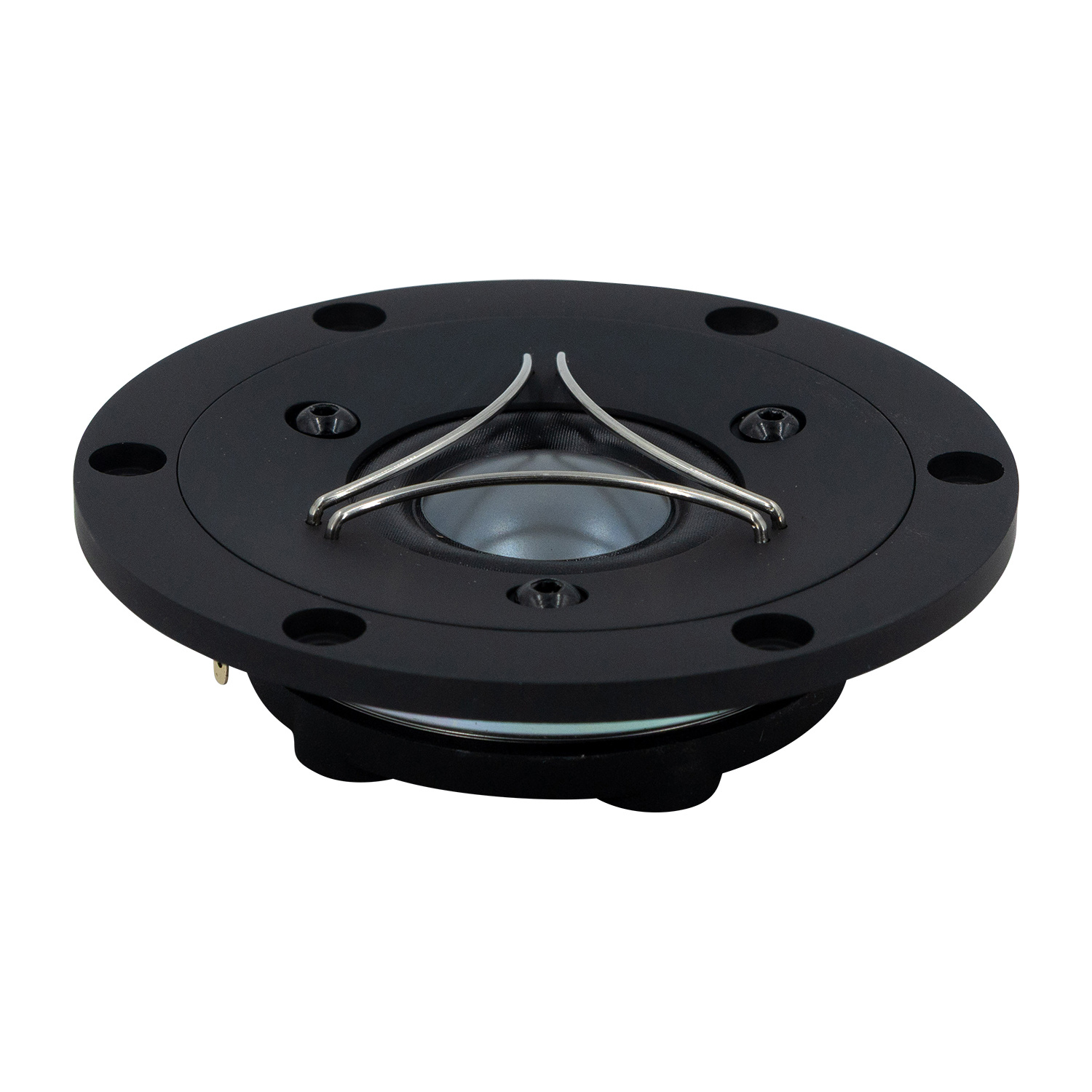

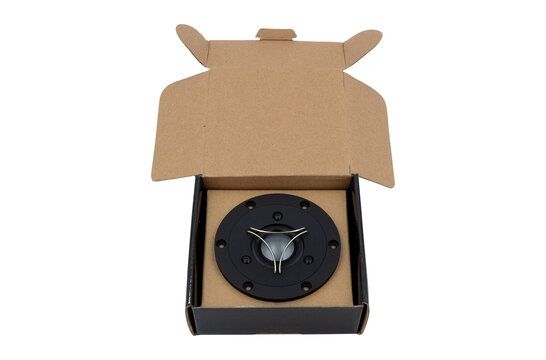

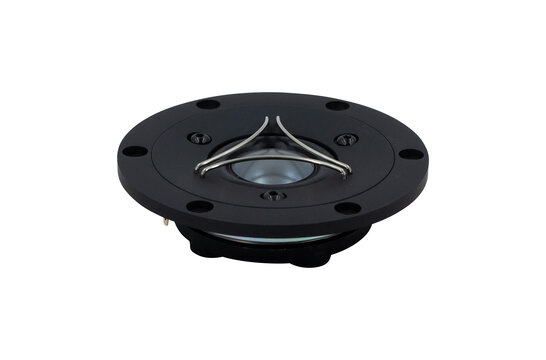

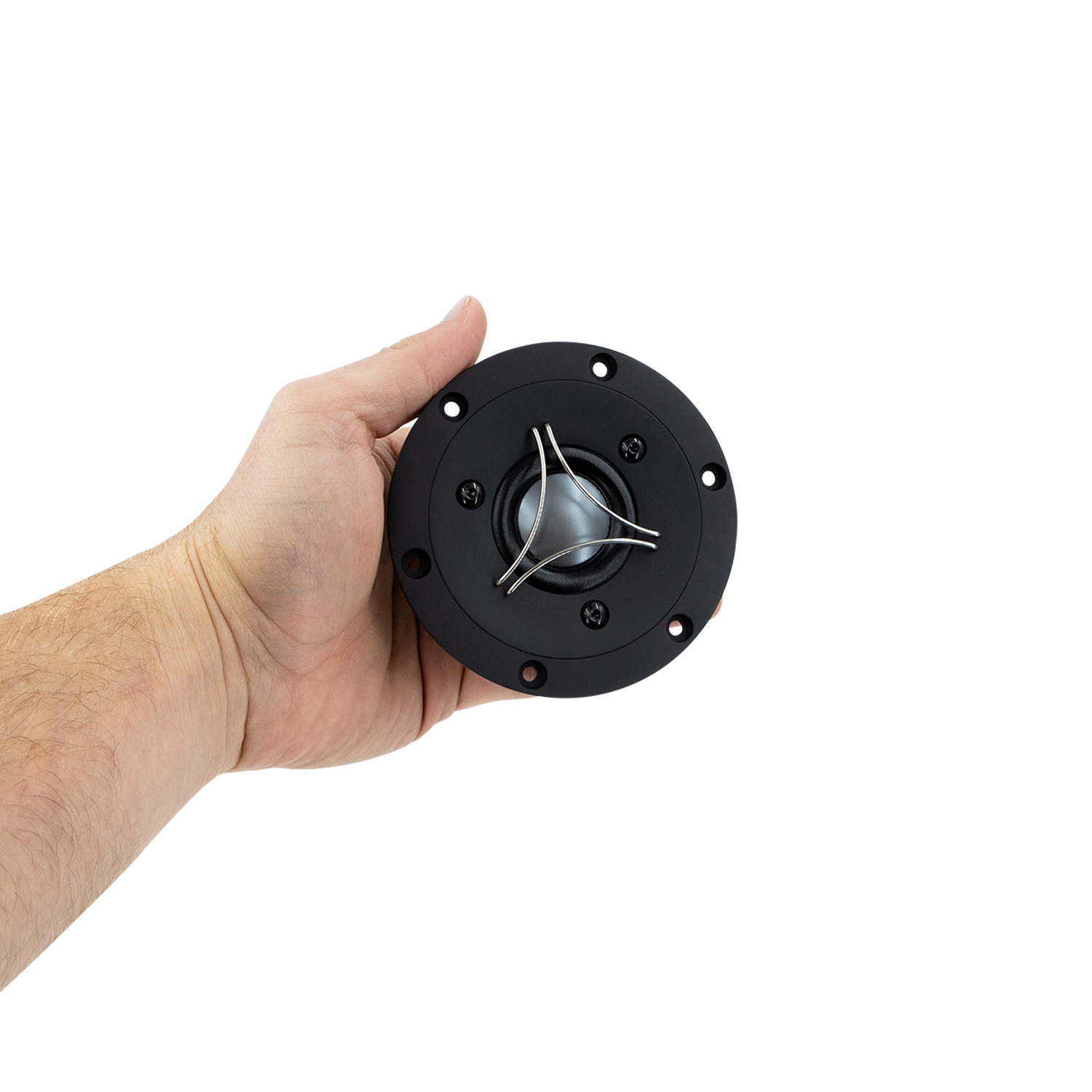

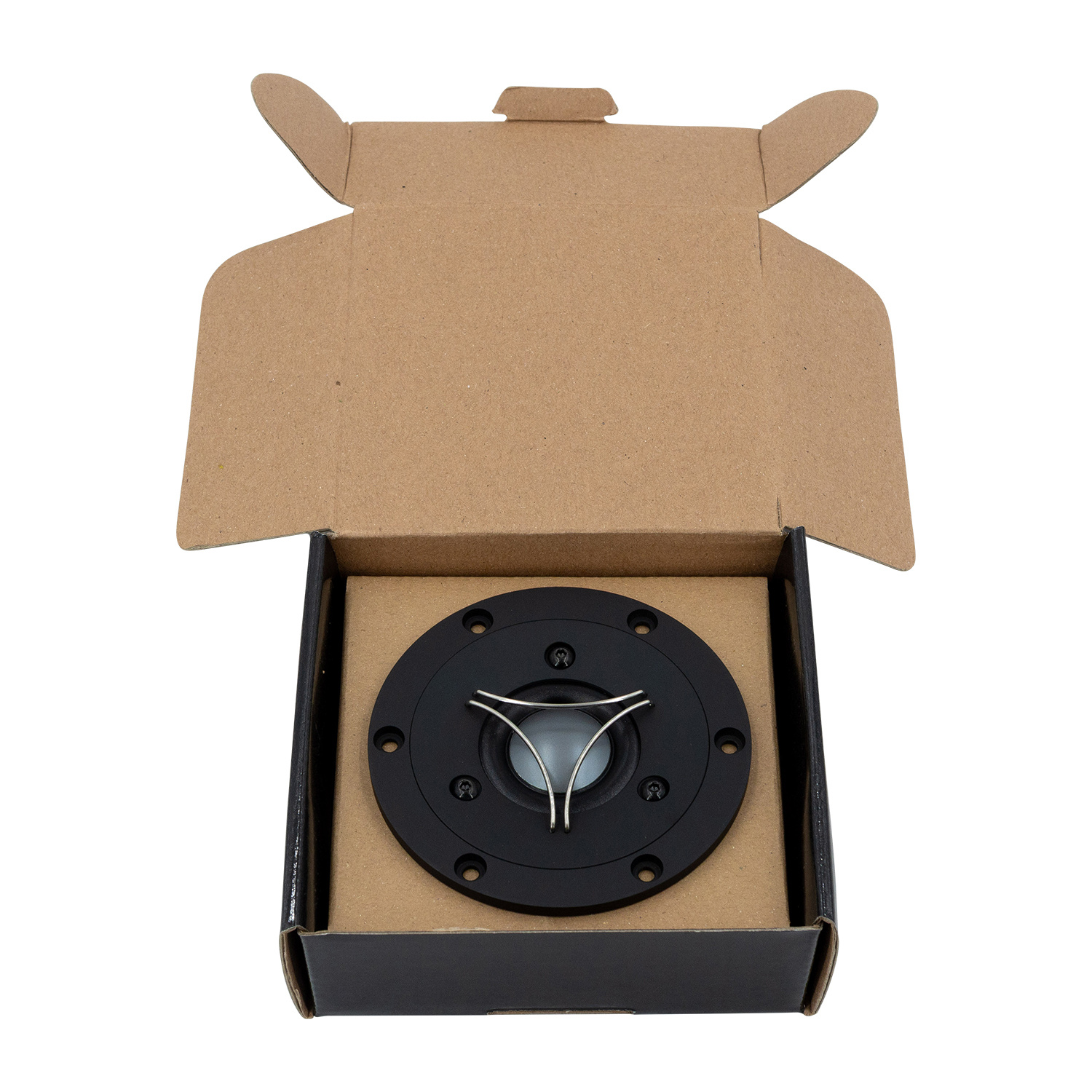

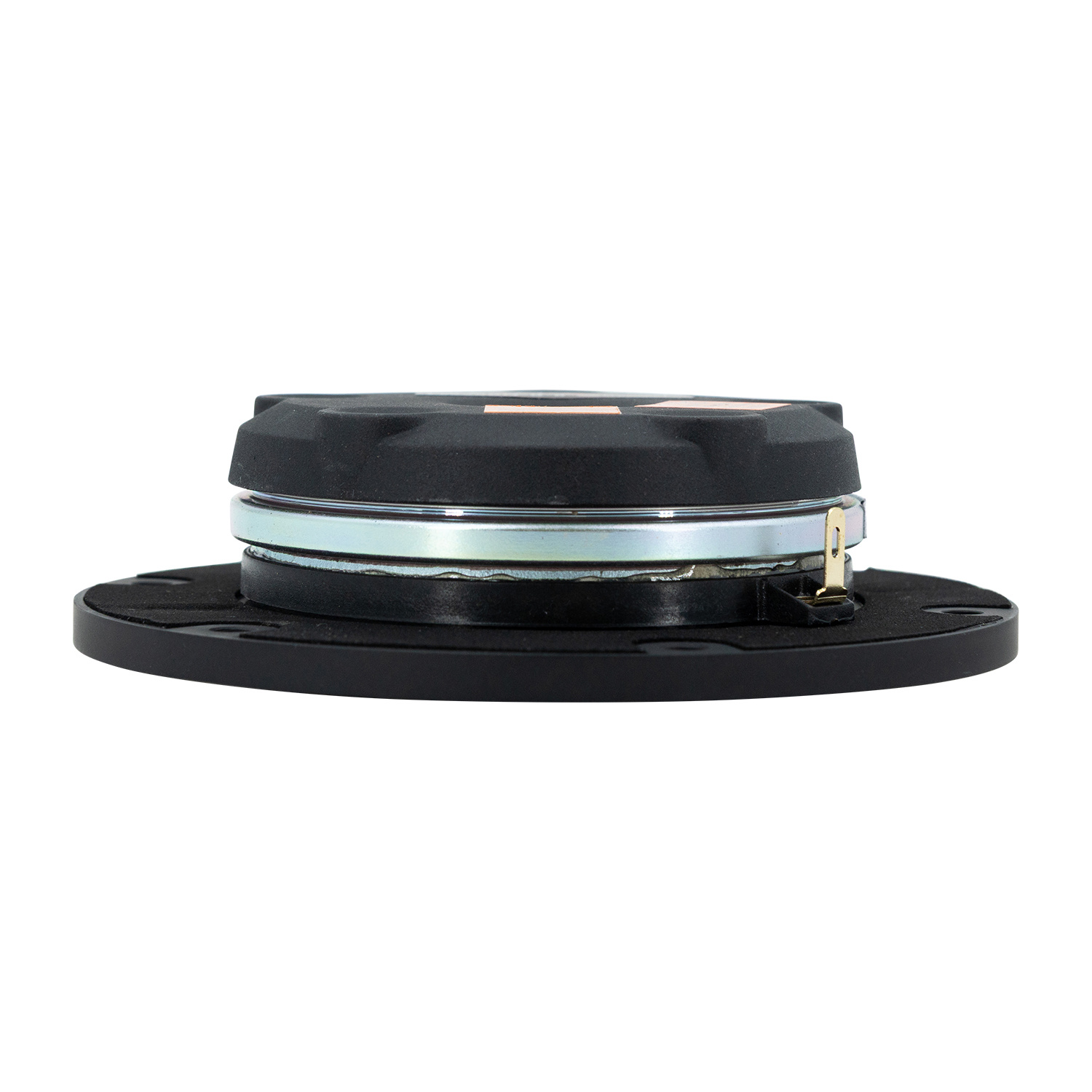

        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        € 338,80€ 409,95 10+ In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter
        Satori TW29BN-B-8 Dome Tweeter

        Product description SB Acoustics Satori TW29BN-B-8 Dome Tweeter

        Highlights

        • Beryllium dome for non-resonant high frequency extension
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29BN-B-8 Beryllium Dome Tweeter



        The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.



        Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Show more

        Specifications

        Article number
        TW29BN-B-8
        EAN
        8785256847013
        Tweeter Type
        Beryllium Dome Tweeter
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Resonant Frequency (Fs)
        700 Hz
        DC Resistance (Re)
        3.0 Ω
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.1
        Electromagnetic Q (Qes)
        0.60
        Total Q (Qts)
        0.46
        Overall Outside Diameter
        103.8 mm
        Cutout Diameter
        70 mm
        Depth
        32.5 mm
        Mounting Type
        Holes (6) 4.2 mm

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        I like the new product. Replaced existing tweeter. Naturally produced voice & music nicely.
        By Thet on 26 September 2025
        5 of 5
        Finally found right tweeter for my speaker. I tried Soft dome, Aluminium, TPCD Carbon Diaphragm. Carbon Diaphragm not bad. But compared with Beryllium, Beryllium is better. Not harsh, naturally produced voice & music perfectly.
        By Thet on 26 September 2025
