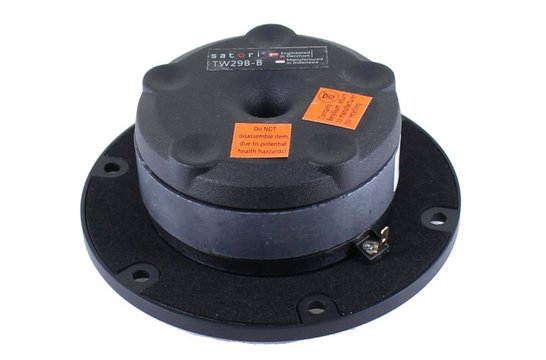

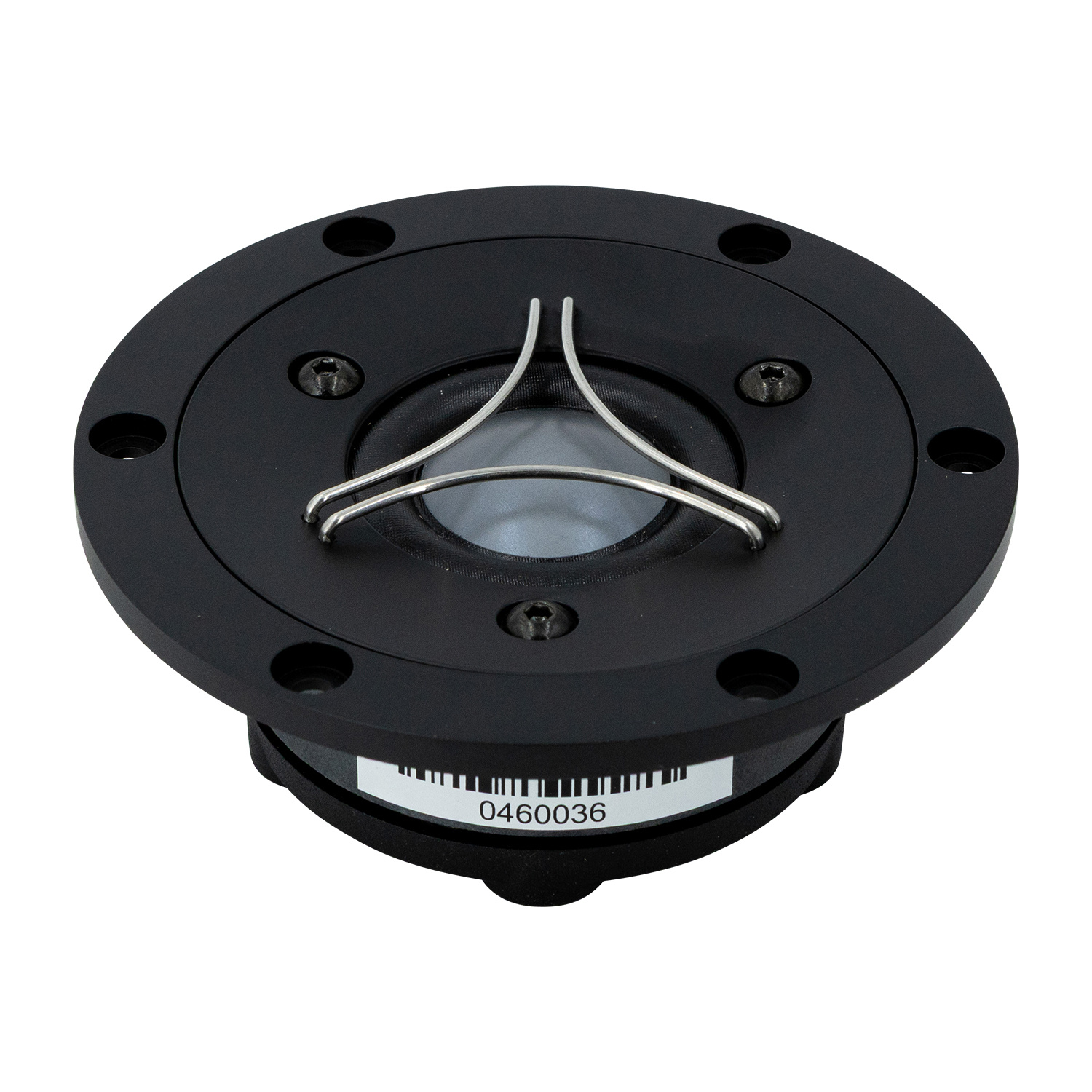

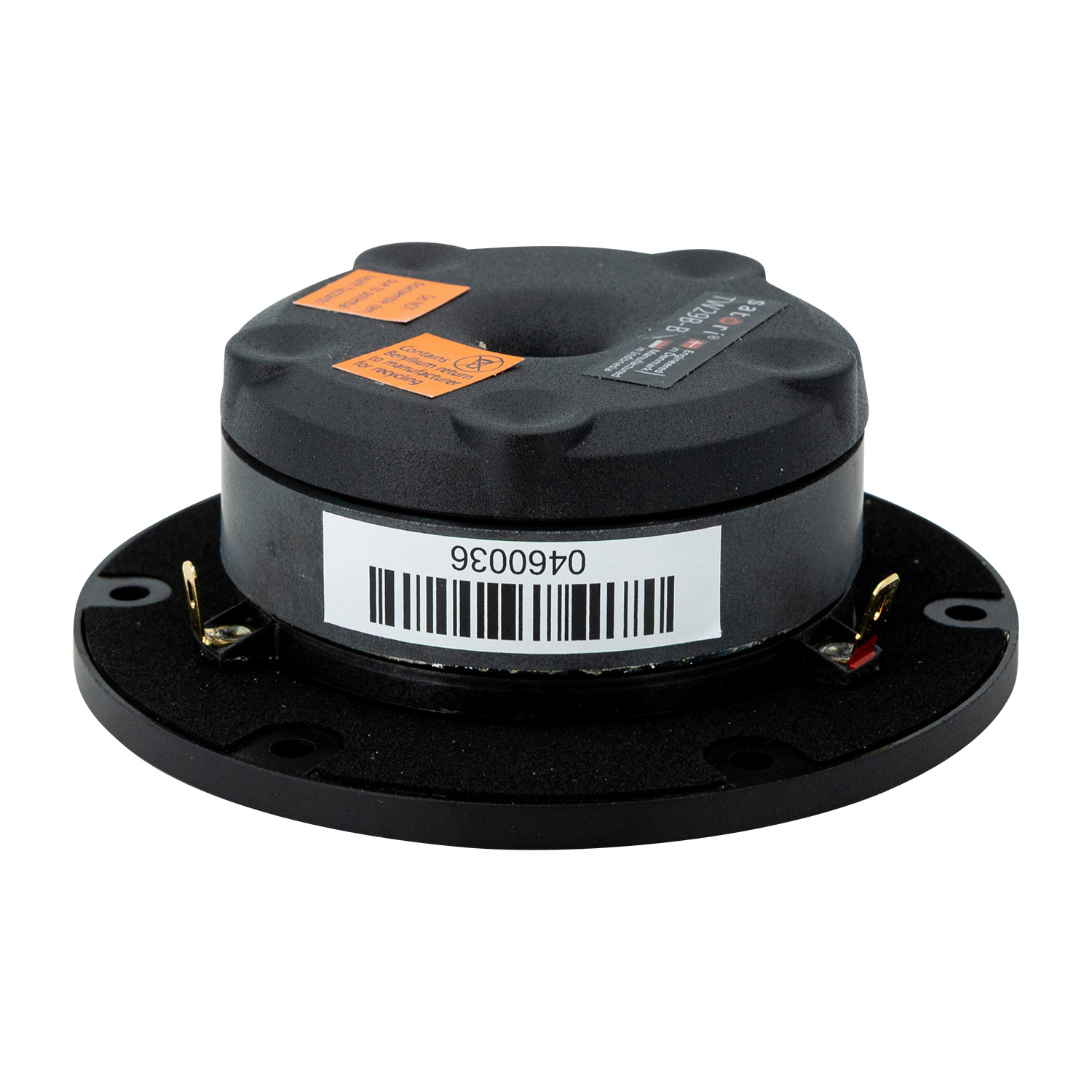

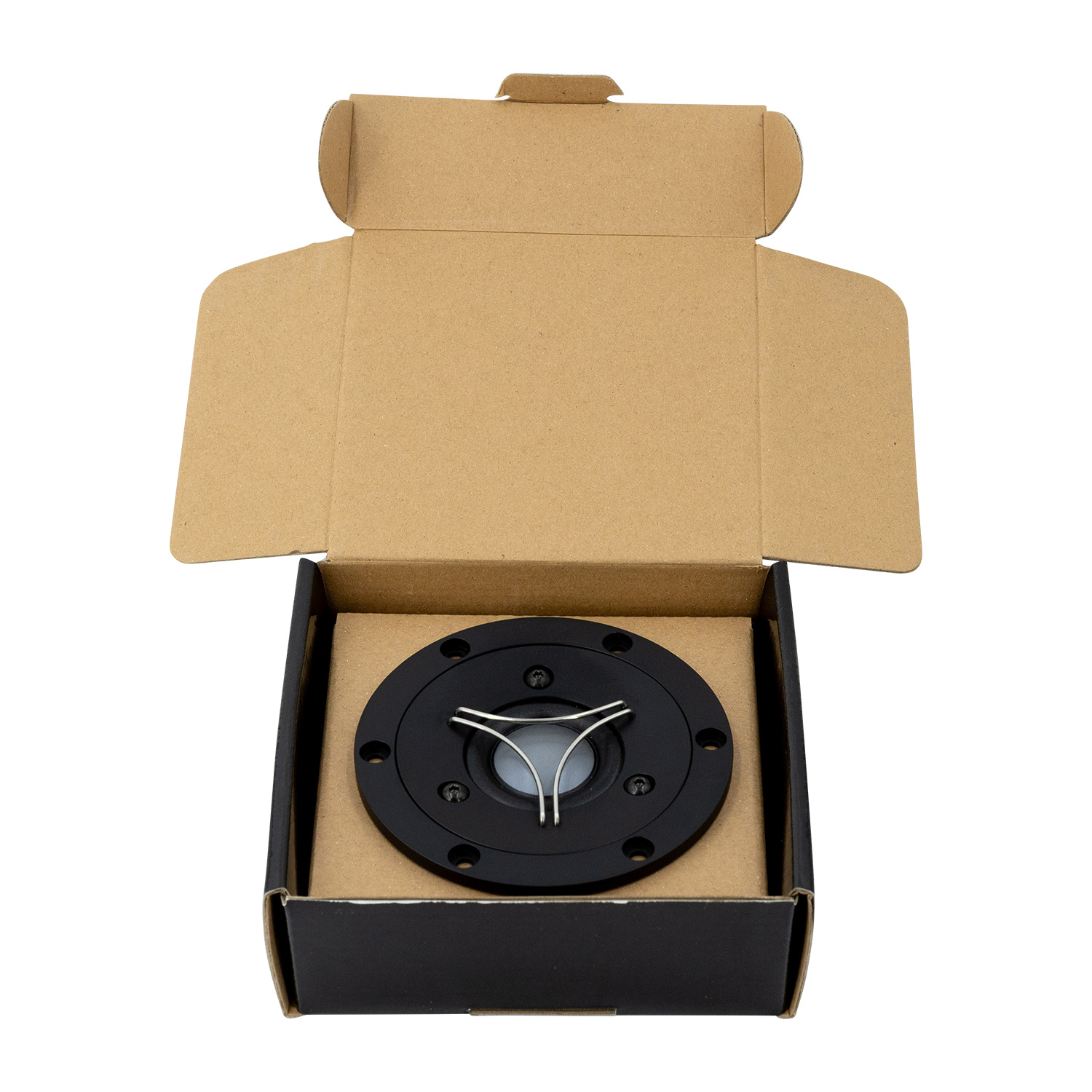

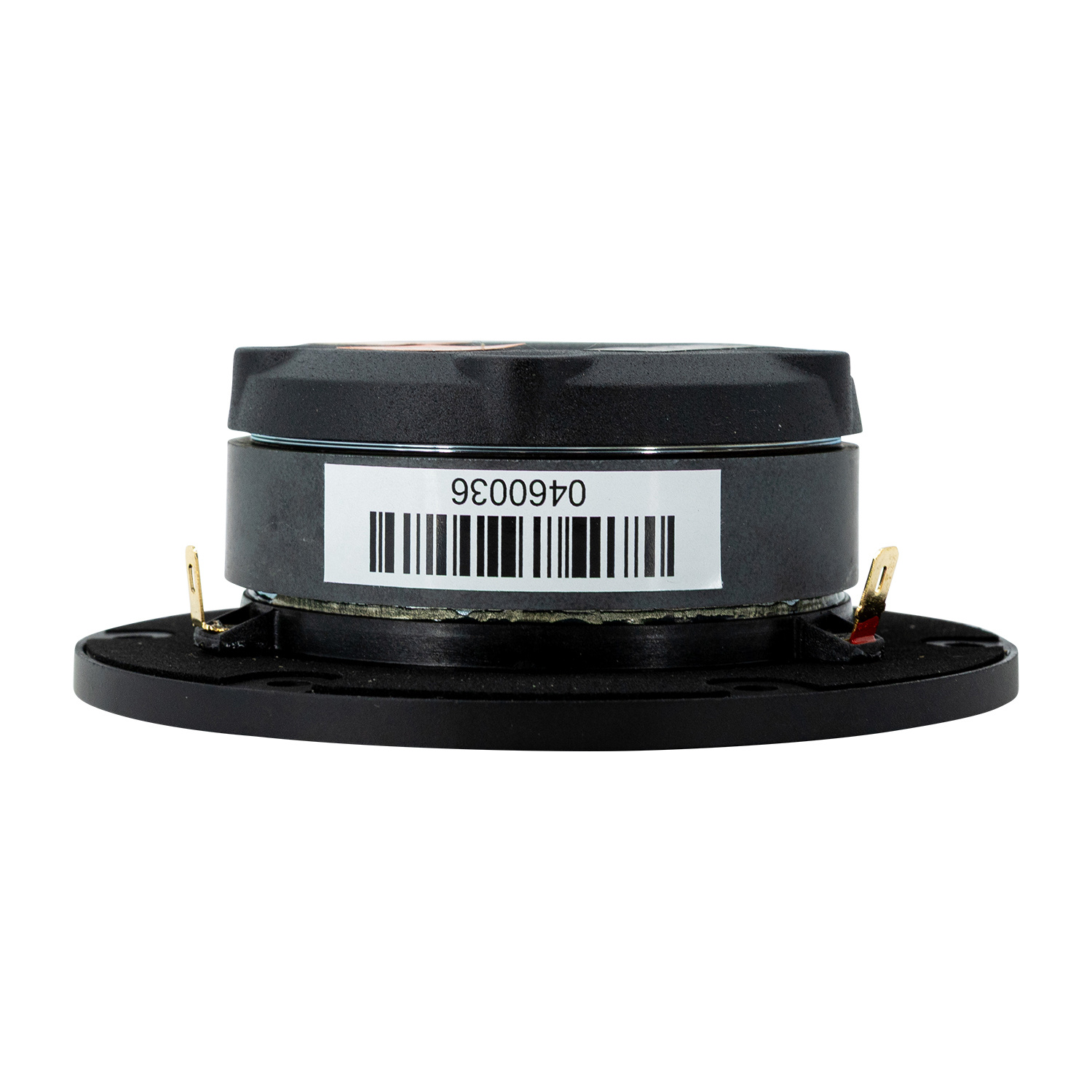

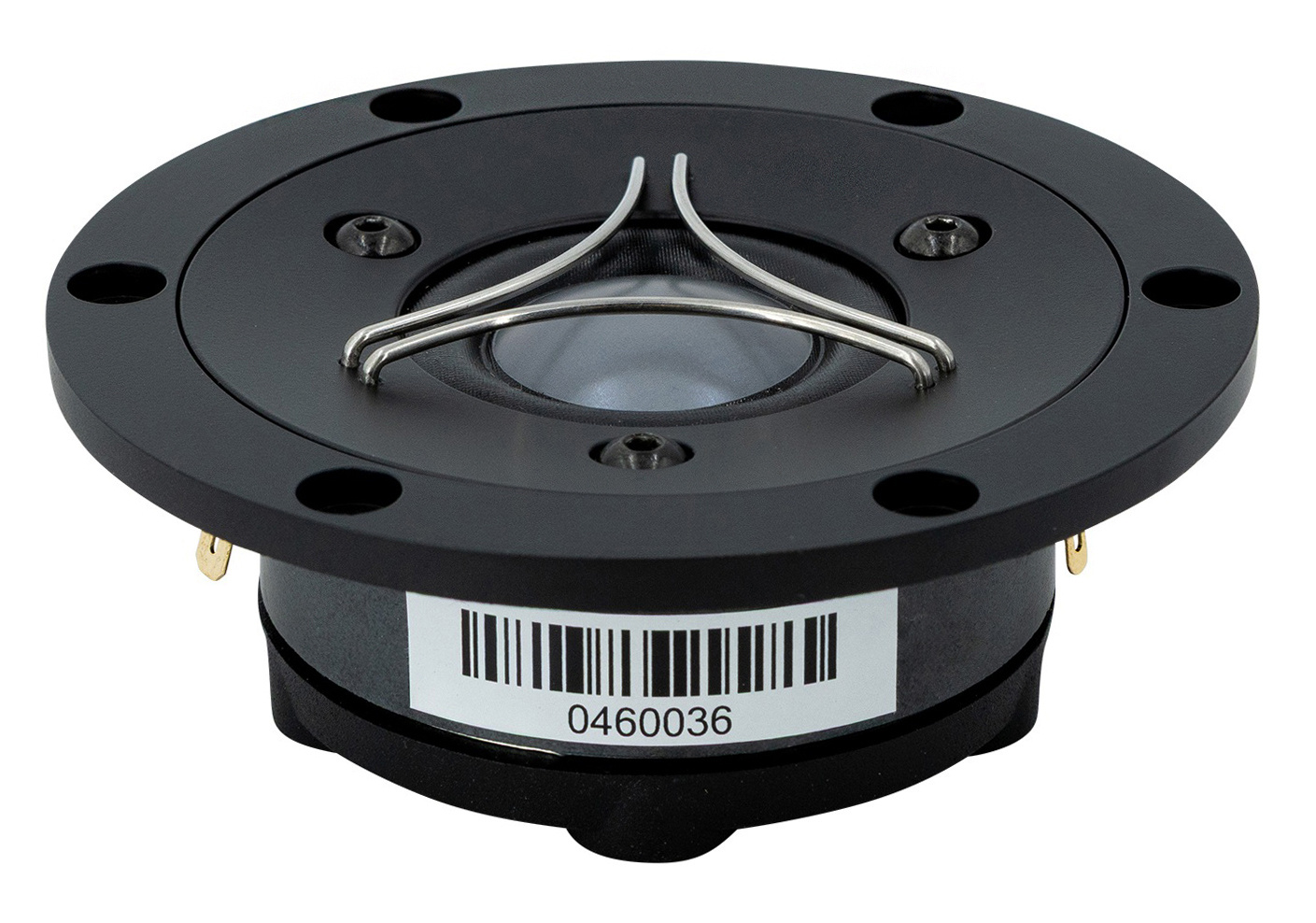

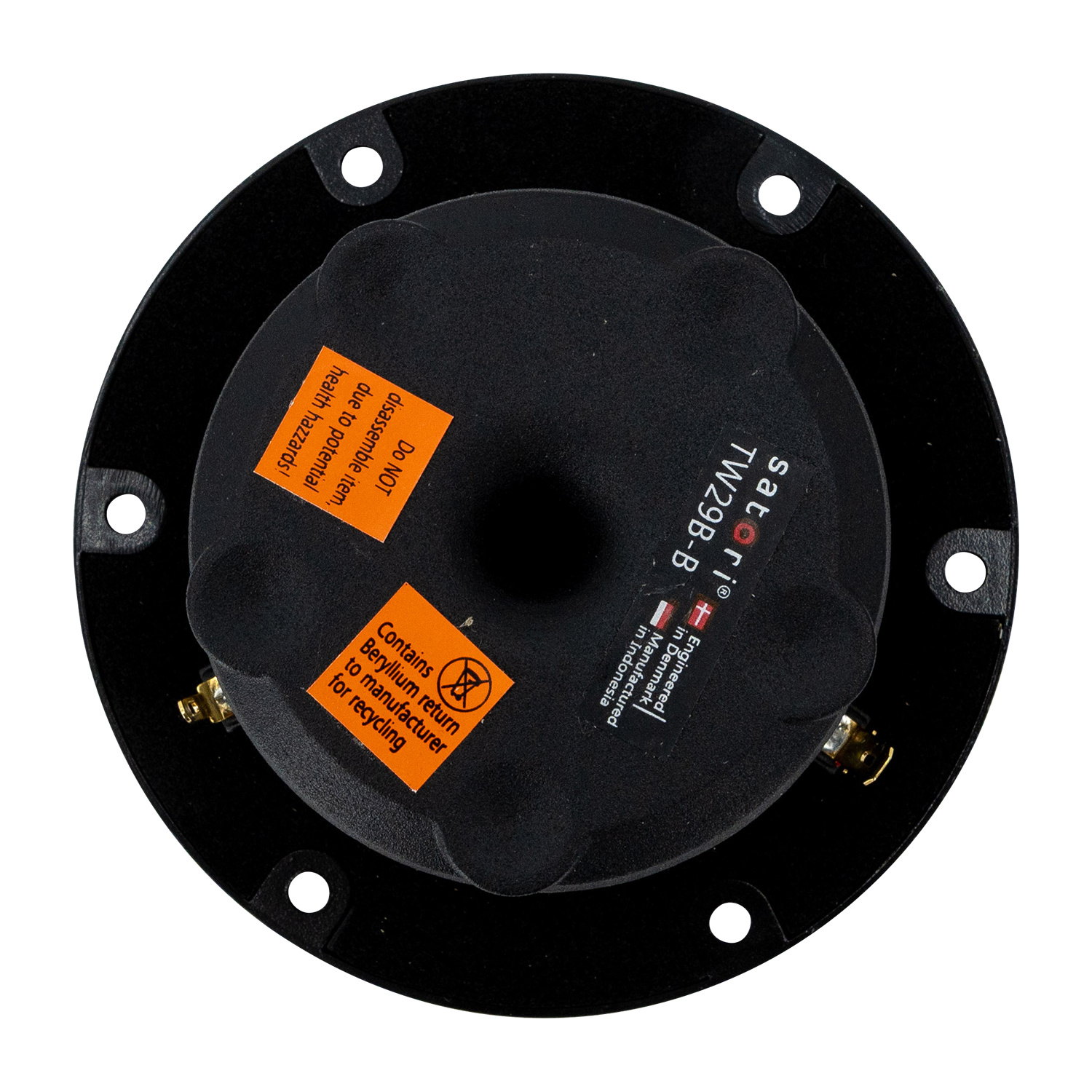

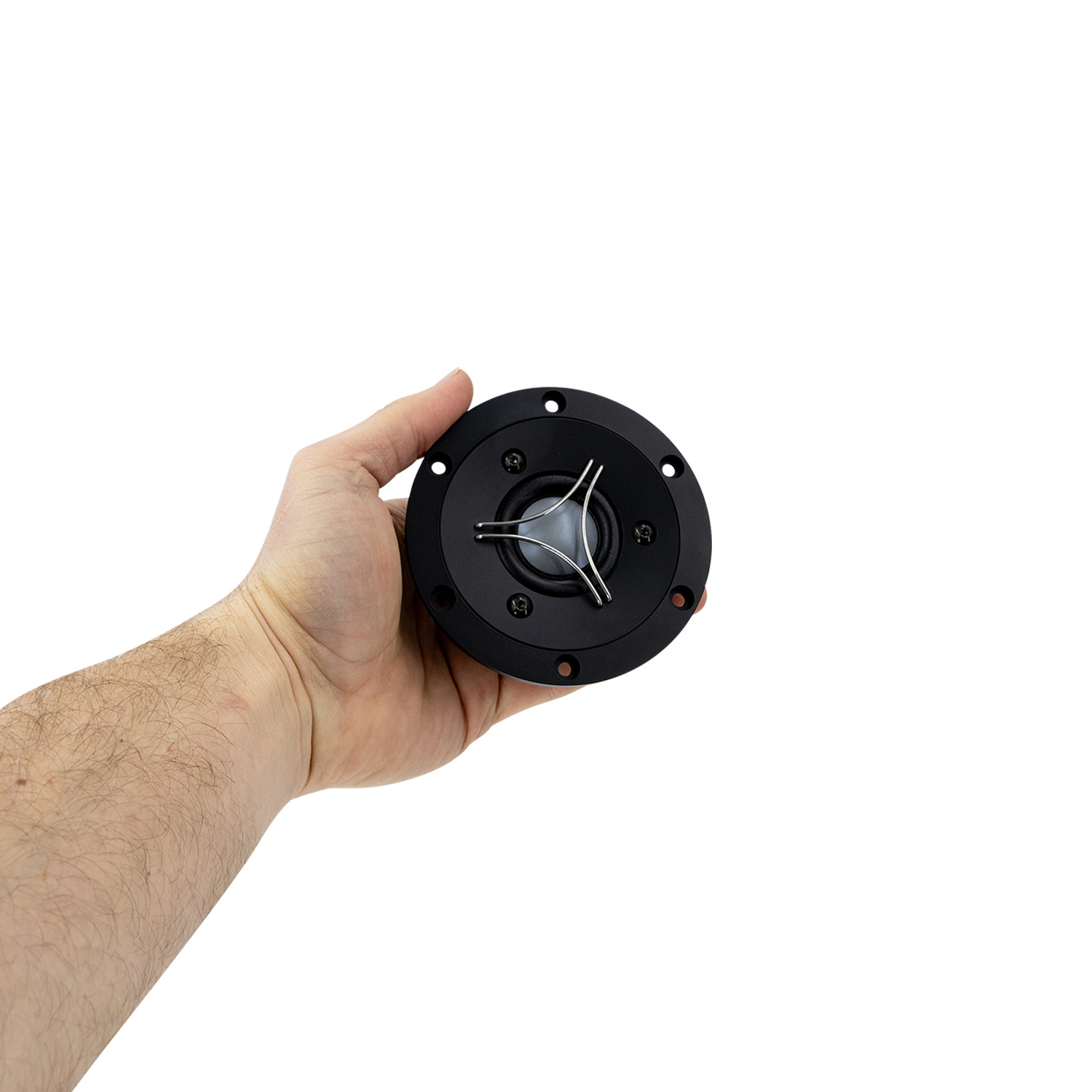

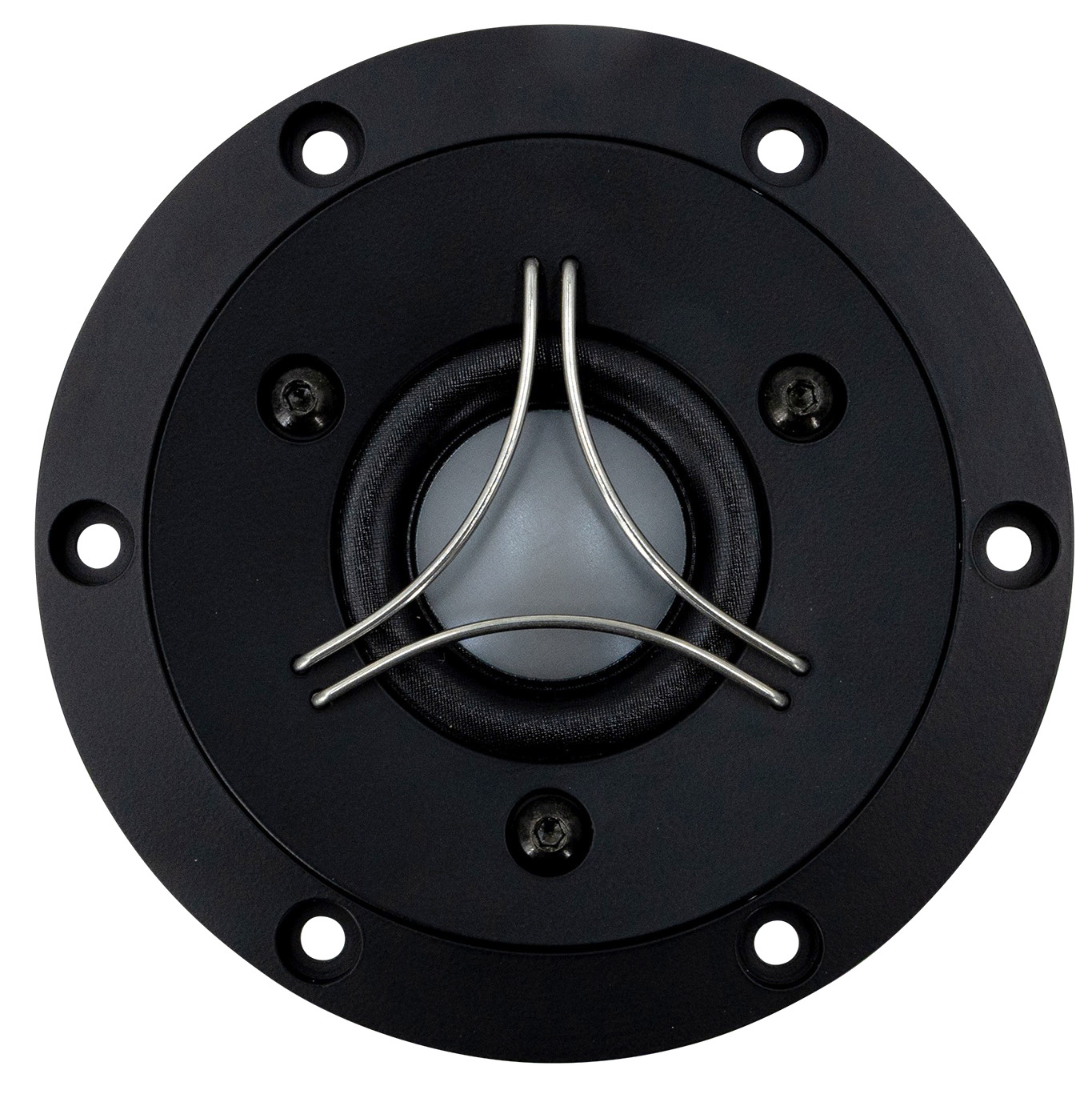

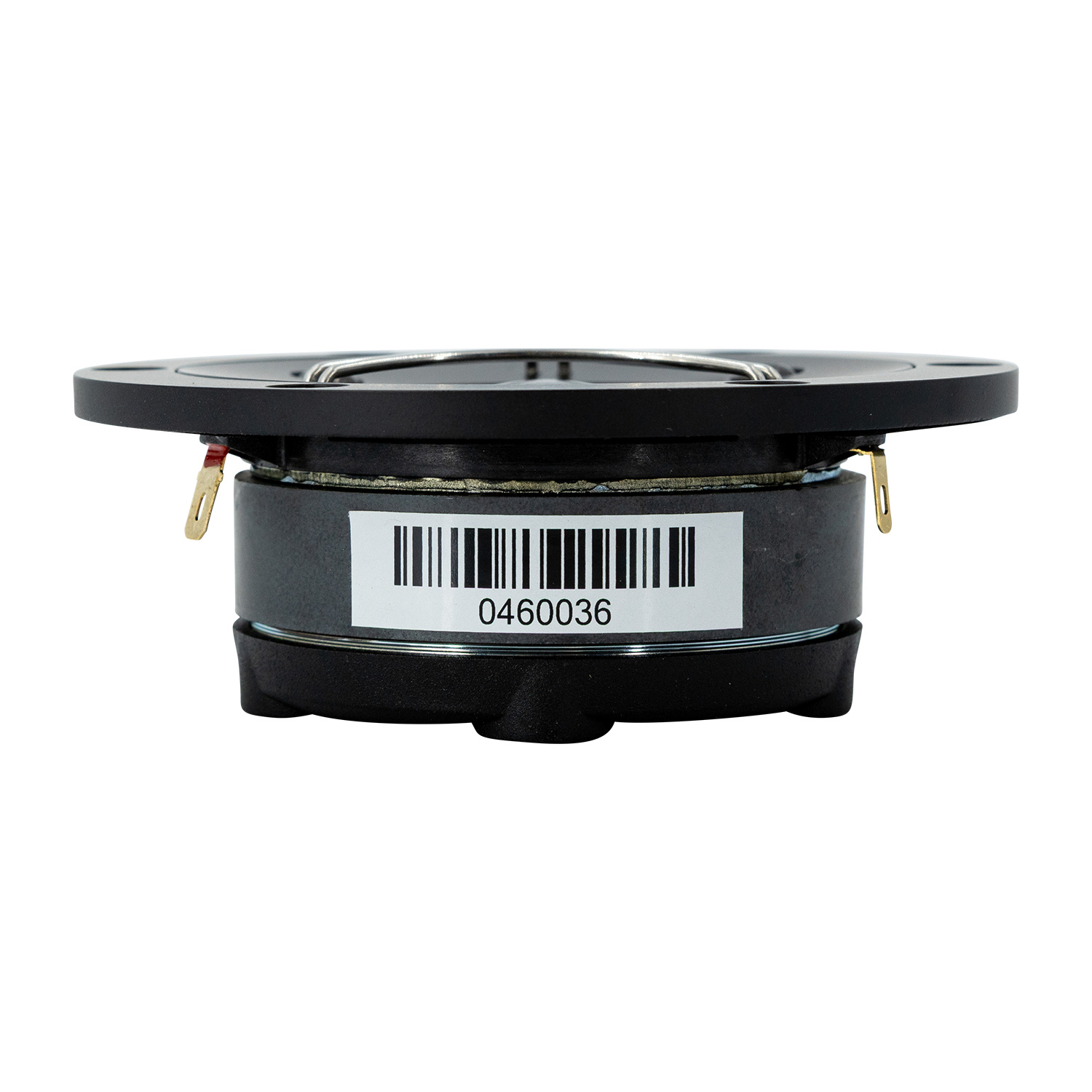

        Satori TW29B-B Dome Tweeter

        SB Acoustics Satori TW29B-B Dome Tweeter

        €334,95

        Out of stock

        SB Acoustics Satori TW29B-B Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 276,82€ 334,95 Out of stock

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SB Acoustics Satori TW29B-B Dome Tweeter

        Highlights

        • Beryllium dome for non-resonant high frequency extension
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29B-B Beryllium Dome Tweeter



        The new Satori Beryllium dome tweeter with ferrite magnet has arrived! Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.  This new ferrite magnet version has a little less output for a very competitive price.



        Specifications: BL Product (BL): 2 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Show more

        Specifications

        Article number
        TW29B-B
        EAN
        696277268863
        Tweeter Type
        Beryllium Dome Tweeter
        Tweeter Series
        Beryllium
        Cone / Dome Diameter
        1.125" | 29 mm
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Resonant Frequency (Fs)
        600 Hz
        DC Resistance (Re)
        3.0 Ω
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.9
        Electromagnetic Q (Qes)
        1.3
        Total Q (Qts)
        0.9
        Overall Outside Diameter
        103.8 mm
        Cutout Diameter
        70 mm
        Depth
        42.3 mm
        Mounting Type
        Holes (6) 4.2 mm

        Show more
