    SB Acoustics SW26DBAC76-4 10" Aluminium Cone Subwoofer

    € 206,57€ 249,95 5 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €237,45 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Unique patented long through shallow design
    • Powerful neodymium motor system
    • Vented cast aluminum cone structure
    • Non conducting fiber glass coil former for minimum damping
    • Shorting ring in motor system for reduced distortion
    • Long life silver lead wires



    Product details

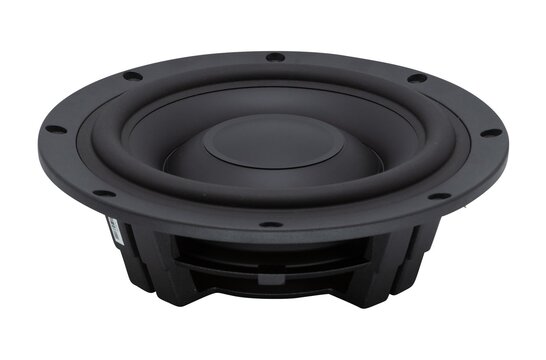

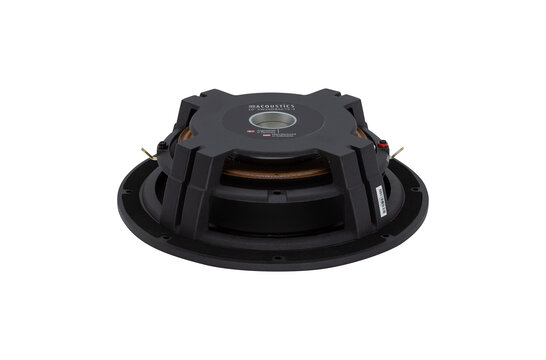

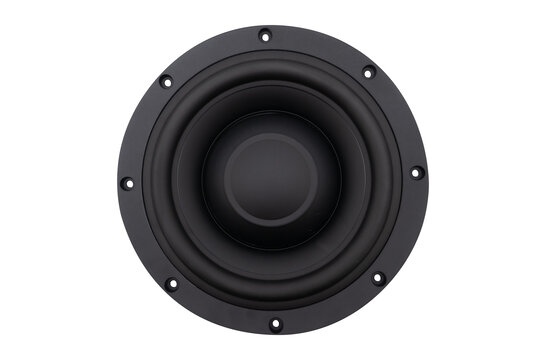

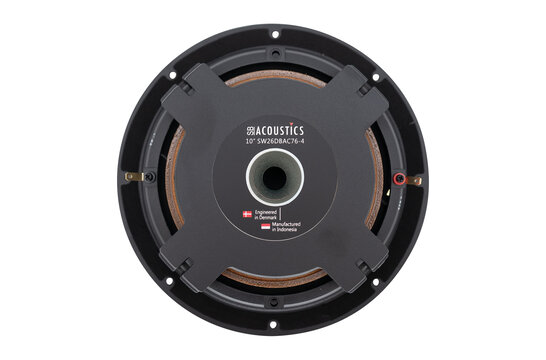

    SB Acoustics SW26DBAC76-4 10" Aluminium Cone Subwoofer



    The SB Acoustics SW26DBAC76-4 Aluminum 10 inch 4 ohm shallow Subwoofer can give great low-end extension in a shallow enclosures due to its unique long trough design. With a depth of only 70.5 mm its good for applications where clearance can become an issue. A sealed enclosure with a volume of 40Ltr is recommend for optimal performance. This driver is not recommended for a bass-reflex/ported enclosures.

    Specifications

    Article number
    SW26DBAC76-4
    Woofer Type
    Subwoofer
    Nominal Diameter
    10''
    Power Handling (RMS)
    200 Watts
    Impedance (Z)
    4 Ohms
    Sensitivity
    86(2.83V/1m)
    Voice Coil Diameter
    75.5 mm
    Magnet Weight
    281 g
    DC Resistance (Re)
    3.2 Ohms
    Resonant Frequency (Fs)
    22 Hz
    Mechanical Q (Qms)
    4.5
    Electromagnetic Q (Qes)
    0.51
    Total Q (Qts)
    0.46
    Diaphragm Mass Inc. Airload (Mms)
    134 g
    Mechanical Compliance of Suspension (Cms)
    0.39 mm/N
    Surface Area of Cone (Sd)
    312 cm2
    BL Product (BL)
    10.8 Tm
    Compliance Equivalent Volume (Vas)
    54 Ltr
    Maximum Linear Excursion (Xmax)
    24 mm p-p
    Driver's Mechanical Losses (Rms)
    4.1 kg/s
    Cone / Diaphragm Material
    Aluminum
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Fiber glass
    Basket / Frame Material
    Aluminum
    Magnet Material
    Neodynium
    Overall Outside Diameter
    290 mm
    Overall Depth
    84,6 mm
    # Mounting Holes
    8
    Mounting Hole Diameter
    249 mm
