    SB Acoustics SB36WBAC21-4 1” Aluminum Wide-band Driver 4 Ohm

    € 12,36€ 14,95 2 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €14,20 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Long-stroke low damping surround
    • Vented low compression design
    • Resonance and break-up control
    • Cable Prepared for rear mounting
    • Long-life silver lead wires



    Product details

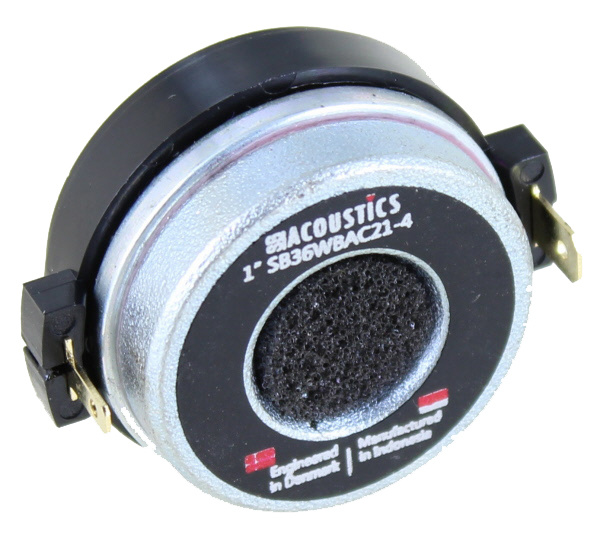

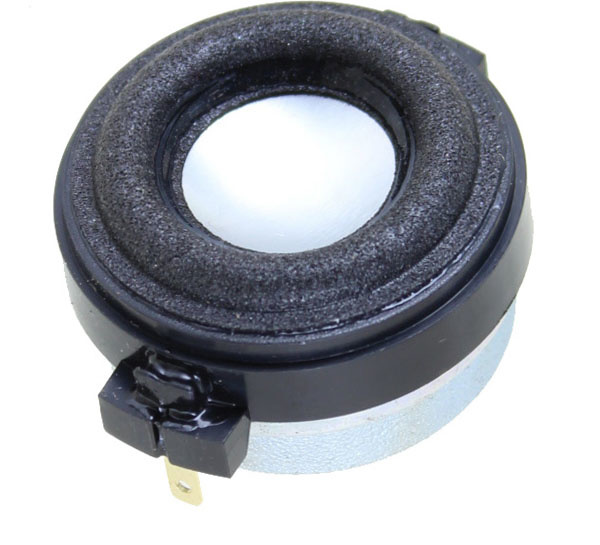

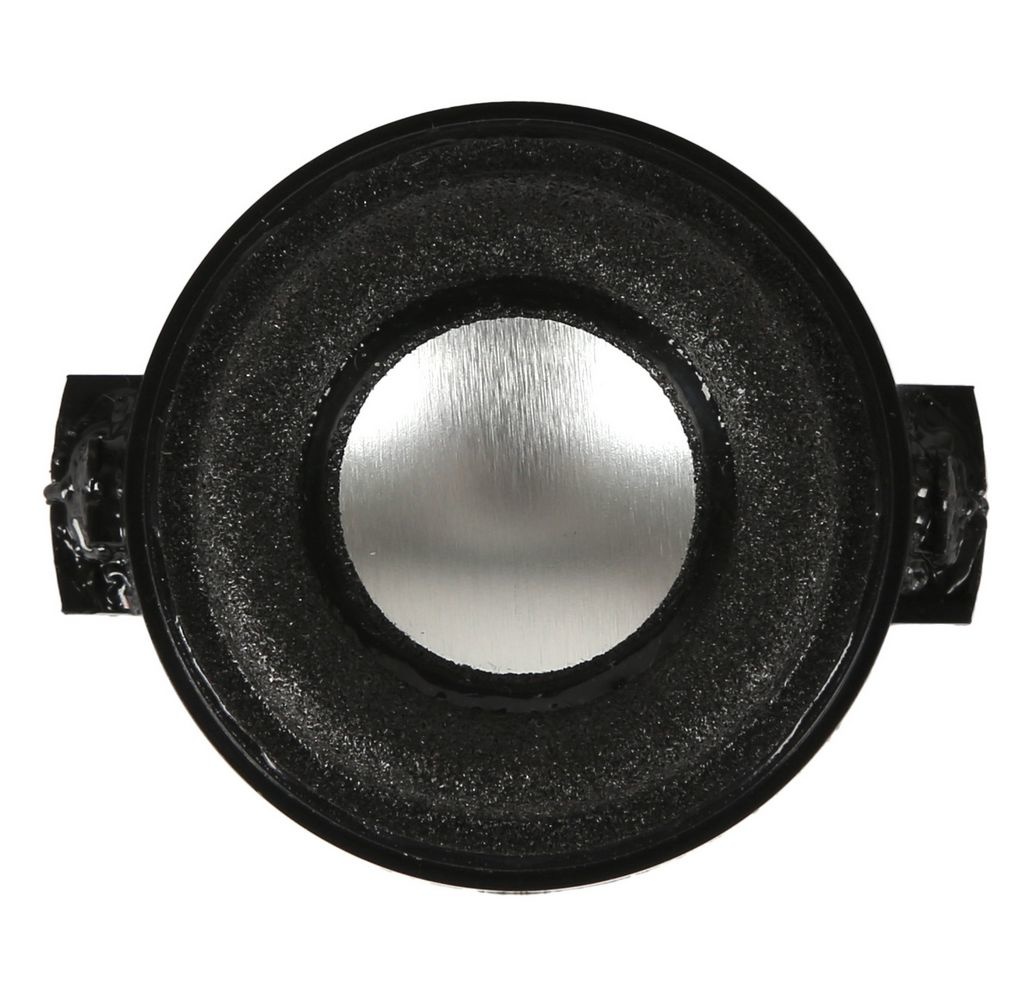

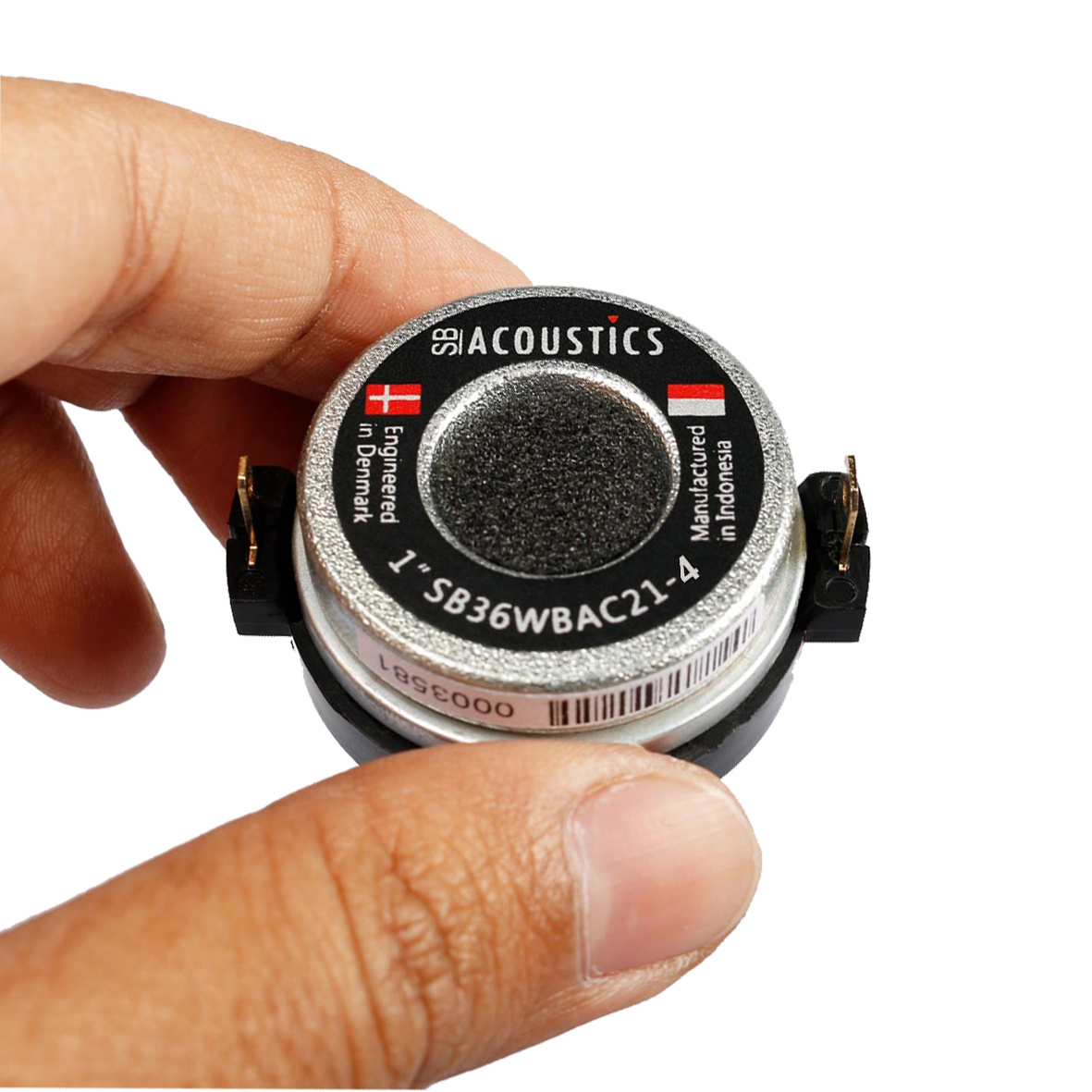

    SB Acoustics SB36WBAC21-4 1” Aluminum Wide-band Driver 4 Ohm



    The Wide-band 4 ohm driver combines a near-flat frequency curve with a good off-axis response. Making it an ideal product for applications like micro speakers, car audio, or other applications where space is at a premium. It is recommended that u use this driver with a second-order 12dB/oct high-pass filter set at 200hz to protect the driver.

    Specifications

    Article number
    SB36WBAC21-4
    Woofer Type
    Full-range
    Nominal Diameter
    1"
    Power Handling (RMS)
    5 watts
    Power Handling (max)
    --
    Continuous Program Power
    --
    Impedance (Z)
    4 Ohms
    Sensitivity
    77 dB (2.83V/1 m)
    Frequency Response
    --
    Voice Coil Diameter
    20.4 mm
    Magnet Weight
    0.01 kg
    DC Resistance (Re)
    3.4 Ohms
    Voice Coil Inductance (Le)
    0.12 mH
    Resonant Frequency (Fs)
    200 Hz
    Mechanical Q (Qms)
    0.68
    Electromagnetic Q (Qes)
    1.05
    Total Q (Qts)
    0.41
    Diaphragm Mass Inc. Airload (Mms)
    0.76
    Moving Mass Of Diaphragm (Mmd)
    --
    Mechanical Compliance of Suspension (Cms)
    0.83 mm/N
    Surface Area of Cone (Sd)
    4.2 cm2
    Volume of Displacement (Vd)
    --
    Compliance Equivalent Volume (Vas)
    0.021 Liter
    Maximum Linear Excursion (Xmax)
    --
    Driver's Mechanical Losses (Rms)
    1.4Kg/s
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Voice Coil Wire Material
    --
    Voice Coil Former
    --
    Dual Voice Coil
    No
    Magnet Material
    Neodynium
    Shielded
    No
    Baffle Cutout Diameter
    36MM
