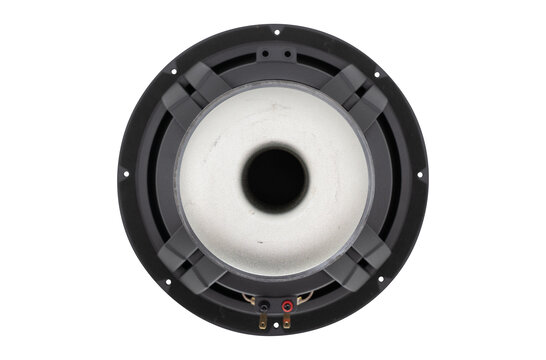

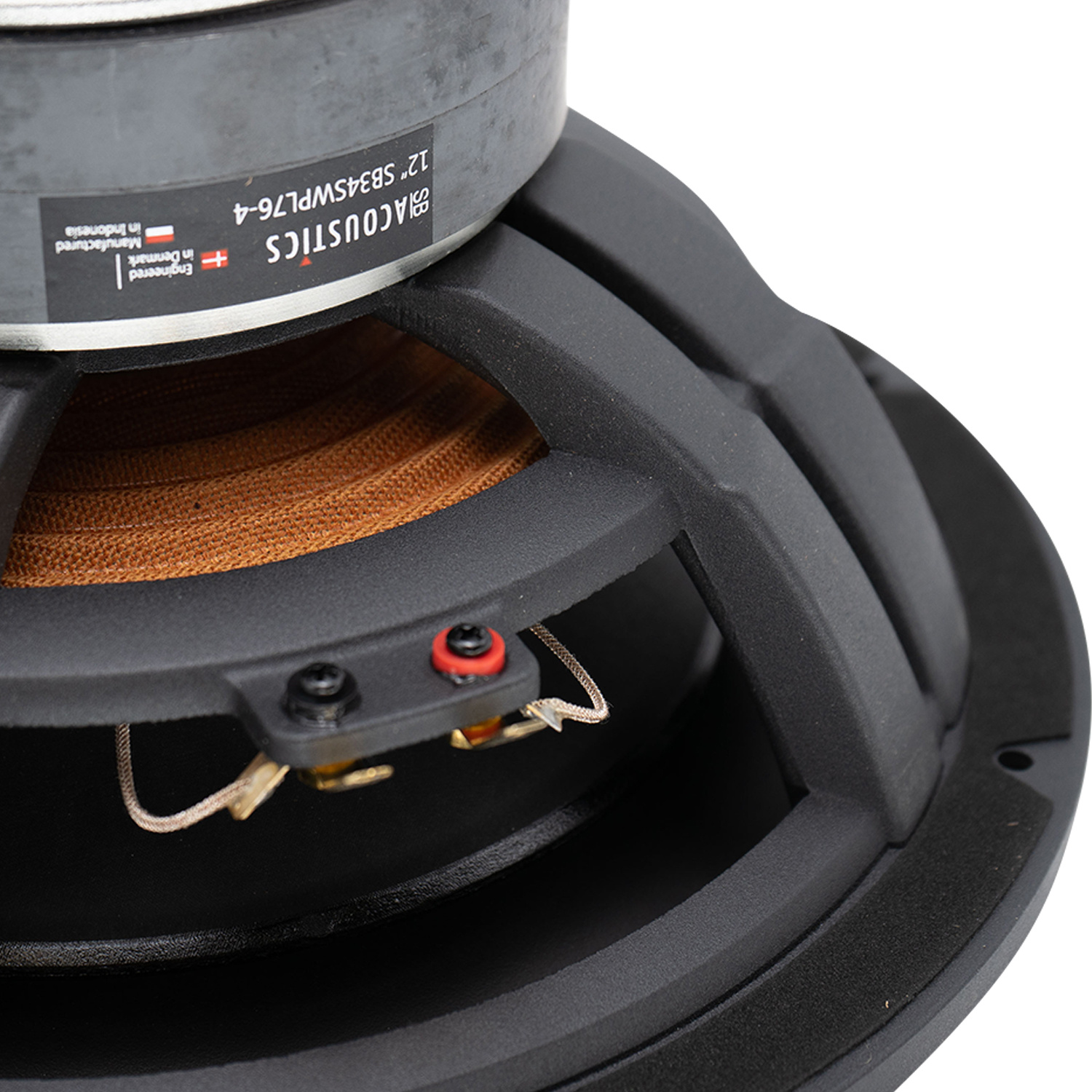

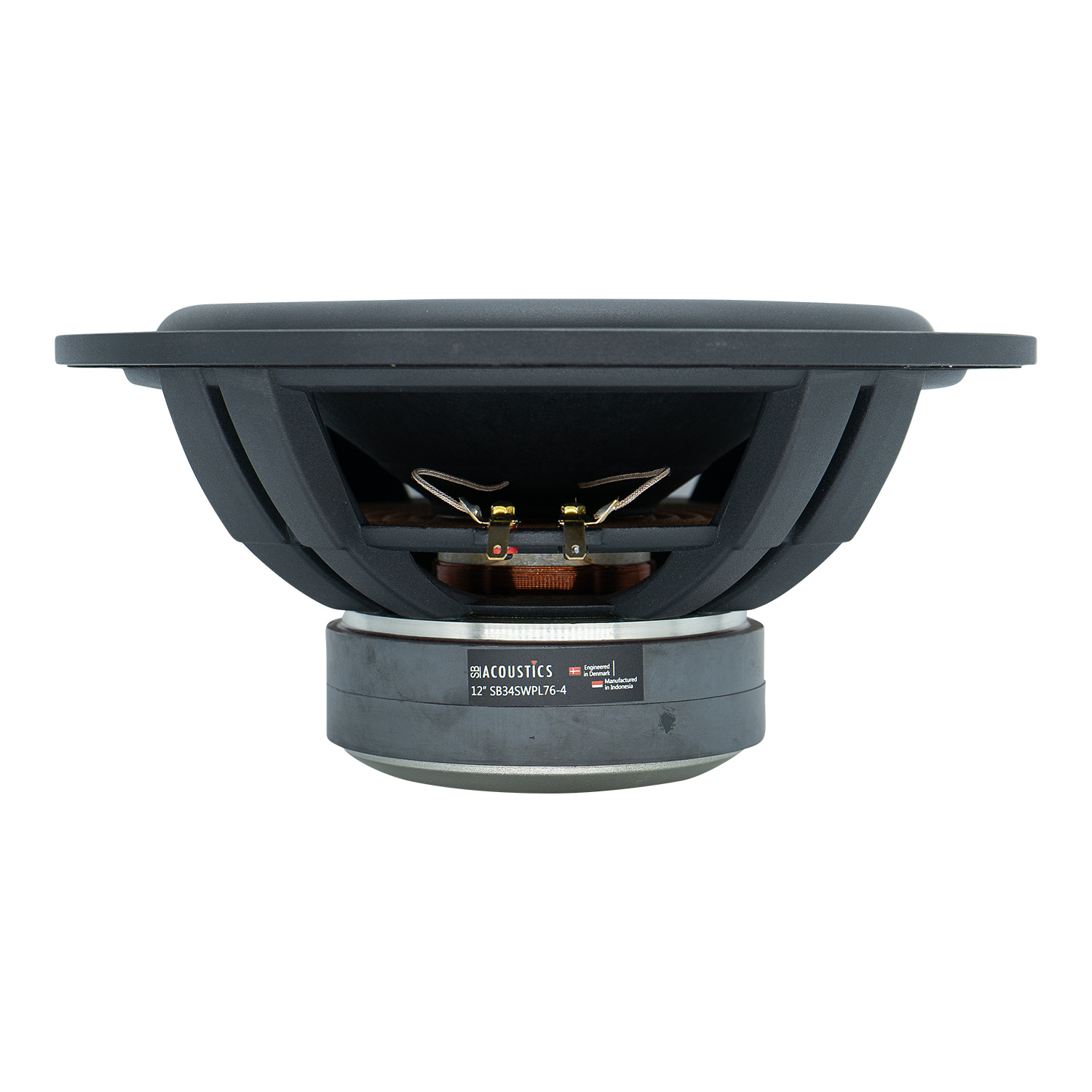

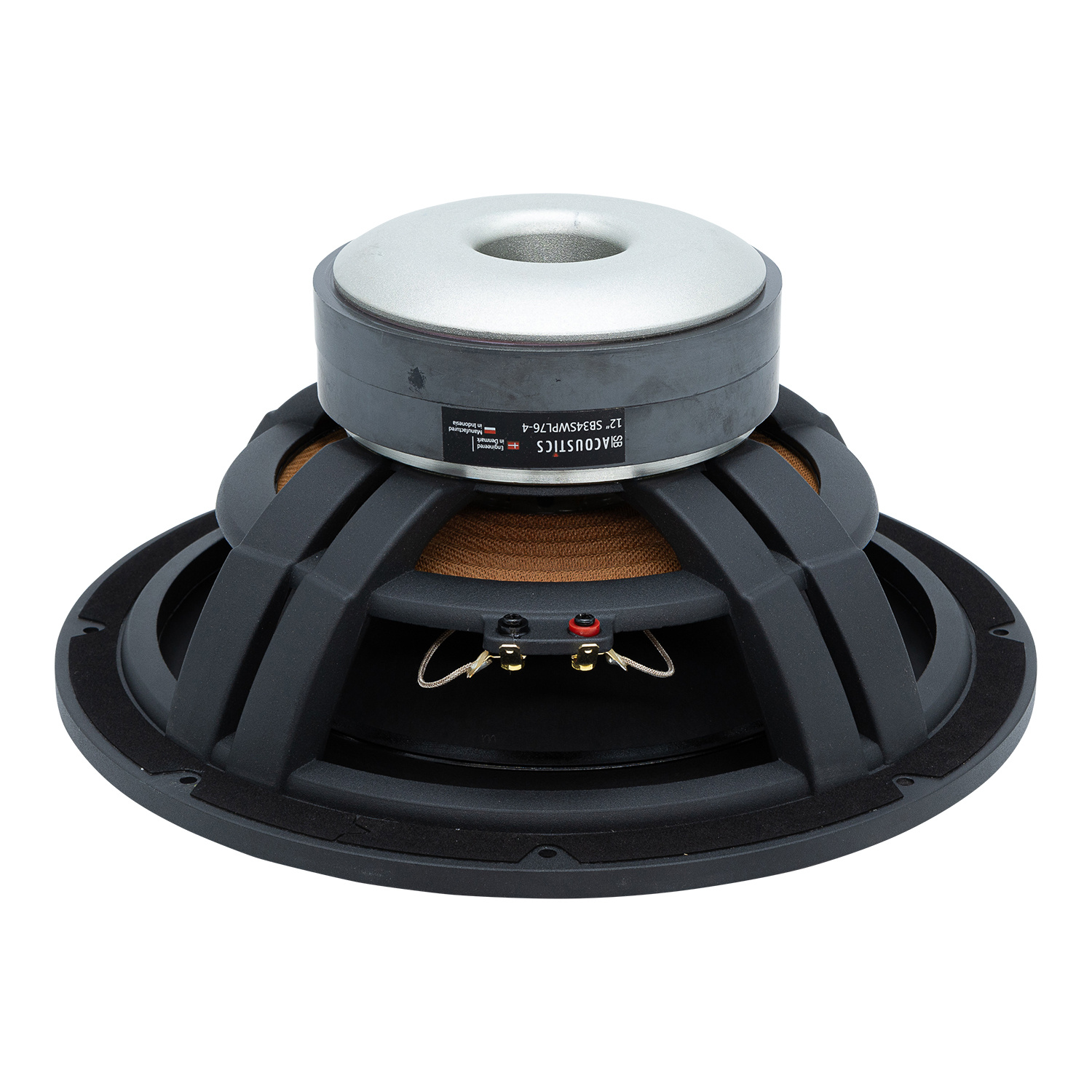

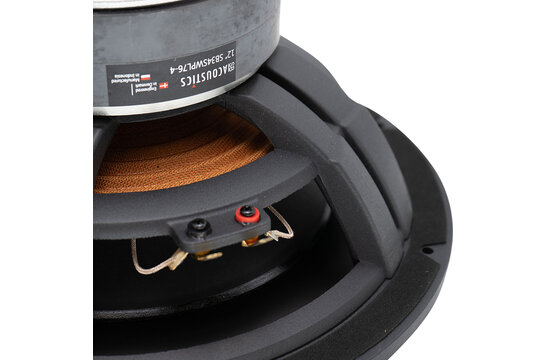

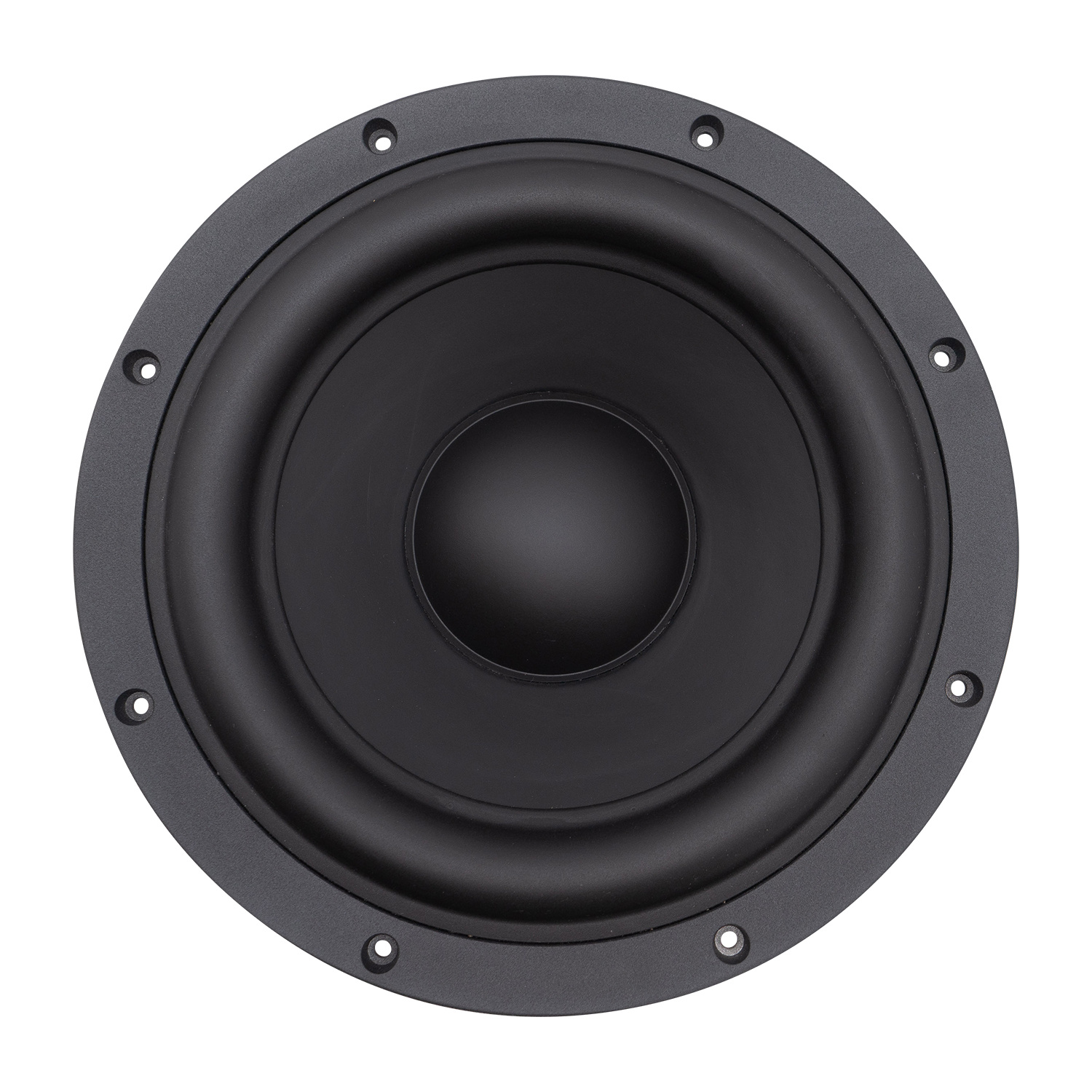

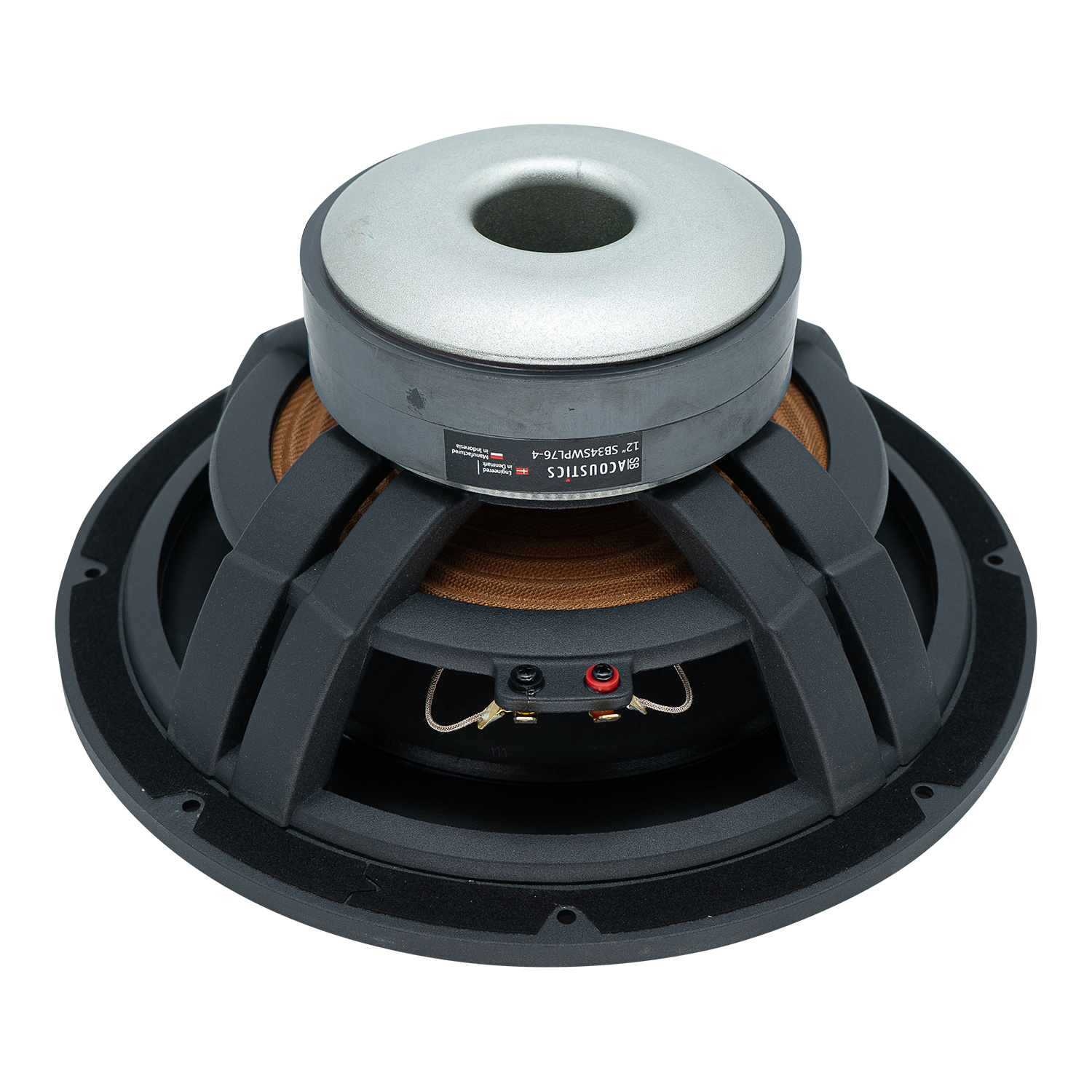

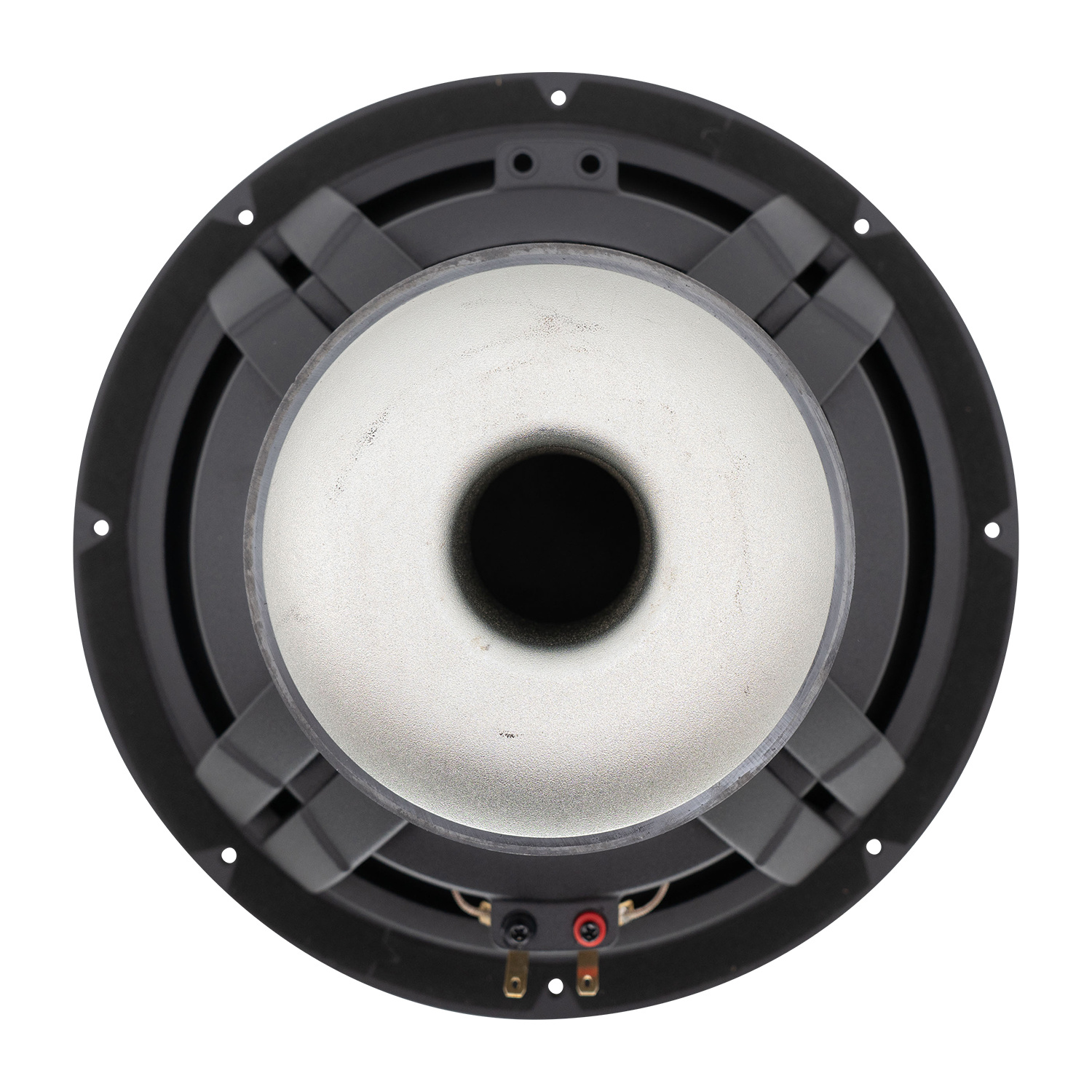

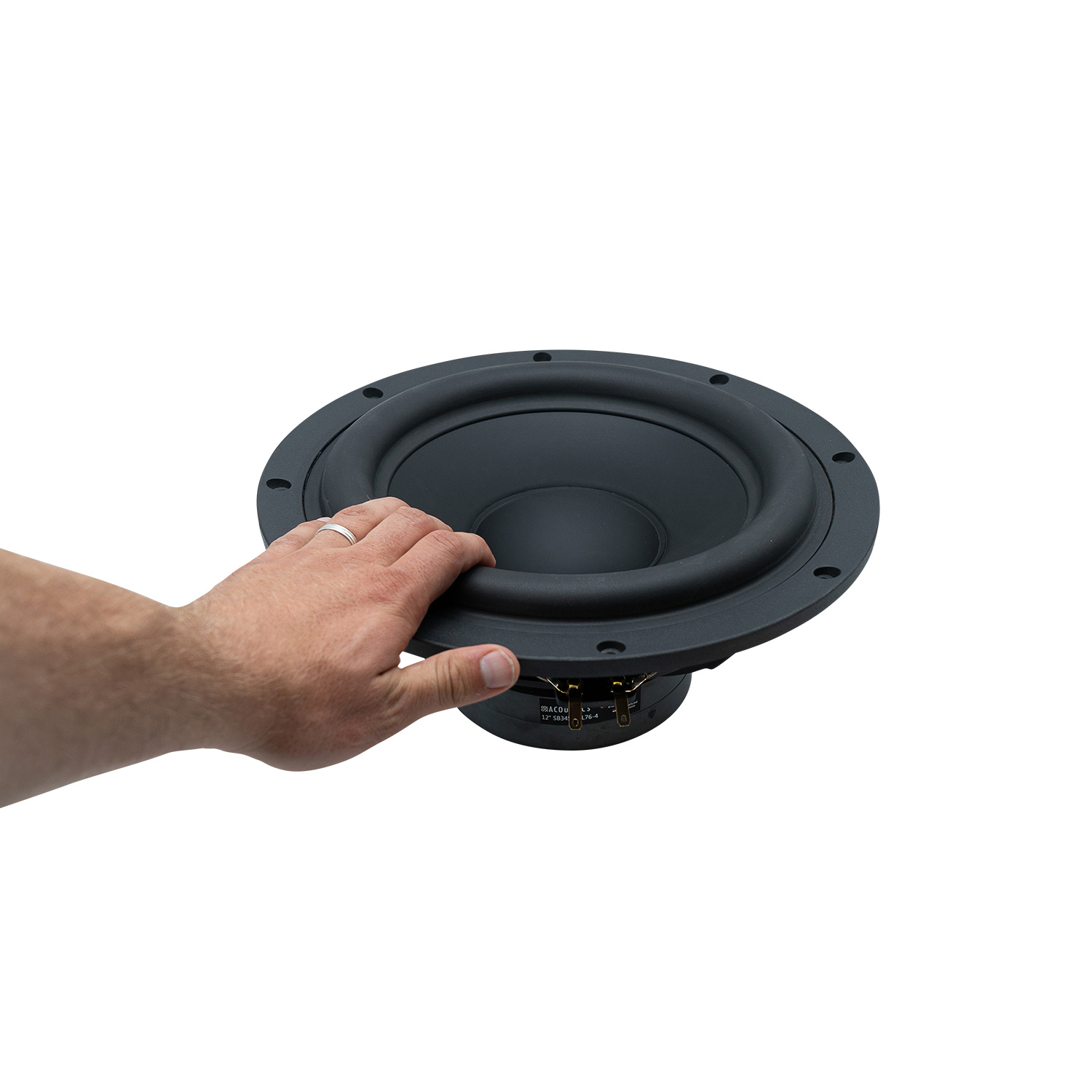

        SB34SWPL76-4 Subwoofer

        SB34SWPL76-4 Subwoofer

        €249,95

        SB Acoustics SB34SWPL76-4 Subwoofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 206,57€ 249,95 4 In stock
        • -5% Purchase 4 for only € 237,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Long stroke design
        • Linear high stability surround
        • Low damping rubber surround
        • 3” copper voice coil
        • Non-conducting reinforced fibre glass coil former
        • Very stiff hard paper cone (made in-house)
        • Vented cast aluminum chassis
        • Large vented motor system and vented coilformer
        • Long life silver lead wires



        Product details

        SB Acoustics SB34SWPL76-4 12” Paper Cone Subwoofer



        SB Acoustics is known for their high value products. And the SB34SWPL76-4  is no exception. With a very stiff hard paper cone made in-house. This allows SB Acoustics to have control over the tolerances used in the manufacturing process. Resulting in a accurate and consistent product. Making this a powerful and exceptionally stable subwoofer for any subwoofer DIY project.

        Show more

        Specifications

        Article number
        SB34SWPL76-4
        Woofer Type
        Subwoofer
        Nominal Diameter
        12''
        Power Handling (RMS)
        300 Watts
        Impedance (Z)
        4 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        85 dB
        Voice Coil Diameter
        76 mm
        Magnet Weight
        2.4 kg
        DC Resistance (Re)
        3.5 Ohms
        Voice Coil Inductance (Le)
        5.3 mH
        Resonant Frequency (Fs)
        19 Hz
        Mechanical Q (Qms)
        8.6
        Electromagnetic Q (Qes)
        0.34
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        266 g
        Mechanical Compliance of Suspension (Cms)
        0.26 mm/N
        Surface Area of Cone (Sd)
        458 cm2
        BL Product (BL)
        18 Tm
        Compliance Equivalent Volume (Vas)
        78.5 Ltr
        Maximum Linear Excursion (Xmax)
        15 mm
        Driver's Mechanical Losses (Rms)
        3.7 kg/s
        Cone / Diaphragm Material
        paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Fibre glass
        Basket / Frame Material
        Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        346 mm
        Baffle Cutout Diameter
        305.2 mm
        # Mounting Holes
        8

        Show more

        5 of 5
        Top of the line subwoofer. Works remarkably well in an open baffle with active eq.
        By Chris on 2 April 2024
        5 of 5
        Bisher konnte ich die akustischen Eigenschaften des Lautsprechers noch nicht beurteilen, weil mein Subwoofer Projekt noch nicht fertig ist. Als einstiger Lautsprecherentwickler kann ich aber sehr gut die Qualität der verwendeten Materialien, die Konstruktion und die Fertigungsqualität des Chassis beurteilen und das ist alles schlichtweg überragend! Ich bin sehr auf die ersten akustischen Versuche gespannt und werde dann ggf. wieder berichten.
        By Rüdiger F. on 11 April 2021
