      SB Acoustics SB34NRXL75-8 12" Woofer

      € 235,50€ 284,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 270,70 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Hard paper cone for improved piston operation (made in-house)
      • Large motor system with under-cut pole piece and dual shorting rings
      • Vented pole piece for minimum compression
      • Vented cast aluminum chassis for optimum strength and low compression
      • 3″ copper voice coil for improved power handling
      • Long life silver lead wires
      • Low damping rubber surround for improved dynamic linearity
      • Non-conducting fiber glass voice coil former for minimum damping
      • Optimized for vented enclosure



      Product details

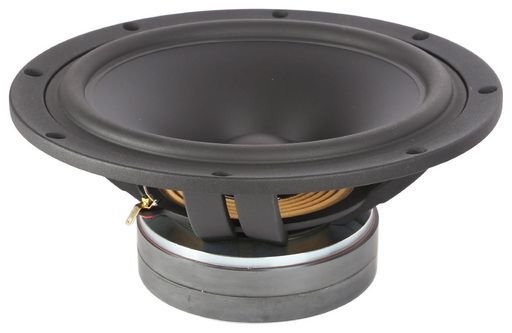

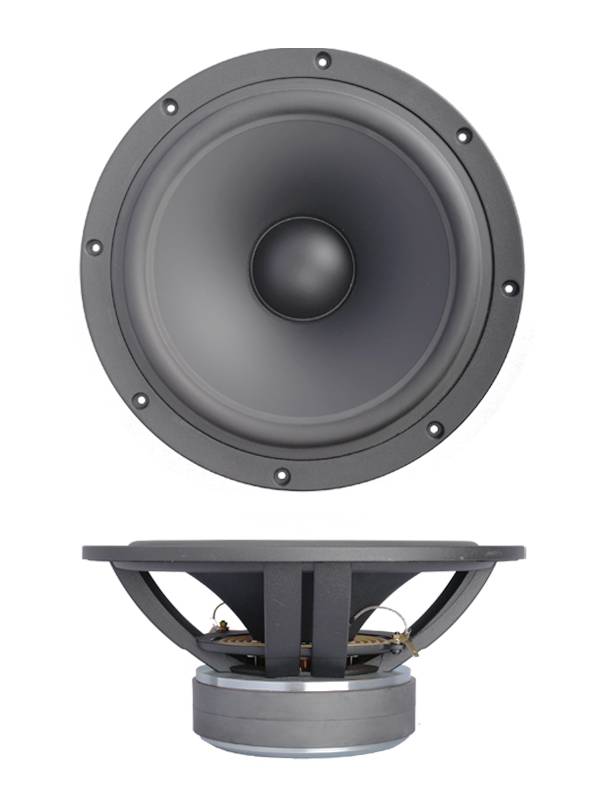

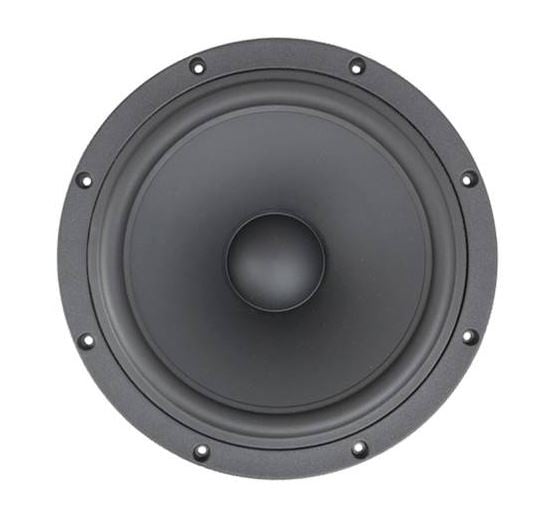

      SB Acoustics SB34NRXL75-8 12" Woofer



      The SB34NRXL75-8 12" woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum reflections good air flow. Extra-large magnet with dual shorting rings and vented pole piece. This woofer could be used in various boxes but will likely require some boost on the low end to extend the lower frequencies.

      Specifications

      Article number
      SB34NRXL75-8
      Woofer Series
      NRX Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      12"
      Power Handling (RMS)
      200 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      91 dB 2.83V/1m
      Voice Coil Diameter
      2.97"
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      1.2 mH
      Resonant Frequency (Fs)
      22 Hz
      Mechanical Q (Qms)
      5.5
      Electromagnetic Q (Qes)
      0.29
      Total Q (Qts)
      0.28
      Diaphragm Mass Inc. Airload (Mms)
      93 g
      Mechanical Compliance of Suspension (Cms)
      0.56 mm/N
      Surface Area of Cone (Sd)
      508 cm2
      BL Product (BL)
      16.6 Tm
      Compliance Equivalent Volume (Vas)
      7.23 ft.³
      Maximum Linear Excursion (Xmax)
      10 mm
