    SB Acoustics SB34NRX75-16 12" Woofer 16 ohm

    € 165,25€ 199,95 4 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €189,95 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights:

    • Designed for open baffle
    • High flow venting center pole
    • 3" CCAW voice coil
    • Low dampening surround
    • Non-inductive voice coil former
    • Proprietary cone materials made-in-house
    • Cast Aluminium chassis



    Product details

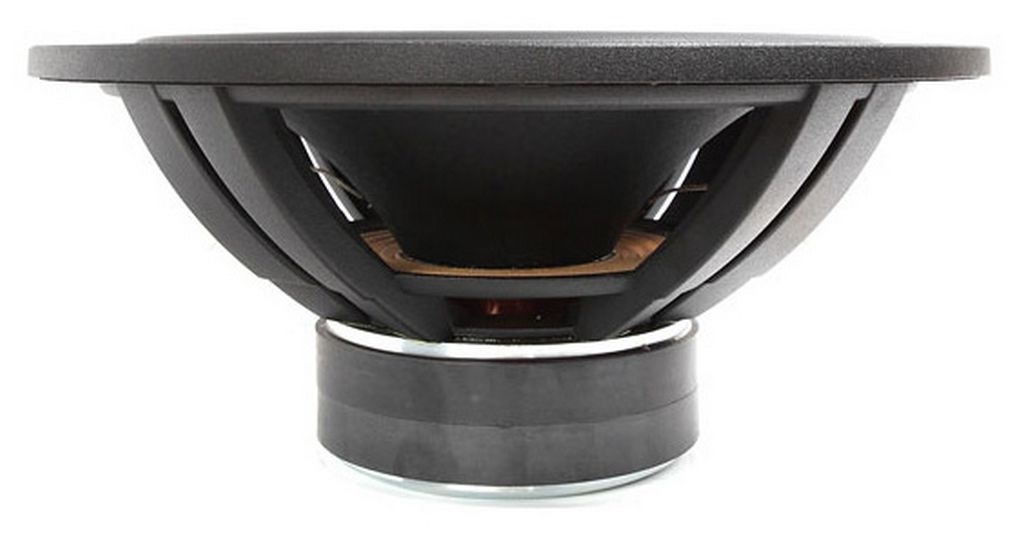

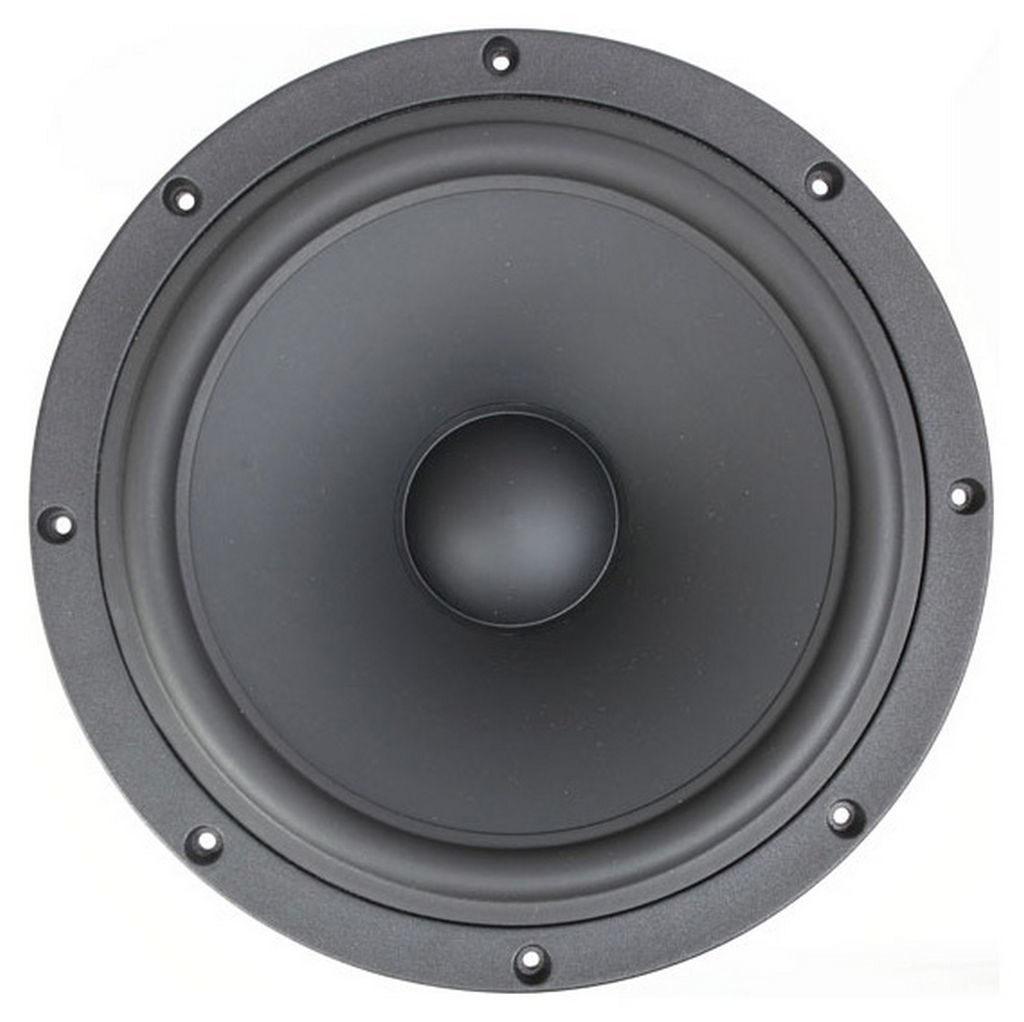

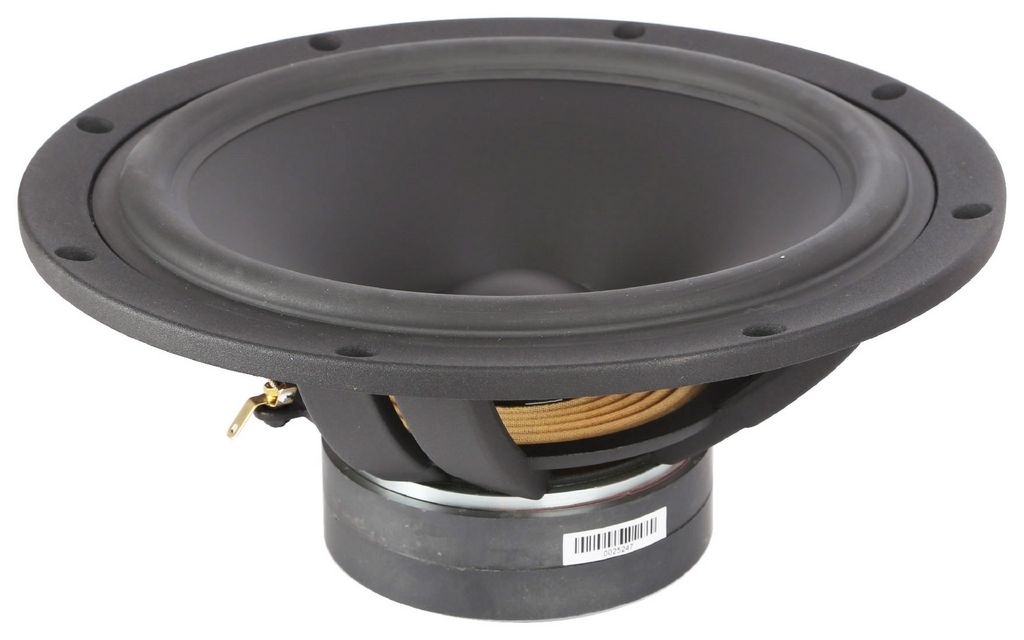

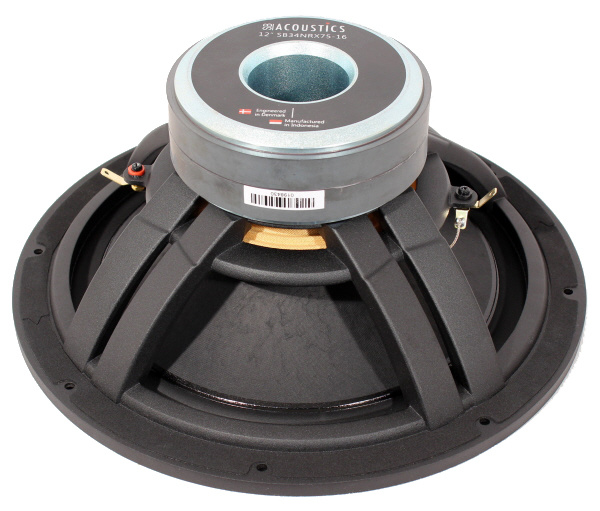

    SB Acoustics SB34NRX75-16 12" Woofer



    The SB Acoustics SB34NRX75-16 12" woofer uses a large 3" voice coil on a cast aluminium chassis. Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former. Especially designed for open baffle designs but also works well in large sealed enclosures.

    Specifications

    Article number
    SB34NRX75-16
    Woofer Series
    NRX Series
    Woofer Type
    Woofer
    Nominal Diameter
    12 ''
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    200 Watts
    Impedance (Z)
    16 Ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    24-500 Hz
    DC Resistance (Re)
    14 Ohms
    Voice Coil Inductance (Le)
    3.2 mH
    Resonant Frequency (Fs)
    24.5 Hz
    Mechanical Q (Qms)
    6.52
    Electromagnetic Q (Qes)
    0.74
    Total Q (Qts)
    0.66
    Diaphragm Mass Inc. Airload (Mms)
    72 g
    Mechanical Compliance of Suspension (Cms)
    0.59
    Surface Area of Cone (Sd)
    508 cm2
    BL Product (BL)
    14.5 Tm
    Compliance Equivalent Volume (Vas)
    216 l
    Maximum Linear Excursion (Xmax)
    11 mm
    Cone / Diaphragm Material
    Hard coated paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    CCAW
    Basket / Frame Material
    Cast aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    346 mm
    Overall Depth
    156 mm
    Baffle Cutout Diameter
    305 mm
    # Mounting Holes
    8
    Mounting Hole Diameter
    5.5 mm
