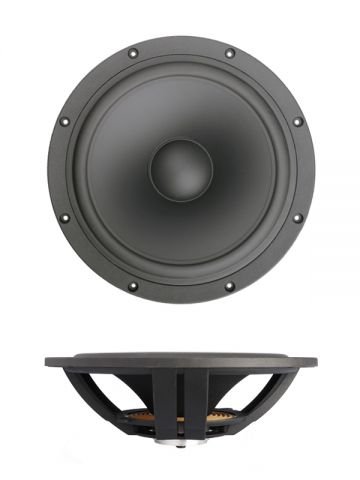

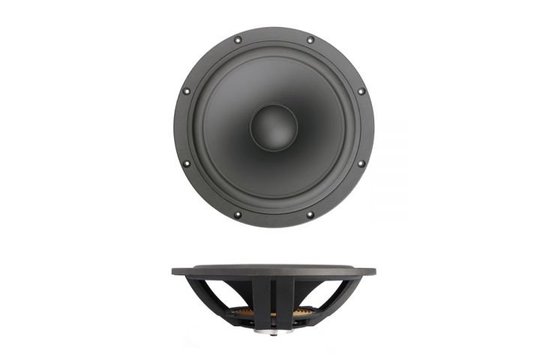

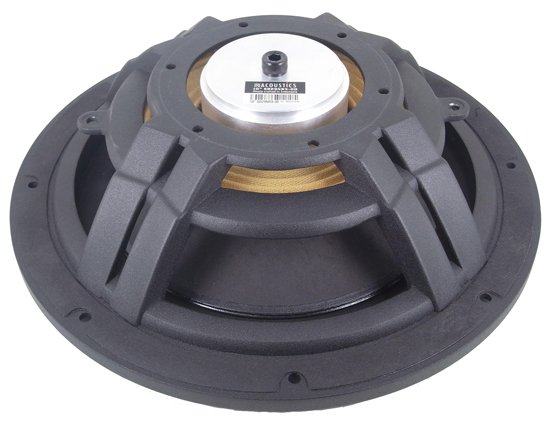

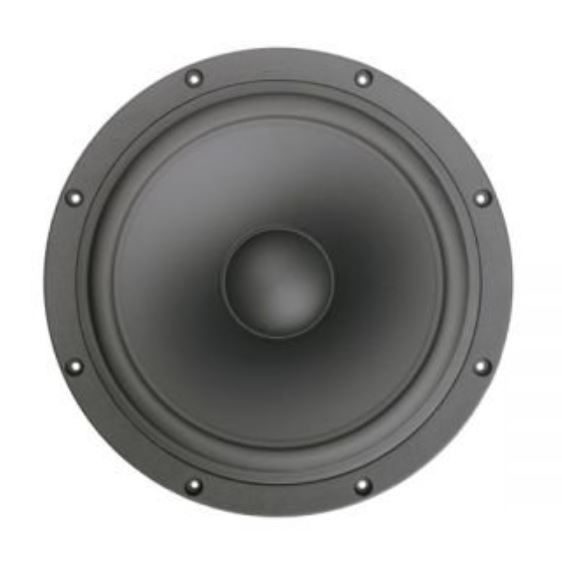

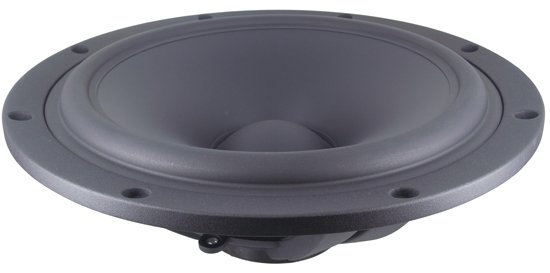

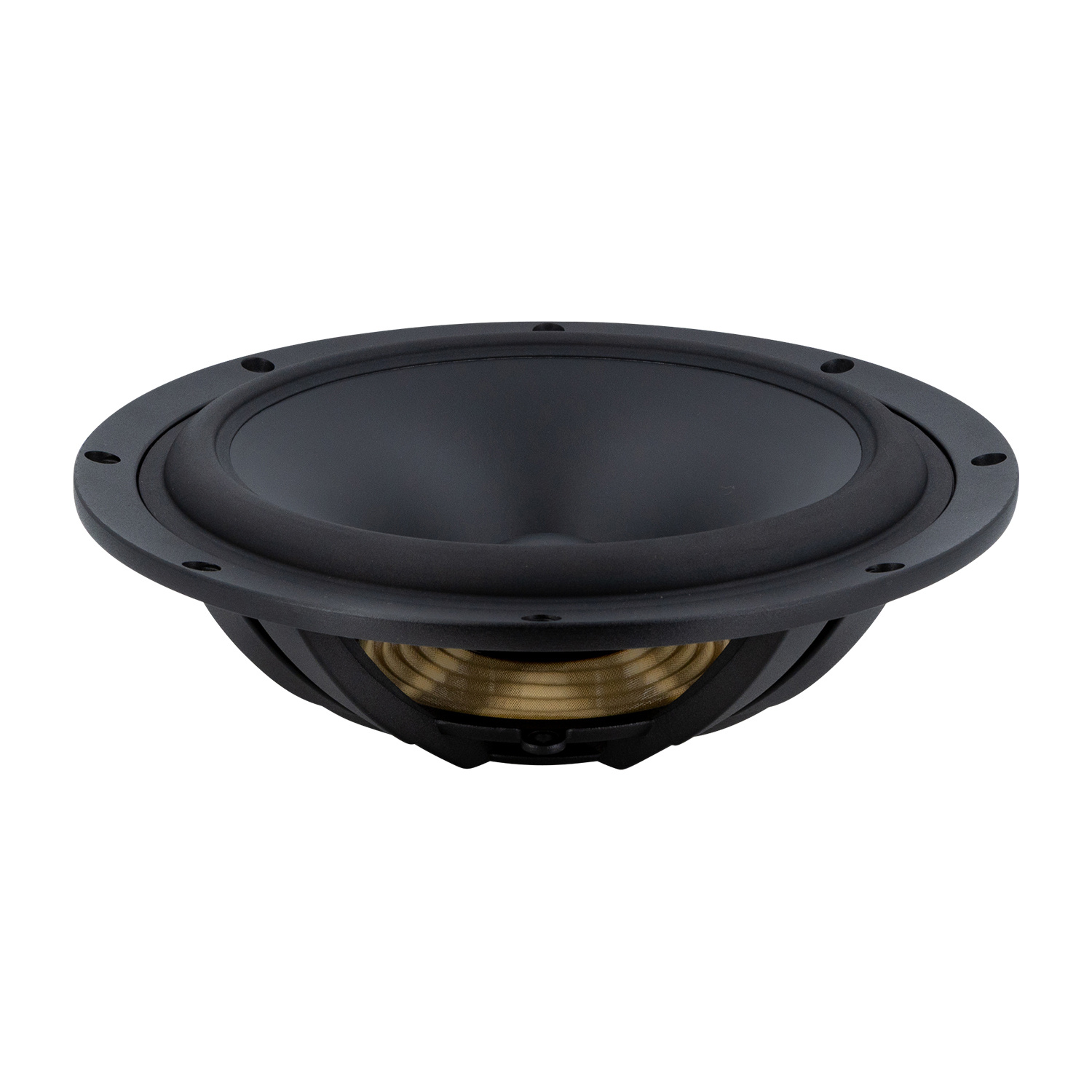

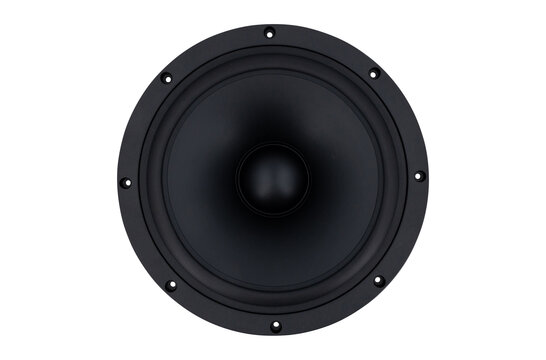

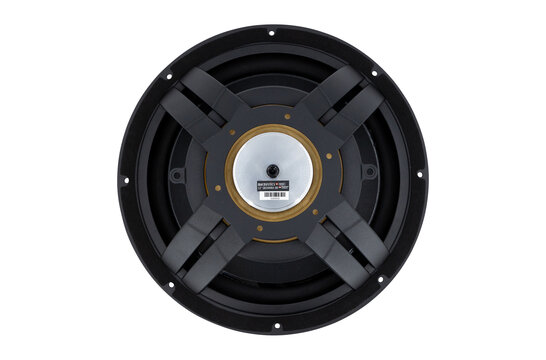

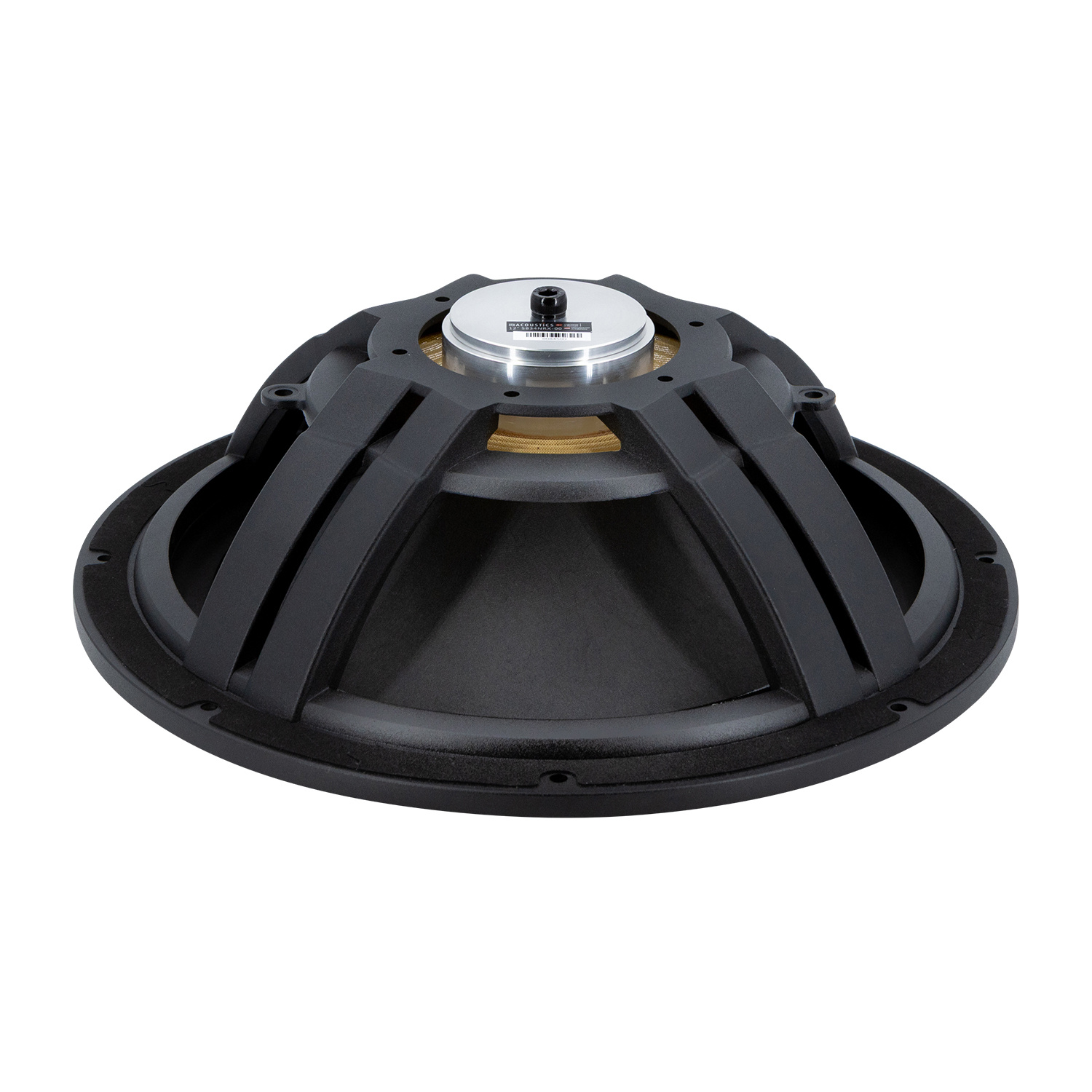

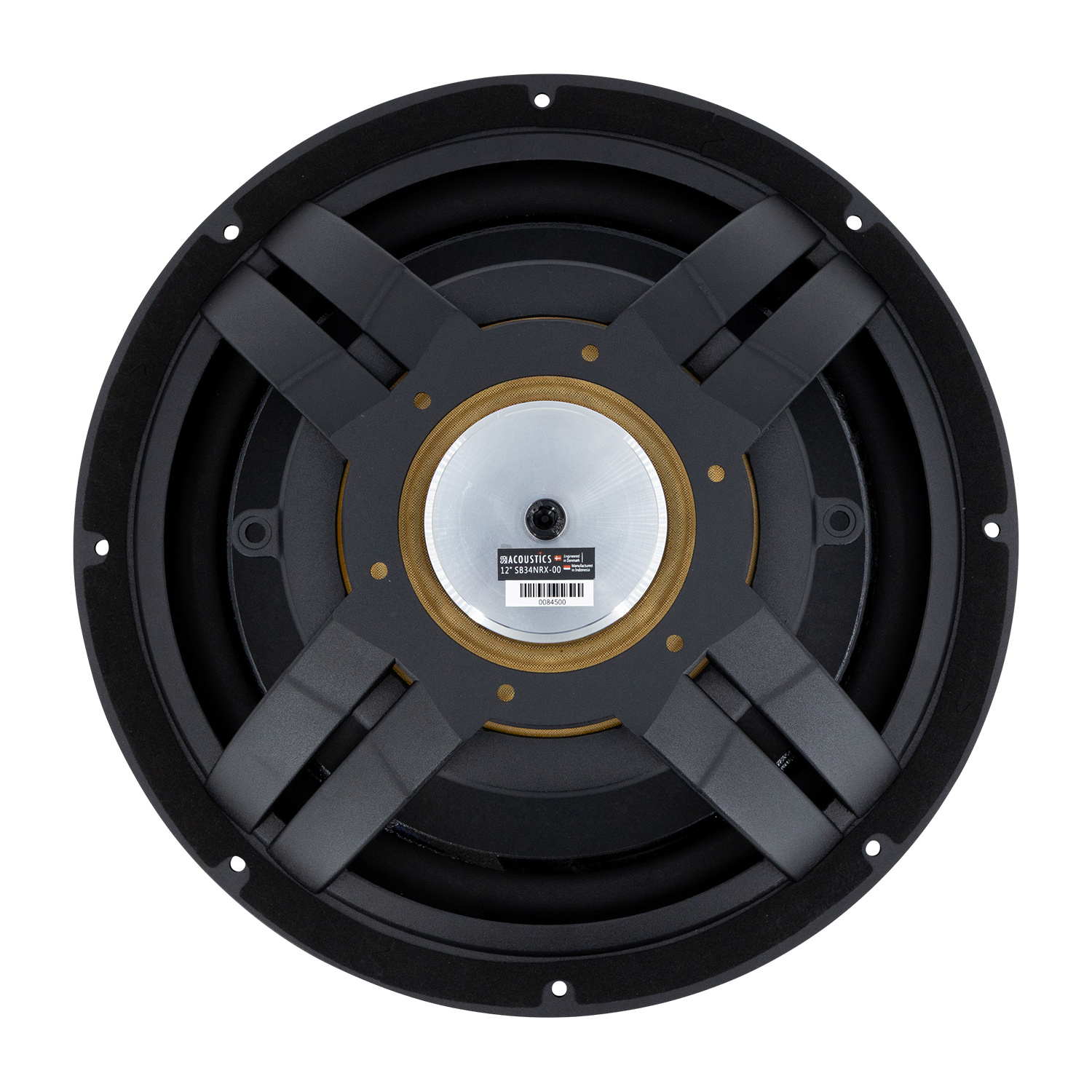

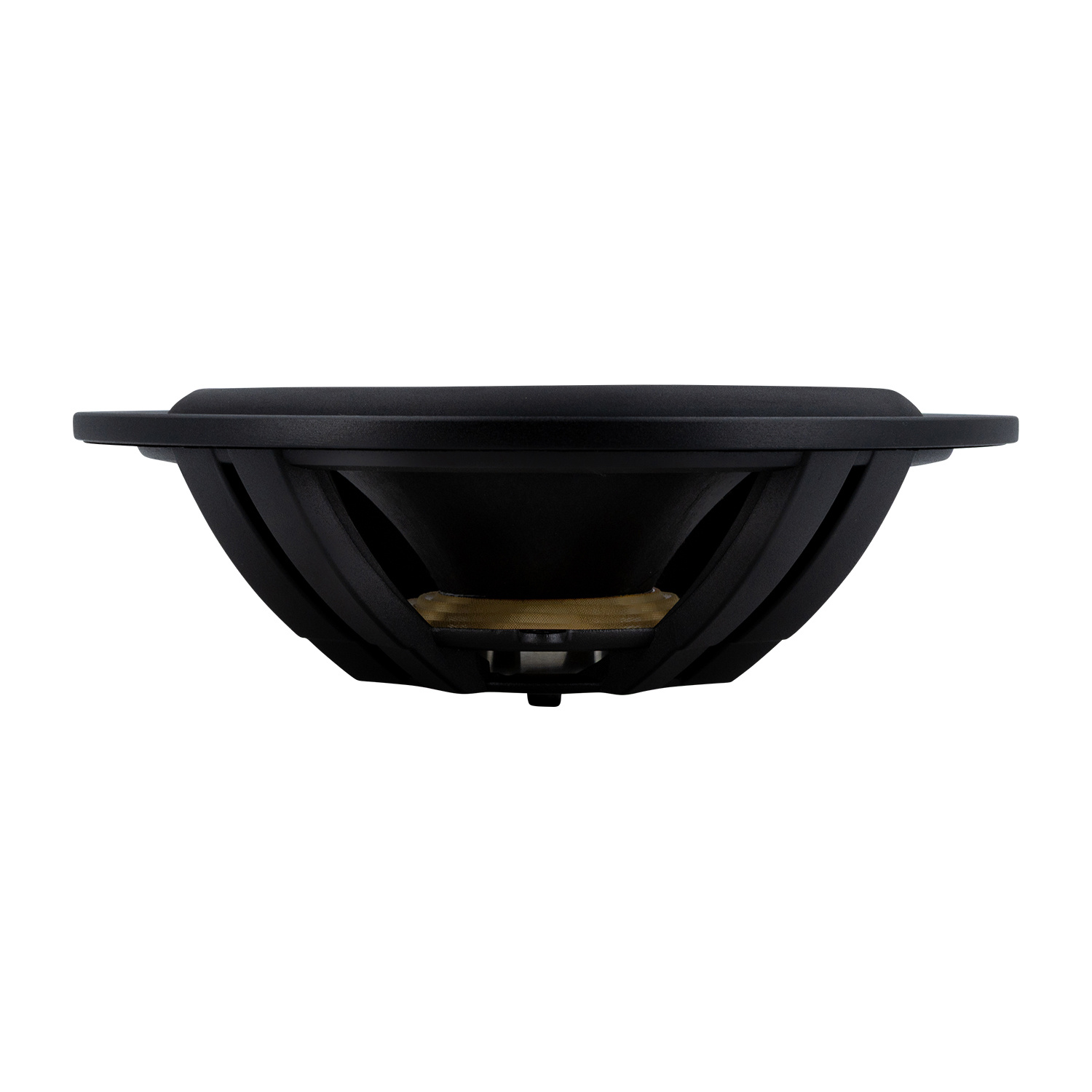

        SB34NRX-00 12" Passive Radiator

        SB Acoustics SB34NRX-00 12" Passive Radiator

        €149,95

        4 In stock

        Add to cart

        SB Acoustics SB34NRX-00 12" Passive Radiator

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        passive | 12"
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        € 123,93€ 149,95 4 In stock
        • -5% Purchase 4 for only € 142,45 per piece
        € 149,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator
        SB34NRX-00 12" Passive Radiator

        Product description SB Acoustics SB34NRX-00 Passive Radiator

        Highlights

        • Hard paper cone for improved piston operation (made in-house)
        • Cast aluminum chassis for optimum strength
        • Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
        • Easily adjustable moving mass



        Product details

        SB Acoustics SB34NRX-00 12" Passive Radiator



        The SB Acoustics SB34NRX-00 passive radiator is a good match to the SB Acoustics woofer SB34SWNRX-S75.  In 2.0 to 2.5 cubic foot box this combo will get down to 30Hz.  Adding a plate amplifier with a low frequency boost would push the F3 even lower.

        Show more

        Specifications

        Article number
        SB34NRX-00
        EAN
        0696277269679
        Woofer Series
        SB Acoustics NRX Norex series
        Woofer Type
        Passive Radiator
        Nominal Diameter
        12"
        Power Handling (RMS)
        200 Watt
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        155 - 11.000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        3.4 Ω
        Voice Coil Inductance (Le)
        0.18 mH
        Resonant Frequency (Fs)
        8.7 Hz
        Mechanical Q (Qms)
        12.1
        Total Q (Qts)
        0.97
        Diaphragm Mass Inc. Airload (Mms)
        665 g
        Mechanical Compliance of Suspension (Cms)
        0.50 mm/N
        Surface Area of Cone (Sd)
        508 cm²
        Compliance Equivalent Volume (Vas)
        183 L
        Maximum Linear Excursion (Xmax)
        17 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Stamped steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        167.5 mm
        Baffle Cutout Diameter
        144.5 mm

        Show more
