        SB29SDAC-C000-4 Dome Tweeter

        SB29SDAC-C000-4 Dome Tweeter

        €43,95

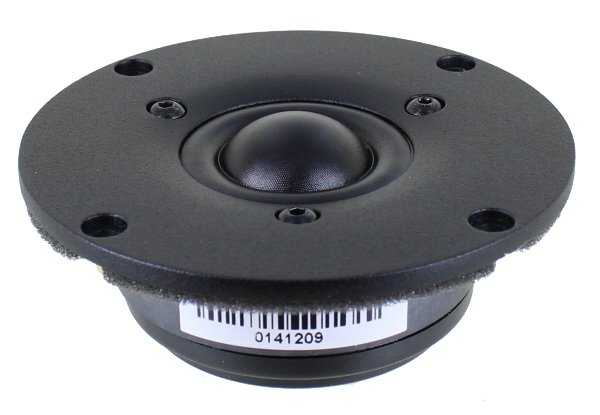

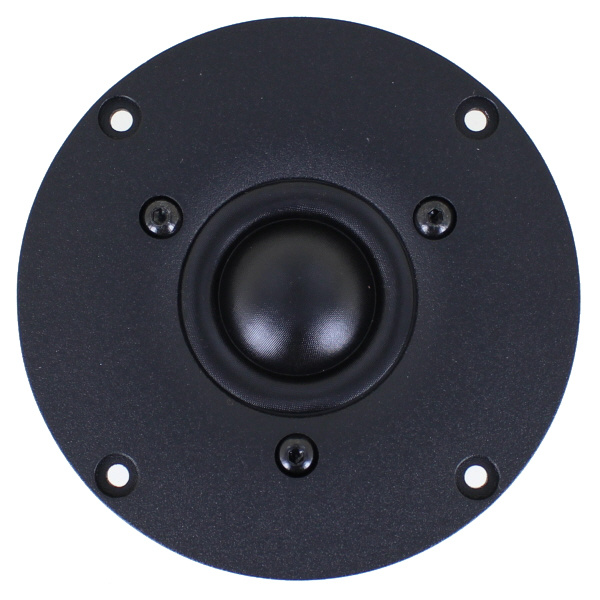

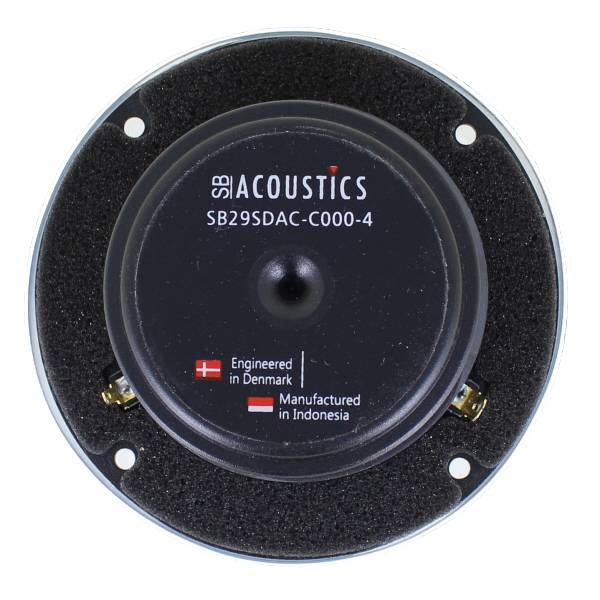

        SB Acoustics SB29SDAC-C000-4 Dome Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 36,32€ 43,95 9 In stock
        • -5% Purchase 4 for only € 41,75 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Large surround dome for increased acoustic output
        • Dual balanced compression chamber for improved dynamics
        • Copper cap for reduced voice coil inductance and minimum phase shift
        • Saturation controlled motor system for low distortion
        • Non-reflective rear chamber with optimized damping for improved dynamics
        • Flow optimized vented pole piece for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency
        • Cast aluminum faceplate



        Product details

        SB Acoustics SB29SDAC-C000-4 Textile Dome Tweeter



        The SB29SDAC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics. CCAW voice coil for low moving mass. Saturation controlled motor system for low distortion and low resonance frequency. Cast aluminum faceplate.



        Specifications: BL Product (BL): 2.4 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Show more

        Specifications

        Article number
        SB29SDAC-C000-4
        Tweeter Type
        Dome
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        60 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Resonant Frequency (Fs)
        600 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Mechanical Q (Qms)
        2.94
        Electromagnetic Q (Qes)
        1.09
        Total Q (Qts)
        0.80

        Show more

        5 of 5
        Reasonable price and nice sound, The 2 units gave almost identical frequency response. Excellent build quality .
        By IOANNIS N. on 14 April 2020
