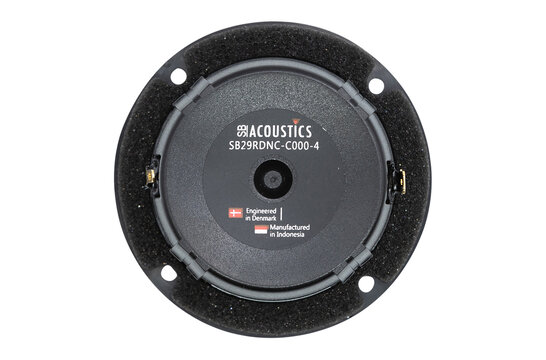

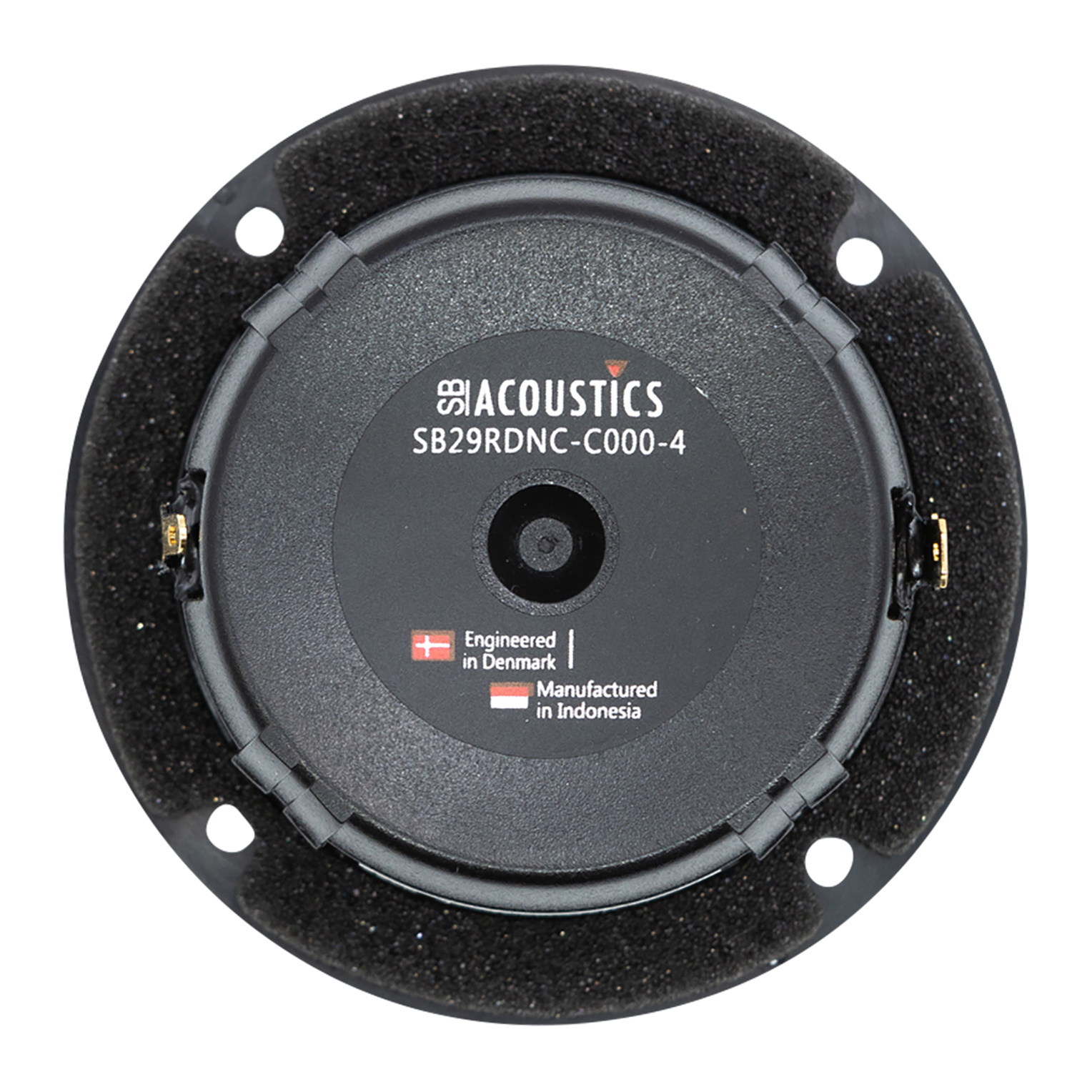

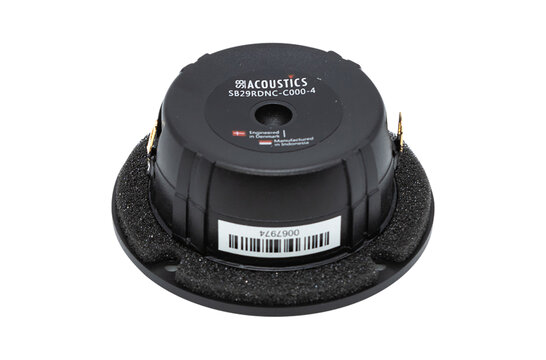

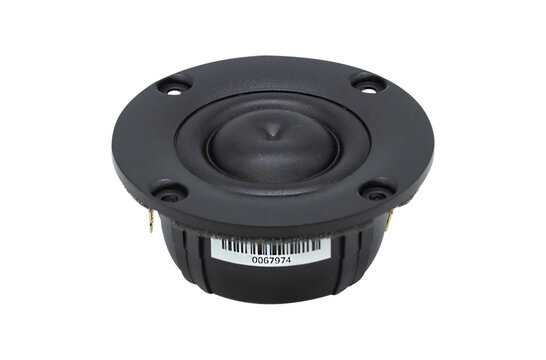

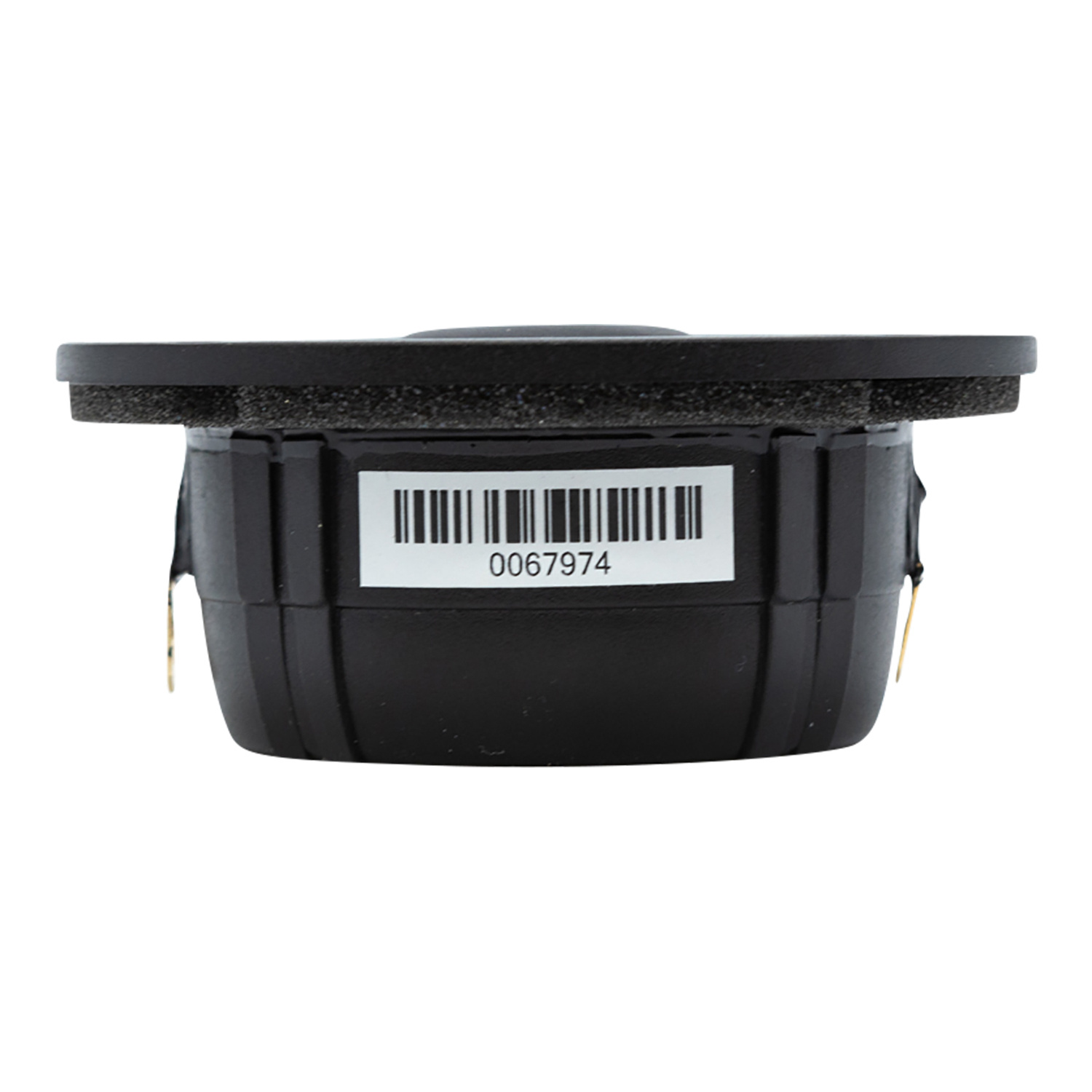

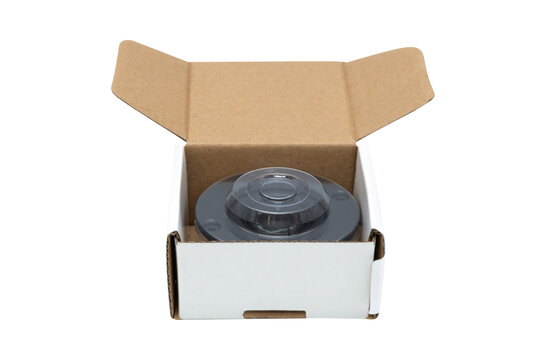

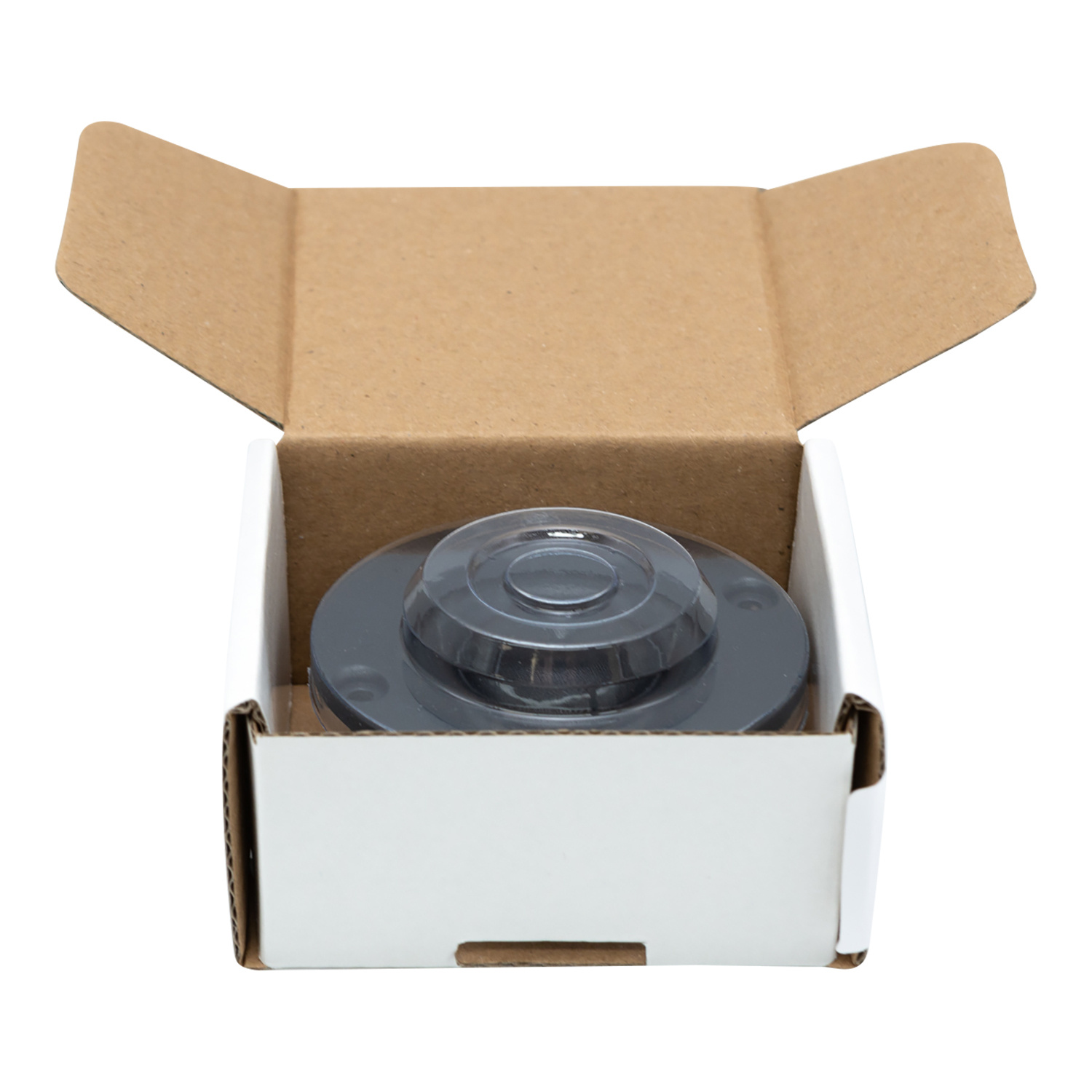

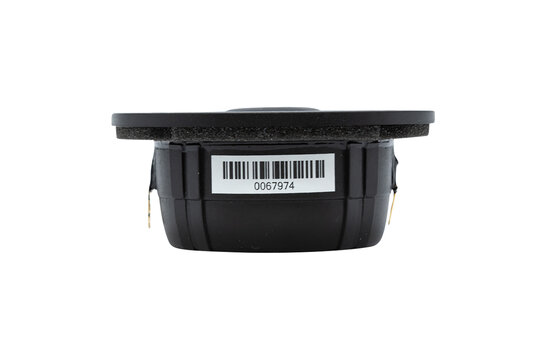

    SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter with Neodymium Magnet

    € 50,45 >10 In stock: delivery time 1-4 business days
    This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensit... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €47,93 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Non-resonant diaphragm design for minimum high frequency break-up
    • CCAW voice coil for low moving mass
    • Long life silver lead wires
    • Low resonance frequency
    • Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
    • Inherently shielded neodymium motor system
    • Internal pressure equalization and flow resistor for non-resonant coupling of cavities
    • Compact design



    Product details

    SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter with Neodymium Magnet

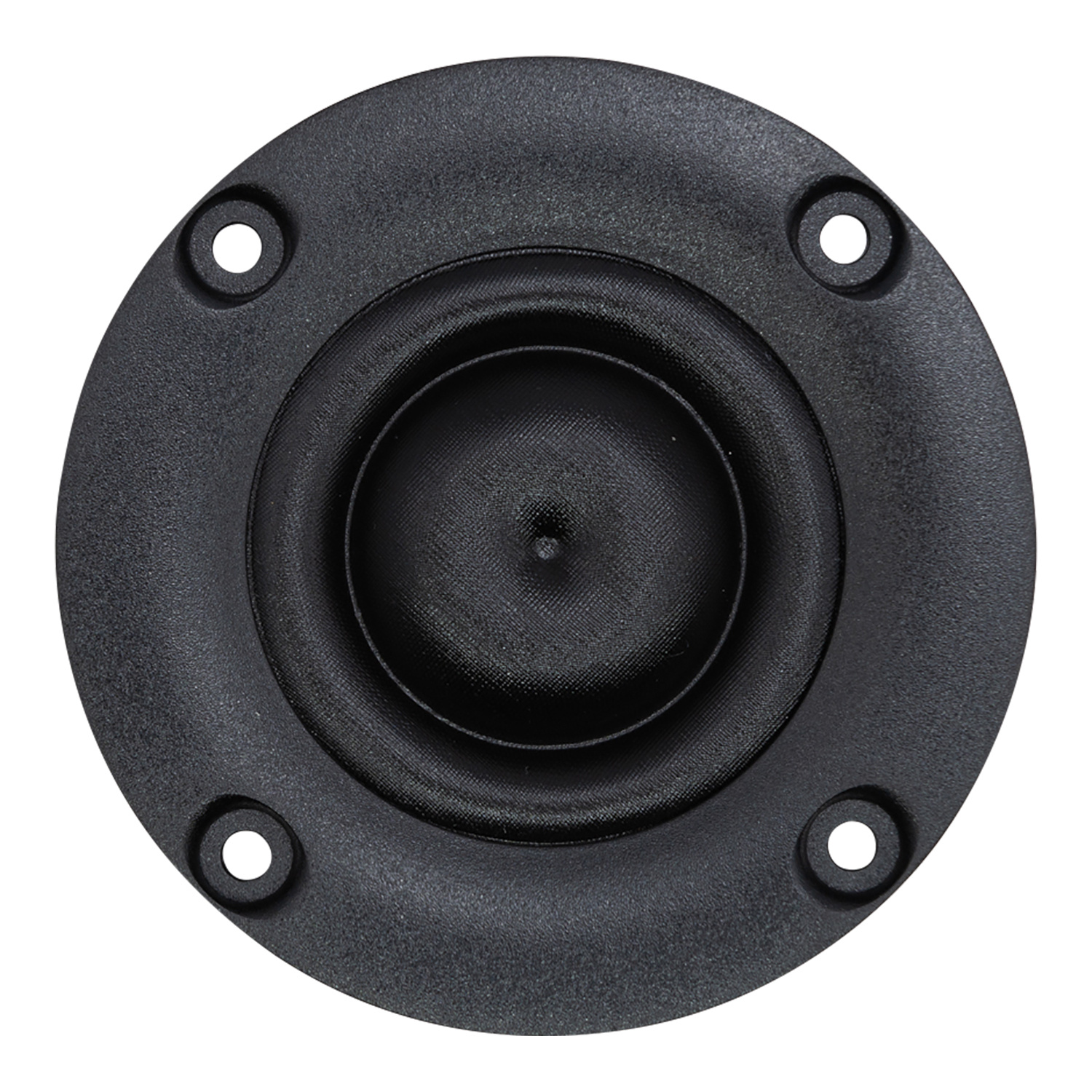

    This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensitivity. The tweeter has a chambered back designed to provide a lower resonance frequency and reduce back wave reflections from the dome. A copper cap is used on the pole piece.



    Specifications: Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

    Specifications

    Article number
    SB29RDNC-C000-4
    Tweeter Type
    Dome
    Power Handling (RMS)
    100 Watts
    Impedance
    4 ohms
    Sensitivity
    94 dB 2.83V/1m
    Resonant Frequency (Fs)
    580 Hz
    DC Resistance (Re)
    3 ohms
    Voice Coil Inductance (Le)
    0.05 mH
    Mechanical Q (Qms)
    0.9
    Electromagnetic Q (Qes)
    0.54
    Total Q (Qts)
    0.34

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 van 5
    Großartiger Tweeter! Für 50€ das Stück handelt es sich hierbei definitiv nicht um ein Schnäppchen, aber der Preis lohnt sich. Man bekommt genau das, was man erwartet. Gute Qualität und einen tollen Sound. Dank der niedrigen Fs von rund 700hz kann man diesen Tweeter bei rund 2000hz crossen, solange man einen Filter 2er Ordnung benutzt. In der Simulation mit XSim muss man zwar ein bisschen rumwerkeln, bis man ein gutes Ergebnis bekommt, aber ich würde trotzdem sagen, dass das Arbeiten mit diesem Tweeter einfach ist. Das Aussehen ist natürlich Geschmacksache, aber ich finde, dass er in echt besser aussieht, als auf dem Foto. Wer mehr über diesen Tweeter wissen möchte, dem kann ich das Video von Impulse Audio wärmstens empfehlen. Insgesamt einfach ein sehr gutes Produkt!

    Great Tweeter! For 50€ this tweeter isn't the cheapest but it is still well worth the price. You are getting exactly what you expect. Very nice Quality and also good sound. Thanks to the low Fs of about 700hz you can cross this tweeter at about 2000hz as long as you use a second order filter. Simulating the crossover in XSim takes some time but I'd say it is still rather easy to work with. The looks are depending on taste. I think the tweeter looks better in person than on the pictures. For those wanting to know more about this tweeter I whole heartedly recommend the video of Impulse Audio reviewing this unit. All in all a well worth product!
    By Leif Reuter on 26 March 2021
