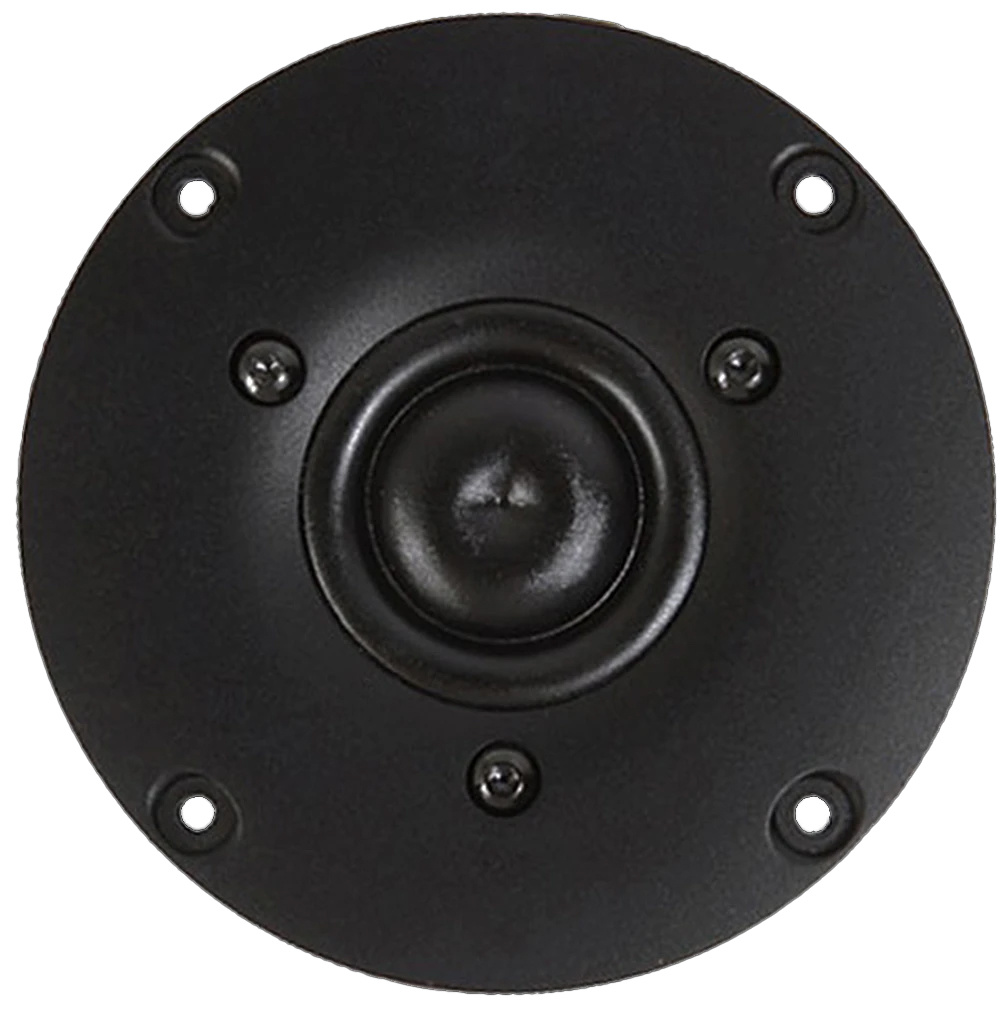

        SB Acoustics SB29RDAC-C000-4 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Ring radiator tweeter
        1¼" | 4 Ω
        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter
        € 45,41€ 54,95 4 In stock
        • -5% Order 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter
        SB29RDAC-C000-4 Dome Tweeter

        Product description



        Highlights

        • Non-resonant diaphragm design for minimum high frequency break-up
        • High efficiency 93 dB (2,83 V/1m)
        • Dual balanced compression chamber for improved dynamics
        • Copper cap for reduced voice coil inductance and minimum phase shift
        • Saturation controlled motor system for low distortion
        • Non-reflective rear chamber with optimized damping for improved dynamics
        • Flow optimized vented pole piece for optimum coupling tot rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency



        Product details

        SB Acoustics SB29RDAC-C000-4  Fabric Ring-Radiator Tweeter



        The SB Acoustics SB Acoustics SB29RDAC-C000-4  is a fabric Ring-Radiator tweeter features an extended high frequency response. This results in a low distortion sound representation within the range of the human hearing. The chambers within this tweeter unit are designed for improved dynamics. The driver also features a low Fs point of 600 Hz to allow for a low crossover point. A crossover point of at least 2600Hz is recommend with a second order 12dB/oct slope.

        Show more

        Specifications

        Article number
        SB29RDAC-C000-4
        Tweeter Type
        Dome
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        4 Ω
        Sensitivity
        93dB (2.83V/1m)
        Resonant Frequency (Fs)
        900 Hz
        DC Resistance (Re)
        3 Ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Mechanical Q (Qms)
        2.2
        Electromagnetic Q (Qes)
        0.9
        Total Q (Qts)
        0.64
        Overall Outside Diameter
        103.8 mm
        Cutout Diameter
        70 mm
        Recommended cut frequency
        2600 Hz, 12 dB/oct

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        Onlangs twee SBAcoustics tweeters gekocht, type SB29RDAC-C000-4. Om te vergelijken met mijn bestaande SB29BAC-C000-4 (Beryllium) dome tweeters. Toegepast in een 2-wegsysteem met woofer/mid Seas W18E001 en 2nd gefilterd. Was zeer verrast over de prestaties van deze relatief 'goedkope' tweeters. Wat mij betreft een aanrader, zeker als je in dat prijssegment iets zoekt!
        By Piet van Duijvenbode on 26 April 2022
        5 of 5
        Great sounding tweeters. + Sound - Price ...

        Show more

        By Xxx on 19 March 2022
