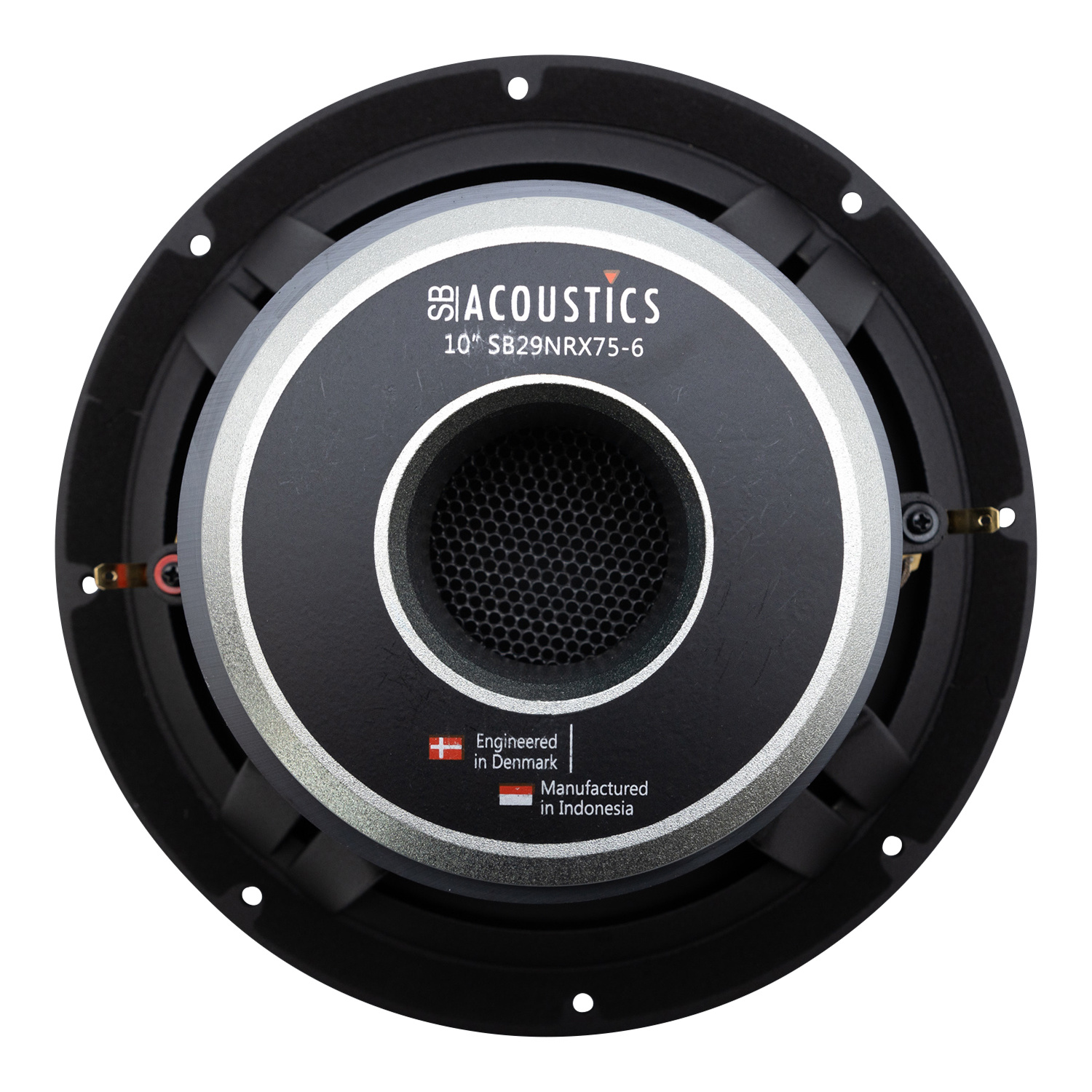

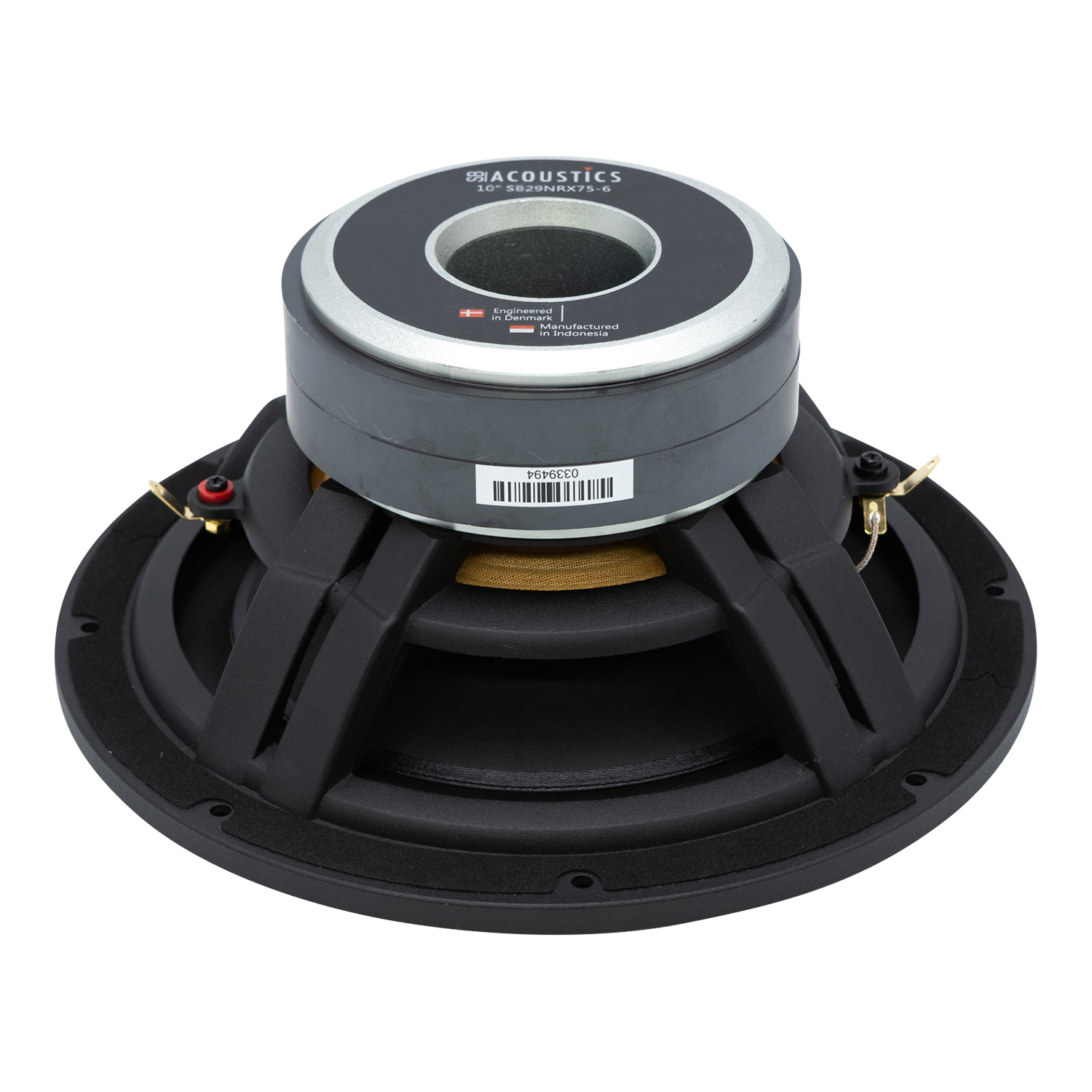

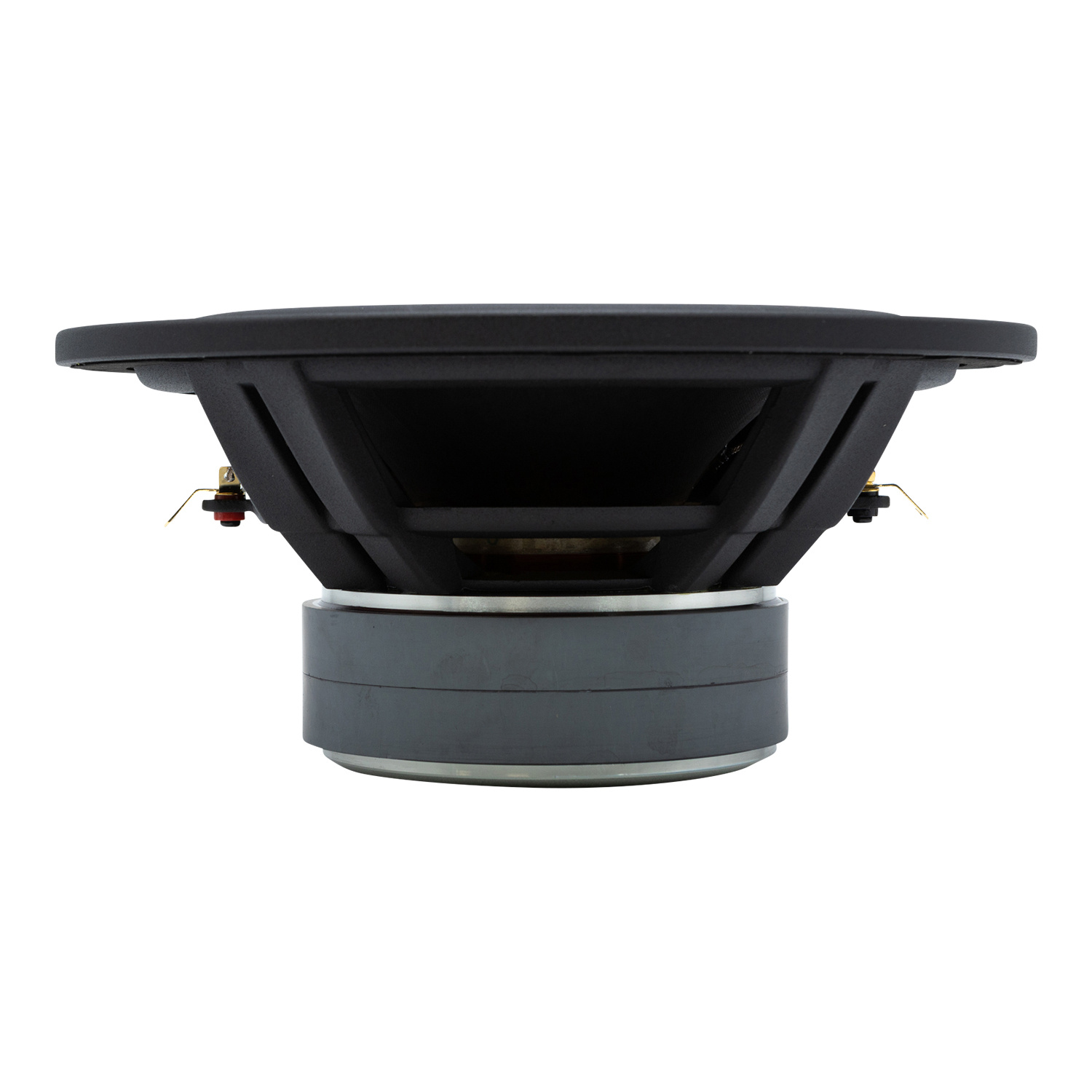

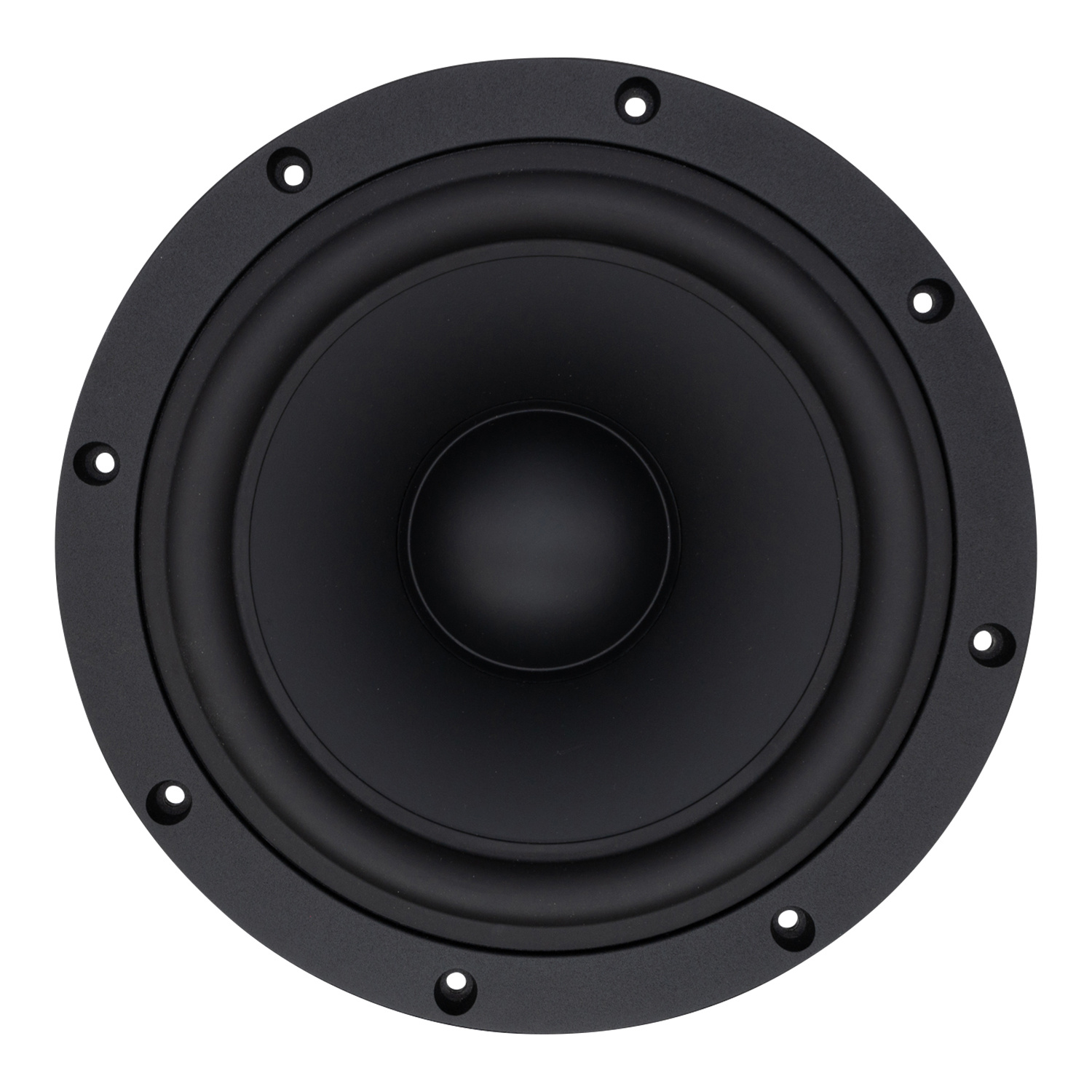

      SB Acoustics SB29NRX75-6 10" Woofer

      € 152,85€ 184,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 175,70 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Hard paper cone for improved piston operation (made in-house)
      • Vented pole piece for minimum compression
      • Vented cast aluminum chassis for optimum strength and low compression
      • 3" copper voice coil for improved power handling
      • Long life silver lead wires
      • Low damping rubber surround for improved dynamic linearity
      • Non-conducting fiber glass voice coil former for minimum damping



      Product details

      SB Acoustics SB29NRX75-6 10" Woofer



      The SB29NRX75-6 10" woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum reflections good air flow. This woofer will perform best in a ported enclosure. This driver will get down to 28Hz in a 2.0 cubic foot box with a 3" diameter port by 12" long. In a sealed box of 0.8 cubic feet your F3 is 48Hz. Frame is 290mm in diameter. Cutout diameter is 247mm. Depth is 119mm. Flange thickness of 10mm. Screw mounting diameter is at 268mm. Screw hole opening is 5.5mm.

      Specifications

      Article number
      SB29NRX75-6
      Woofer Series
      NRX Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      200 Watts
      Impedance (Z)
      6 ohms
      Sensitivity
      88 dB 2.83V/1m
      Voice Coil Diameter
      2.97"
      DC Resistance (Re)
      4.2 ohms
      Voice Coil Inductance (Le)
      1.8 mH
      Resonant Frequency (Fs)
      21 Hz
      Mechanical Q (Qms)
      5.7
      Electromagnetic Q (Qes)
      0.38
      Total Q (Qts)
      0.35
      Diaphragm Mass Inc. Airload (Mms)
      78 g
      Mechanical Compliance of Suspension (Cms)
      0.74 mm/N
      Surface Area of Cone (Sd)
      312 cm2
      BL Product (BL)
      10.7 Tm
      Compliance Equivalent Volume (Vas)
      3.60 ft.³
      Maximum Linear Excursion (Xmax)
      11 mm

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      Altoparlante molto valido come mi aspettavo ad un prezzo ragionevole , buono l'imballaggio e veloce la consegna
      By roberto a. on 23 February 2021
      5 of 5
      Produceert veel lagere tonen dan oude subwoofer, probleemloos en strak: Lage E op de basgitaar, linker pedalen op het laagste register van groot kerkorgel, allemaal perfect weergegeven. Zonder overdreven mid-laag, kortom, aanrader, ook voor klassiek. (Zit bij mij in grote gesloten box, 120 liter, met veel demping)
      By pieter s. on 24 December 2019
