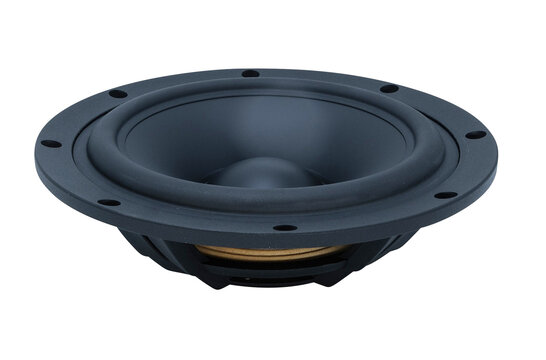

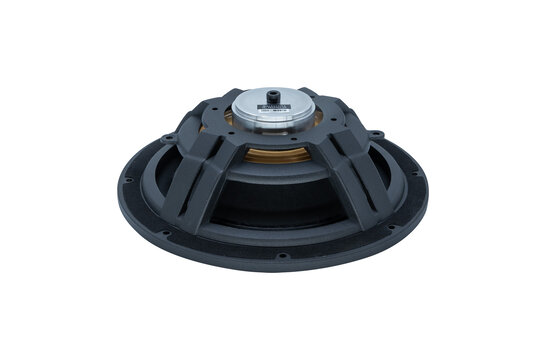

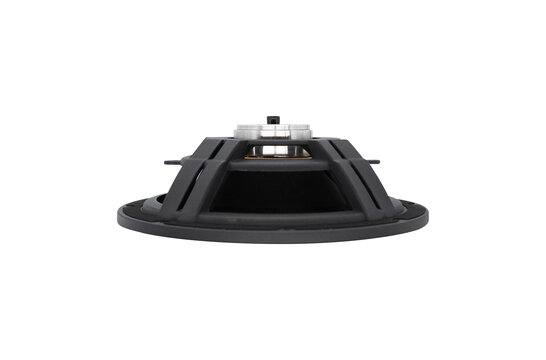

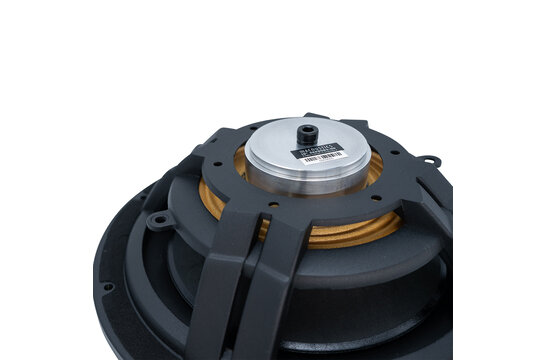

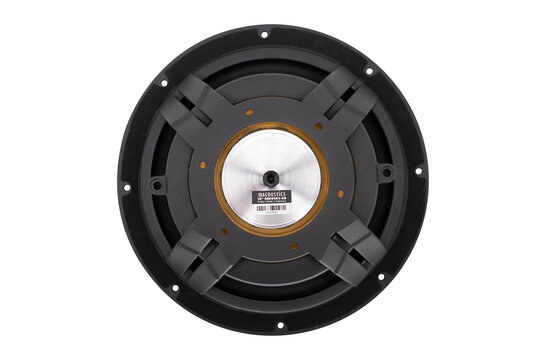

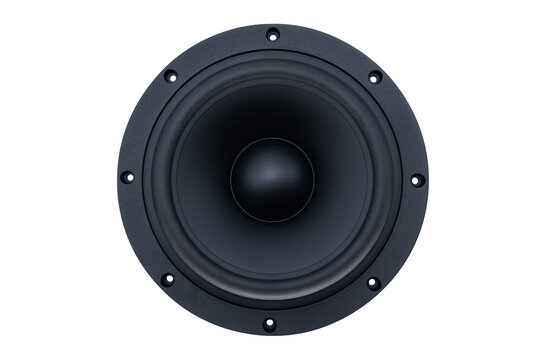

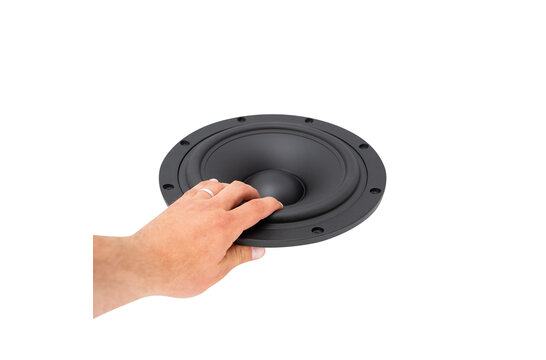

        SB29NRX-00 10" Passive Radiator

        SB Acoustics SB29NRX-00 10" Passive Radiator

        €113,95

        4 In stock

        Add to cart

        SB Acoustics SB29NRX-00 10" Passive Radiator

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        passive | 10"
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        € 94,17€ 113,95 4 In stock
        • -5% Purchase 4 for only € 108,25 per piece
        € 113,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator
        SB29NRX-00 10" Passive Radiator

        Product description SB Acoustics SB29NRX-00 Passive Radiator

        Highlights

        • Hard paper cone for improved piston operation (made in-house)
        • Cast aluminum chassis for optimum strength
        • Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
        • Easily adjustable moving mass



        Product details

        SB Acoustics SB29NRX-00 10" Passive Radiator



        This driver is built similarly to the active woofer and is a good match to the SB29SWNRX-S75 10" subwoofer.  In 0.75 to 1.0 cubic foot with that woofer one has an F3 of about 35Hz. It also mates well with the SB29NRX75-6 10" woofer. In 1.0 to 1.3 cubic foot, your F3 is 38Hz. Using a plate amp with a low frequency boost, one would go even lower.

        Show more

        Specifications

        Article number
        SB29NRX-00
        EAN
        0696277269662
        Woofer Series
        SB Acoustics NRX Norex series
        Woofer Type
        Passive Radiator
        Nominal Diameter
        10"
        Power Handling (RMS)
        500 Watt
        Sensitivity (SPL at 1m / 2.83V)
        96 dB
        Frequency Response
        90 - 13.000 Hz
        Voice Coil Diameter
        50 mm
        DC Resistance (Re)
        3.3 Ω
        Voice Coil Inductance (Le)
        0.210 mH
        Resonant Frequency (Fs)
        10.2 Hz
        Mechanical Q (Qms)
        10.8
        Total Q (Qts)
        0.24
        Diaphragm Mass Inc. Airload (Mms)
        505 g
        Mechanical Compliance of Suspension (Cms)
        0.48 mm/N
        Surface Area of Cone (Sd)
        312 cm²
        Compliance Equivalent Volume (Vas)
        66 L
        Maximum Linear Excursion (Xmax)
        17 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Die Cast Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        166.5 mm
        Baffle Cutout Diameter
        145.5 mm
