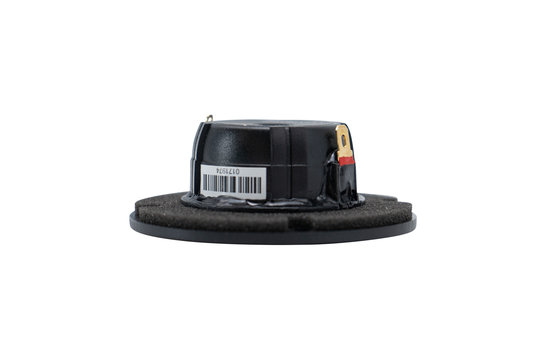

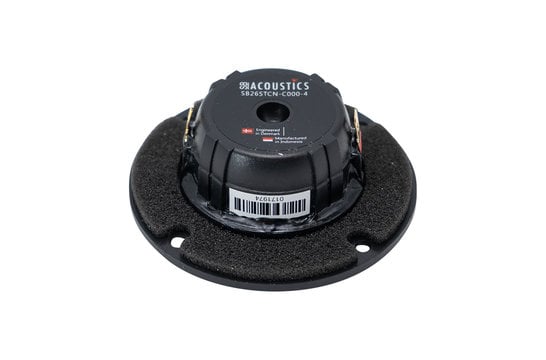

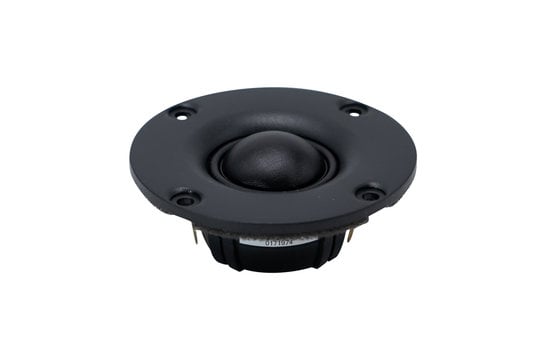

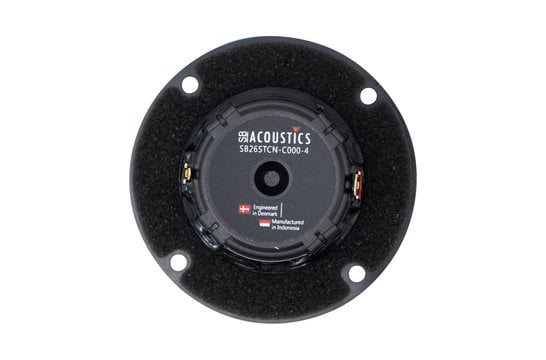

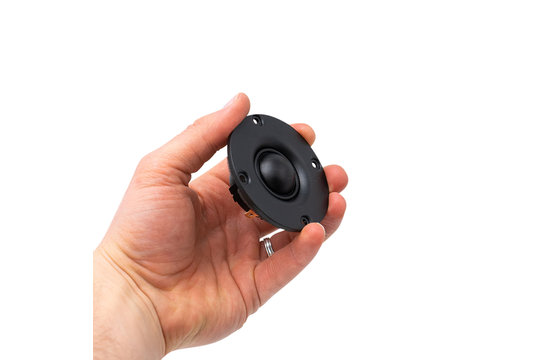

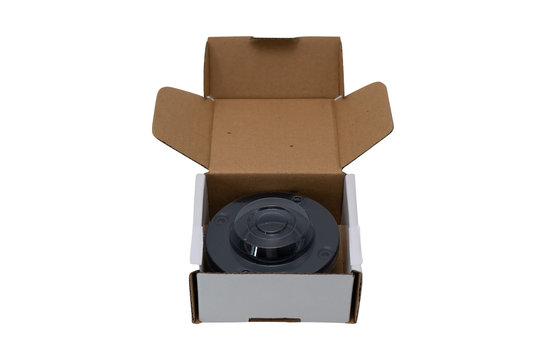

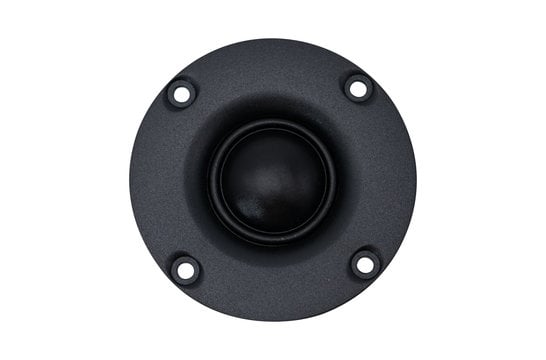

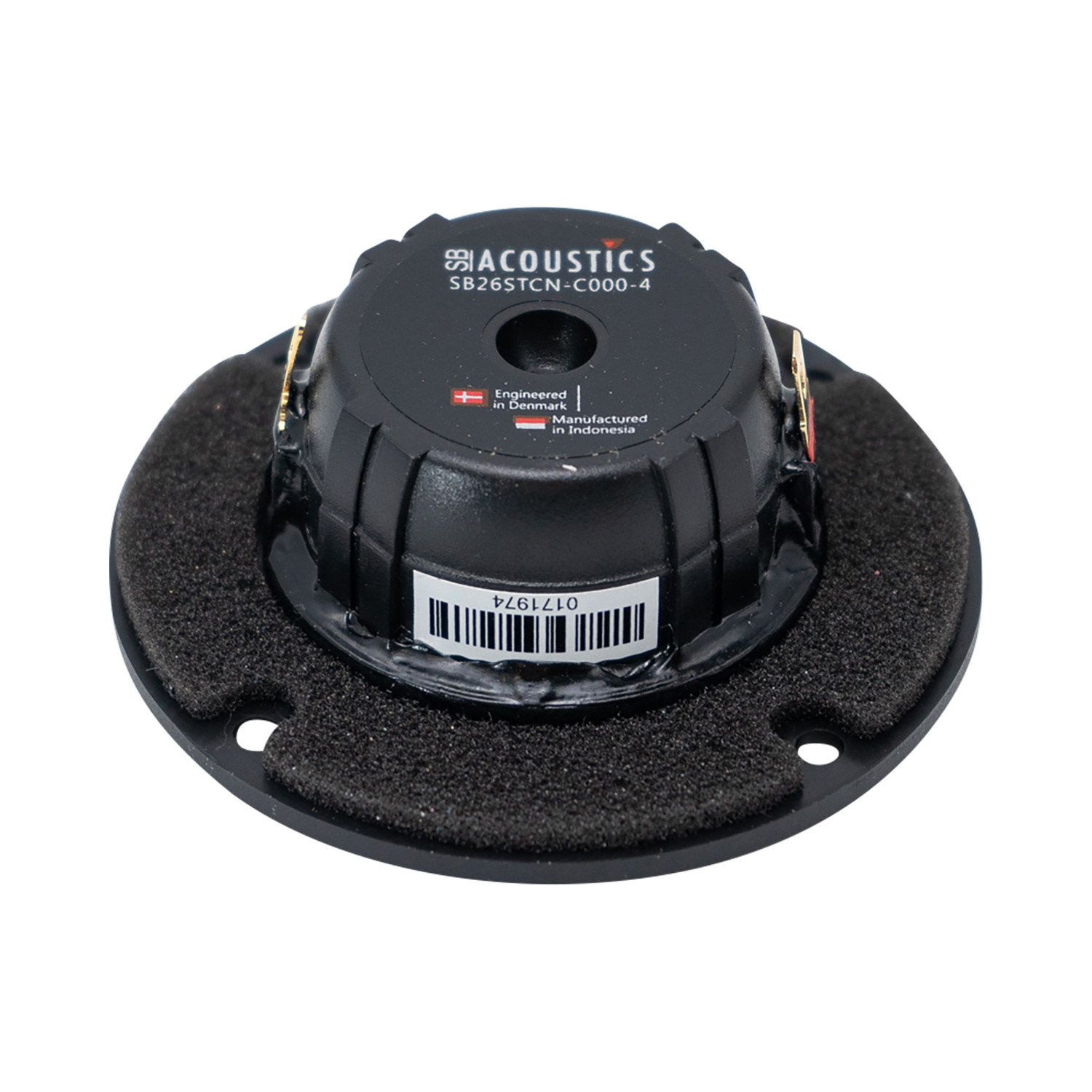

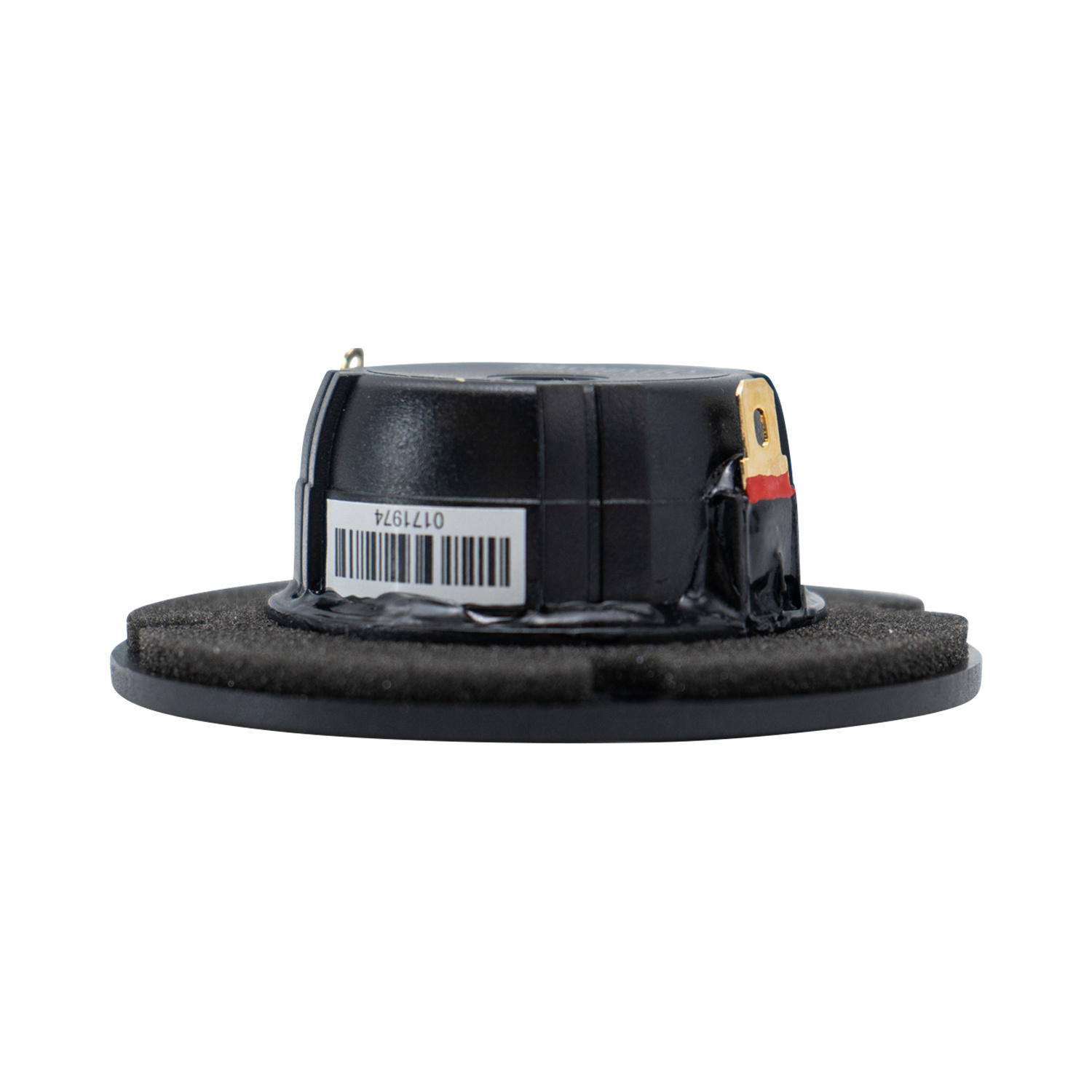

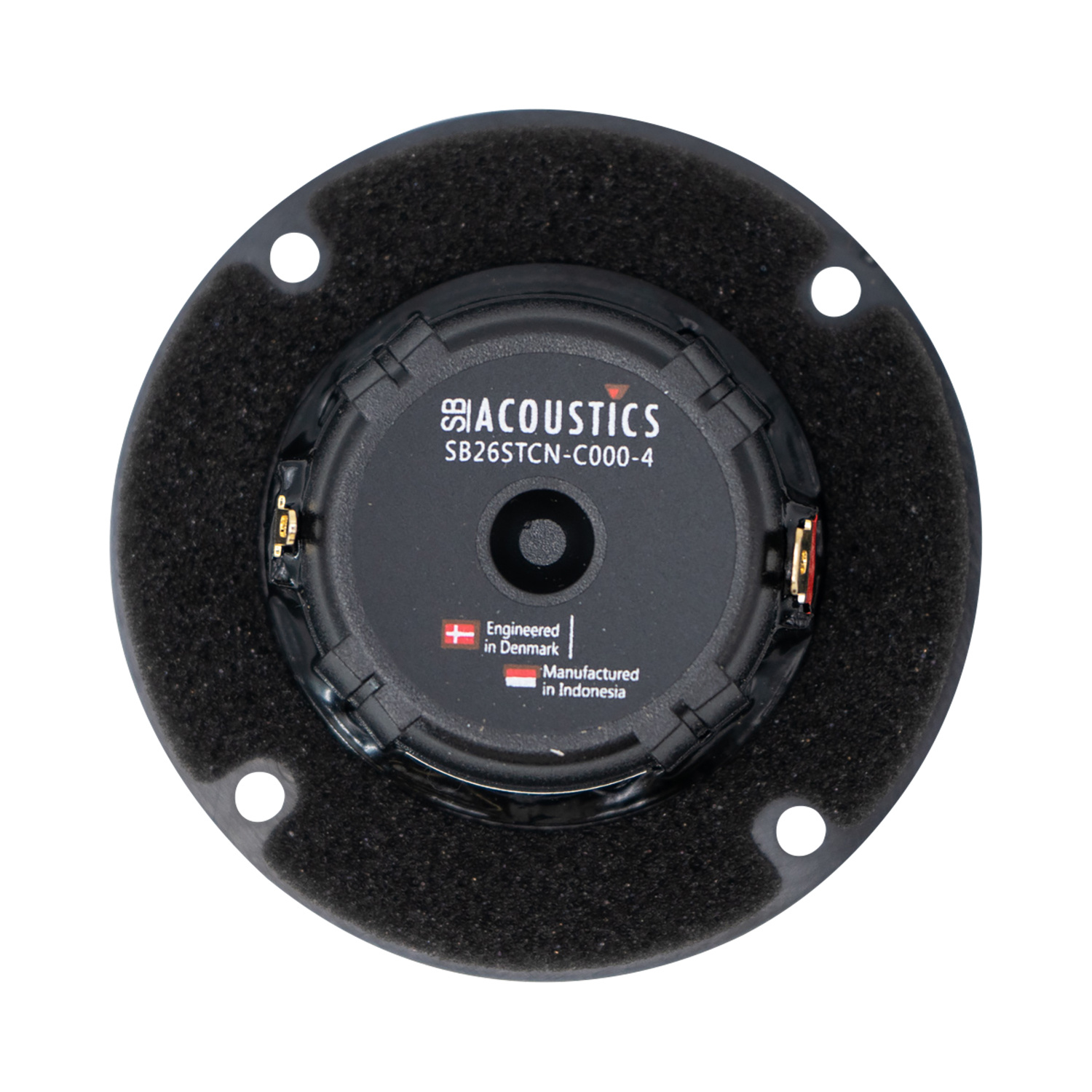

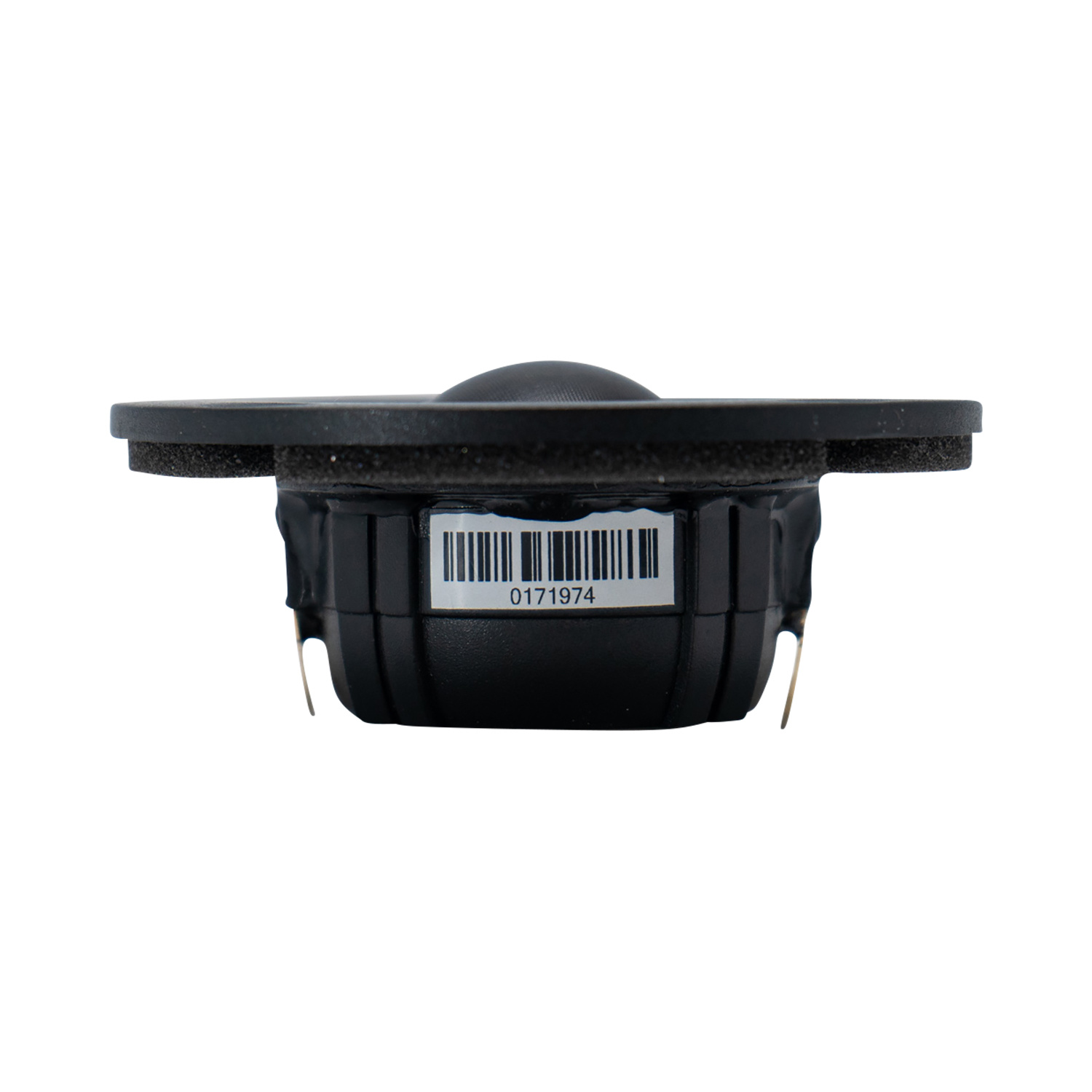

      SB Acoustics SB26STCN-C000-4 1'' Textile Dome Tweeter

      € 26,82€ 32,45 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €30,83 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • CCAW voice coil for low moving mass
      • Long life silver lead wires
      • Low resonance frequency
      • Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
      • Fine weave soft fabric dome for smooth frequency response
      • Inherently shielded neodymium motor system
      • Internal pressure equalization and flow resistor for non-resonant coupling of cavities
      • Compact design



      Product details

      SB Acoustics SB26STCN-C000-4 1'' Tweeter



      SB Acoustics SB26STCN-C000-4 Tweeter has a Neodymium magnet (unusual in this price range). Its copper cap pole piece, coated textile dome, 1” voice coil and the small 72mm OD proprietary face plate give it a partially loaded horn profile. Highly linear response. Useful high efficiency output at 92dB sensitivity.

      Complete with a rear chamber reducing both Fs (950Hz) and back wave reflections from the dome.



      Specifications: BL Product (BL): 1.7 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

      Specifications

      Article number
      SB26STCN-C000-4
      Tweeter Type
      Dome
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      120 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      92 dB 2.83V/1m
      Resonant Frequency (Fs)
      950 Hz
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.04 mH
      Mechanical Q (Qms)
      1.8
      Electromagnetic Q (Qes)
      2
      Total Q (Qts)
      0.9
