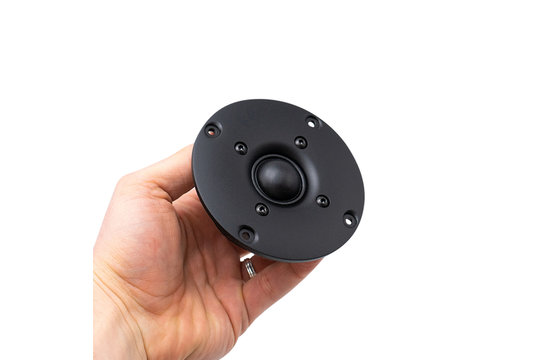

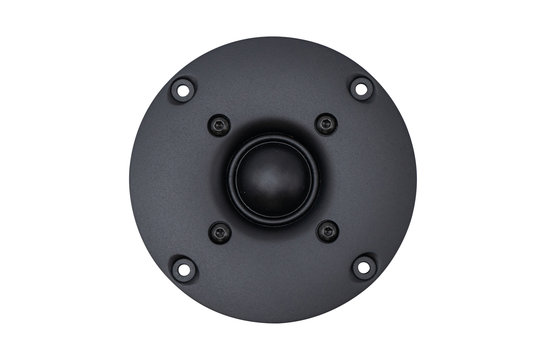

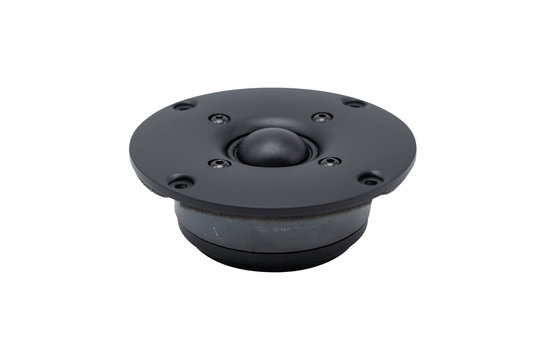

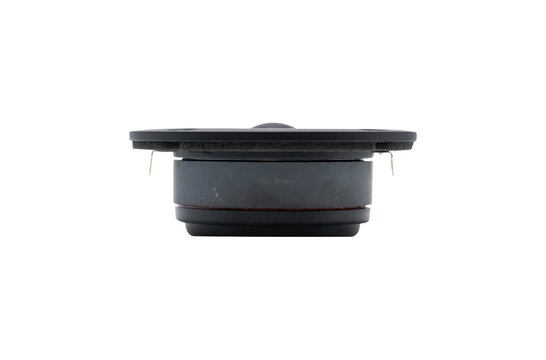

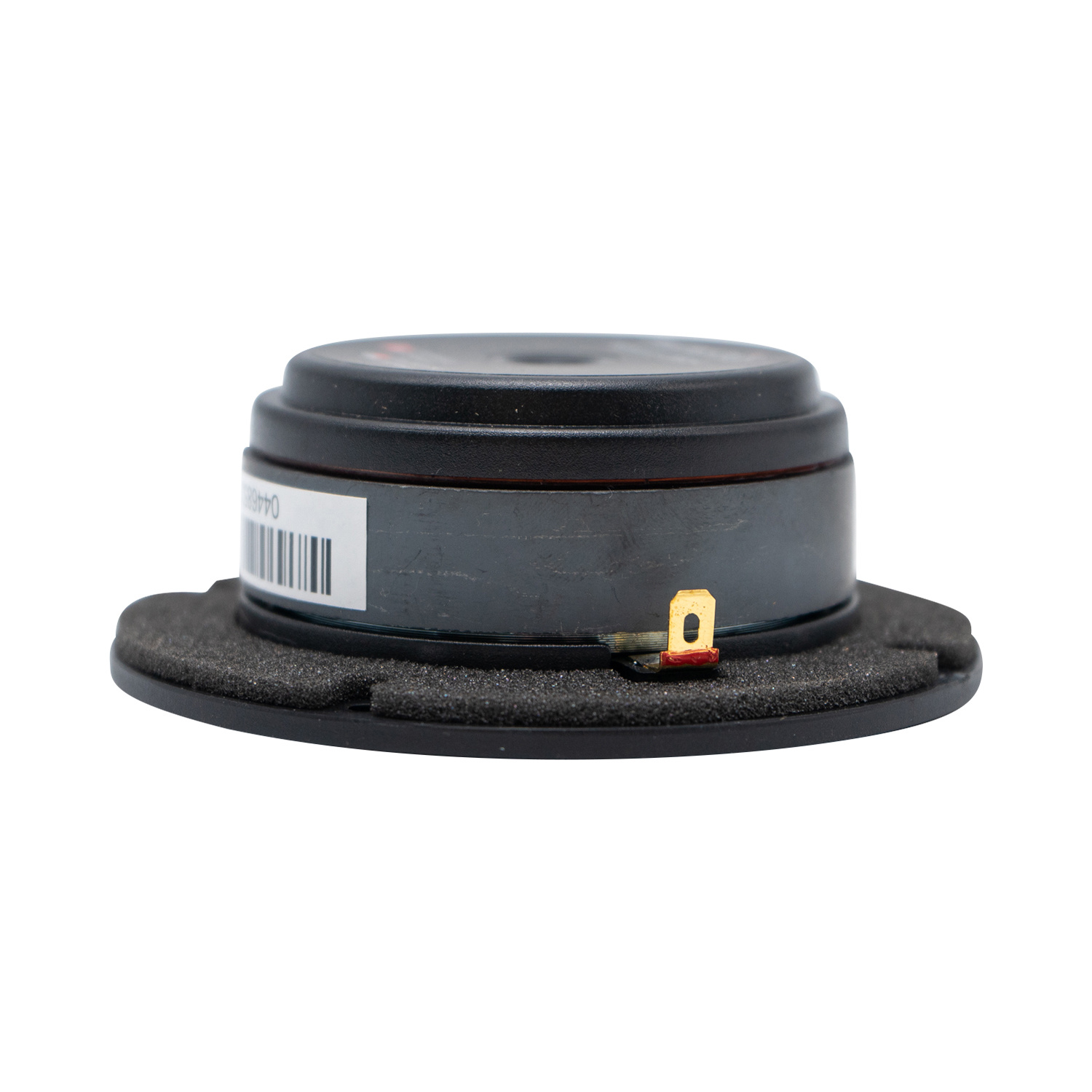

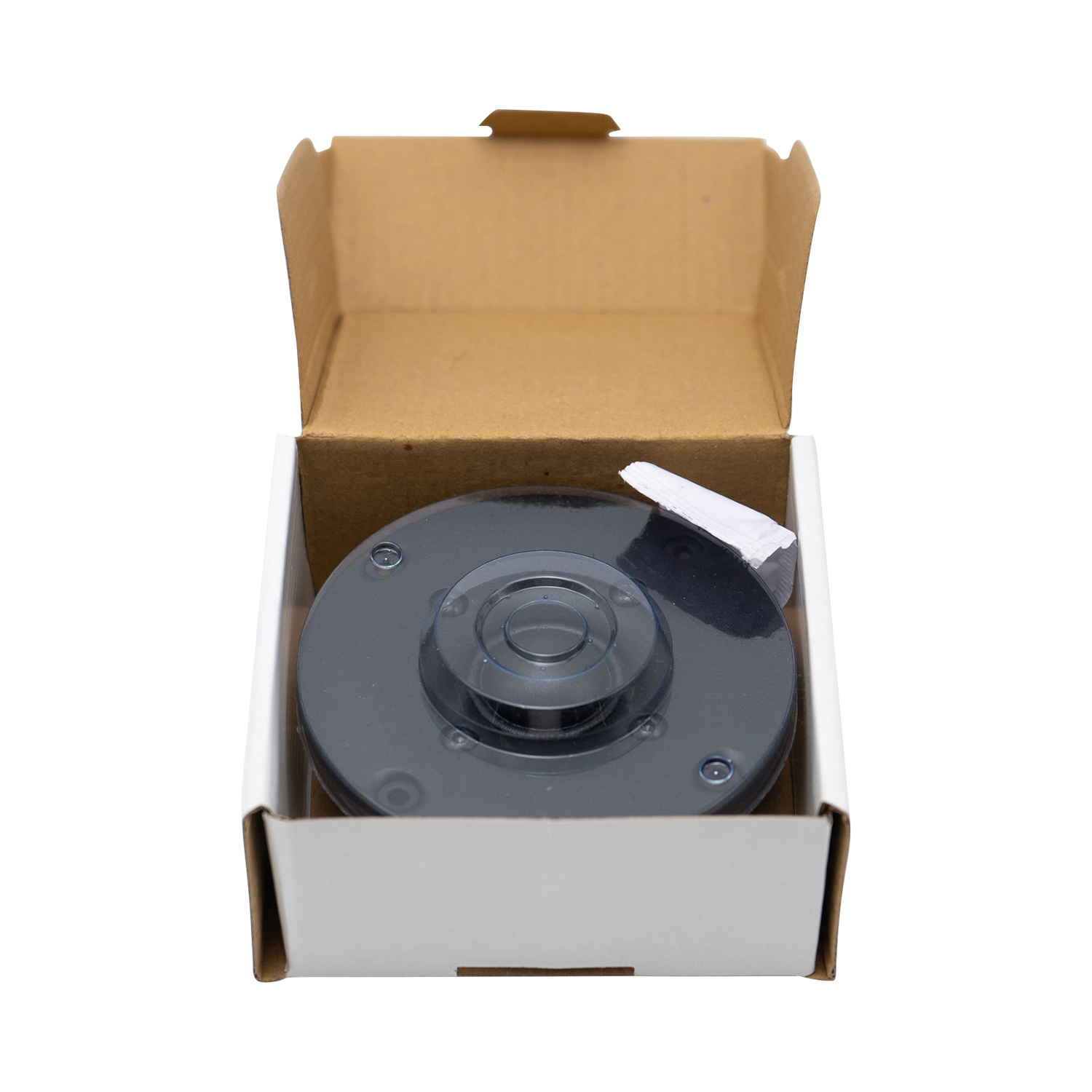

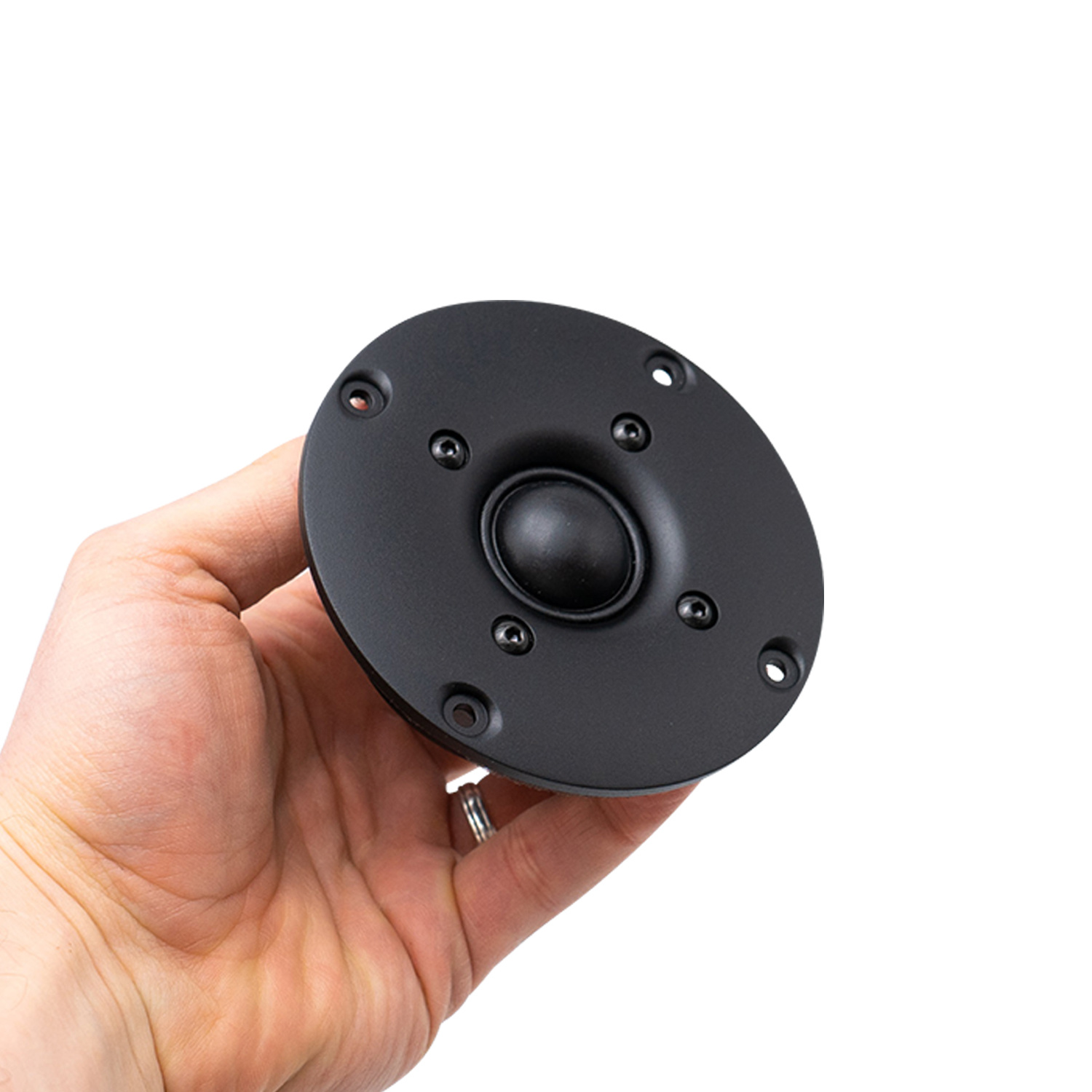

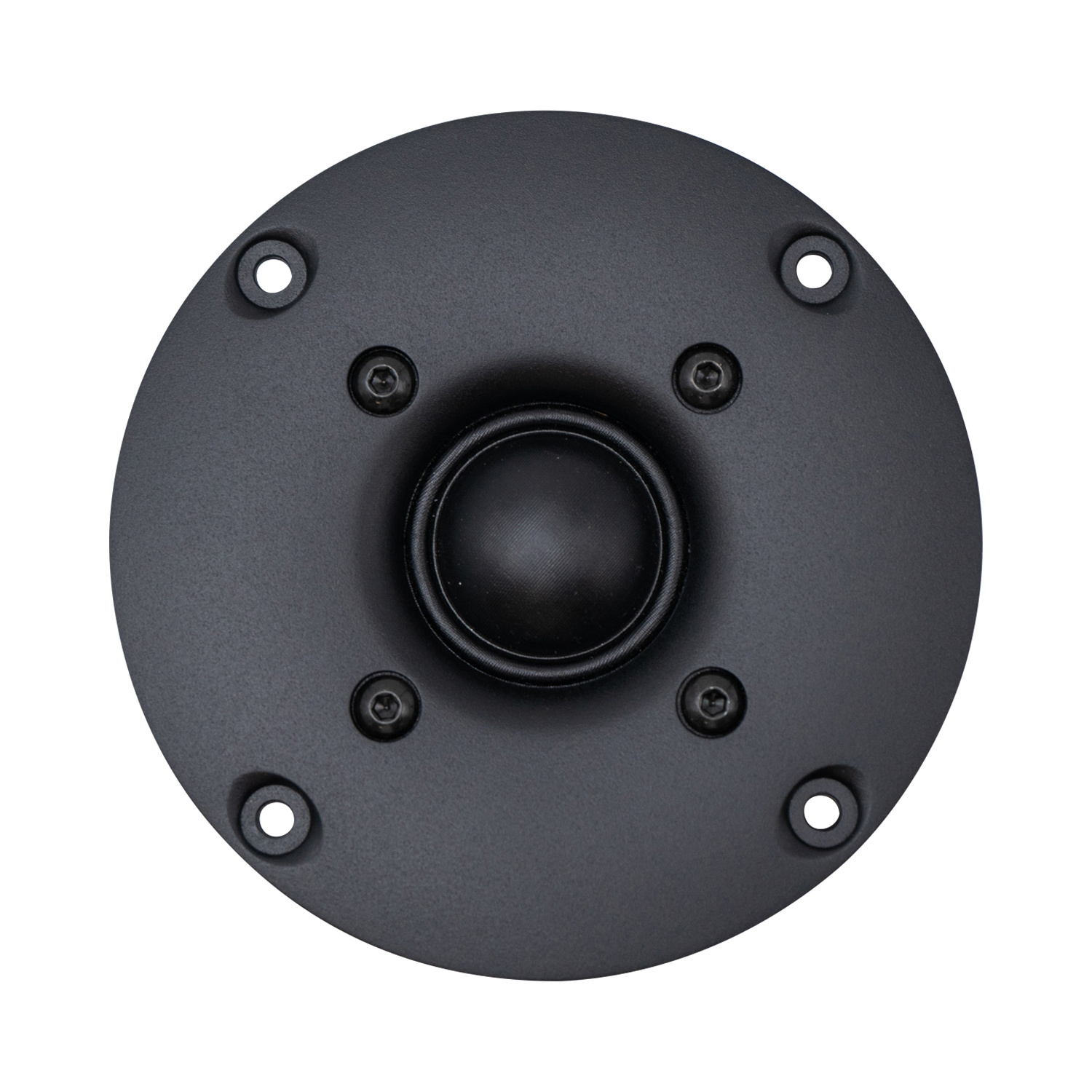

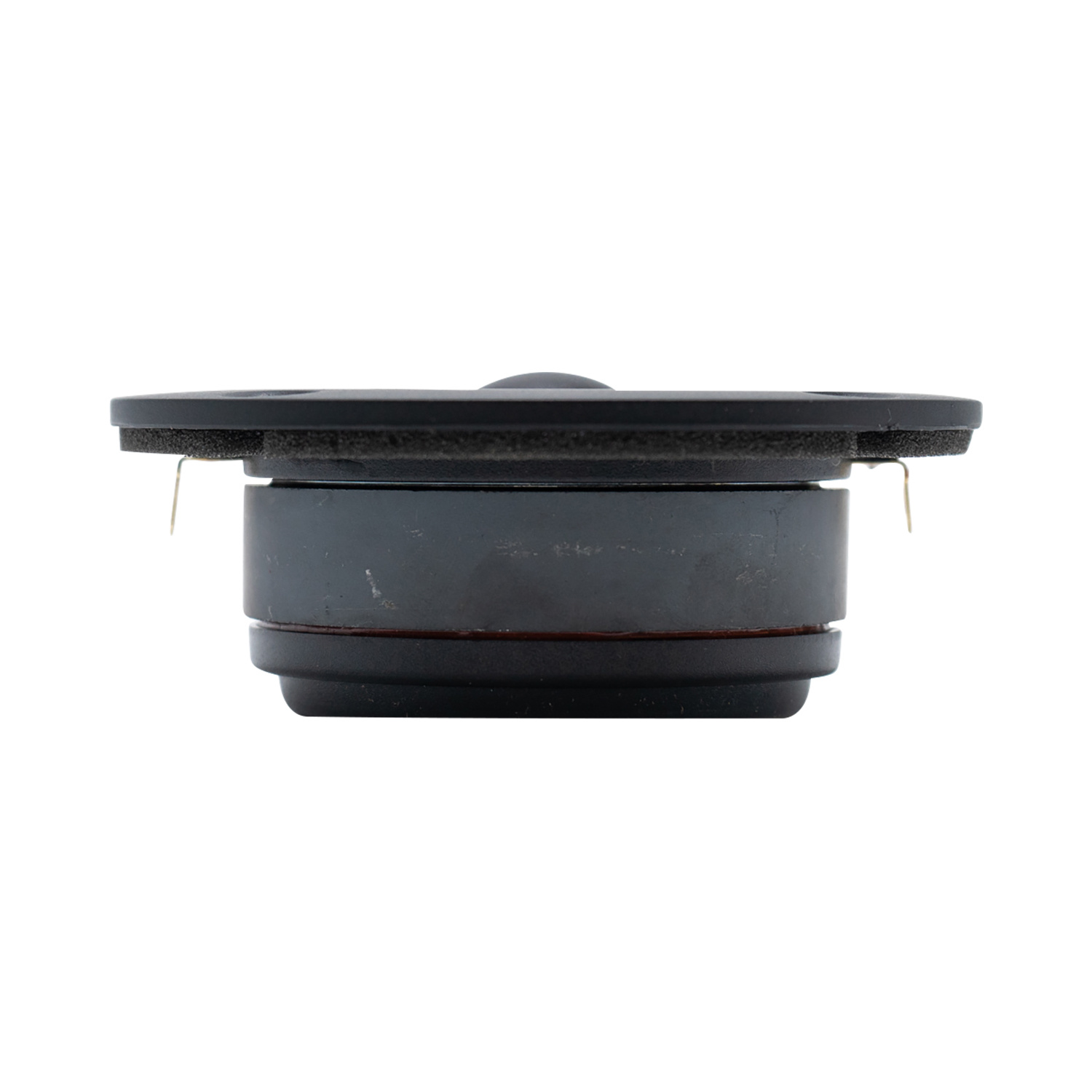

      SB Acoustics SB26STC-C000-4 Textile Dome Tweeter

      € 26,82€ 32,45 4 In stock
      • -5% Order 4 for only € 30,83 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The SB Acoustics SB26STC-C000-4 Textile Dome Tweeter is a surprisingly well designed tweeter for its price. The 1’’ tweeter has a low resonance frequency allowing for a lower crossover point and better integration.



      Highlights

      • Copper cap for reduced voice coil inductance and minimum phase shift
      • Non-reflective rear chamber with optimized damping for improved dynamics
      • Flow optimized vented pole piece for optimum coupling to rear chamber
      • Fine weave soft fabric dome for smooth frequency response
      • Saturation controlled motor system for low distortion
      • CCAW voice coil for low moving mass
      • Long life silver lead wires
      • Low resonance frequency



      Product details

      SB Acoustics SB26STC-C000-4 1'' Tweeter

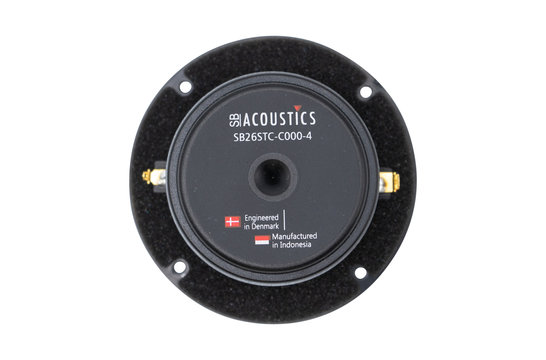

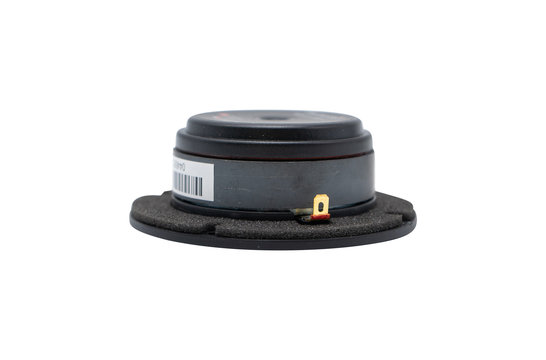

      The SB Acoustics SB26STC-C000-4 tweeter has a large rear chamber lowering the fs to 750Hz and reducing back wave reflections from the dome. Its copper cap pole piece, coated textile dome, 1” voice coil and the recessed faceplate give it a partially horn loaded profile. A very linear response, high efficiency output at 91.5dB sensitivity and extension past 35,000Hz make it an excellent tweeter for larger two-way speakers.



      Specifications: BL Product (BL): 1.6 Tm • Diaphragm Mass Inc. Airload (Mms): 0. 3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

      Show more

      Specifications

      Article number
      SB26STC-C000-04
      Tweeter Type
      Dome
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      120 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      91.5 dB 2.83V/1m
      Frequency Response
      1400 to 35,000 Hz
      Resonant Frequency (Fs)
      750 Hz
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.04 mH
      Mechanical Q (Qms)
      3
      Electromagnetic Q (Qes)
      1.78
      Total Q (Qts)
      1.12

      Show more
