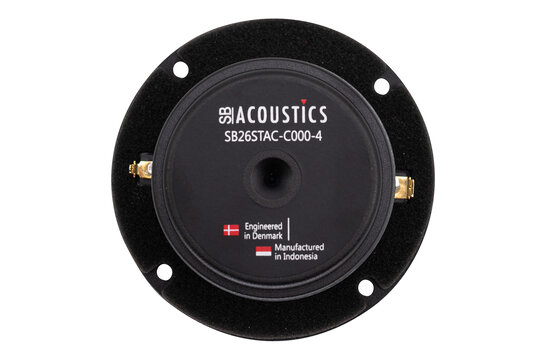

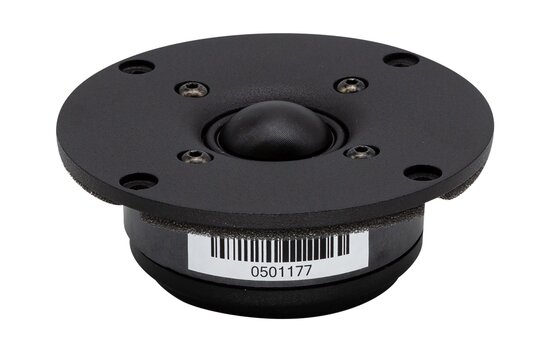

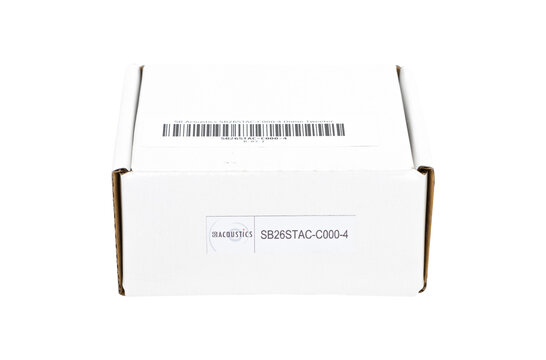

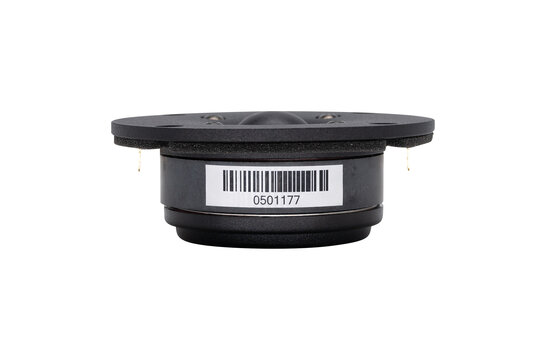

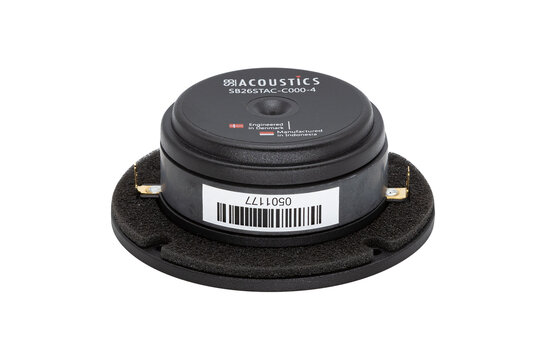

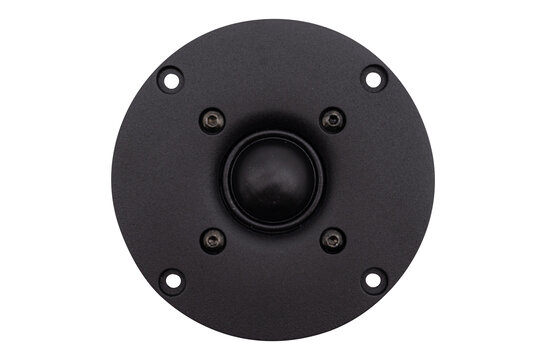

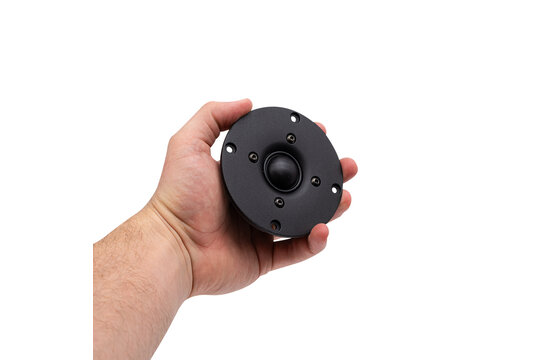

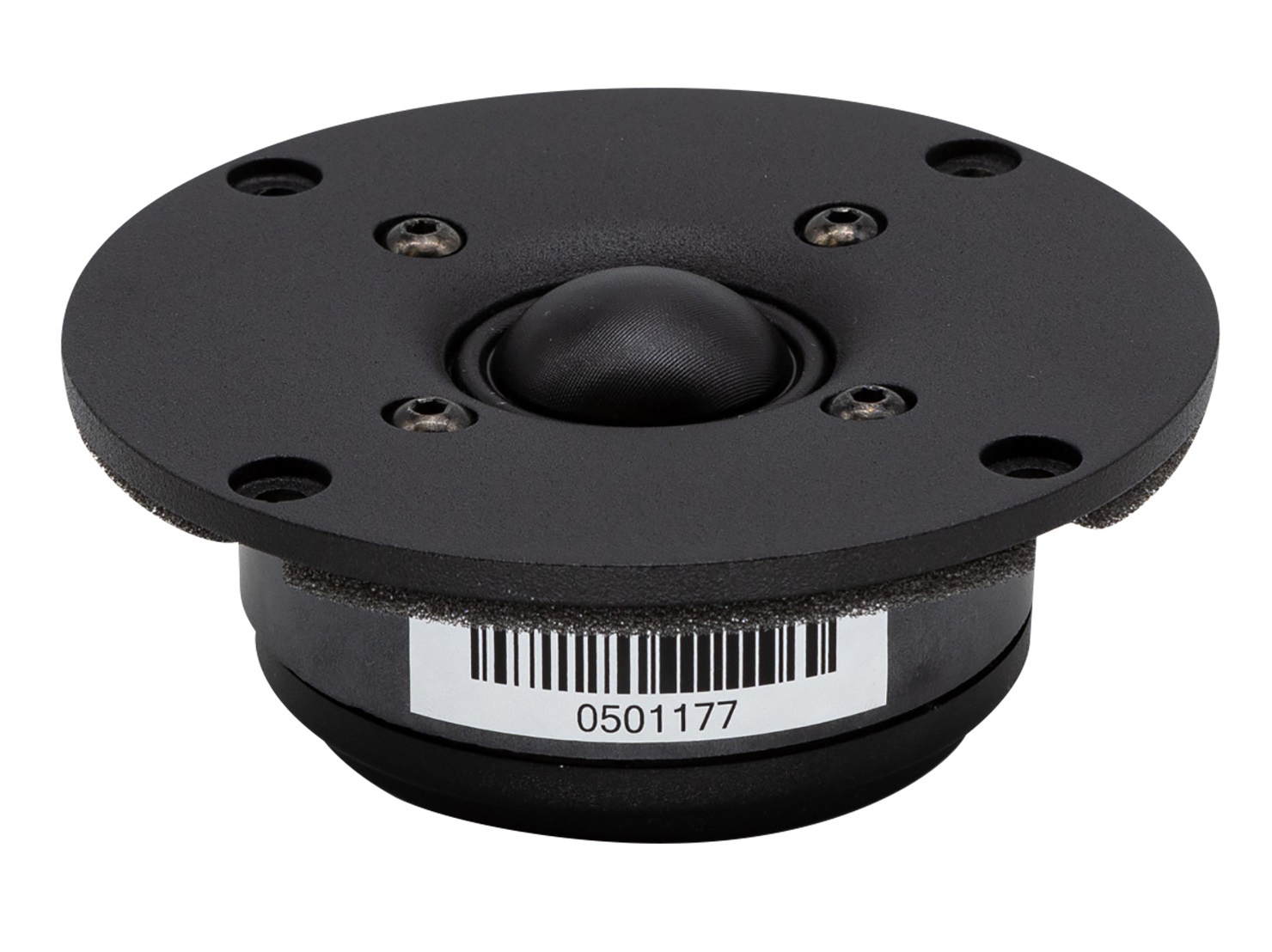

      SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter

      € 37,98€ 45,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 43,65 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Cast aluminum faceplate
      • Copper cap for reduced voice coil inductance and minimum phase shift
      • Non-reflective rear chamber with optimized damping for improved dynamics
      • Flow optimized vented pole piece for optimum coupling to rear chamber
      • Fine weave soft fabric dome for smooth frequency response
      • Saturation controlled motor system for low distortion
      • CCAW voice coil for low moving mass
      • Long life silver lead wires
      • Low resonance frequency



      Product details

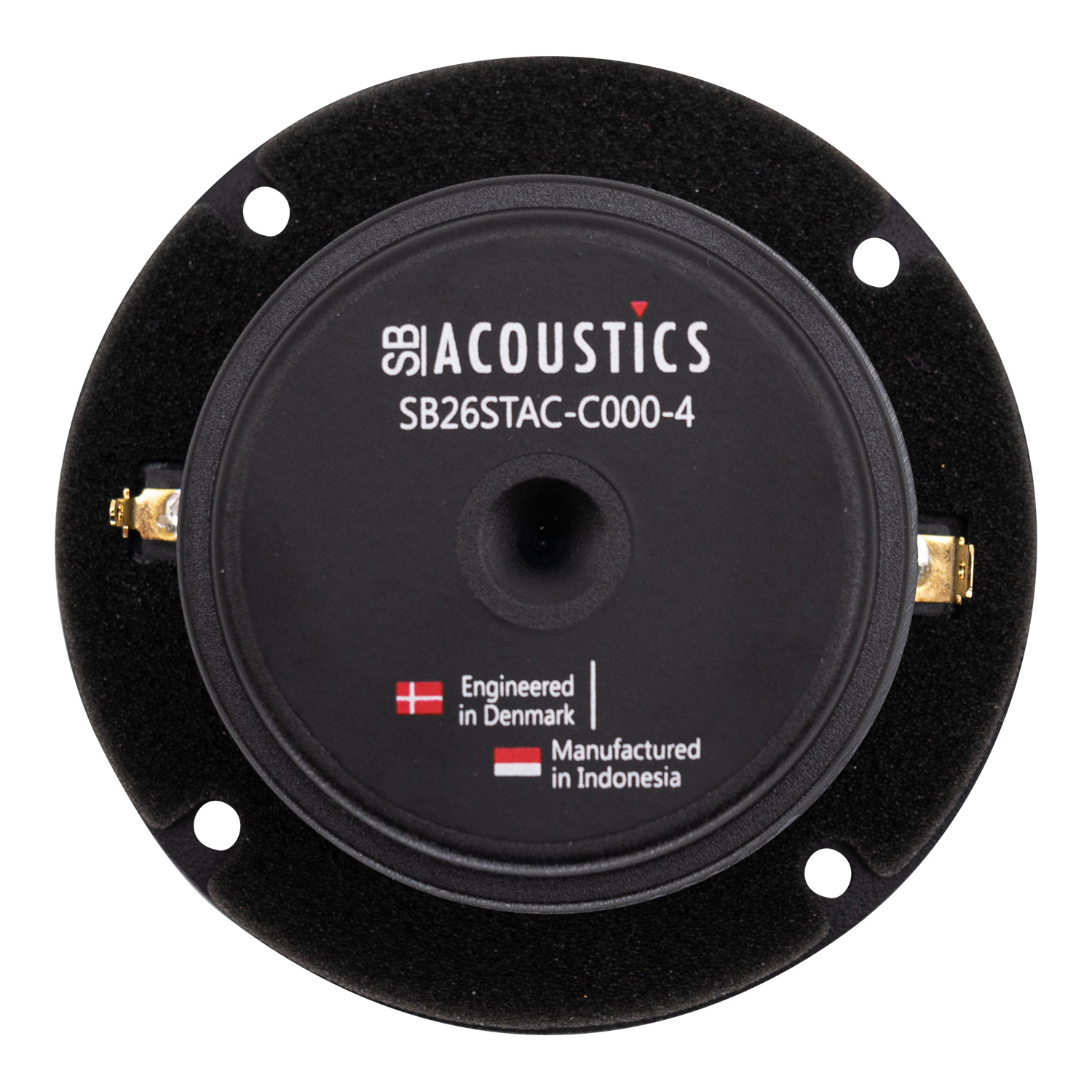

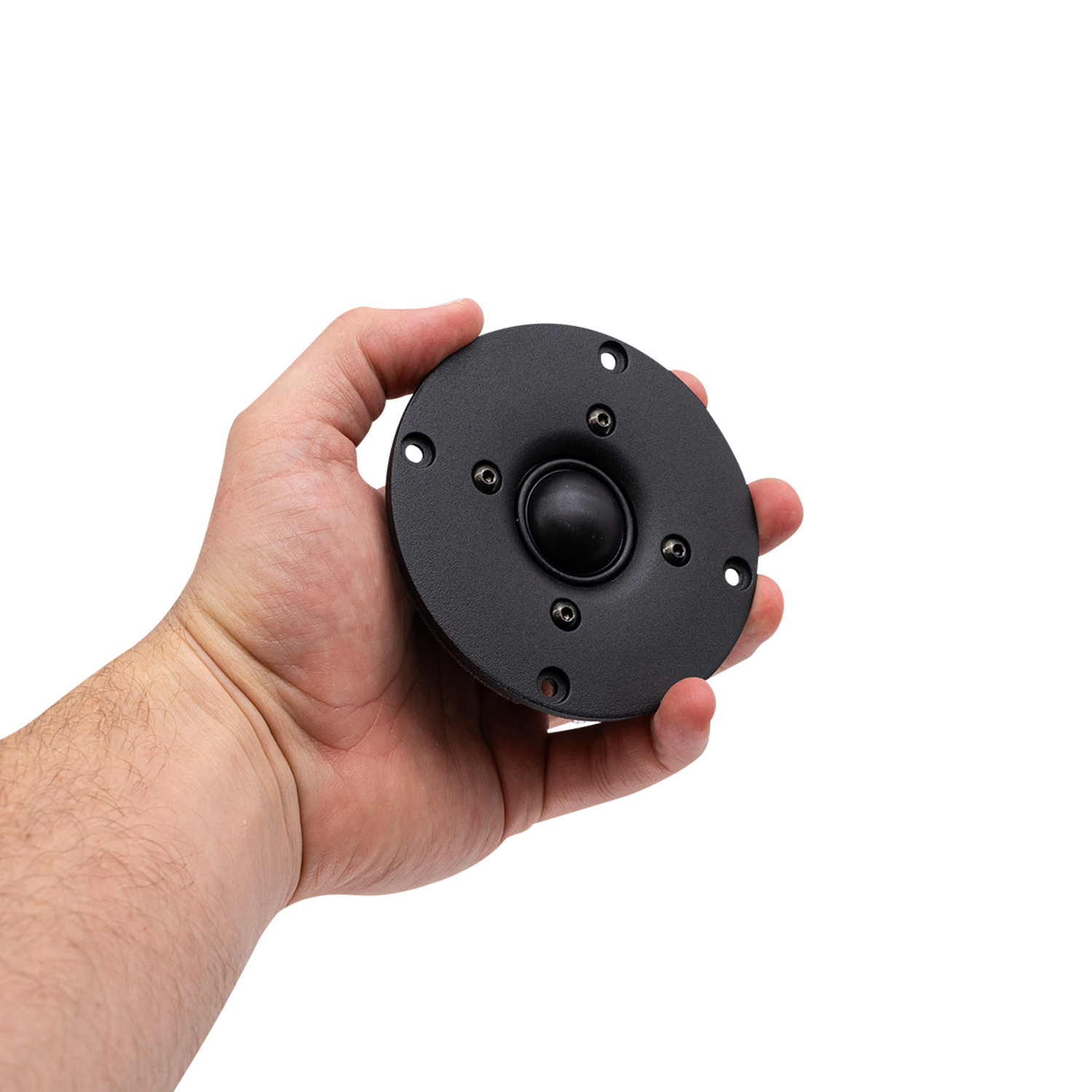

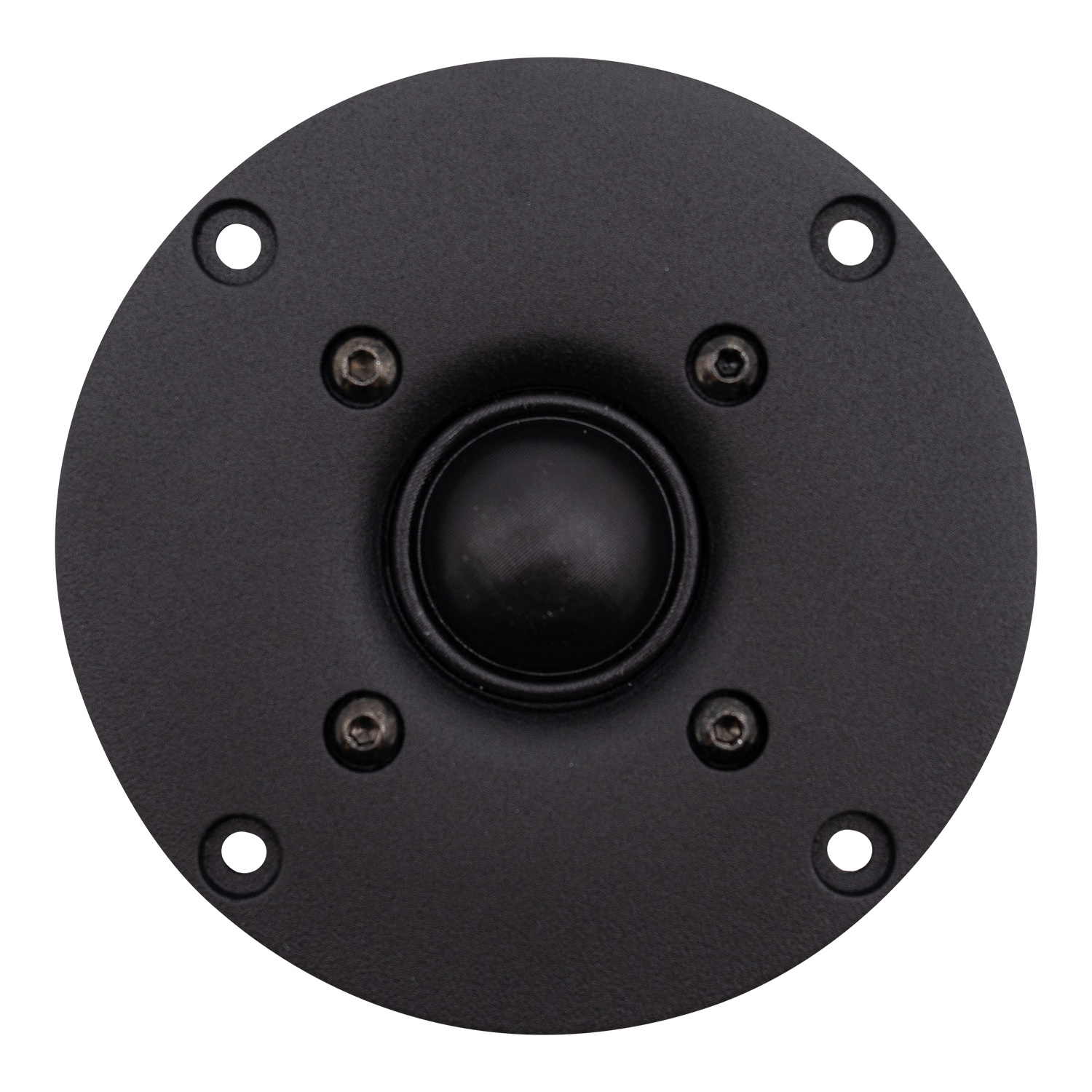

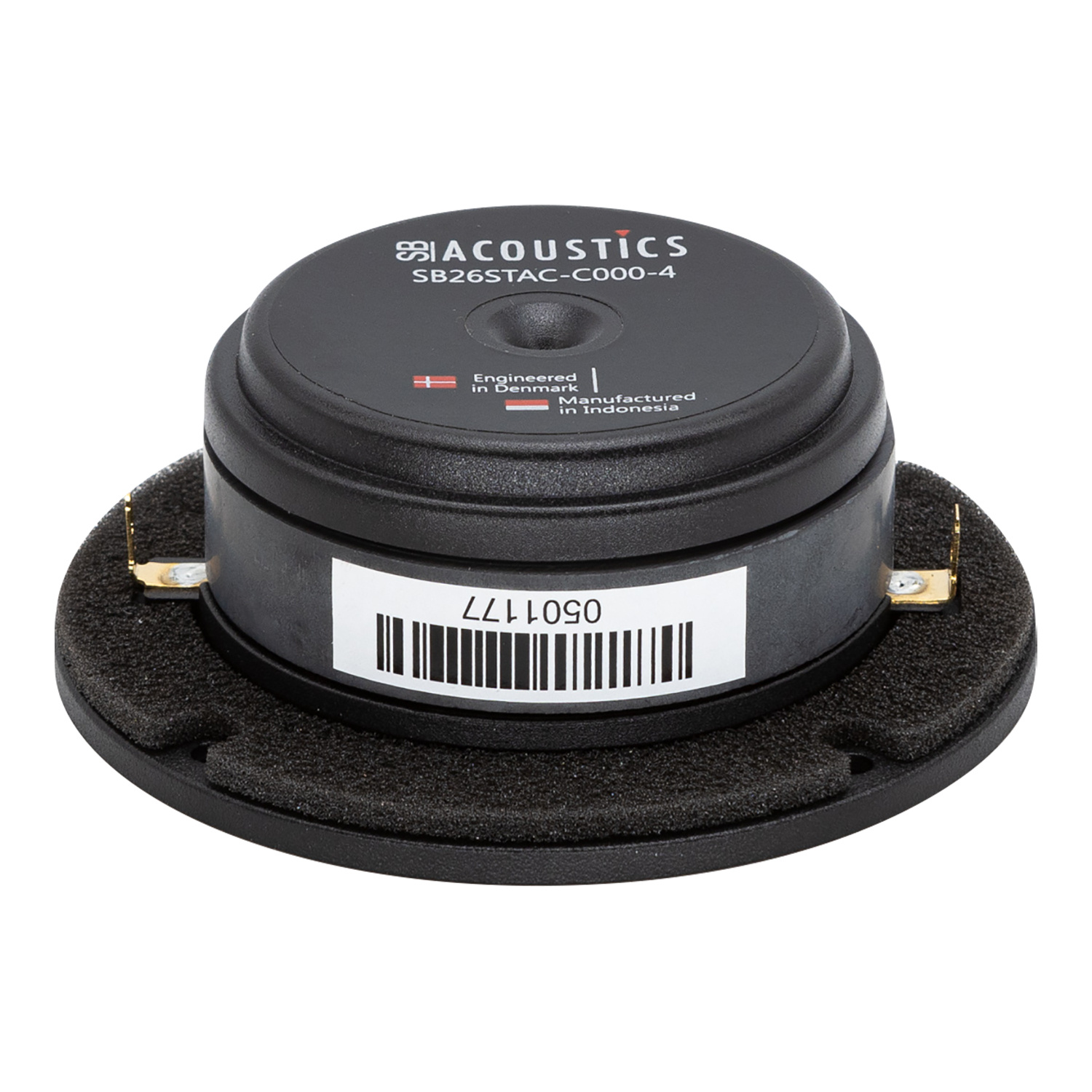

      SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter



      The SB Acoustics SB26STAC-C000-4 is a 4 ohm coated textile dome tweeter using a 1” voice coil together with copper cap pole piece. The 100mm aluminum faceplate enhances the sturdy build quality and looks.



      Specifications: BL Product (BL): 1.6 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

      Specifications

      Article number
      SB26STAC-C000-4
      Tweeter Type
      Dome
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      120 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      91 dB 2.83V/1m
      Resonant Frequency (Fs)
      750 Hz
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.04 mH
      Mechanical Q (Qms)
      2.5
      Electromagnetic Q (Qes)
      1.7
      Total Q (Qts)
      1

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Great build quality, nice detailed sound, lacks a bit of dynamism for electronic music, but great for classical or jazz
      By Emmanuel Labrador on 26 January 2022
      5 of 5
      Haven't used it yet since I wait for a pair of SB17MFC35-4. But the initial measrements seems fine and so does the build quality.
      By Tonny V. on 16 March 2021
