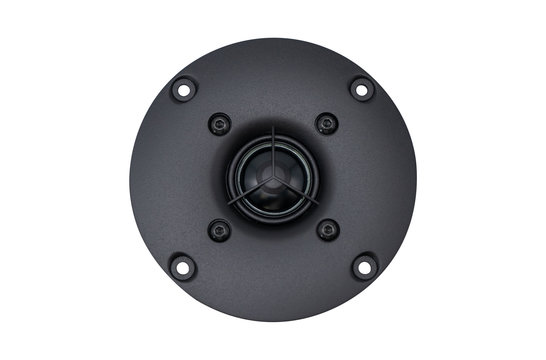

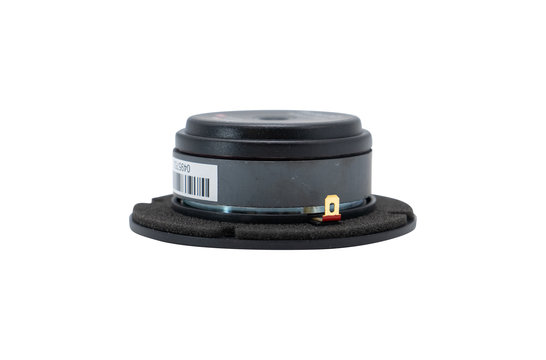

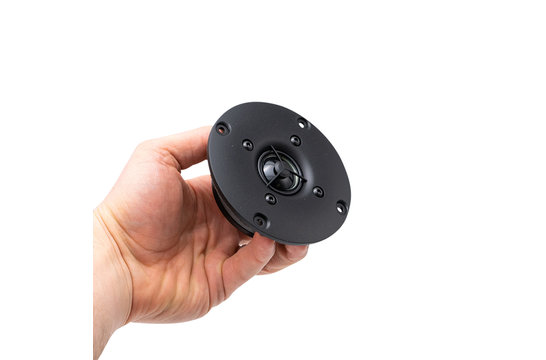

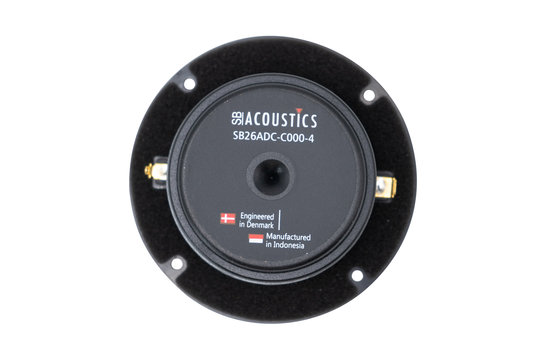

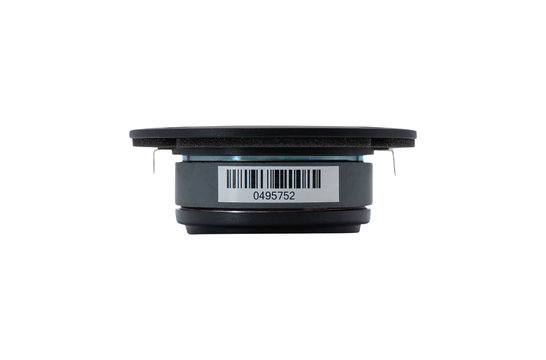

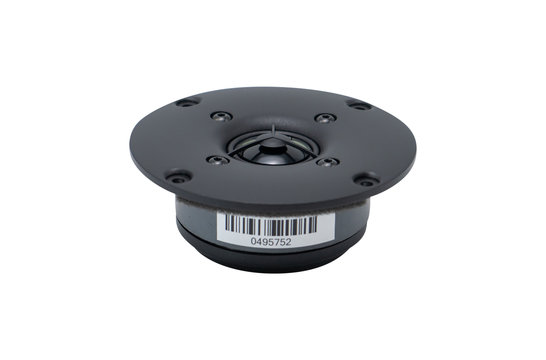

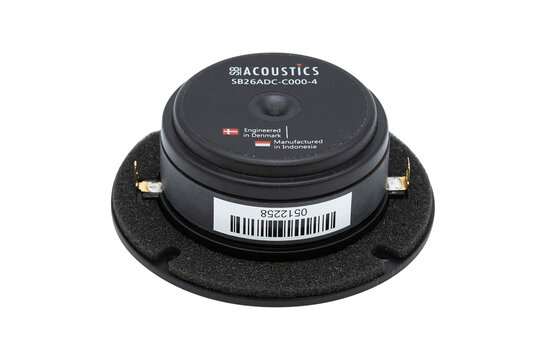

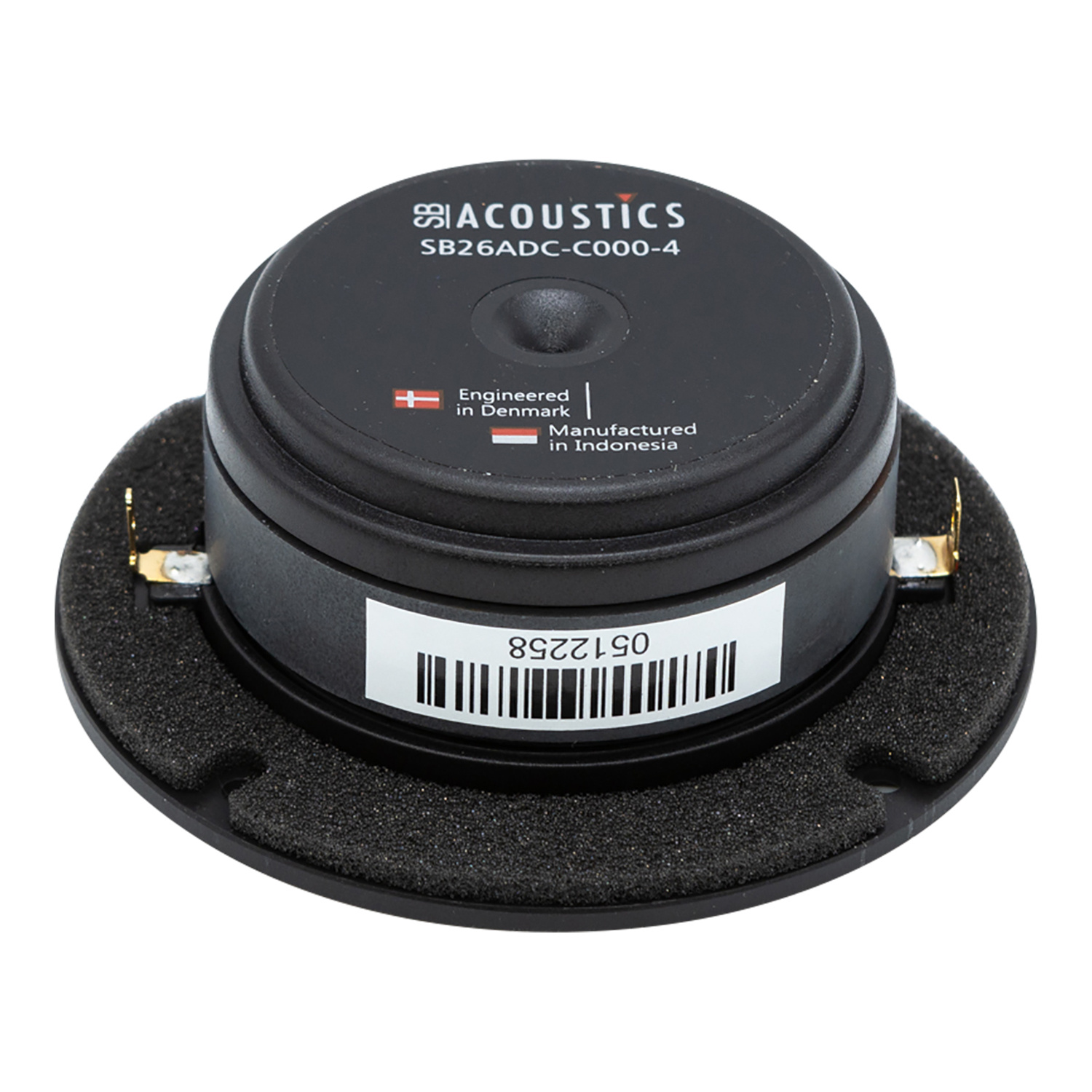

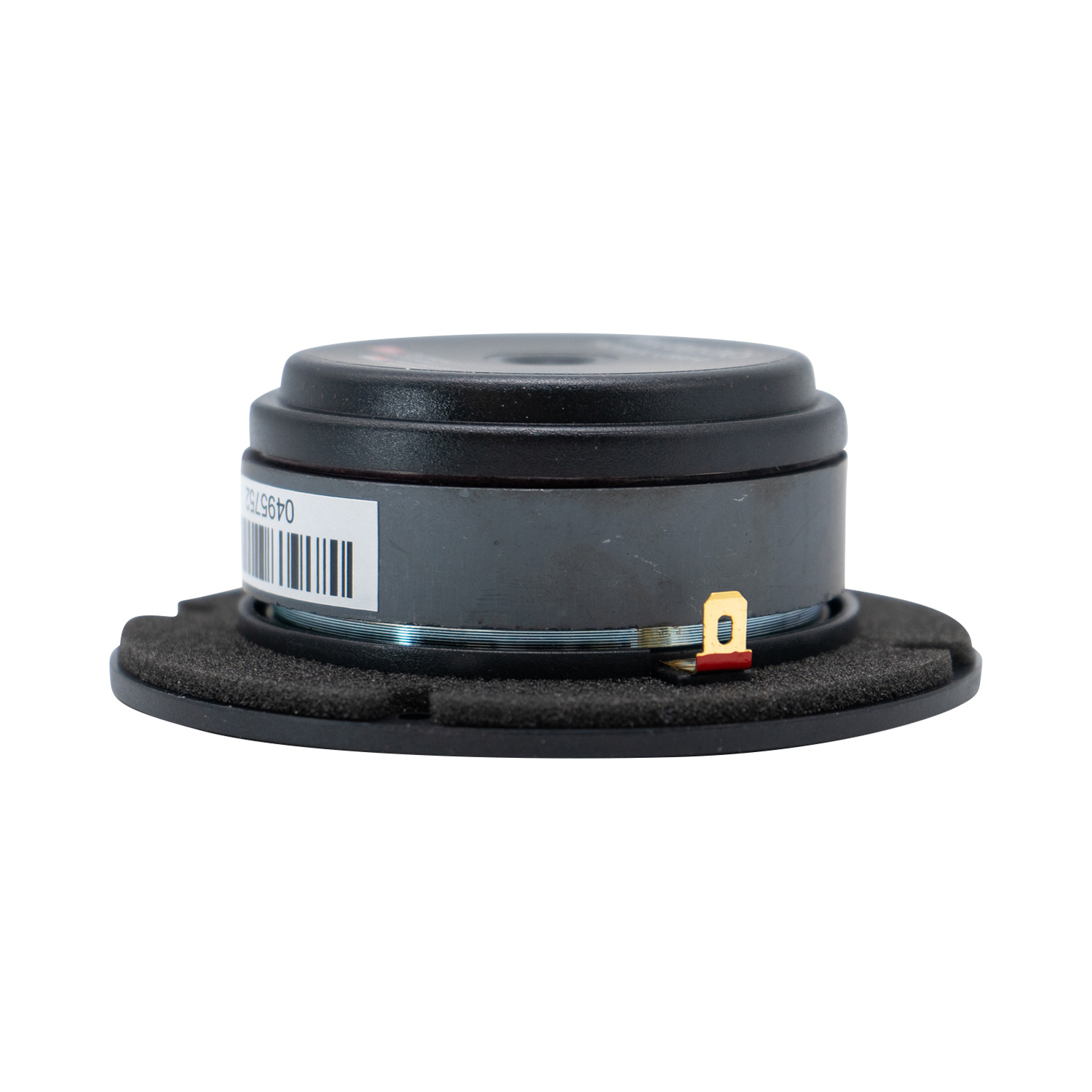

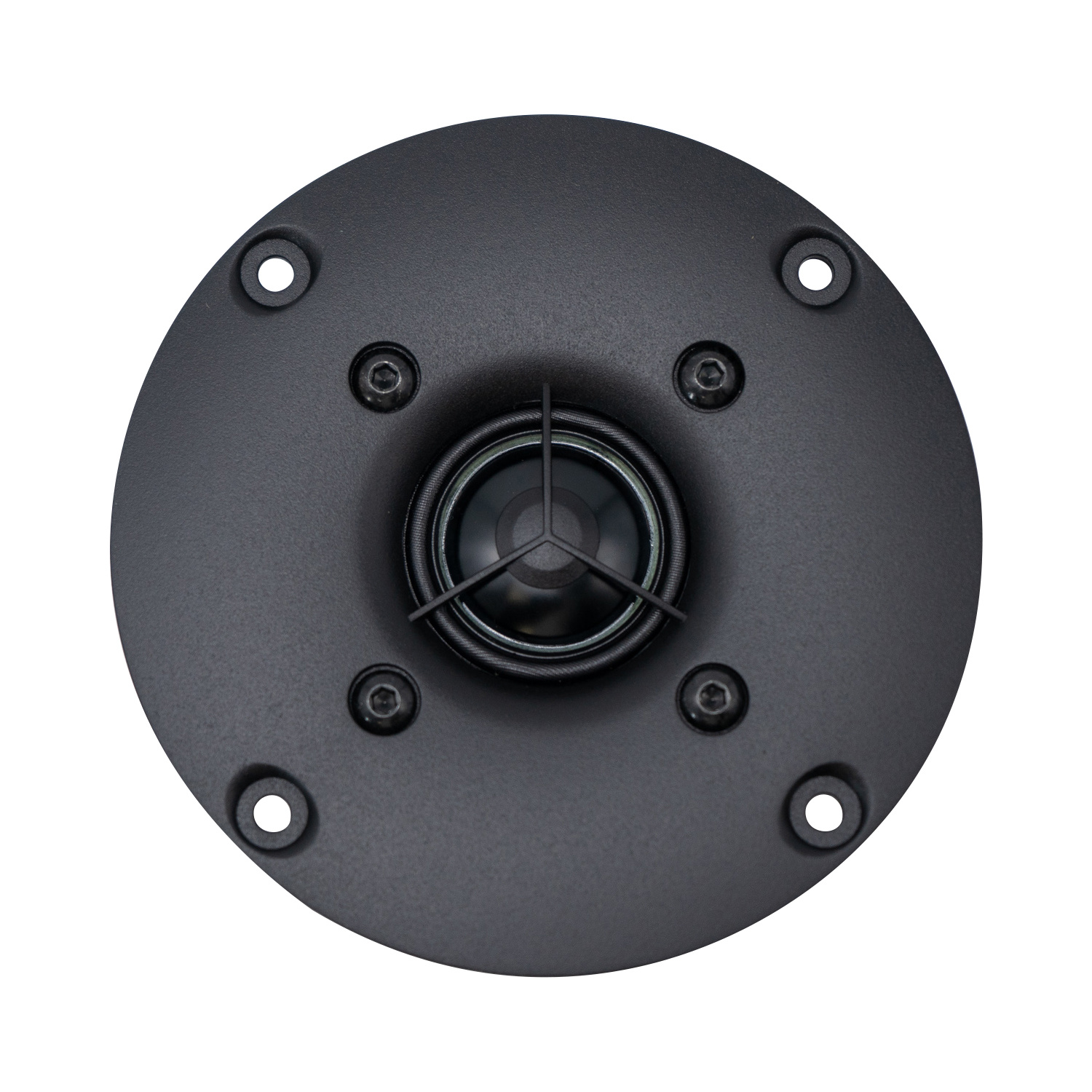

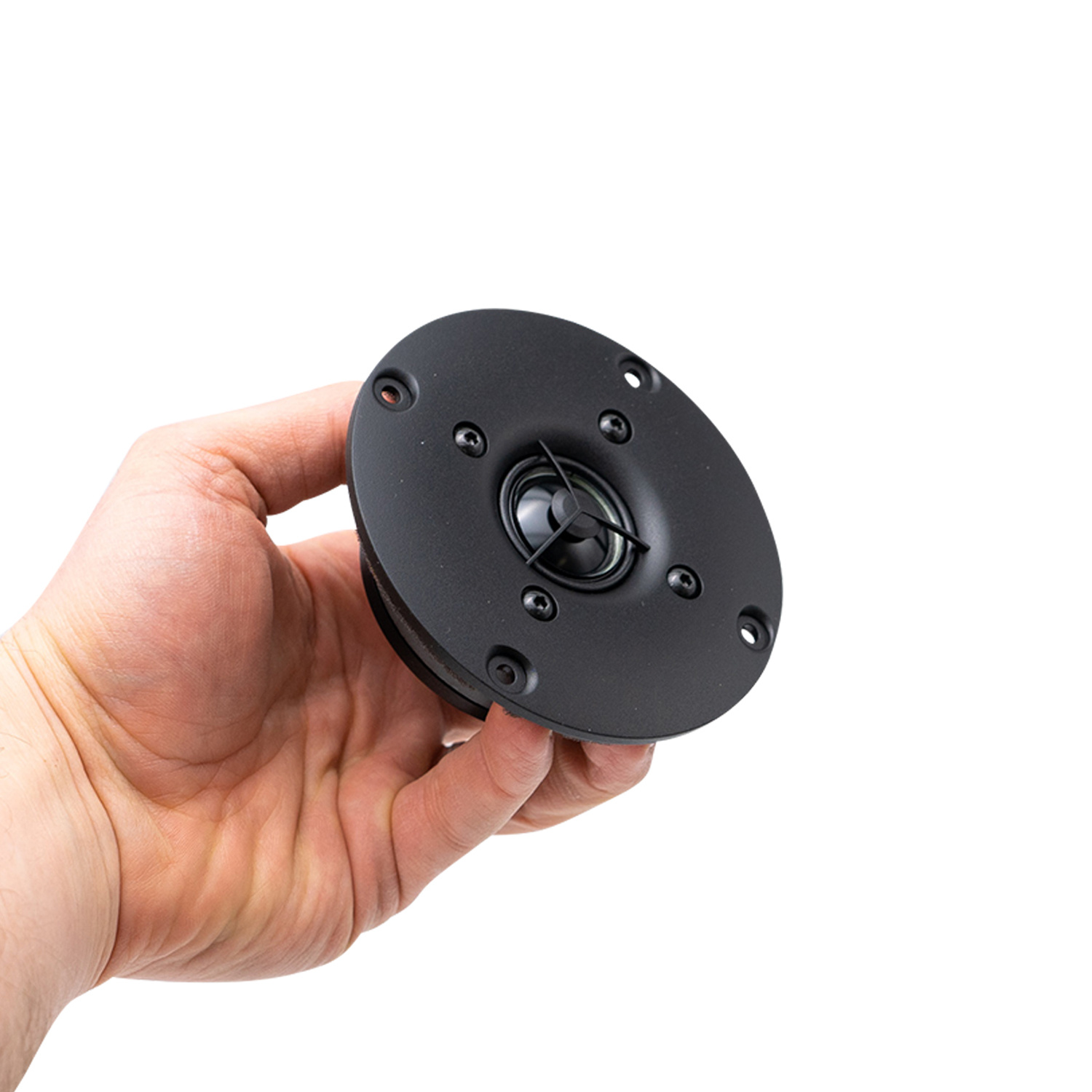

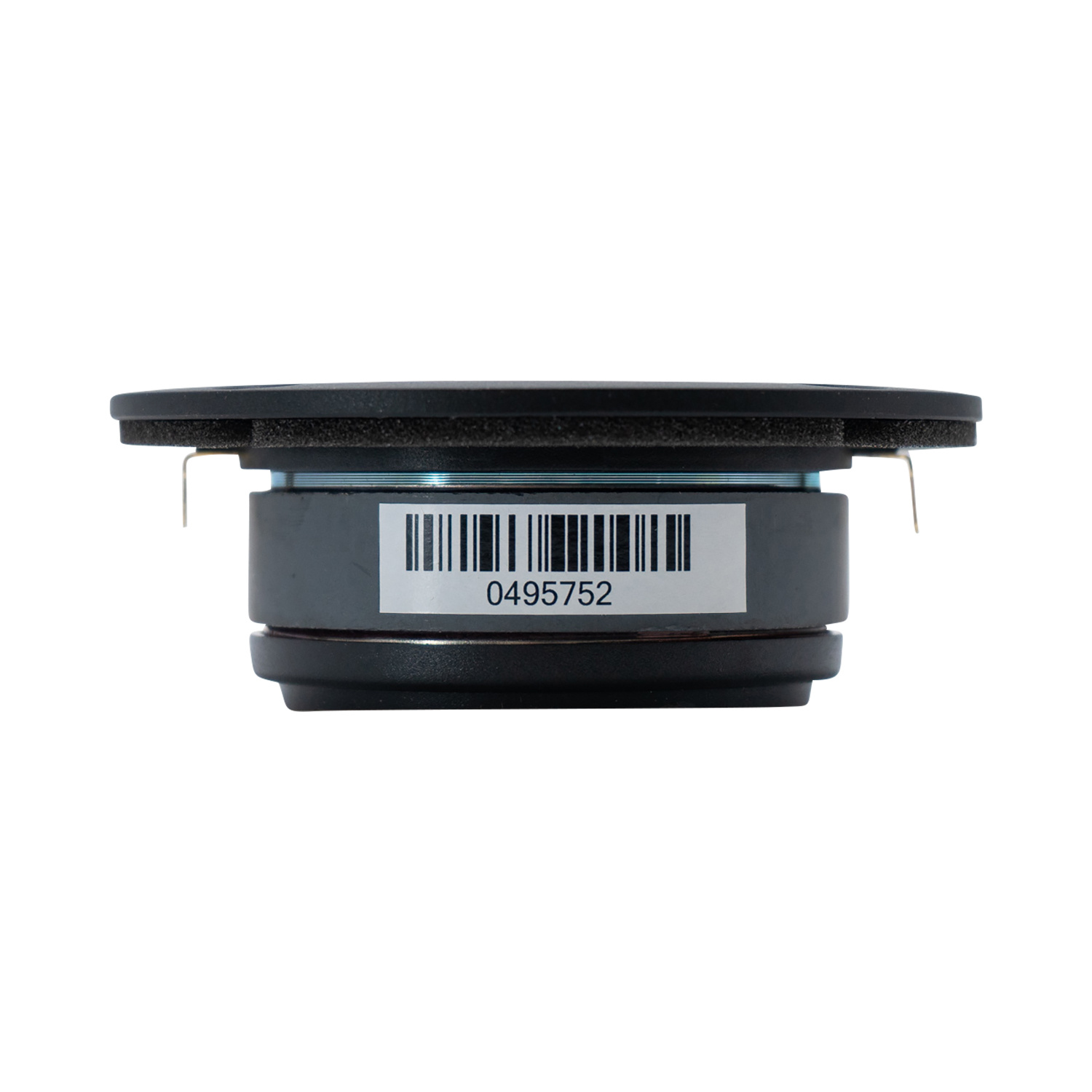

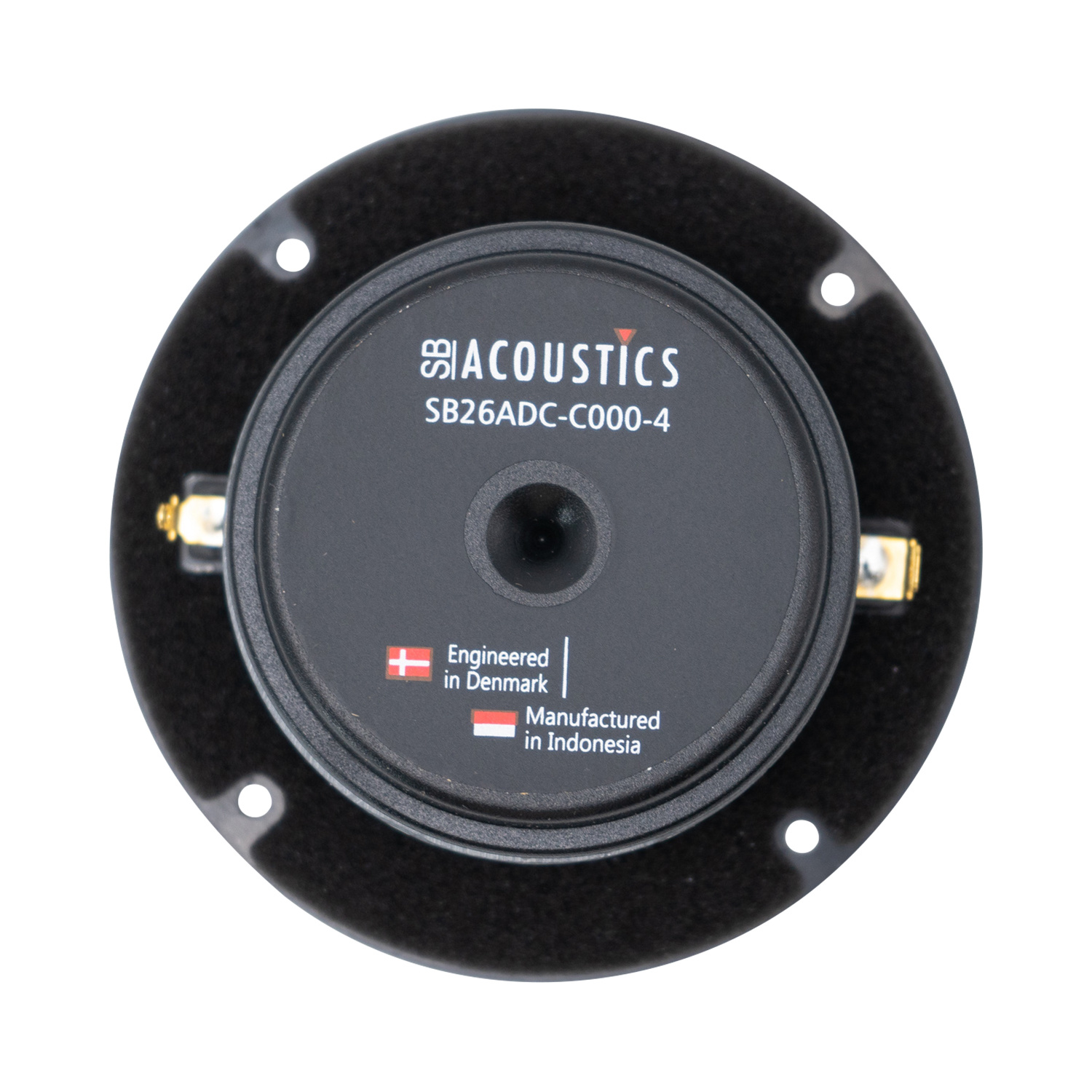

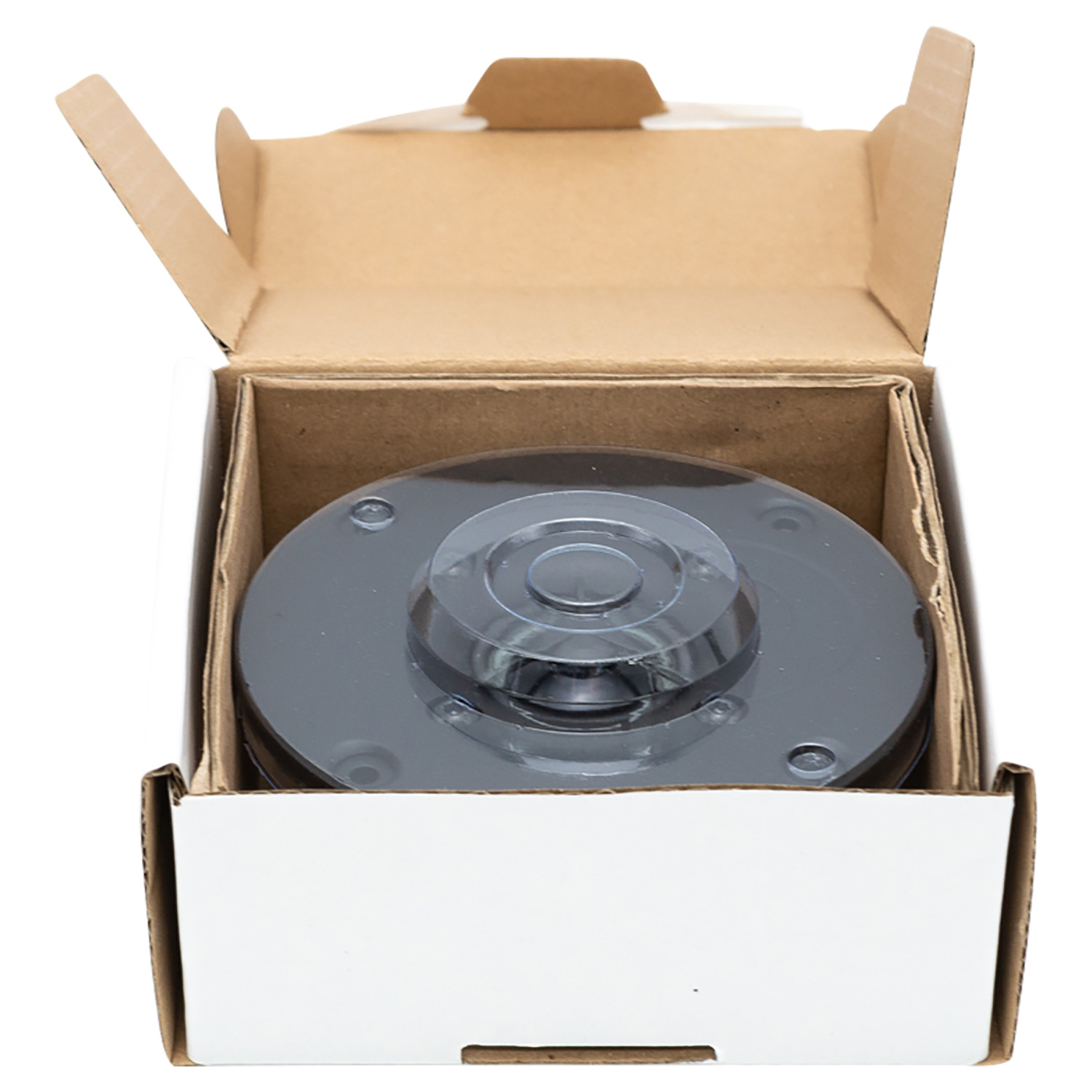

        SB Acoustics SB26ADC-C000-4 Dome Tweeter

        7 reviews
        Brand: SB Acoustics
        Show all Dome tweeter
        1" | 4 Ω
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        € 45,41€ 54,95 8 In stock
        • -5% Order 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped today
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter
        SB26ADC-C000-4 Dome Tweeter

        Product description

        Highlights

        • Phase optimized diaphragm design for coherent high frequency radiation
        • Copper cap for reduced voice coil inductance and minimum phase shift
        • Saturation controlled motor system for low distortion
        • Non-reflective rear chamber with optimized damping for improved dynamics
        • Flow optimized vented pole piece for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency



        Product details

        SB Acoustics SB26ADC-C000-4 Aluminum Dome Tweeter



        The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range.  This tweeter has all the detail that a metal dome provides without the objectionable break-up.



        Specifications: BL Product (BL): 1.6 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.38 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

        Show more

        Specifications

        Article number
        SB26ADC-C000-4
        Tweeter Type
        Dome
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        120 Watts
        Impedance (Z)
        4 Ω
        Sensitivity
        90 dB 2.83V/1m
        Resonant Frequency (Fs)
        680 Hz
        DC Resistance (Re)
        3.2 ohms
        Voice Coil Inductance (Le)
        0.04 mH
        Mechanical Q (Qms)
        2.9
        Electromagnetic Q (Qes)
        2
        Total Q (Qts)
        1.2

        Show more

        Reviews

        7 reviews
        5 from 5Based on 7 reviews
        Review this product
        5 of 5
        Waarom zijn we aluminium dometweeters vergeten? Niet dan lof voor dit tweetertje... De backcup is te dun, plak er een stuk loodbitumen op of geef de tweeter een eigen zandgevuld kastje. Gekocht voor wat testjes. Filter m correct af en ze worden onhoorbaar in het beeld. Subjectieve opmerking: Neutrale geluidsindruk. Niet hoog in z'n rendement, vlak als de waddenzee. Na afvlakking vd resonantiepiek, afgefilterd op 1kHz. Dat lukte zowaar... Waarom 1k?: https://en.m.wikipedia.org/wiki/Interaural_time_difference
        By Frank Verschoof on 2 October 2022
        3 of 5
        No description was given
        By Alexandru G. on 13 May 2021
