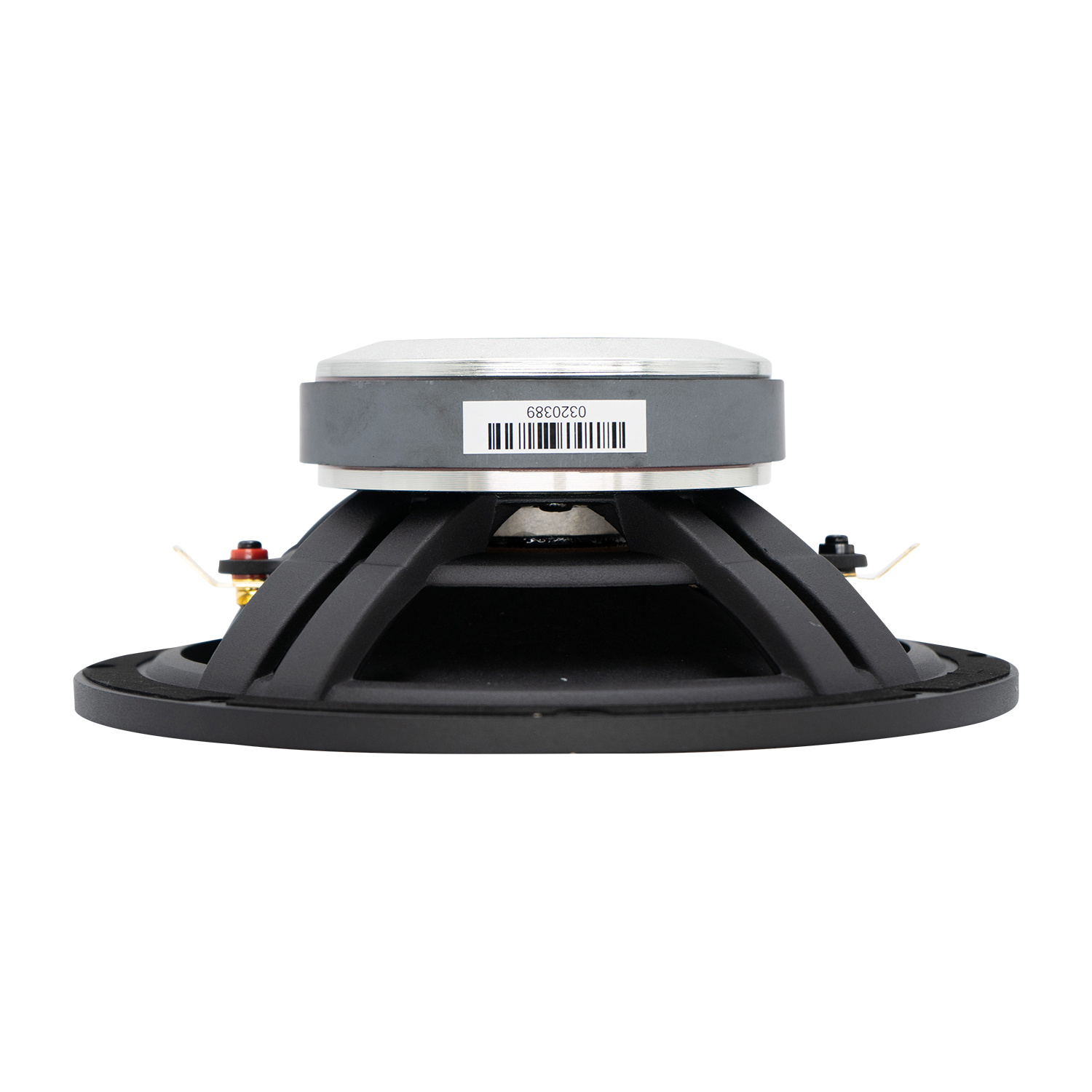

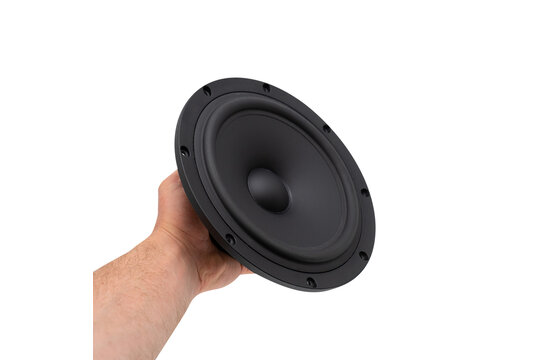

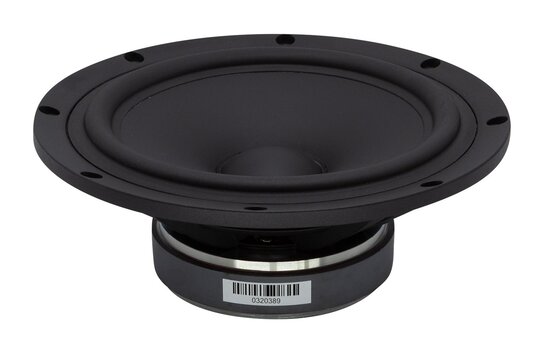

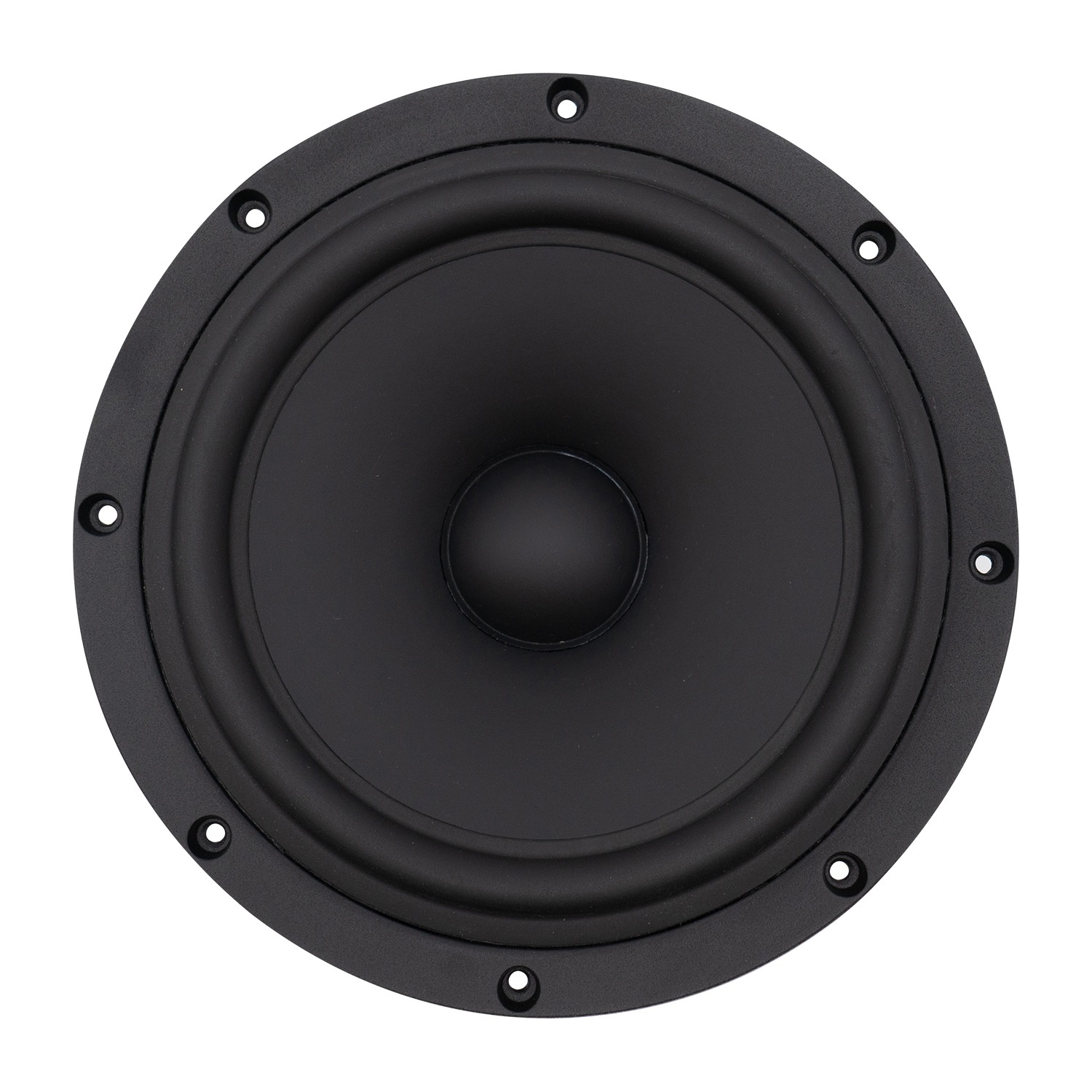

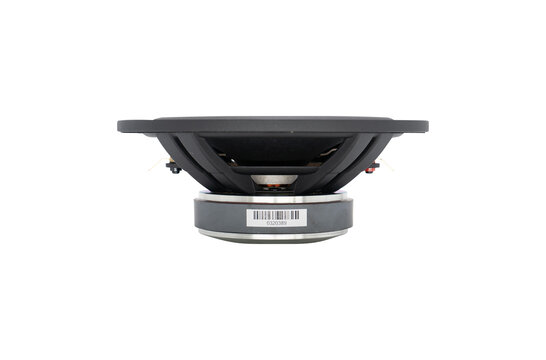

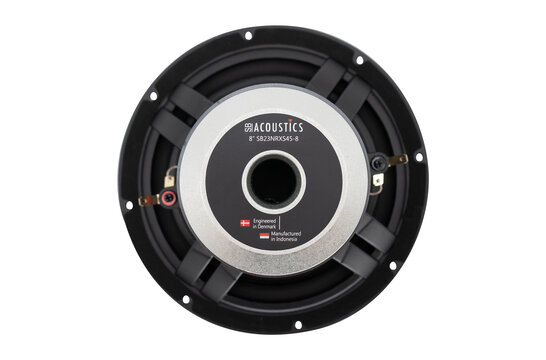

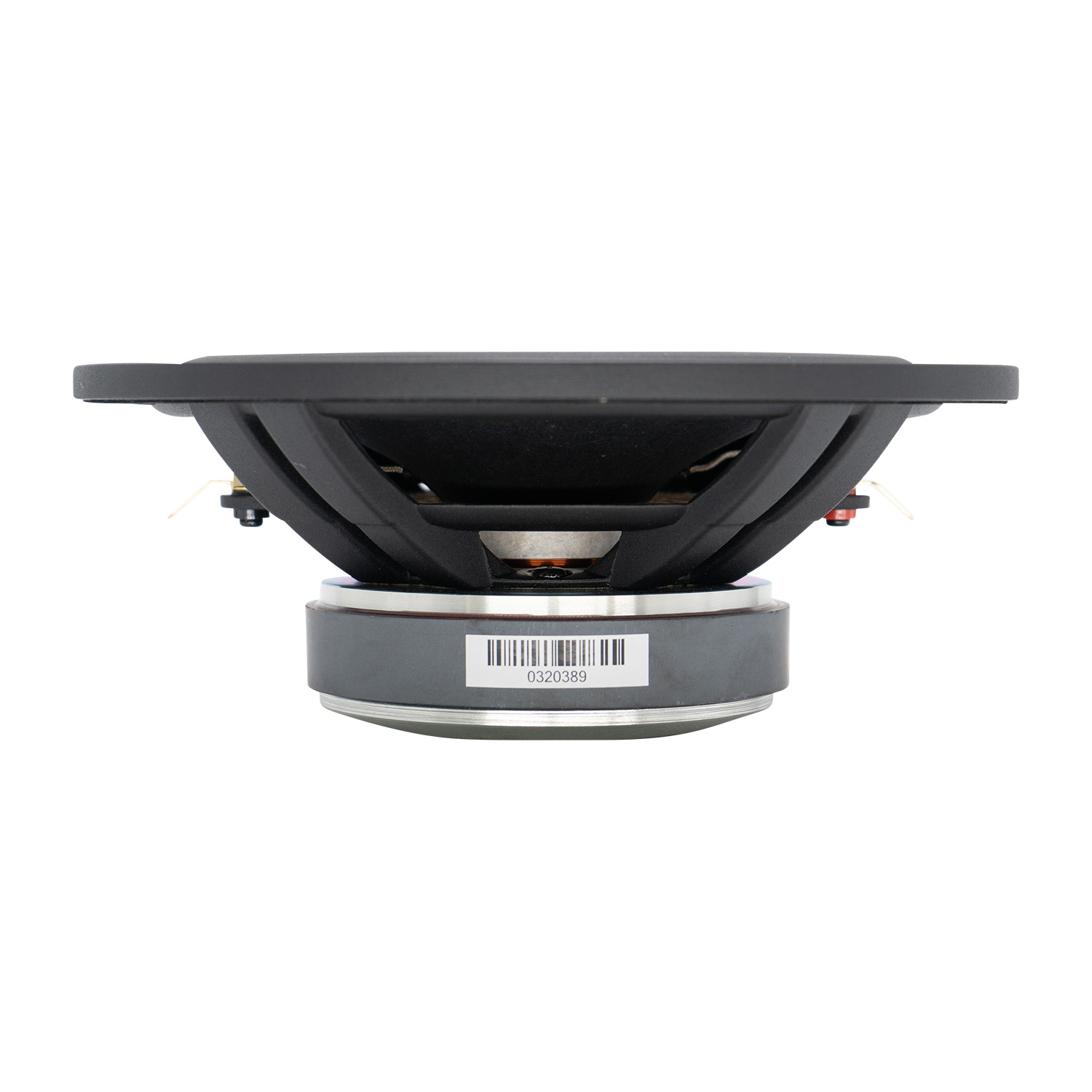

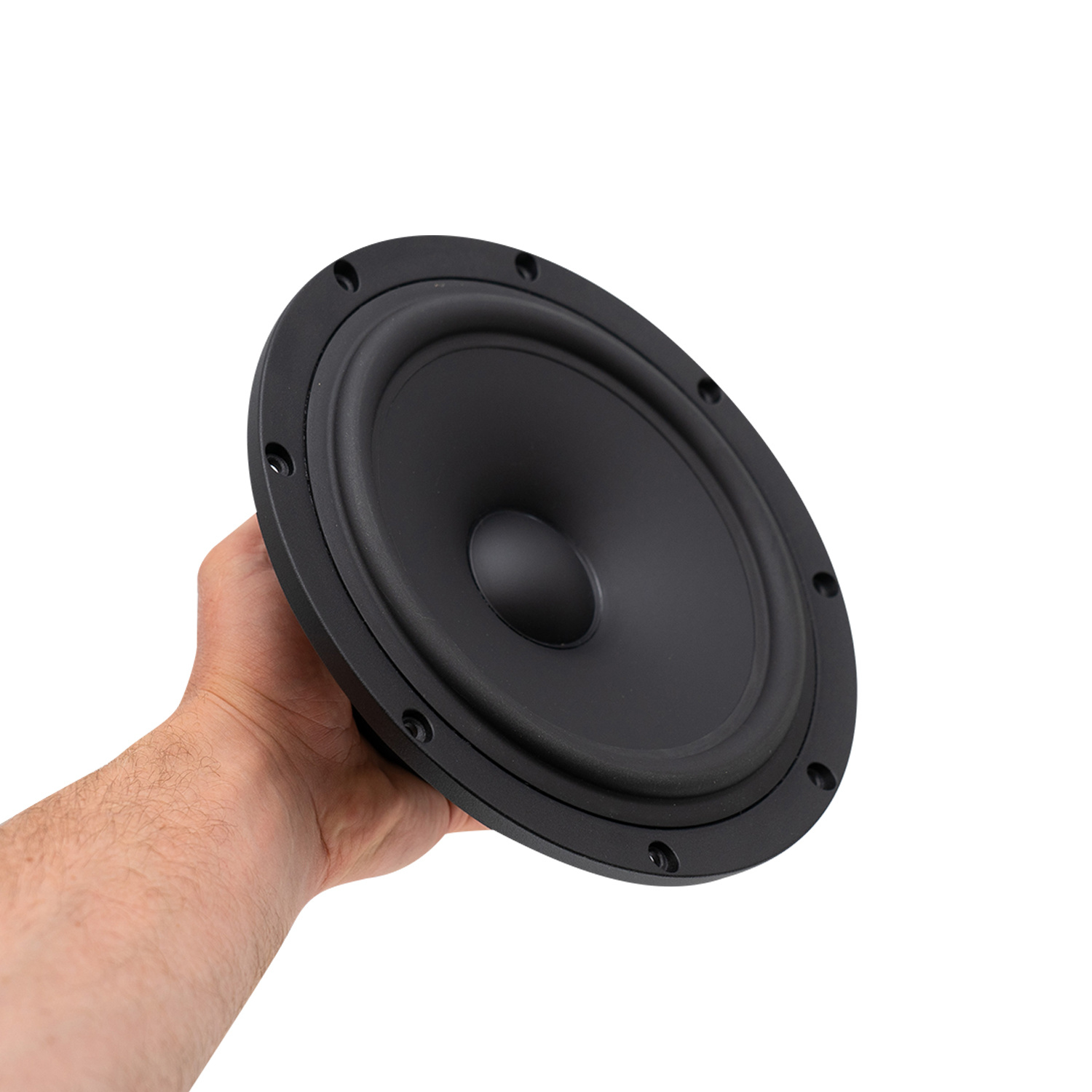

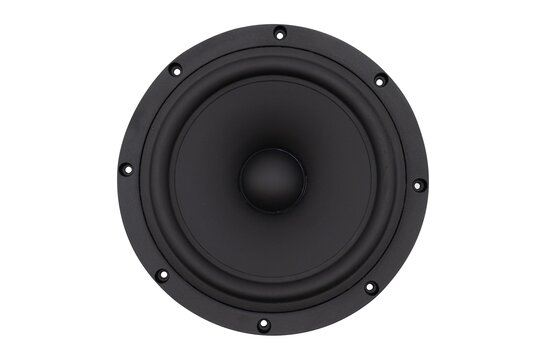

        SB23NRXS45-8 8" Woofer

        SB Acoustics SB23NRXS45-8 8" Woofer

        €113,95

        7 In stock

        Add to cart

        SB Acoustics SB23NRXS45-8 8" Woofer

        6 reviews
        5 from 5
        6 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        8" | 8 Ω
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        € 94,17€ 113,95 7 In stock
        • -5% Purchase 4 for only € 108,25 per piece
        € 113,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer
        SB23NRXS45-8 8" Woofer

        Product description SB Acoustics SB23NRXS45-8 Bass-midwoofer

        Highlights

        • Soft low damping rubber surround for improved transient response
        • Shorting ring in motor system for reduced distortion
        • Vented pole piece for reduced compression
        • Vented cast aluminum chassis for optimum strength and low compression
        • Shallow design
        • Non-conducting fiberglass voice coil former for minimum damping
        • CCAW voice coil for reduced moving mass
        • Long-life silver lead wires



        Product details

        SB Acoustics SB23NRXS45-8 8" Woofer



        The SB23NRXS45-8 woofer has a proprietary composition paper cone made in-house and a rigid cast frame with ventilated spider and large vented pole piece. A low damping rubber surround assures decent midrange reproduction. A shorting ring is used in the motor to reduce intermodulation distortion and improve inductance symmetry.



        This 8 ohm woofer features a Norex paper cone with special coating (Egyptian papyrus and long fibers), rigid cast frame design for minimal reflections, rubber surround, shorting ring to reduce distortion, and shallow 3-1/8" depth.

        Show more

        Specifications

        Article number
        SB23NRXS45-8
        EAN
        0696277269068
        Woofer Series
        SB Acoustics NRX Norex series
        Woofer Type
        Midwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        60 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88.5 dB
        Voice Coil Diameter
        46 mm
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        0.60 mH
        Resonant Frequency (Fs)
        27 Hz
        Mechanical Q (Qms)
        5.4
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.38
        Diaphragm Mass Inc. Airload (Mms)
        24.5 g
        Mechanical Compliance of Suspension (Cms)
        1.42 mm/N
        Surface Area of Cone (Sd)
        216 cm²
        BL Product (BL)
        7.5 Tm
        Compliance Equivalent Volume (Vas)
        93.7 L
        Maximum Linear Excursion (Xmax)
        6.5 mm
        Cone / Diaphragm Material
        Norex paper

        Show more

        Reviews

        6 reviews
        Review this product
        5 of 5
        Sto progettando e costruendo una coppia di diffusori da pavimento a 3 vie/3,5 vie completamente DIY. Per ogni diffusore utilizzerò: 1 × SB Acoustics SB23NRXS45-8 come woofer dedicato; 2 × Dayton Audio DC130A-8 per la gamma medio-bassa/media; 1 × Dayton Audio DC28FS-8 come tweeter. L'SB23NRXS45-8 lavorerà in un volume reflex separato, indicativamente intorno ai 45 litri netti, con accordo da definire attorno ai 30–32 Hz. Sto valutando un co...

        Show more

        By Paolo on 4 October 2026
        5 of 5
        -
        By Ivan Vitor on 22 September 2026
        Show more
