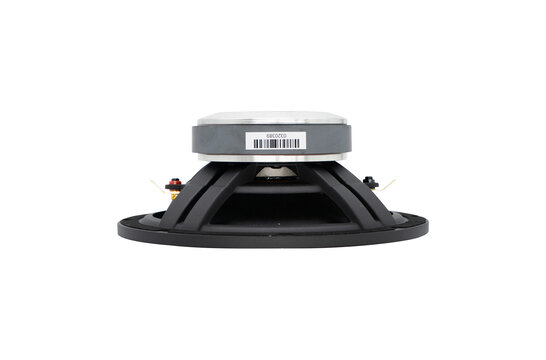

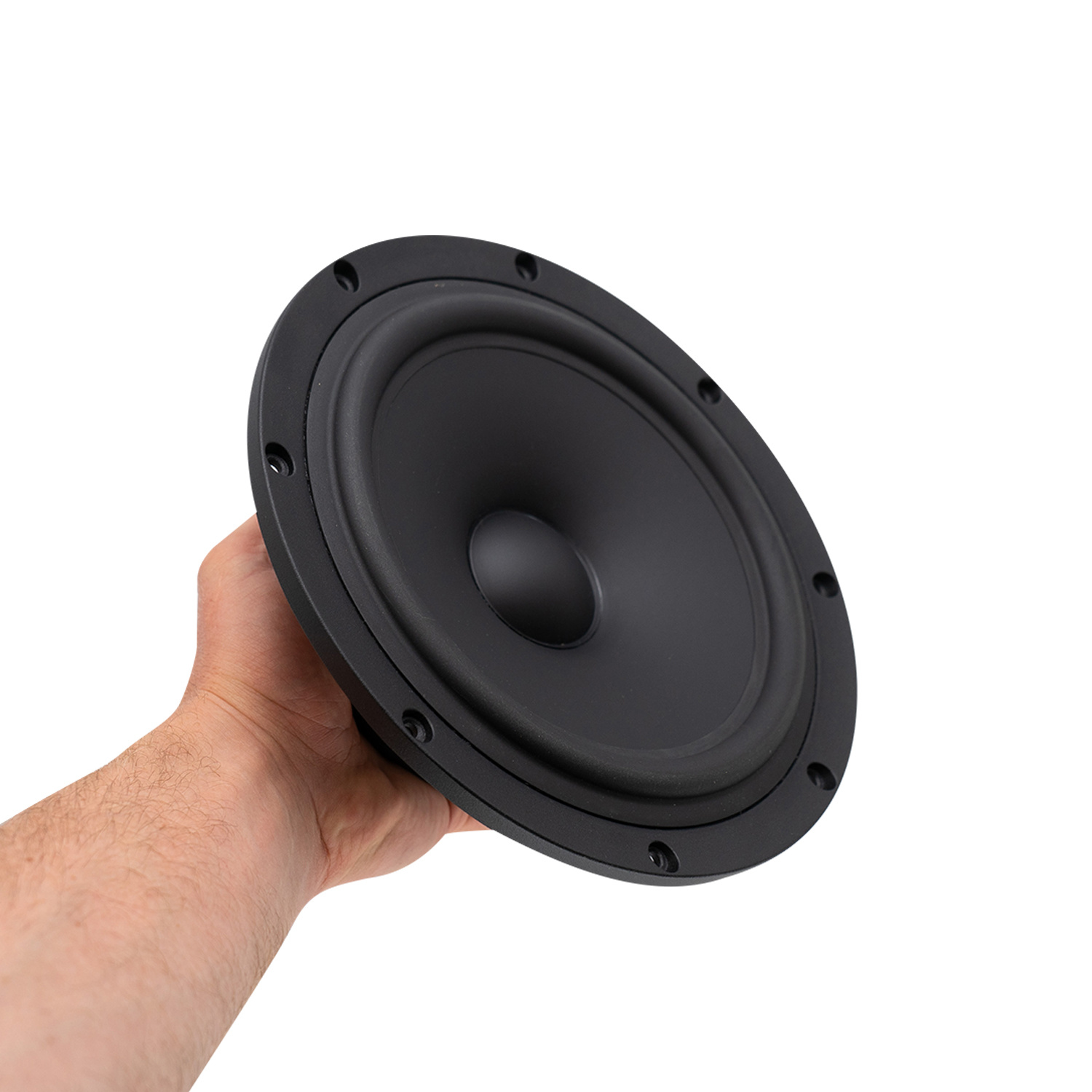

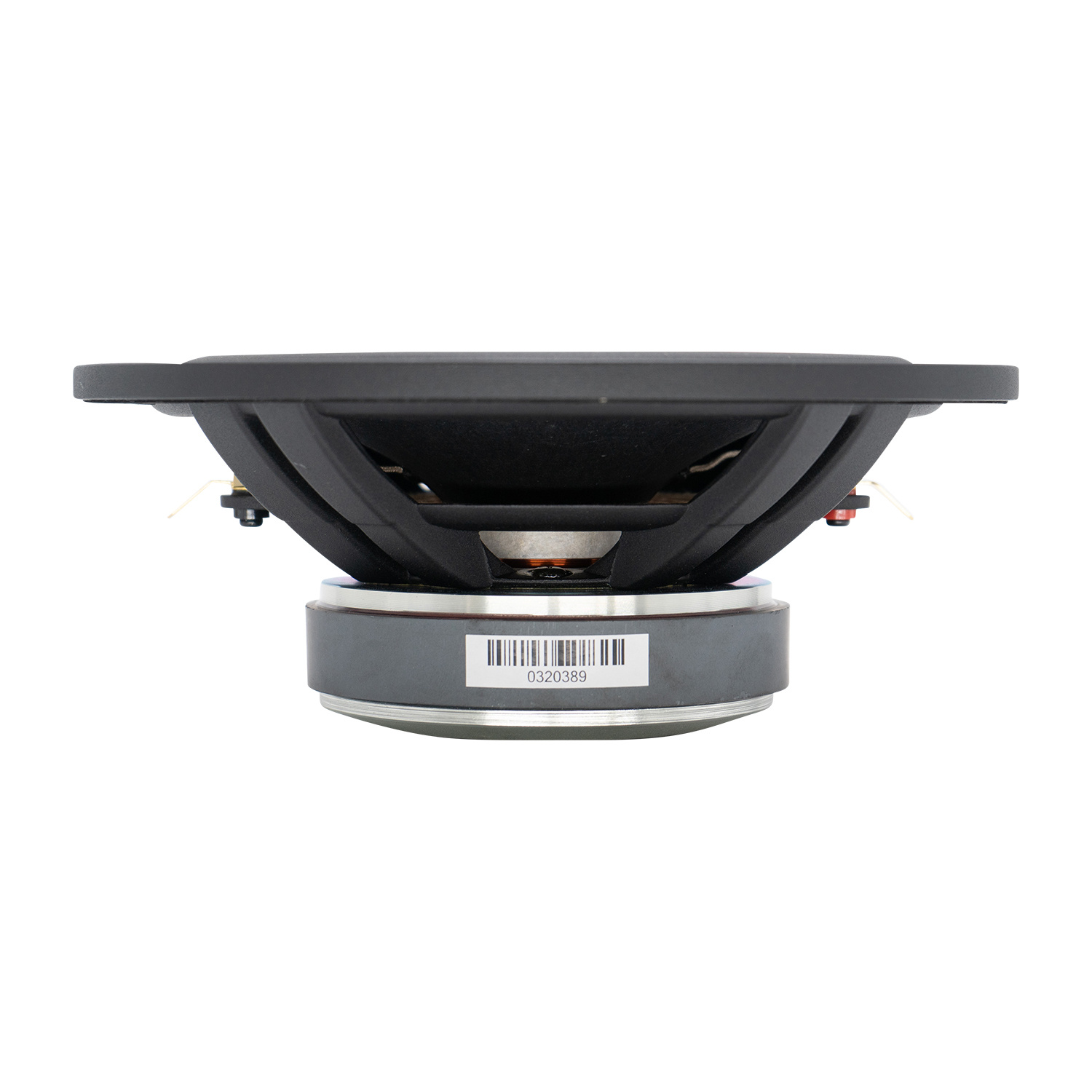

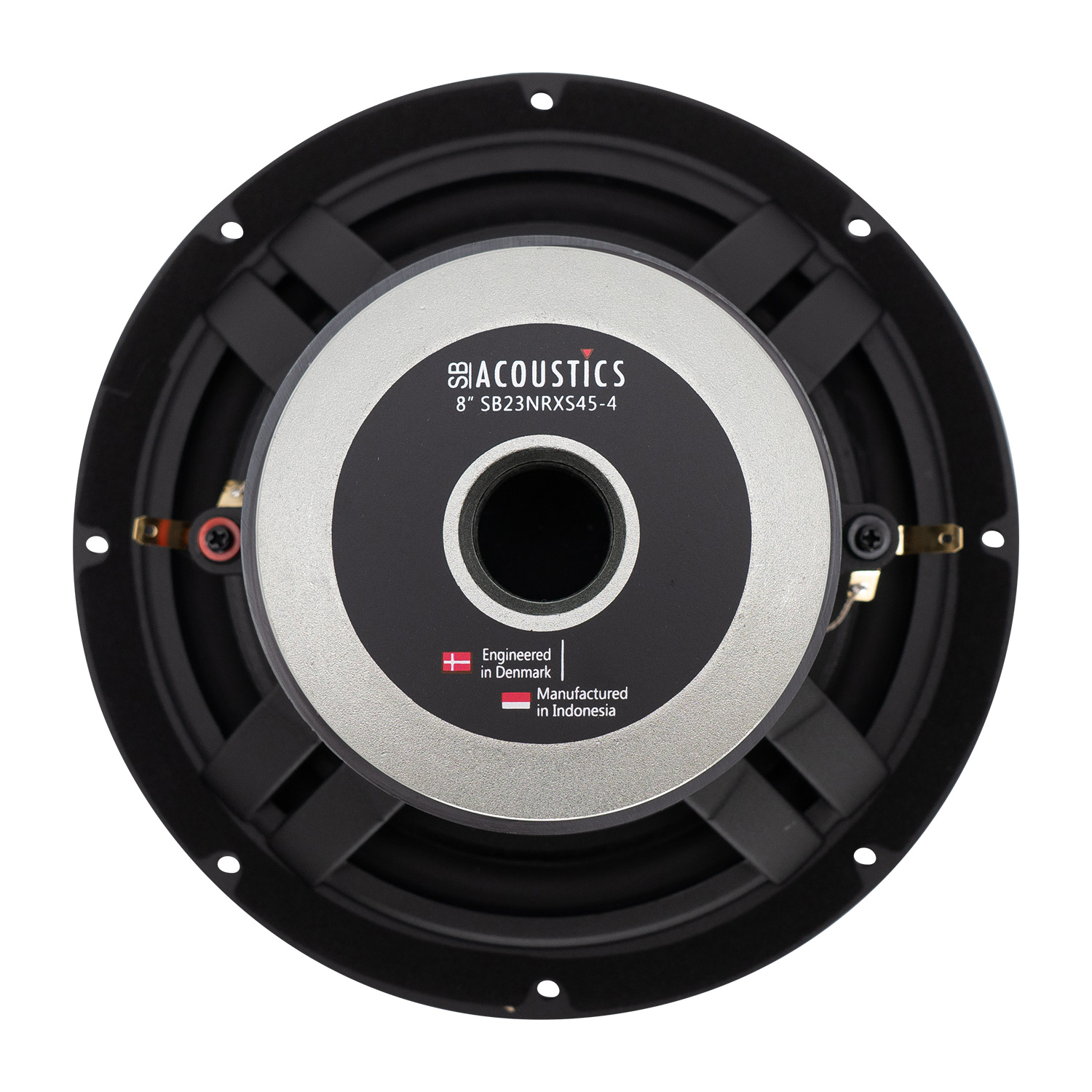

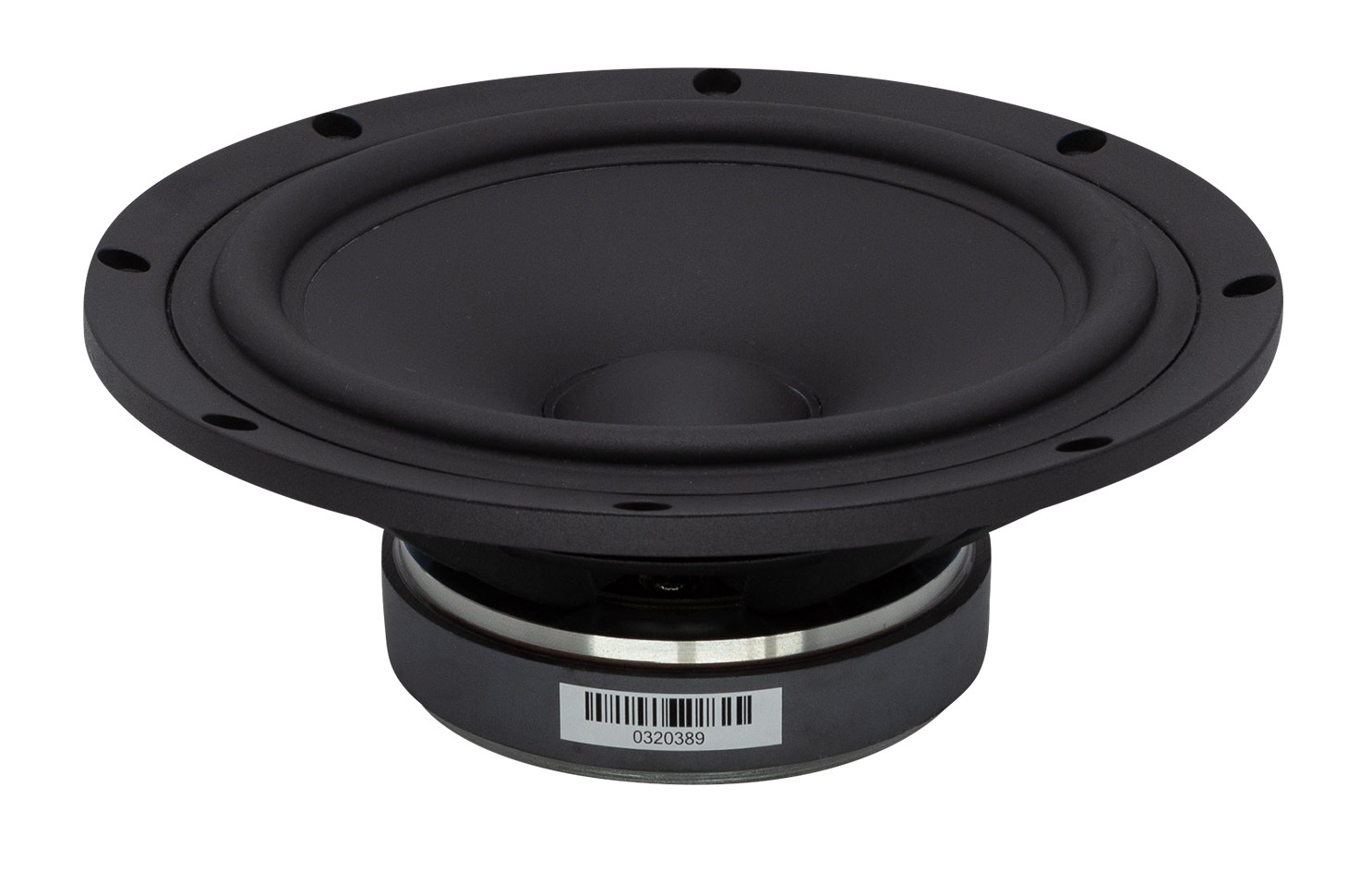

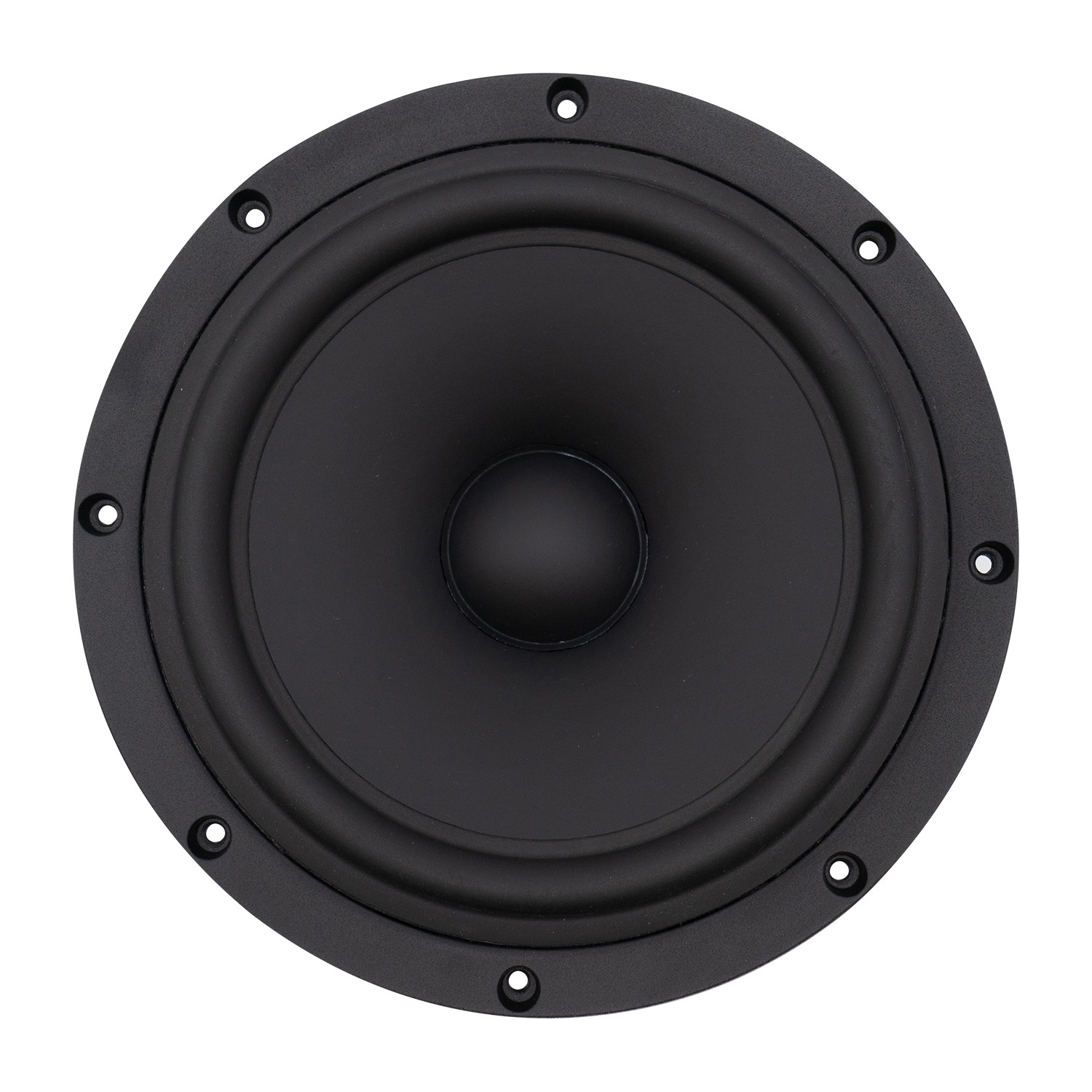

      SB Acoustics SB23NRXS45-4 8" Woofer

      € 82,60€ 99,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €94,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Soft low-damping rubber surround for improved transient response
      • Shorting ring in-motor system for reduced distortion
      • Vented pole piece for reduced compression

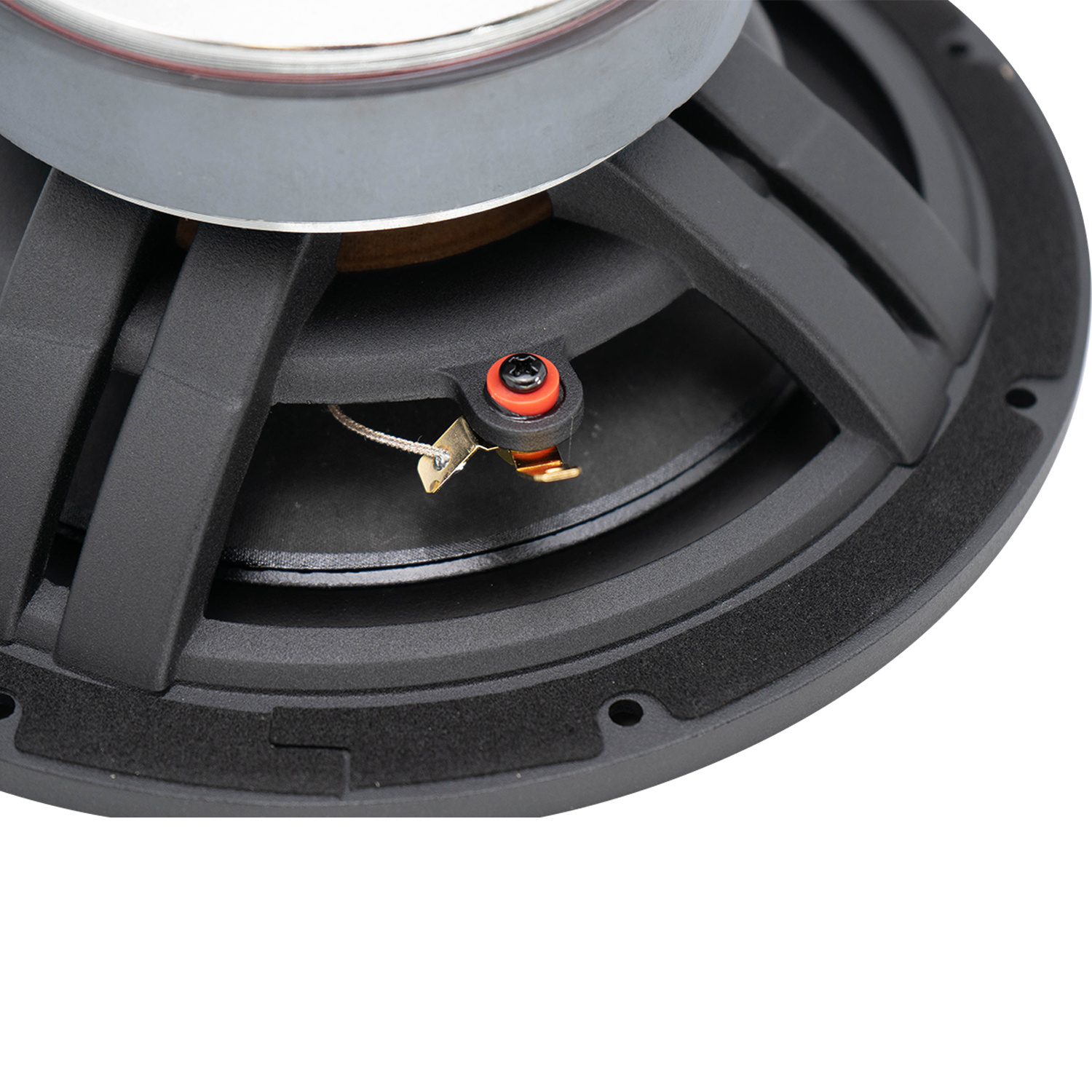

      • Vented cast-aluminum chassis for optimum strength and low compression
      • Shallow design (3-1/8" depth)
      • Non-conducting fiberglass voice coil former for minimum damping
      • CCAW voice coil for reduced moving mass
      • Long-life silver lead-wire



      Product details

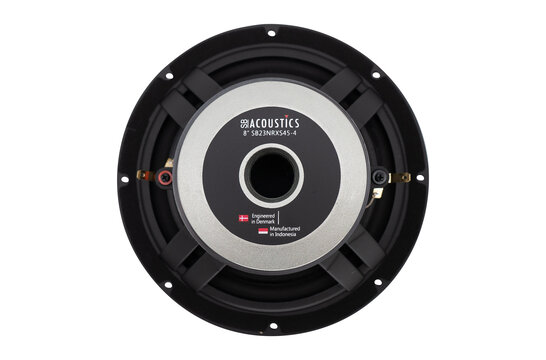

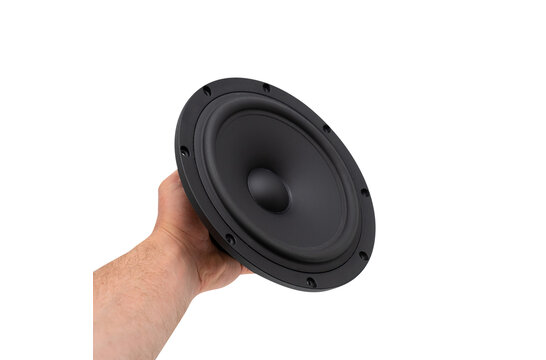

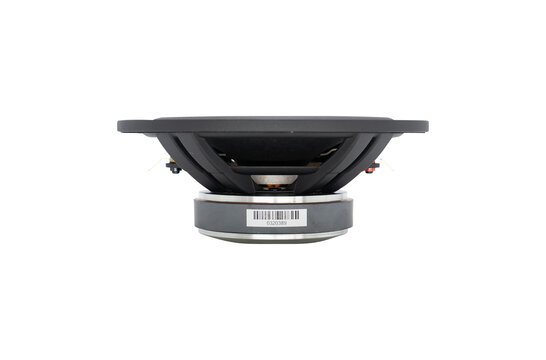

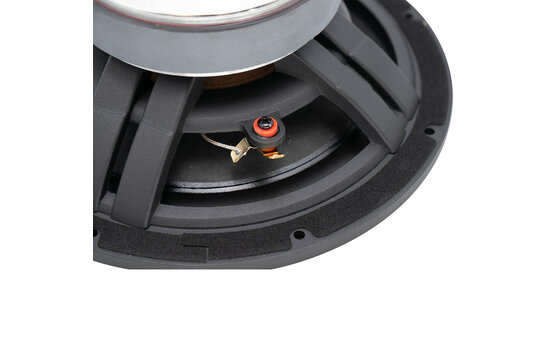

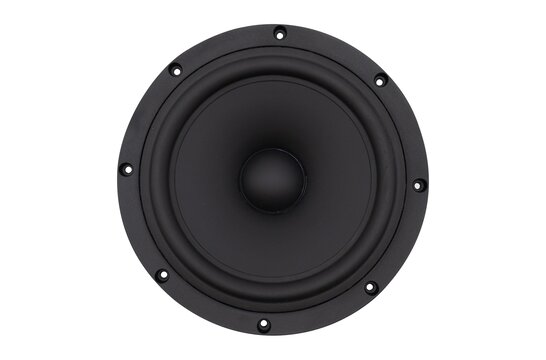

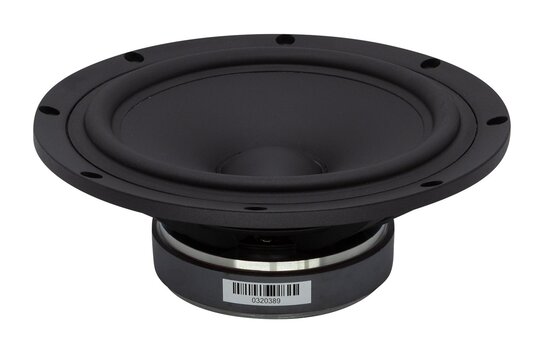

      SB Acoustics SB23NRXS45-4 8" Woofer



      The SB Acoustics SB23NRXS45-4 woofer has a proprietary composition paper cone made in-house and a rigid cast frame with ventilated spider and large vented pole piece. A low damping rubber surround assures decent midrange reproduction. A shorting ring is used in the motor to reduce intermodulation distortion and improve inductance symmetry. This woofer has a large 1.75" diameter voice coil with 6.5mm x-max on a non-inductive fiberglass former.

      Specifications

      Article number
      SB23NRXS45-4
      Woofer Series
      NRX Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      8"
      Power Handling (RMS)
      60 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      92 dB 2.83V/1m
      Voice Coil Diameter
      1.79"
      DC Resistance (Re)
      3.3 ohms
      Voice Coil Inductance (Le)
      0.29 mH
      Resonant Frequency (Fs)
      27 Hz
      Mechanical Q (Qms)
      5.55
      Electromagnetic Q (Qes)
      0.32
      Total Q (Qts)
      0.3
      Diaphragm Mass Inc. Airload (Mms)
      27.2 g
      Mechanical Compliance of Suspension (Cms)
      1.33 mm/N
      Surface Area of Cone (Sd)
      216 cm2
      BL Product (BL)
      6.9 Tm
      Compliance Equivalent Volume (Vas)
      3.09 ft.³
      Maximum Linear Excursion (Xmax)
      6.5 mm

      Show more

      Reviews

      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
