        SB20PFCS30-7 Bass-midwoofer

        SB Acoustics SB20PFCS30-7 Bass-midwoofer

        €42,95

        6 In stock

        Add to cart

        SB Acoustics SB20PFCS30-7 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all New products
        8" | 7 Ω | NEW
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        € 35,50€ 42,95 6 In stock
        • -5% Purchase 4 for only € 40,80 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer
        SB20PFCS30-7 Bass-midwoofer

        Product description SB Acoustics SB20PFCS30-7 Bass-midwoofer

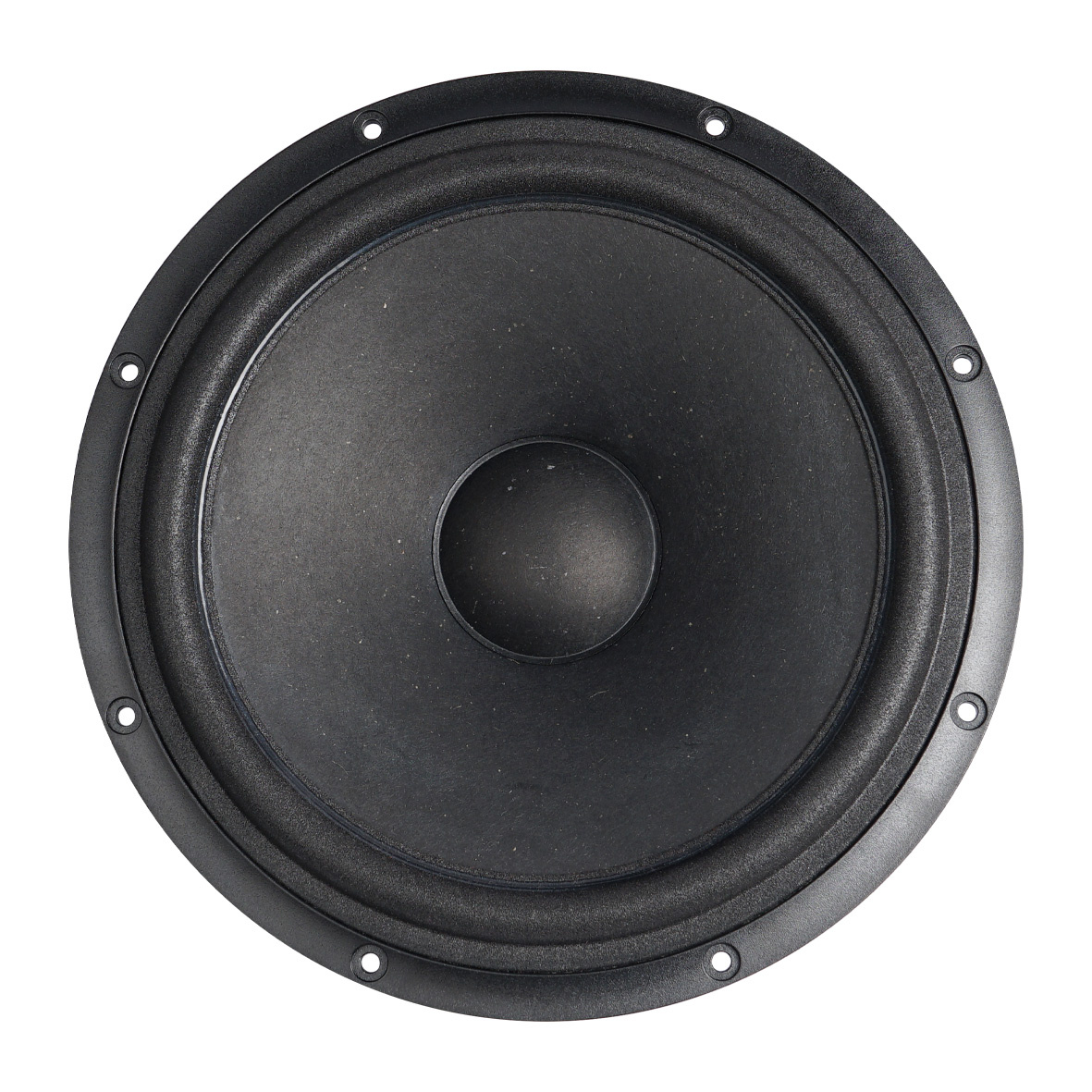

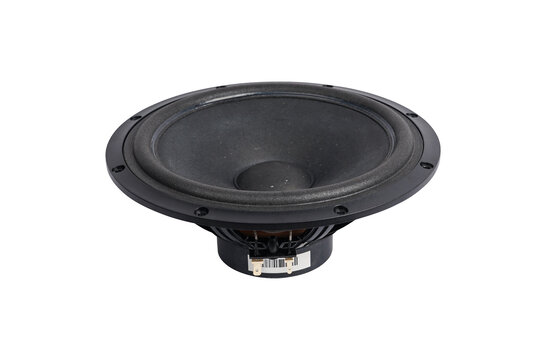

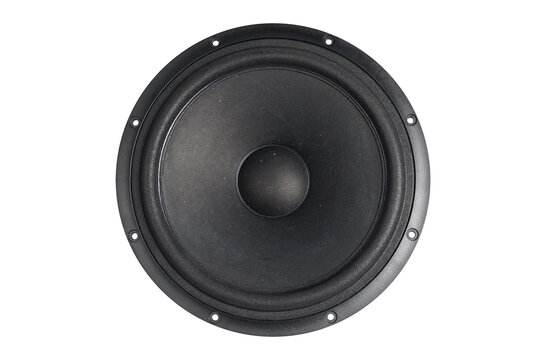

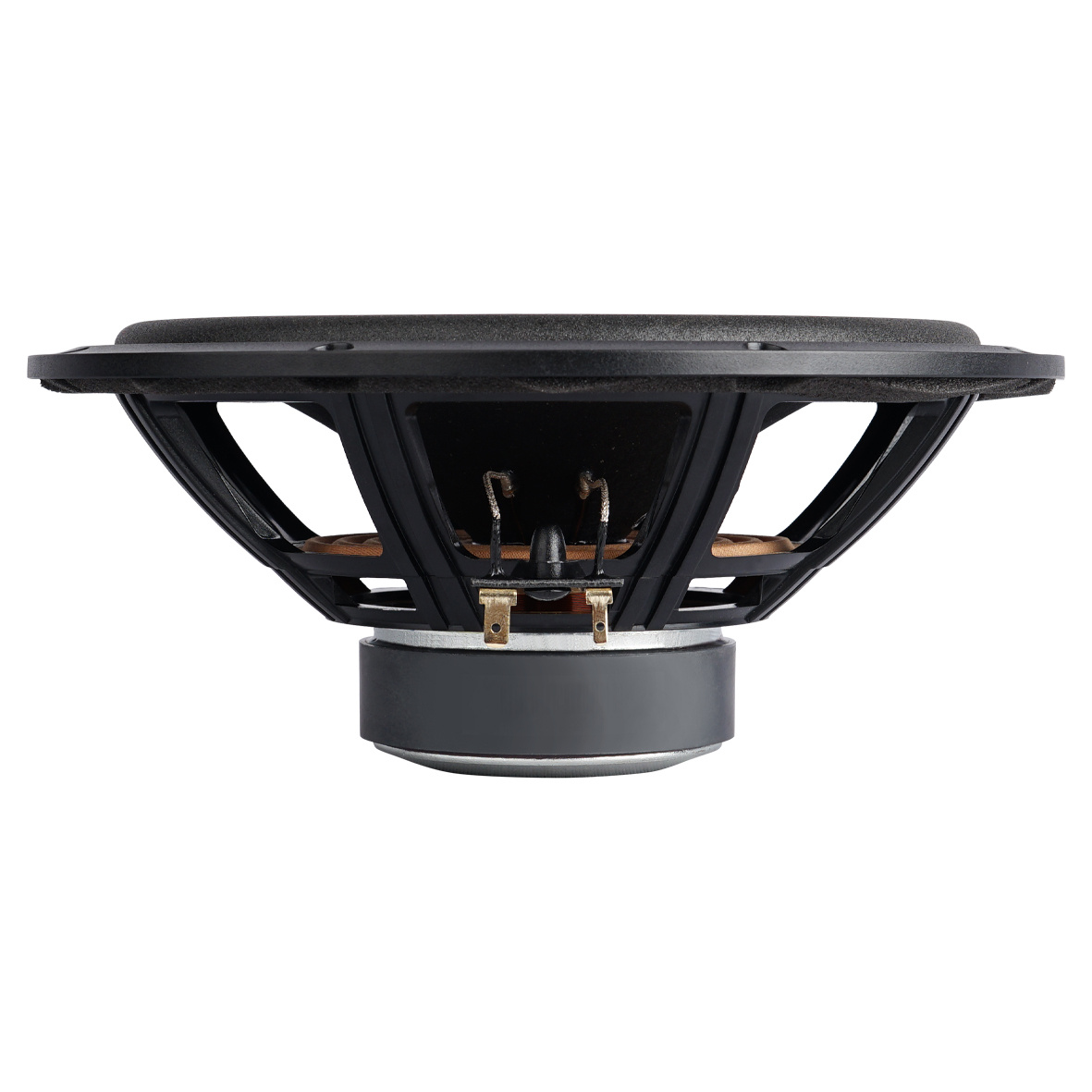

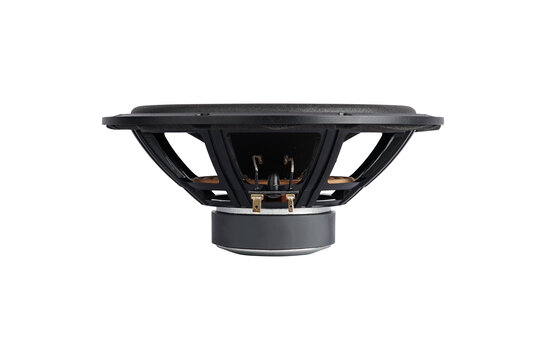

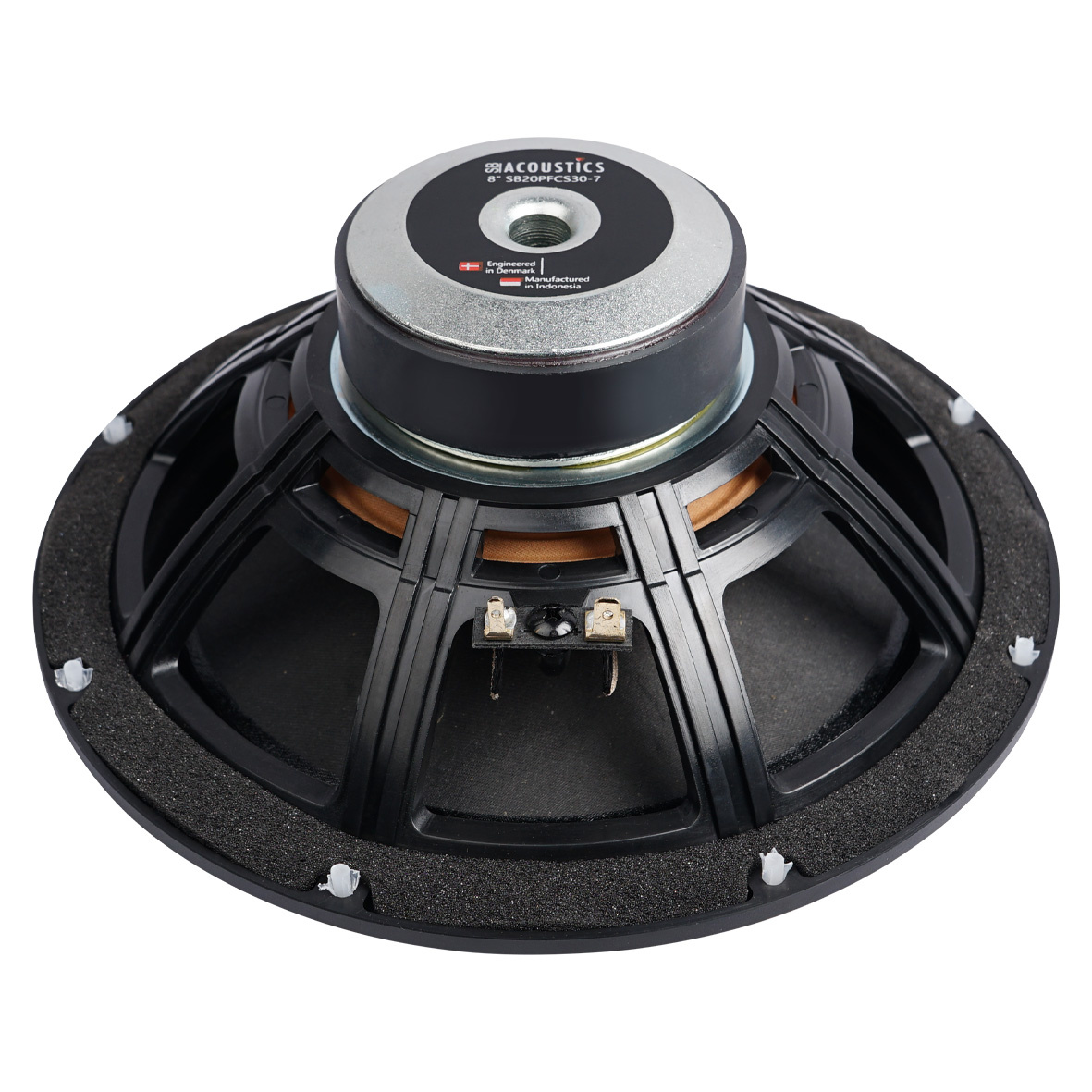

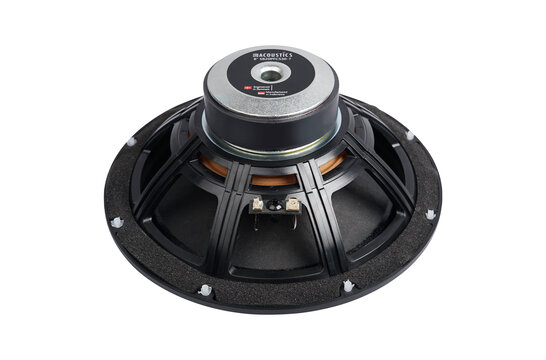

        The SB Acoustics SB20PFCS30-7 is an 8-inch woofer designed for sealed enclosure applications where smooth bass response and midrange clarity are critical. Featuring a proprietary fiber cone, vented motor system, and foam surround, this driver is engineered for dynamic low-frequency performance with excellent linearity and minimal distortion.



        Highlights of the SB Acoustics SB20PFCS30-7

        • Proprietary natural fiber cone for warm, detailed sound
        • High-compliance foam surround optimized for transparency and midrange resolution
        • Vented reinforced plastic chassis and motor system for reduced compression
        • High Q design tailored for sealed box applications with series capacitor



        Product details SB Acoustics SB20PFCS30-7

        SB Acoustics SB20PFCS30-7 – 8-Inch Woofer Driver



        The SB20PFCS30-7 is a purpose-built 8-inch woofer from SB Acoustics, ideal for use in sealed enclosures with a high Q design approach. It features a proprietary cone made from natural fibers for improved tonal accuracy, supported by a compliant foam surround for high transparency and midrange precision. The driver integrates a large spider and a vented motor structure with a 30.5 mm diameter voice coil and a 16 mm coil height, offering 11 mm of linear travel peak-to-peak. With a free air resonance of 39 Hz and a sensitivity of 88 dB (2.83V/1m), it delivers balanced performance across low and mid frequencies. Additional highlights include a non-resonant vented plastic chassis and long-life lead wires, contributing to its durability and acoustic integrity. Ideal for sealed cabinet designs where tight bass and clean mids are essential, the SB20PFCS30-7 is rated at 40 watts nominal power handling.

        Show more

        Specifications

        Article number
        SB20PFCS30-7
        EAN
        9501799742184
        Woofer Type
        Bass-midwoofer
        Nominal Diameter
        8 inch
        Power Handling (RMS)
        40 Watts
        Impedance (Z)
        7 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        30.5 mm
        DC Resistance (Re)
        5.0 ohms
        Voice Coil Inductance (Le)
        0.95mH
        Resonant Frequency (Fs)
        39Hz
        Mechanical Q (Qms)
        4.50
        Electromagnetic Q (Qes)
        0.77
        Total Q (Qts)
        0.66
        Diaphragm Mass Inc. Airload (Mms)
        19.6 g
        Mechanical Compliance of Suspension (Cms)
        0.85 mm/N
        Surface Area of Cone (Sd)
        222cm2
        BL Product (BL)
        5.6 N/A
        Compliance Equivalent Volume (Vas)
        59.5 liters
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Driver's Mechanical Losses (Rms)
        1.07 kg/s
        Surround Material
        foam

        Show more
