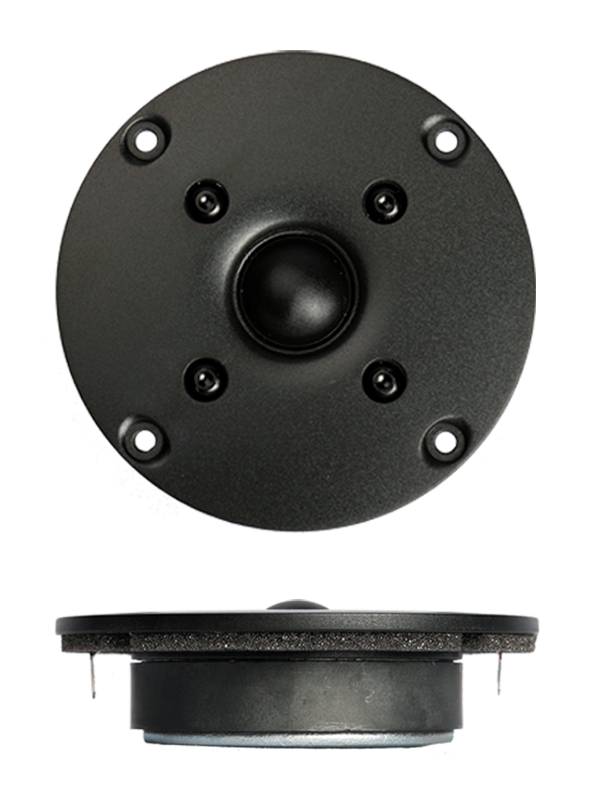

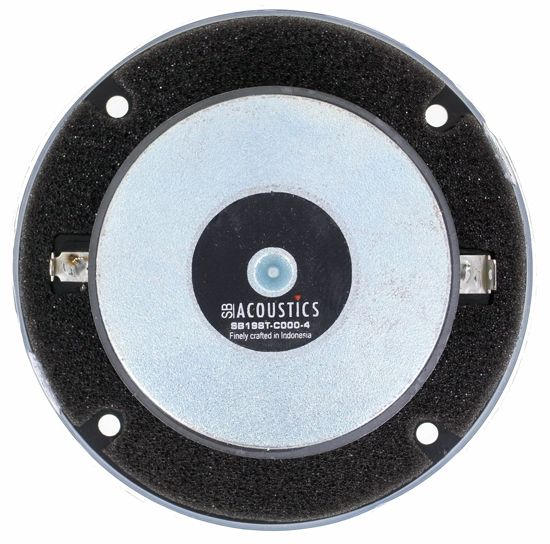

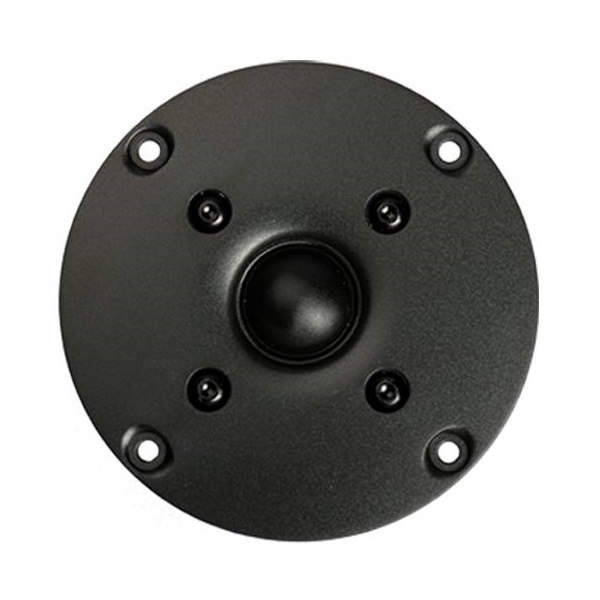

SB Acoustics SB19ST-C000-4 Dome Tweeter

Name: SB Acoustics SB19ST-C000-4 Dome Tweeter
Brand: SB Acoustics
SKU: SB19ST-C000-4
Price: 24.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Brand: SB Acoustics

Show all Dome tweeter

Compare

3/4" | 4 Ω

€ 20,62€ 24,95 4 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Optimized damping in pole cavity to eliminate internal reflection
Fine weave soft fabric dome for smooth frequency response
Saturation controlled motor system for reduced distortion
CCAW voice coil for low moving mass
Long life silver lead wires
88 mm diameter flange (3.46")
Extended frequency response - flat out to 30kHz

Product details

SB Acoustics SB19ST-C000-4 3/4" Dome Tweeter

Optimized damping in pole cavity to eliminate internal reflection. The fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

Specifications: BL Product (BL): 1.75 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.22 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 3.8 cm²

Specifications

Article number: SB19ST-C000-4
Tweeter Type: Dome
Cone / Dome Diameter: 19 mm | 3/4"
Power Handling (RMS): 30 Watts
Impedance (Z): 4 Ω
Sensitivity: 88.5 dB 2.83V/1m
Resonant Frequency (Fs): 980 Hz
DC Resistance (Re): 3.4 ohms
Voice Coil Inductance (Le): 0.07 mH
Mechanical Q (Qms): 6.45
Electromagnetic Q (Qes): 1.50
Total Q (Qts): 1.22
