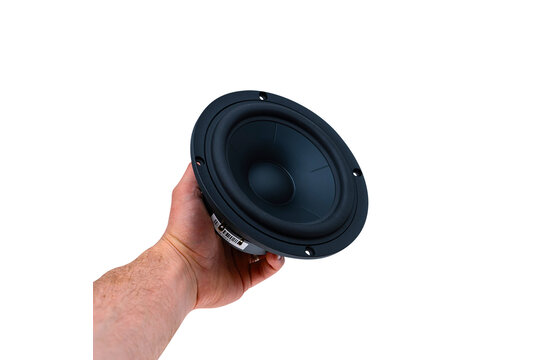

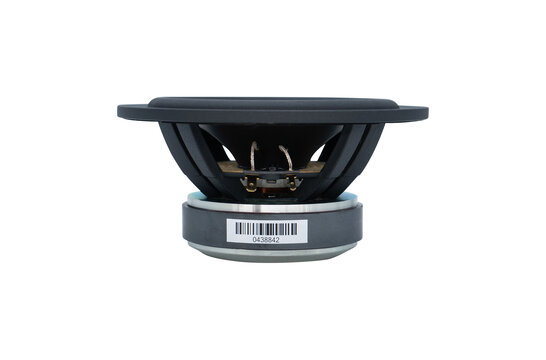

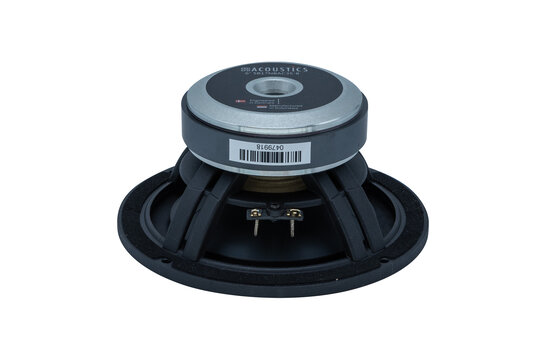

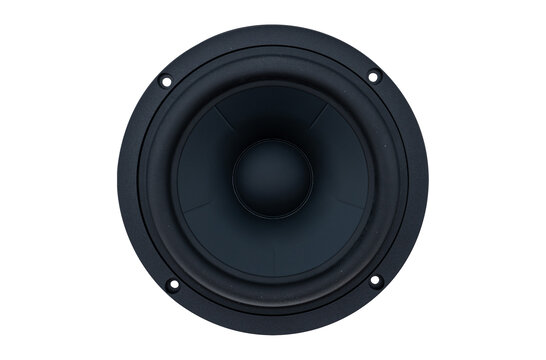

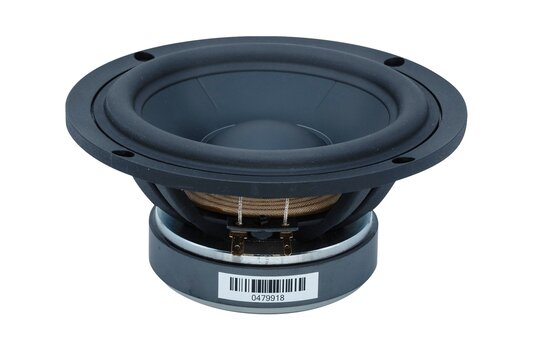

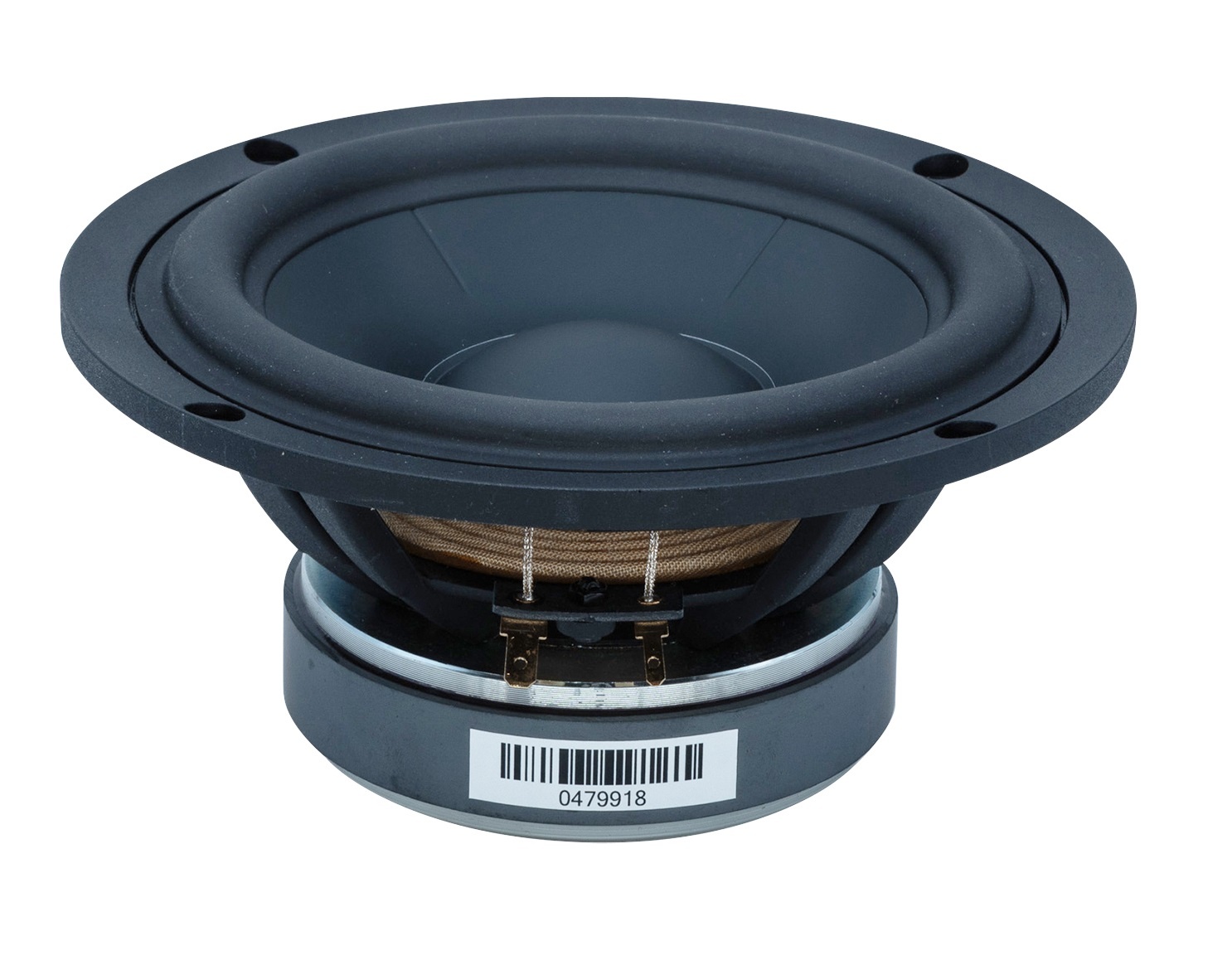

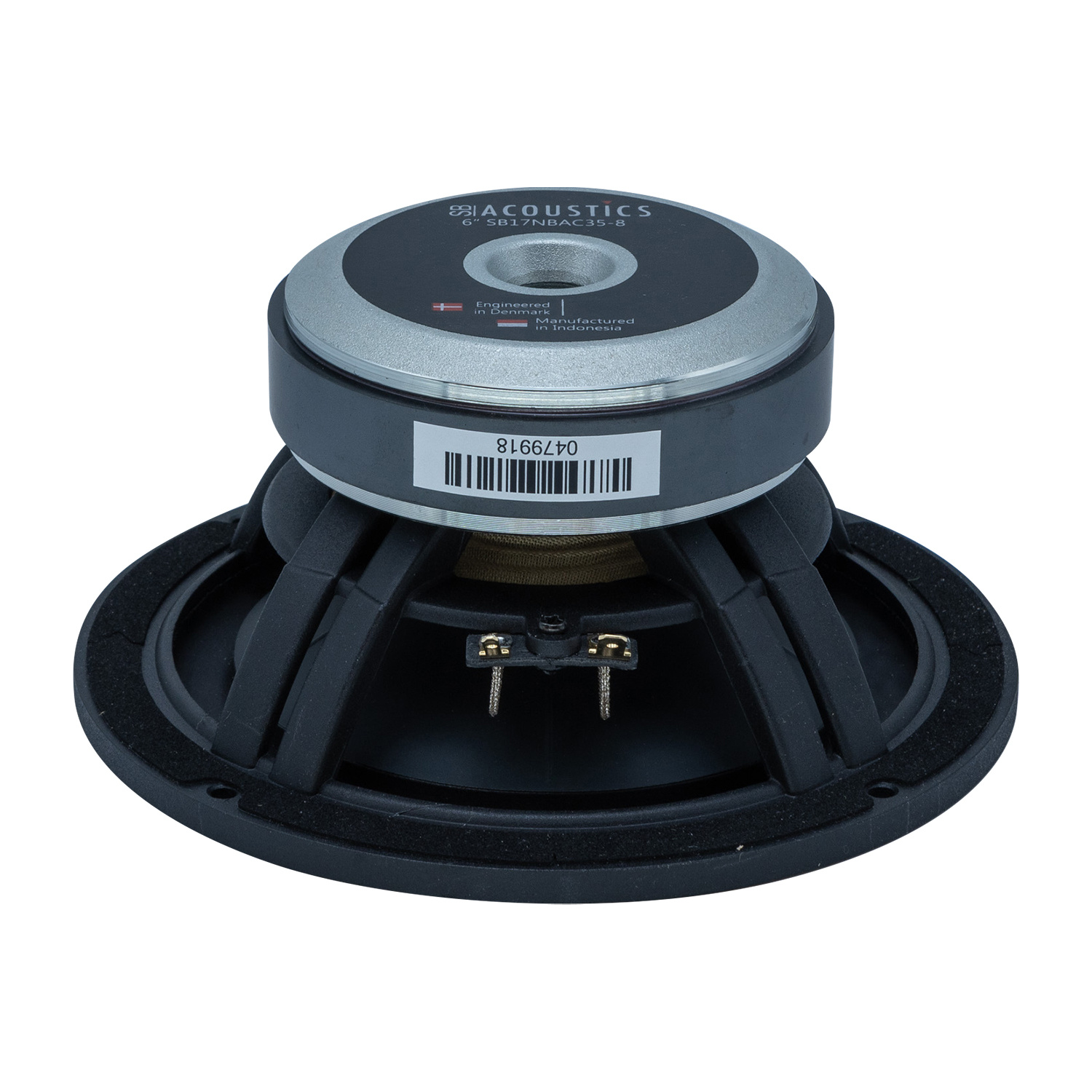

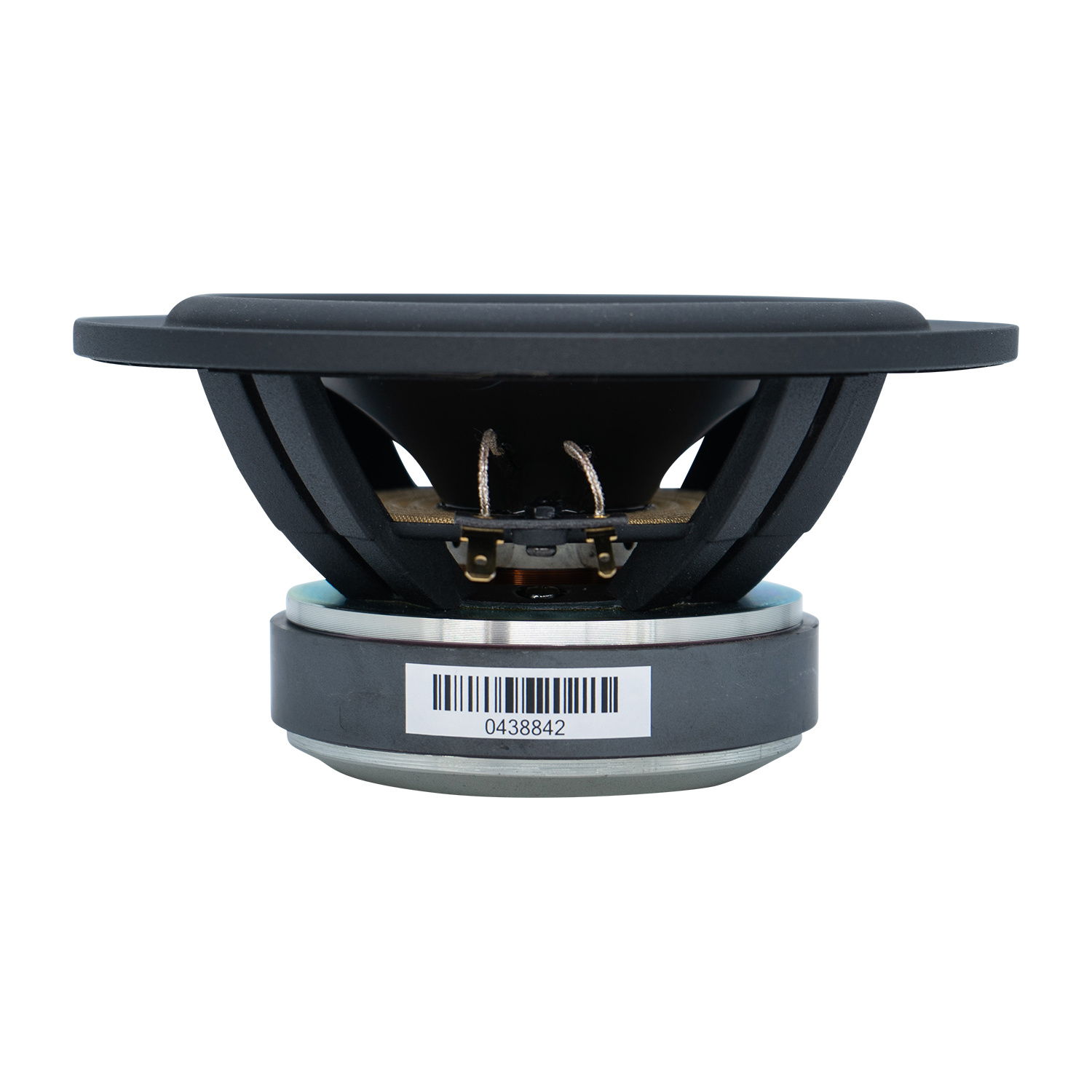

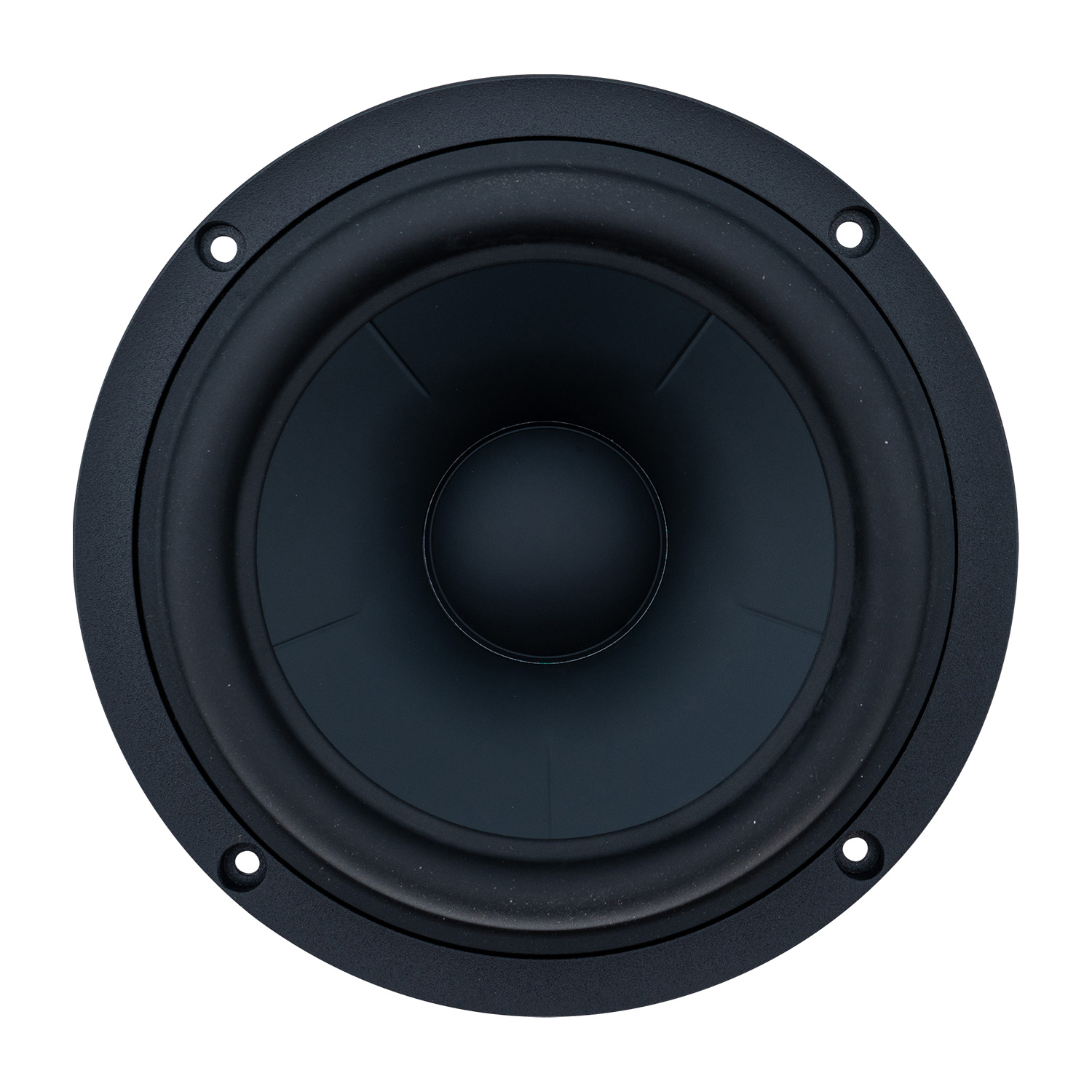

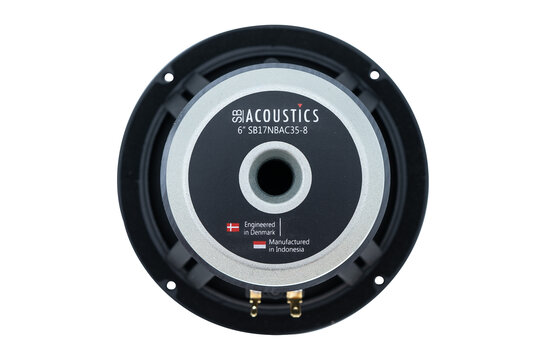

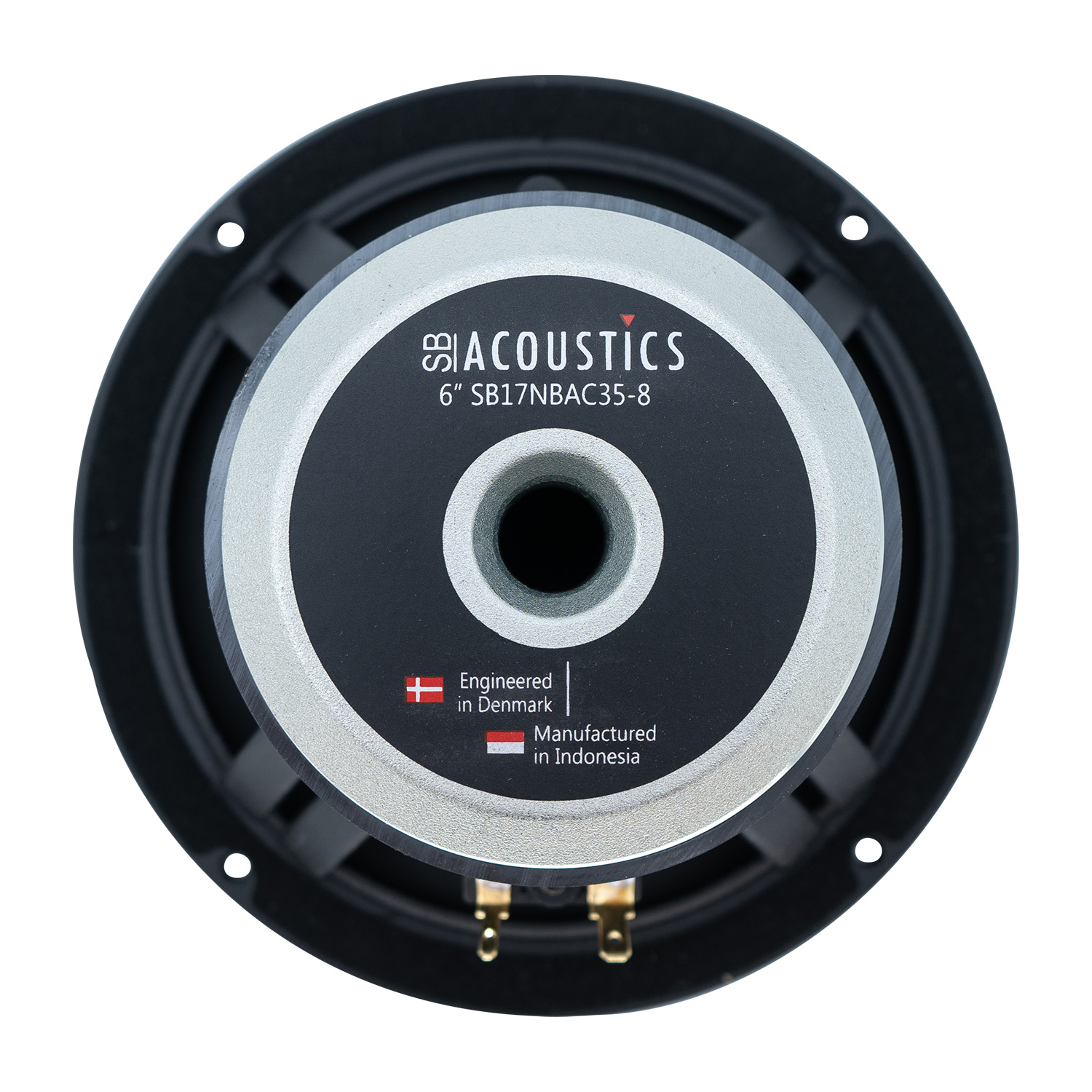

        SB17NBAC35-8 6" Black Aluminum Cone Woofer

        SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer

        €86,45

        8 In stock

        Add to cart

        SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer

        6 reviews
        5 from 5
        6 reviews
        5 stars
        67%
        4 stars
        33%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        6" | 8 Ω
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        € 71,45€ 86,45 8 In stock
        • -5% Purchase 4 for only € 82,13 per piece
        € 86,45
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer
        SB17NBAC35-8 6" Black Aluminum Cone Woofer

        Product description SB Acoustics SB17NBAC35-8 Bass-midwoofer

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer



        The SB Acoustics SB17NBAC35-8 features a vented cast aluminum chassis for optimum strength and low compression, a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response and non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires and vented pole piece for reduced compression.

        Show more

        Specifications

        Article number
        SB17NBAC35-8
        EAN
        0696277269464
        Woofer Series
        SB Acoustics NAC Aluminum series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        60 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86.5 dB
        Frequency Response
        90 - 6500 Hz
        Voice Coil Diameter
        36 mm
        DC Resistance (Re)
        5.7 Ω
        Voice Coil Inductance (Le)
        0.15 mH
        Resonant Frequency (Fs)
        31.5 Hz
        Mechanical Q (Qms)
        4.1
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        12.5 g
        Mechanical Compliance of Suspension (Cms)
        2.30 mm/N
        Surface Area of Cone (Sd)
        118 cm²
        BL Product (BL)
        5.9 Tm
        Compliance Equivalent Volume (Vas)
        44.7 L
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Glass Fiber
        Basket / Frame Material
        Die Cast Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        265 mm
        Baffle Cutout Diameter
        237 mm

        Show more

        Reviews

        6 reviews
        Review this product
        5 of 5
        -
        By Antonio on 25 July 2026
        4 of 5
        Ich habe vor über 40 Jahren Boxen in Pyramidenform gebaut. Jetzt musste ich, wegen gerissener Membrane, die Bass/Mitteltöner erneuern. Leider hatte ich bisher nicht die Möglichkeit die neue Konfiguration zu testen. Die Lieferung war allerdings sehr schnell.
        By Stefan on 30 April 2026
