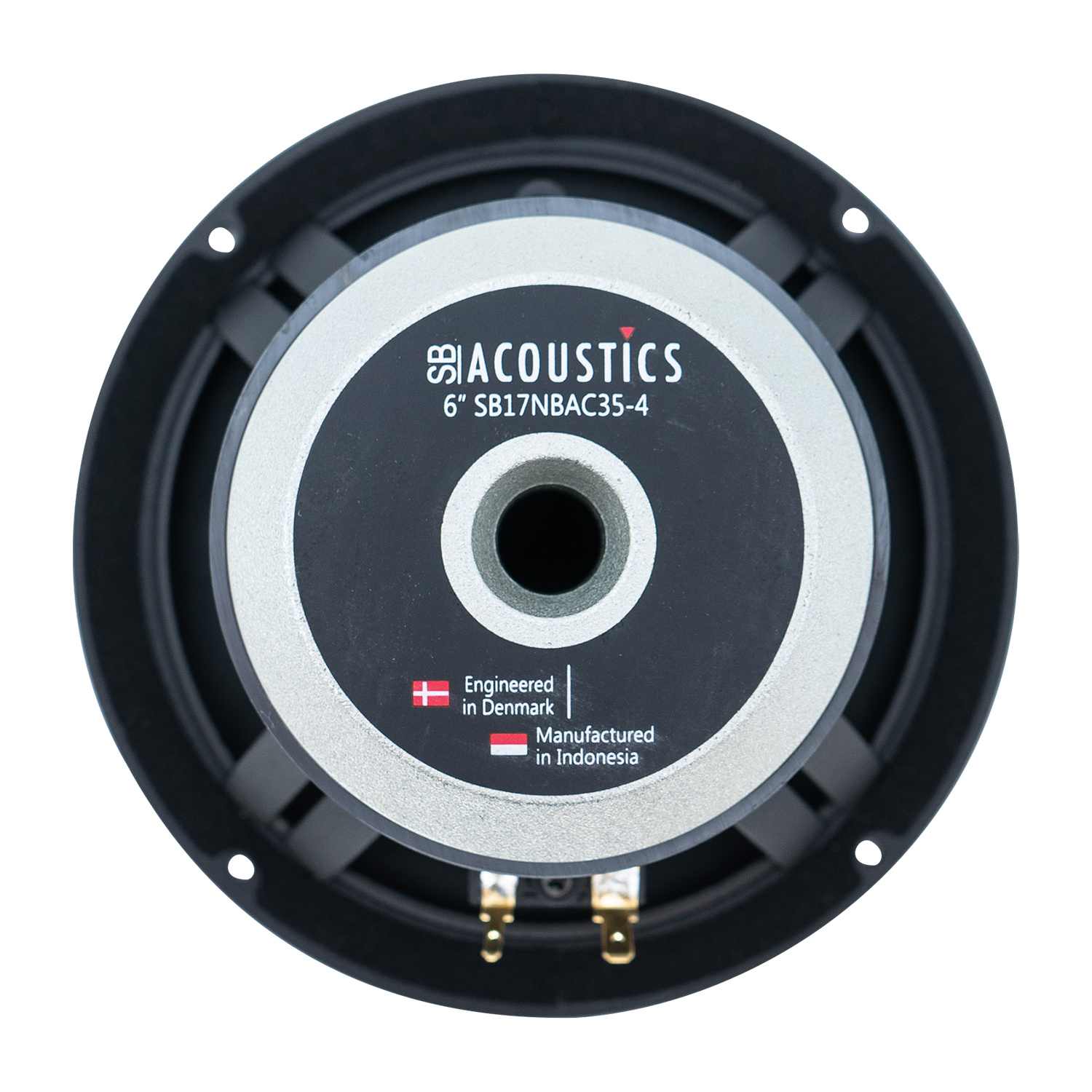

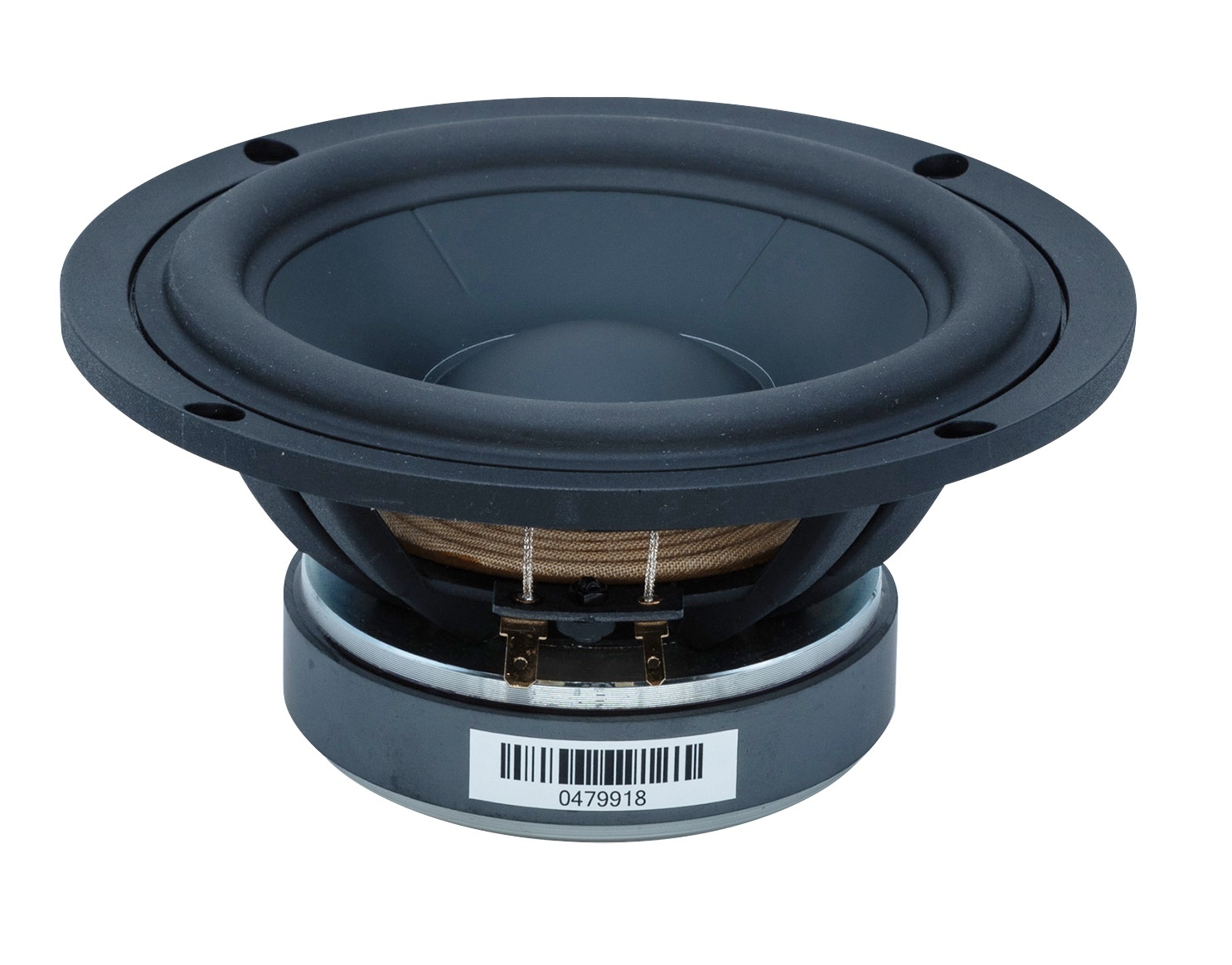

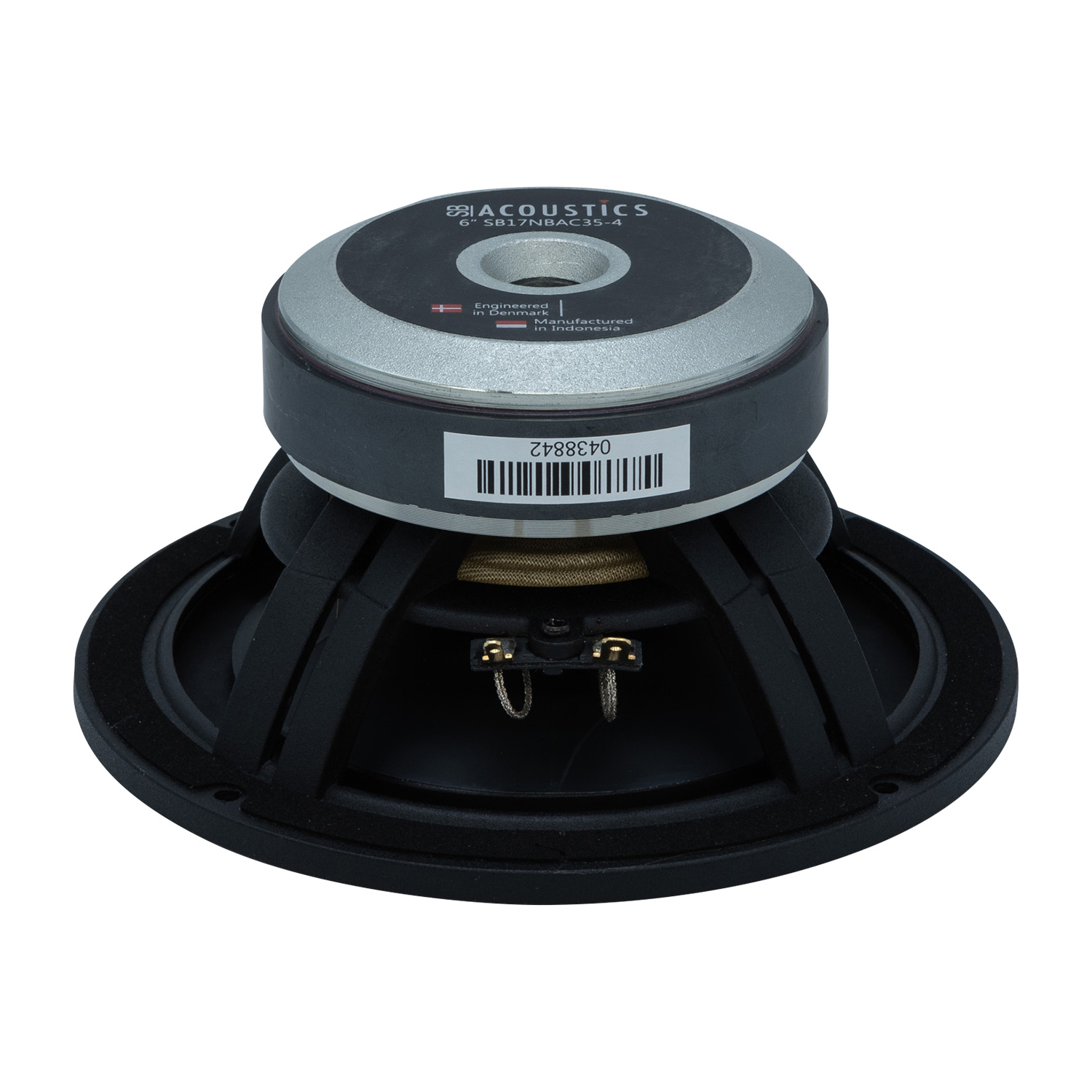

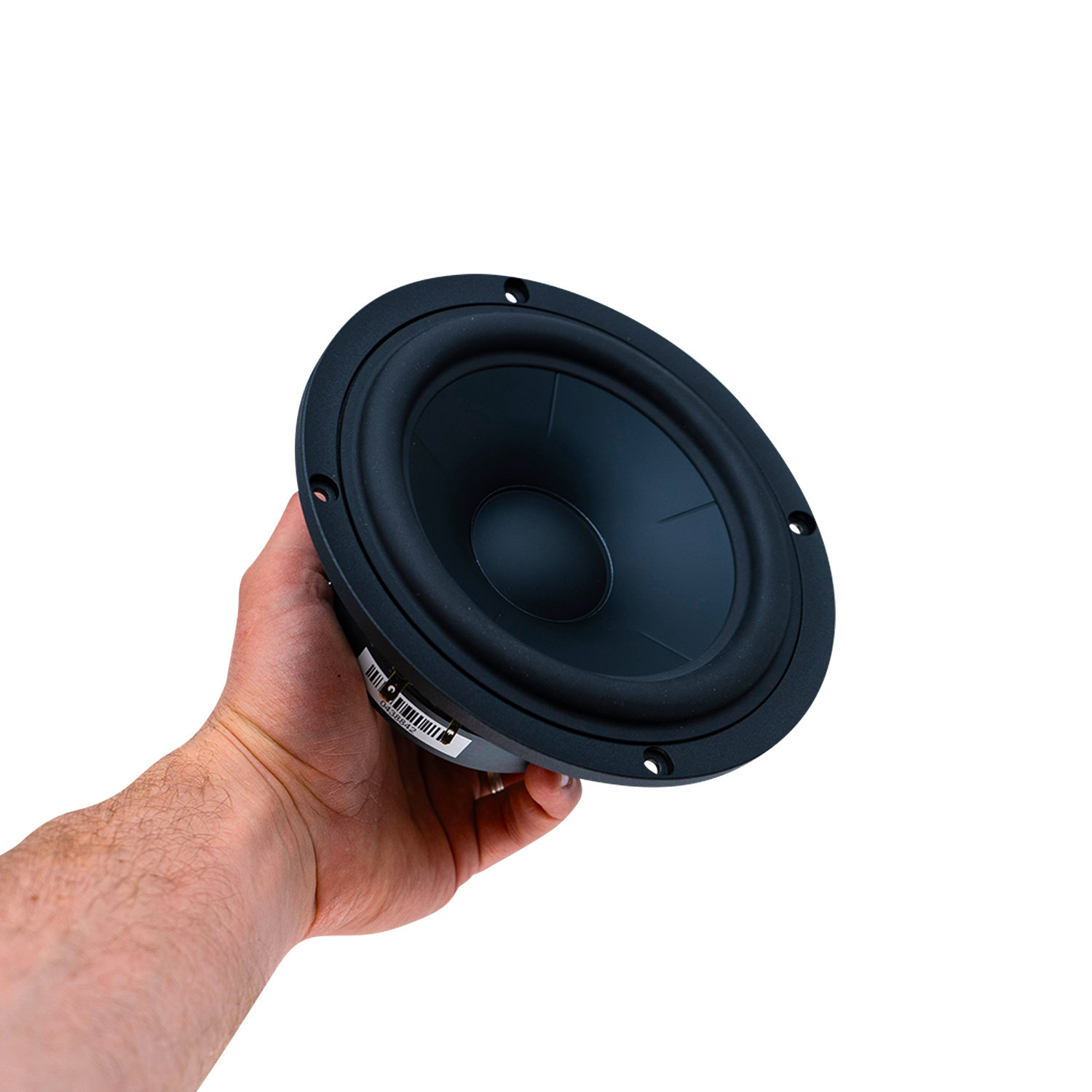

SB Acoustics SB17NBAC35-4 6" Black Aluminum Cone Woofer

Brand: SB Acoustics

Show all Woofers

Compare

6" | 4 Ω

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

SB17NBAC35-4 6" Black Aluminum Cone Woofer

€ 61,94€ 74,95 4 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Vented cast aluminum chassis for optimum strength and low compression
Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
Soft low damping rubber surround for improved transient response
Non-conducting fiber glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Product details

SB Acoustics SB17NBAC35-4 6" Black Aluminum Cone Woofer

The SB Acoustics SB17NBAC35-4 features a vented cast aluminum chassis for optimum strength and low compression, a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response and non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires and vented pole piece for reduced compression.

Specifications

Article number: SB17NBAC35-4
Woofer Series: NBAC Series
Woofer Type: Midwoofer
Nominal Diameter: 6"
Power Handling (RMS): 60 Watts
Impedance (Z): 4 ohms
Sensitivity: 90 dB 2.83V/1m
Voice Coil Diameter: 1.39"
DC Resistance (Re): 3.1 ohms
Voice Coil Inductance (Le): 0.13 mH
Resonant Frequency (Fs): 30 Hz
Mechanical Q (Qms): 4.3
Electromagnetic Q (Qes): 0.31
Total Q (Qts): 0.29
Diaphragm Mass Inc. Airload (Mms): 12.4 g
Mechanical Compliance of Suspension (Cms): 2.16 mm/N
Surface Area of Cone (Sd): 118 cm2
BL Product (BL): 4.9 Tm
Compliance Equivalent Volume (Vas): 1.5 ft.³
Maximum Linear Excursion (Xmax): 5.5 mm

Data sheet

Reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Goede prijs-kwaliteit verhouding, prima afwerking en uitstekende weergave. Ook de levering was snel. In één dag.

By Menno M. on 14 February 2020
