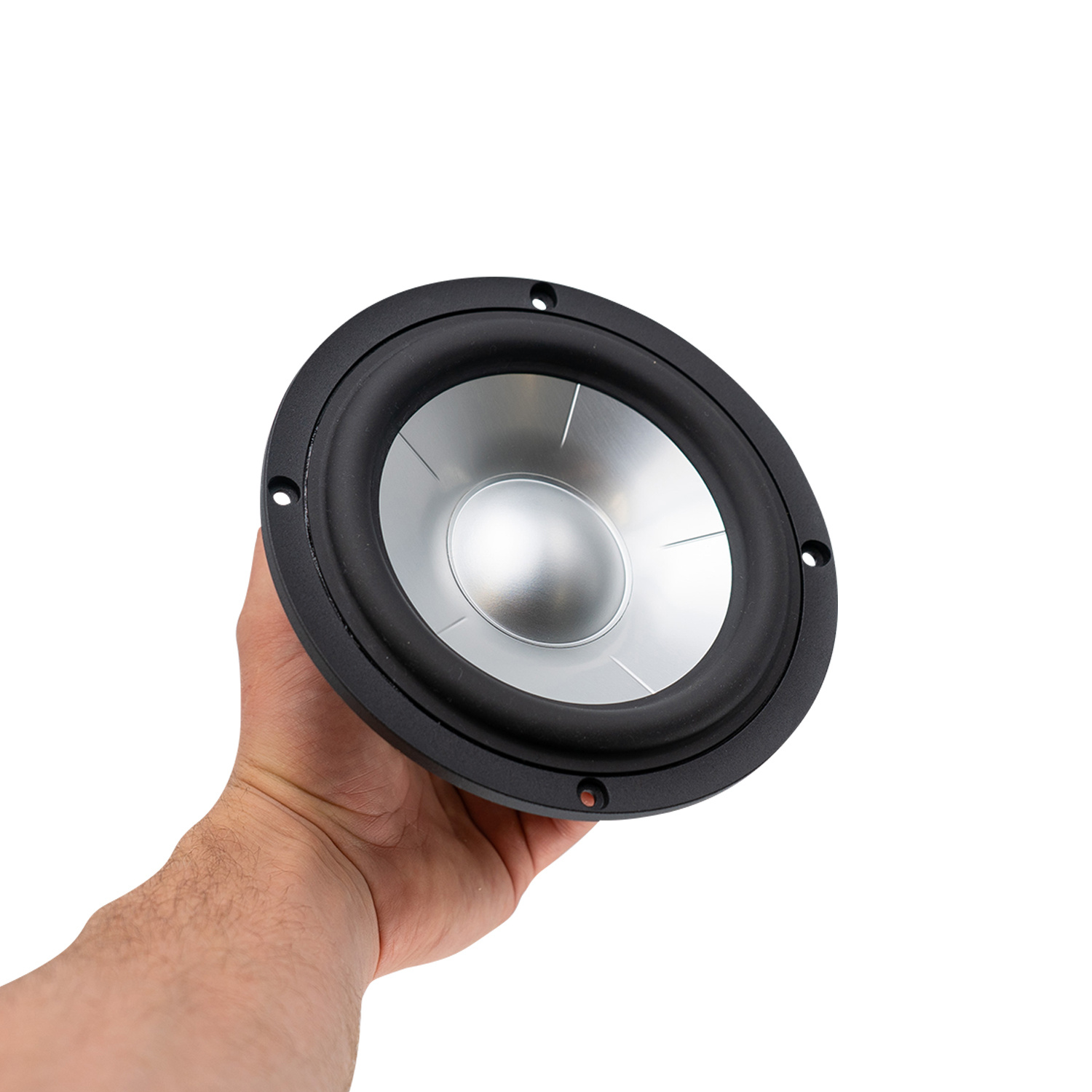

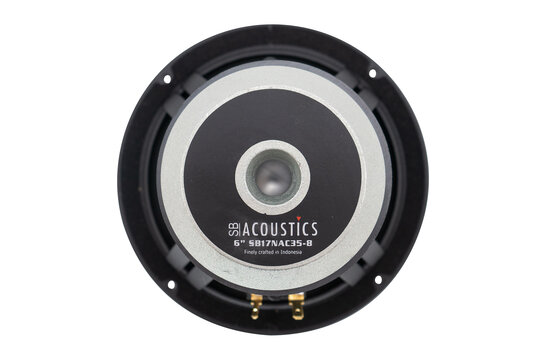

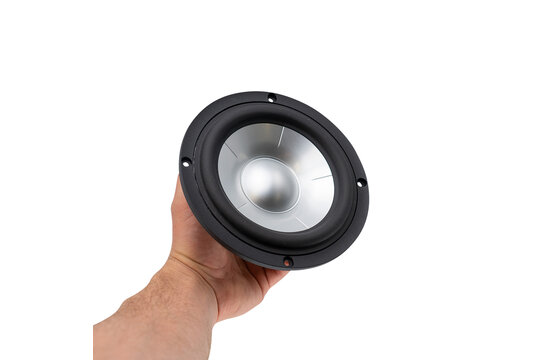

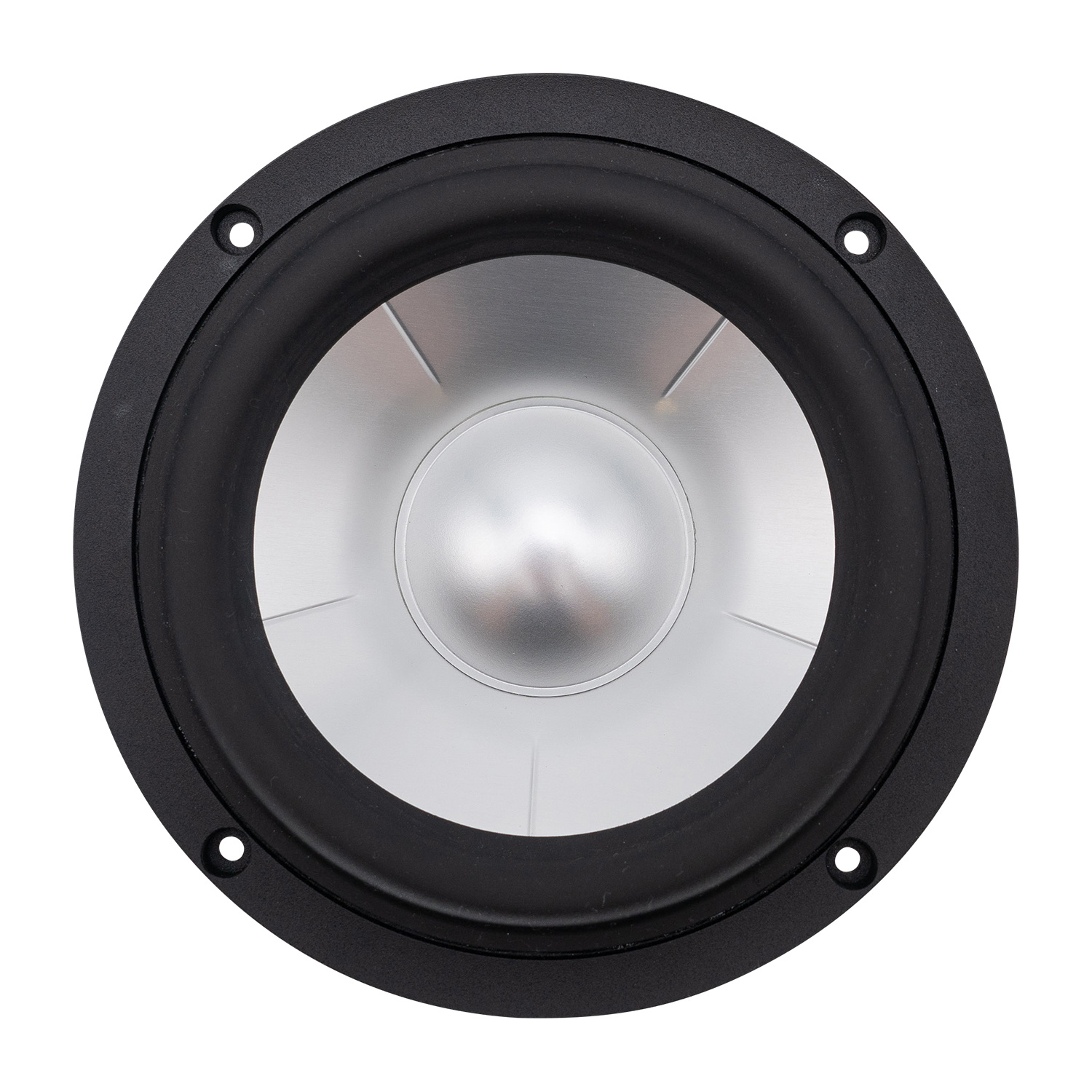

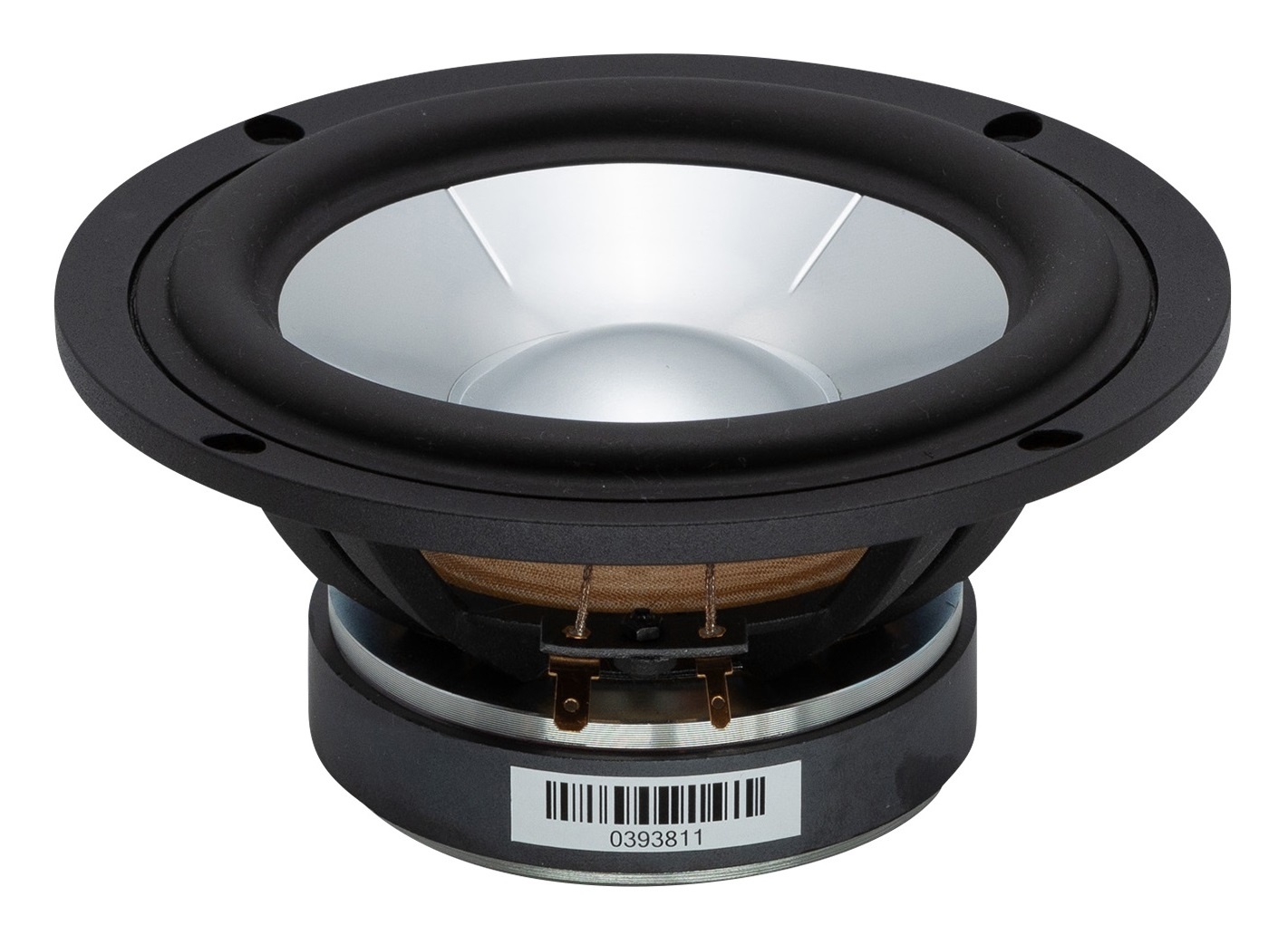

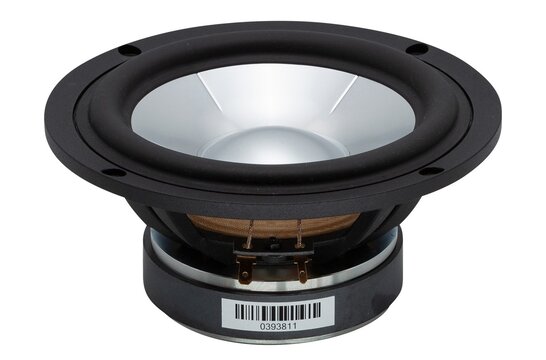

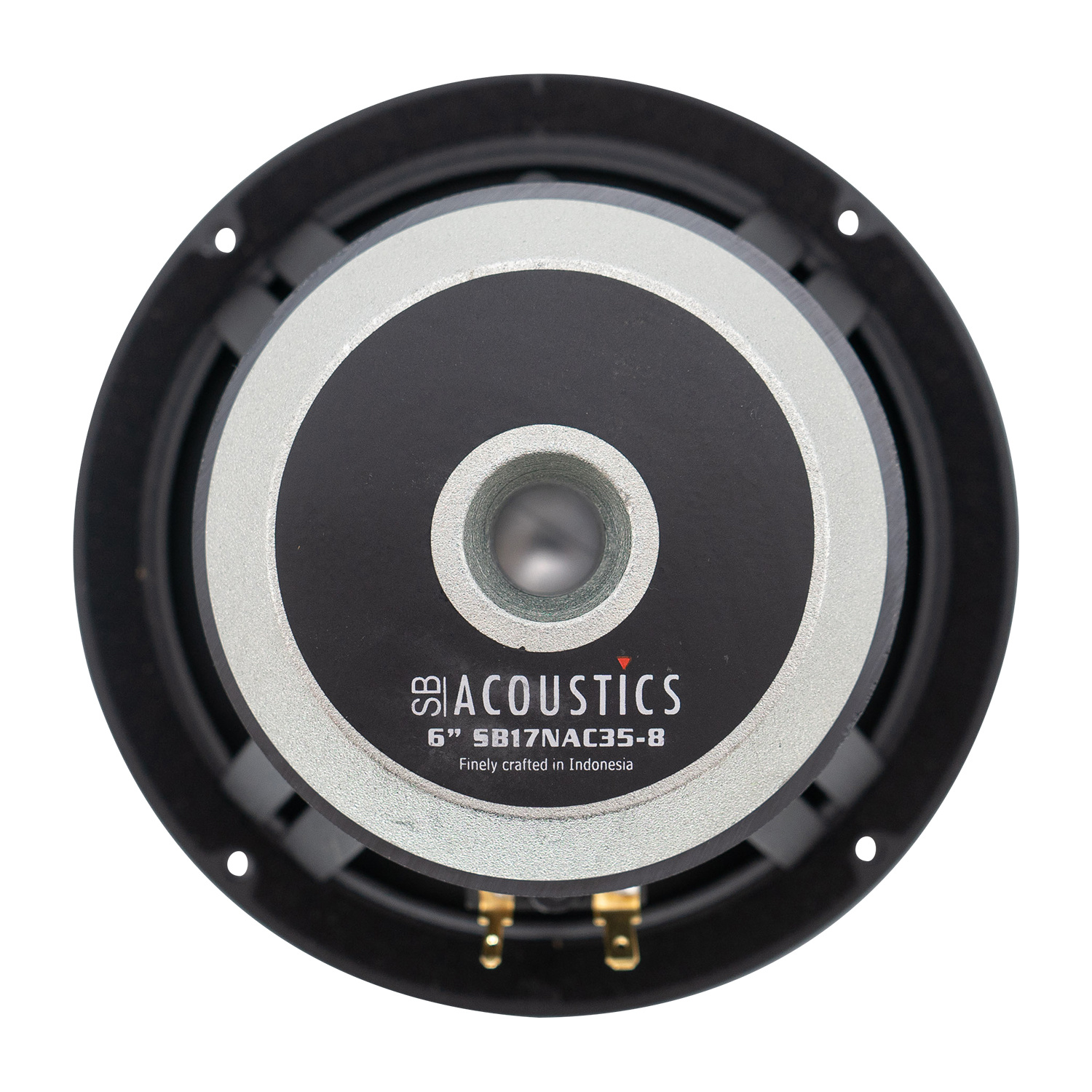

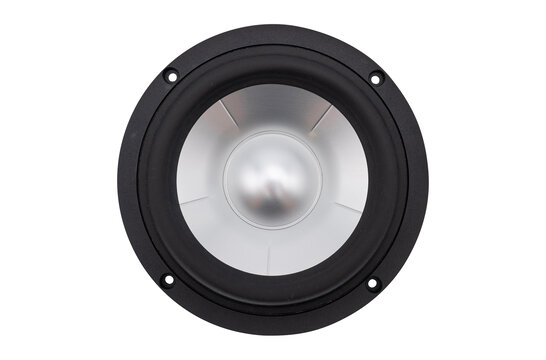

      SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer

      € 68,14€ 82,45 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 78,33 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

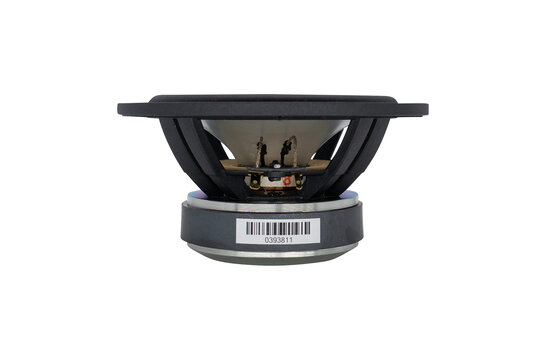

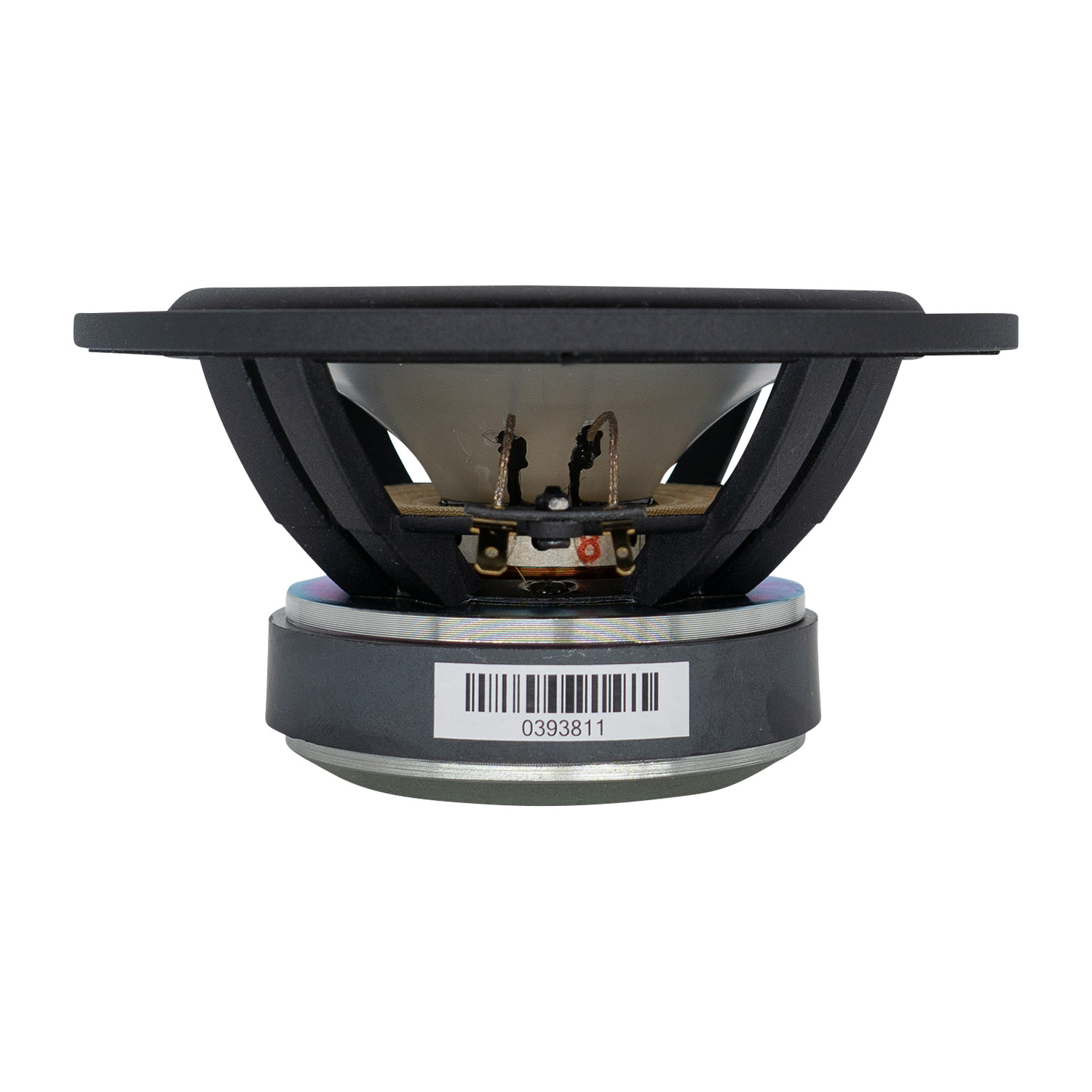

      • Vented cast aluminum chassis for optimum strength and low compression
      • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer



      The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass and long life silver lead wires.

      Specifications

      Article number
      SB17NAC35-8
      Woofer Series
      NAC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      60 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      86.5 dB 2.83V/1m
      Voice Coil Diameter
      1.39"
      DC Resistance (Re)
      5.7 ohms
      Voice Coil Inductance (Le)
      0.15 mH
      Resonant Frequency (Fs)
      31.5 Hz
      Mechanical Q (Qms)
      6
      Electromagnetic Q (Qes)
      0.45
      Total Q (Qts)
      0.42
      Diaphragm Mass Inc. Airload (Mms)
      15.2 g
      Mechanical Compliance of Suspension (Cms)
      1.68 mm/N
      Surface Area of Cone (Sd)
      118 cm2
      BL Product (BL)
      6.2 Tm
      Compliance Equivalent Volume (Vas)
      1.16 ft.³
      Maximum Linear Excursion (Xmax)
      5.5 mm

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      No description was given
      By Lucie S. on 24 March 2020
