      SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 8 ohm

      € 53,68€ 64,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €61,70 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Mineral filled PP-cone made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fibre glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

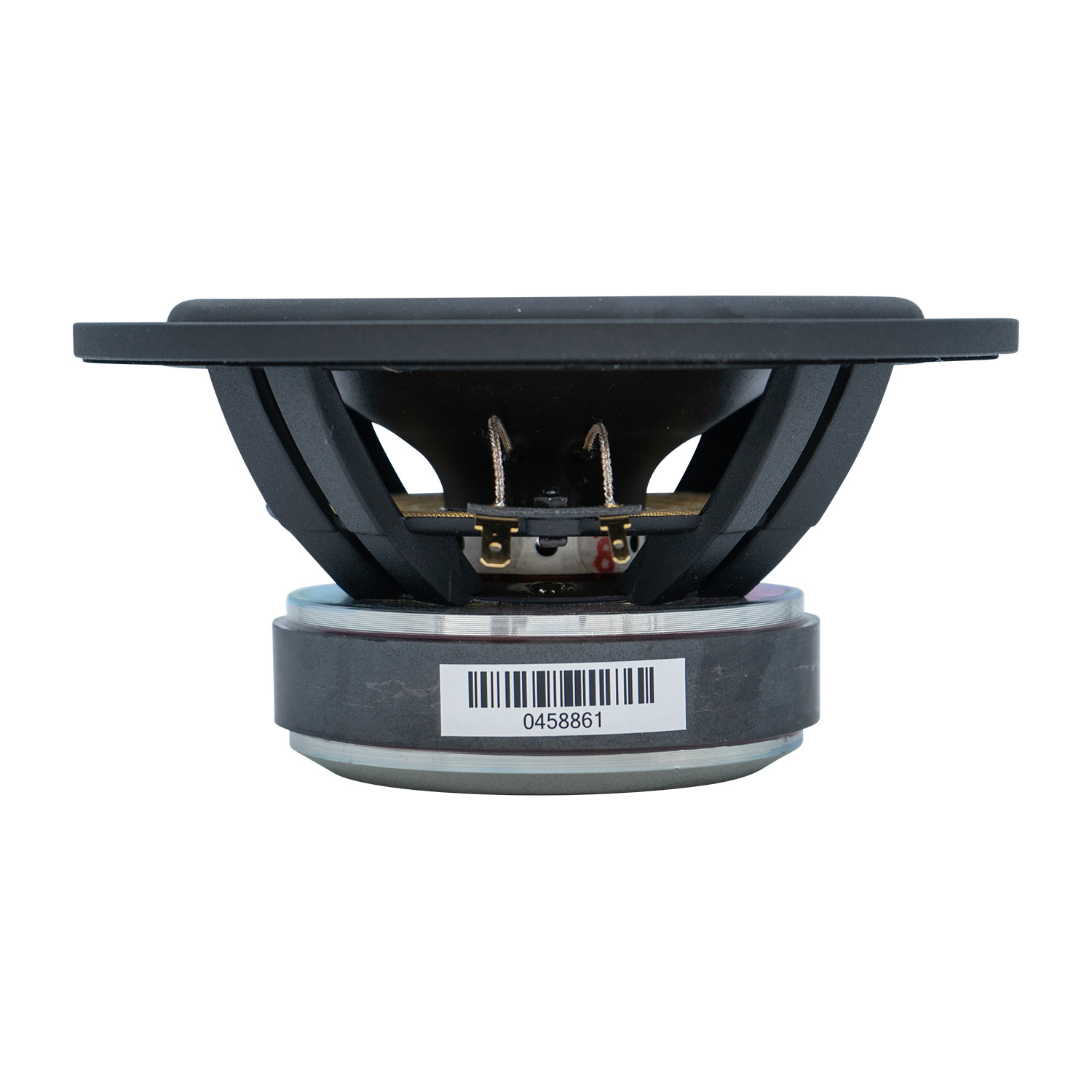

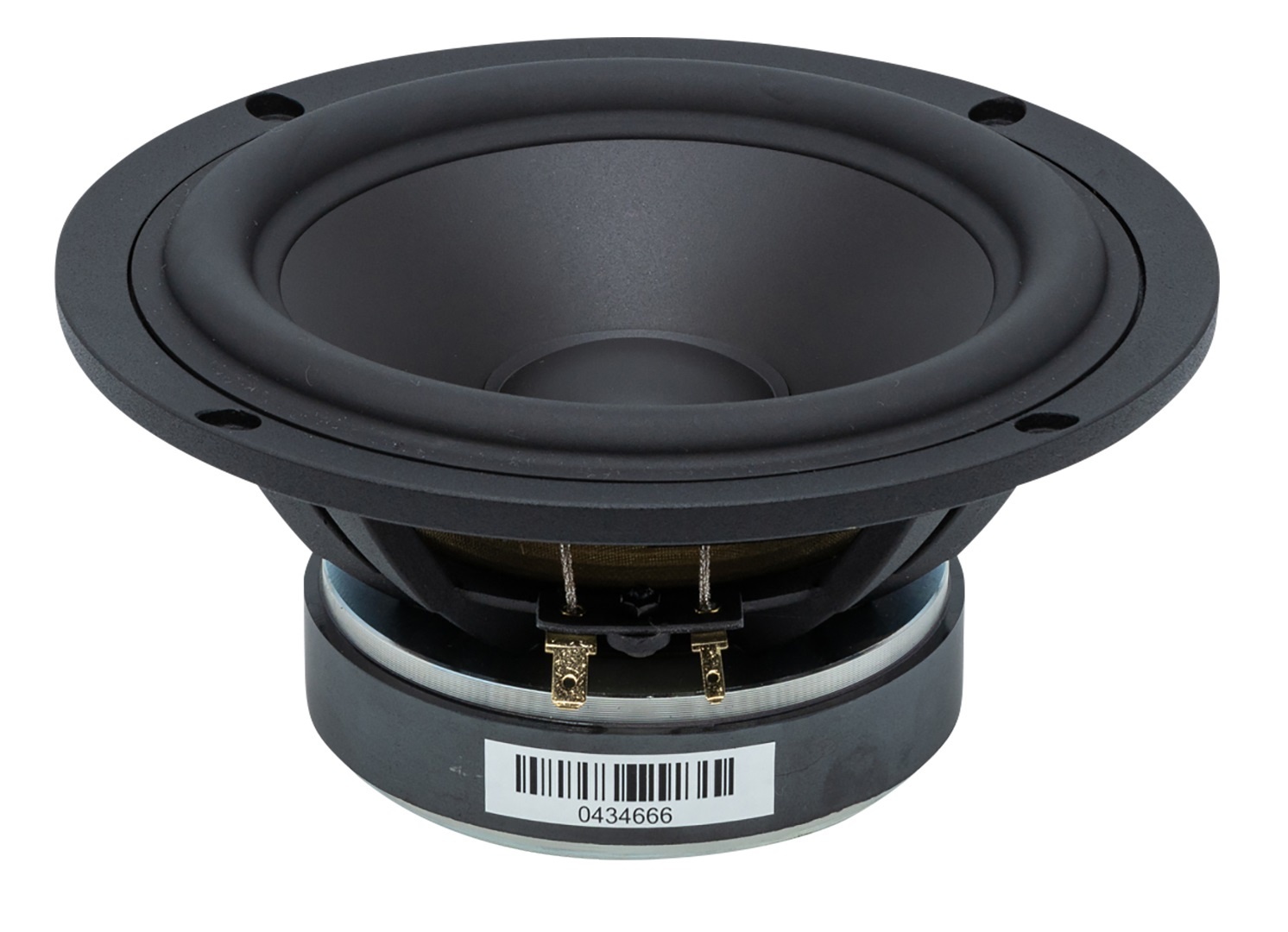

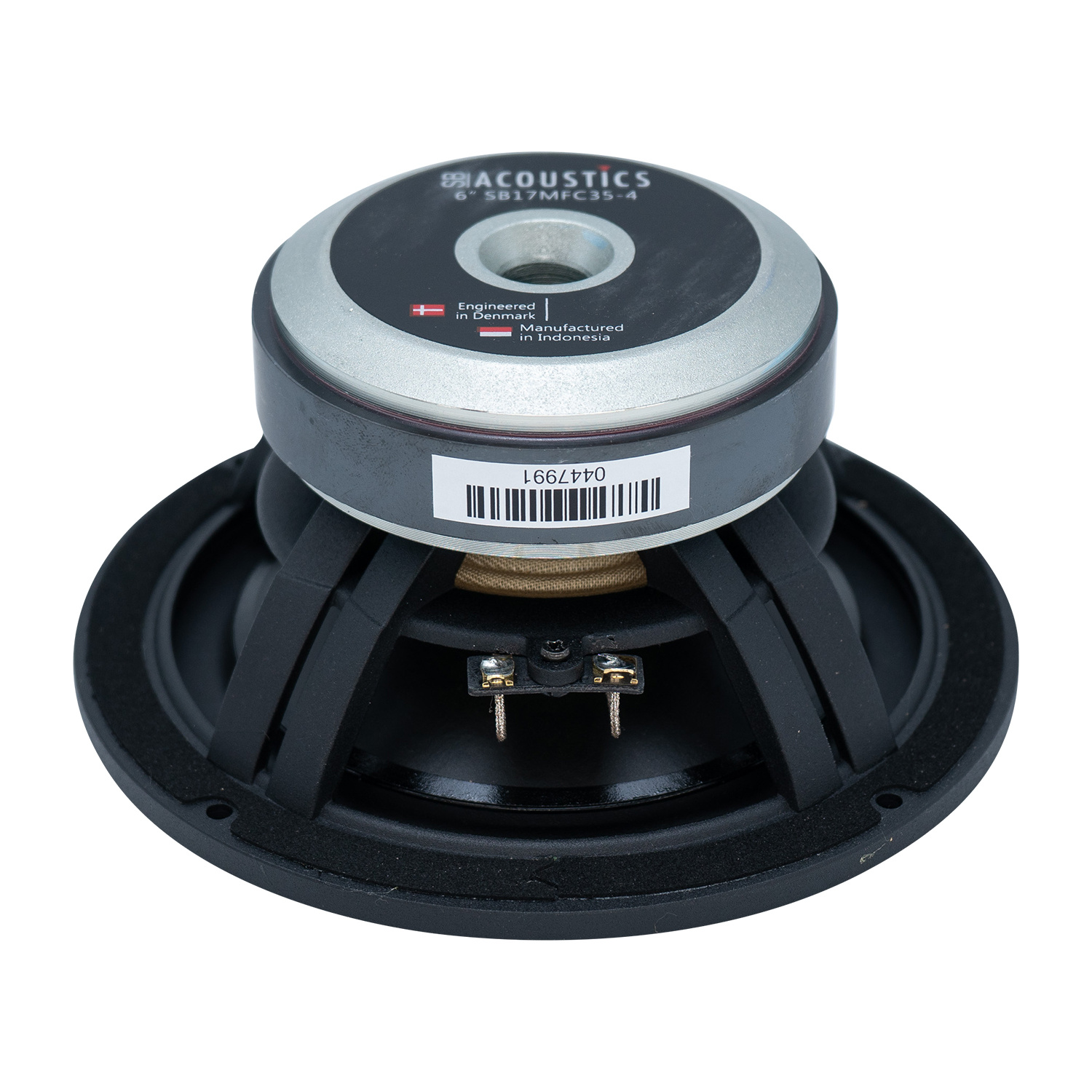

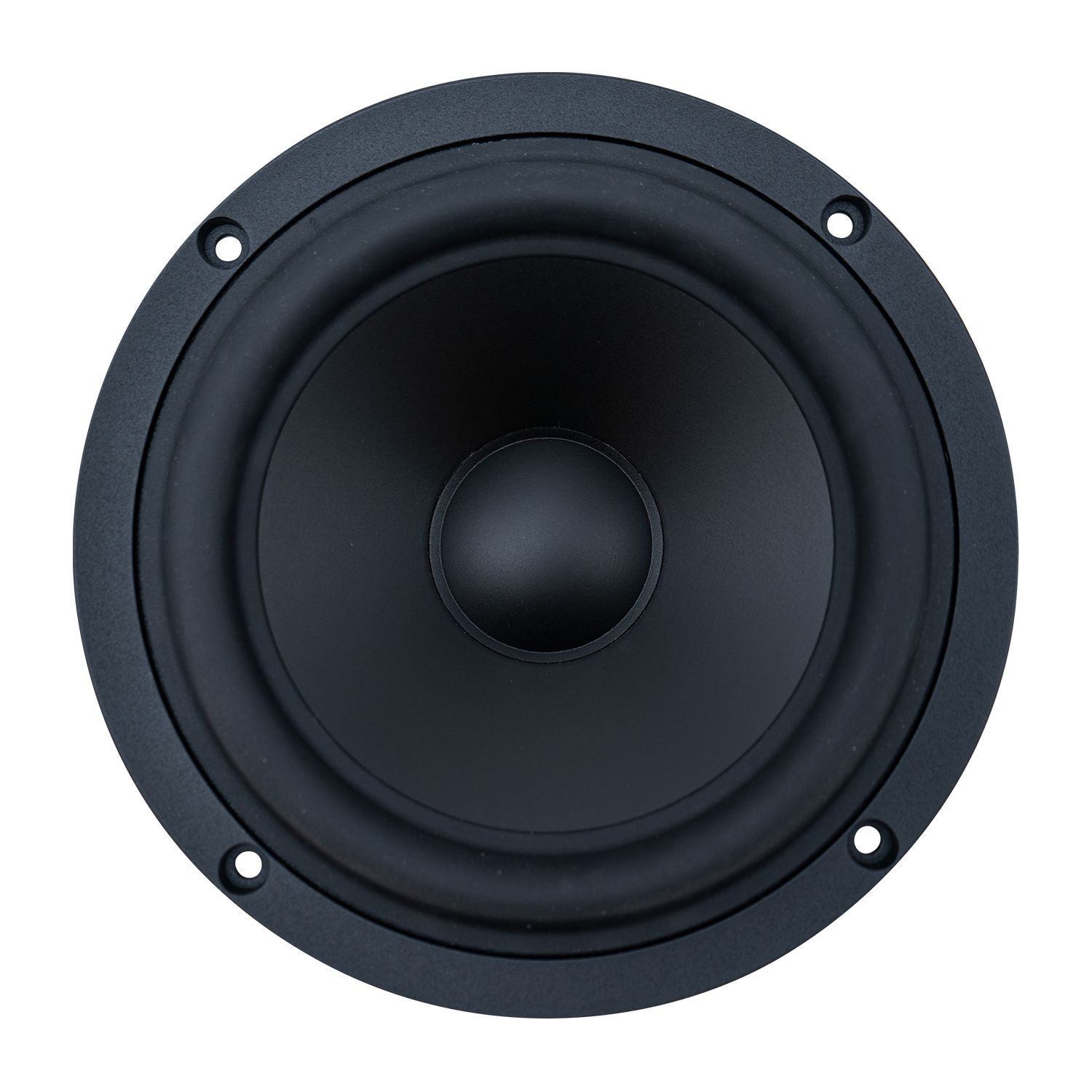

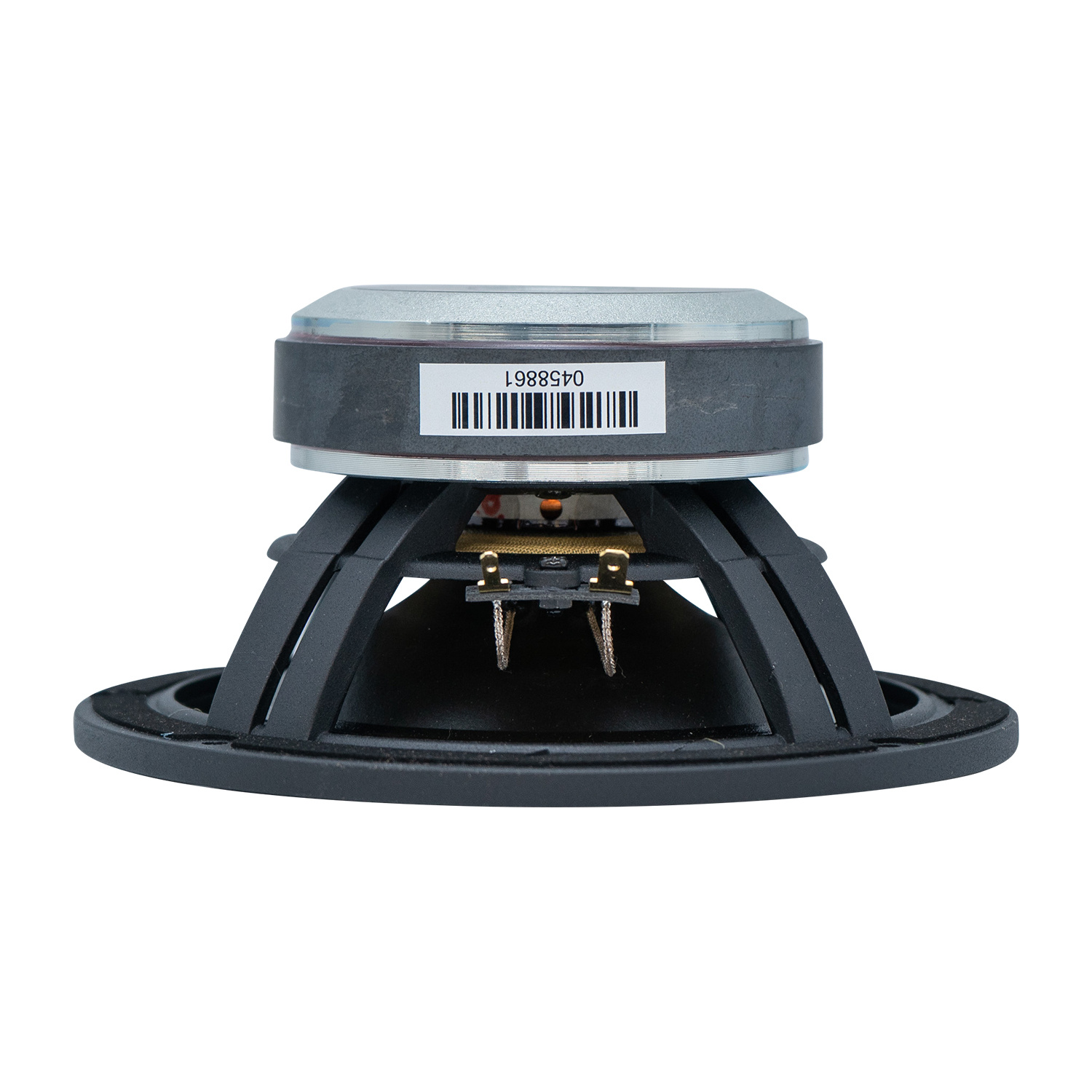

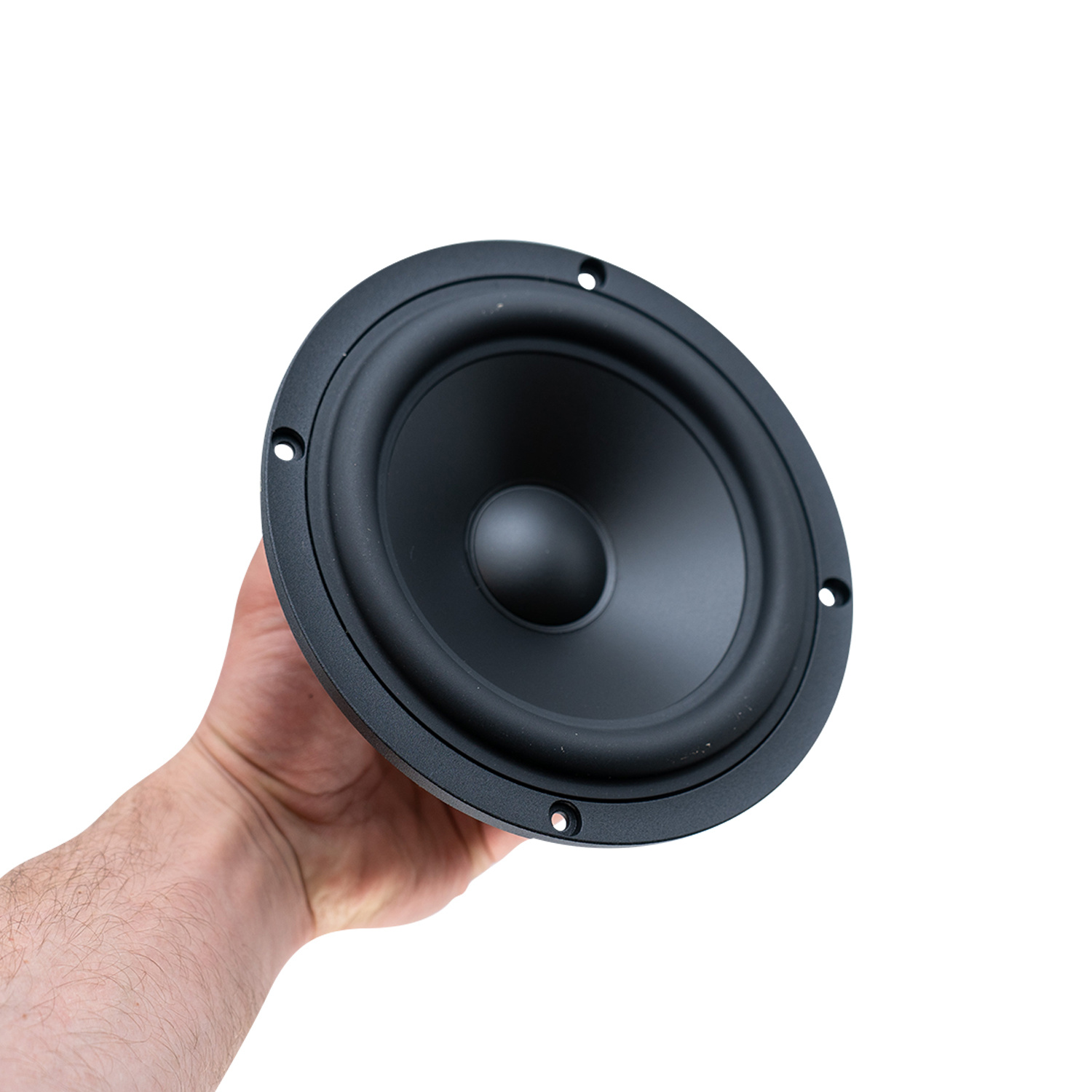

      SB Acoustics SB17MFC35-4 6" Poly Cone Woofer



      In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive 35.5mm coil former.

      Specifications

      Article number
      SB17MFC35-4
      Woofer Series
      MFC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      60 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      90 dB @ 2.83V/1m
      Voice Coil Diameter
      35.5 mm
      Magnet Weight
      0.54 kg
      DC Resistance (Re)
      3.1 ohms
      Voice Coil Inductance (Le)
      0.13 mH
      Resonant Frequency (Fs)
      30 Hz
      Mechanical Q (Qms)
      5.2
      Electromagnetic Q (Qes)
      0.30
      Total Q (Qts)
      0.28
      Diaphragm Mass Inc. Airload (Mms)
      12.3 g
      Mechanical Compliance of Suspension (Cms)
      2.29 mm/N
      Surface Area of Cone (Sd)
      118 cm2
      BL Product (BL)
      4.9 Tm
      Compliance Equivalent Volume (Vas)
      45 L
      Maximum Linear Excursion (Xmax)
      5.5 mm
      Driver's Mechanical Losses (Rms)
      0.45 kg/s
      Cone / Diaphragm Material
      Polypropylene
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper-clad aluminum
      Voice Coil Former
      Fiberglass
      Basket / Frame Material
      Cast aluminum
      Overall Outside Diameter
      171 mm
      Overall Depth
      86 mm
      Baffle Cutout Diameter
      146 mm
      Bolt Circle Diameter
      159 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      4.3 mm

      Show more

      Reviews

      4 from 5Based on 2 reviews
      Review this product
      2 of 5
      Vorab: Ich habe lange recherchiert und simuliert und gemessen. Daraus entstand eine 19L Bassreflex Box mit dem SB17MFC35-4 (und SB29RDNC-4). Leider ist der Klang des Lautsprechers eher flach und wenig dynamisch. Der SB17MFC35-4 braucht Pegel um zu klingen, also Eigenschaften, die man eigentlich nicht will. Kritisch ist auch der doppelte Höcker im Frequenzgang zwischen 4.4 und 6.5kHz, da sich diese im Summensignal wieder finden, es sei denn, man nimmt eine niedrige Übergangsfrequenz. Damit fehlen dann aber die oberen Mitten. In der Summe ist der SB18MFC35-4 ein Fehlgriff gewesen. Bessere Erfahrungen habe ich z.B. mit Dayton RS Serie gemacht (z.B RS125-4 in 9L) und würde ich für das nächste Projekt auch wieder nehmen. Ach so, der Hochtöner funktioniert, ist aber auch nicht besser als einer für 10€. Klingt langweilg ohne Glanz.
      By Jörg Schmidt on 10 June 2021
      5 of 5
      This woofer in combination with the 26STAC tweeter, is an extreme good combination if the speaker units can be tamed regarding the filter - and I did that. The wow-effect is certainly present regarding 3 dimensional sound, voices/voicing, acoustical instruments and the system can even play bass. Bad recordings will be prevailed easily. My goodness, I am very surpriced how much sound quality that can be retreived from those speaker units - bravo SB Acoustics; designed here in Denmark :-)
      By Tonny Vind on 3 May 2021
