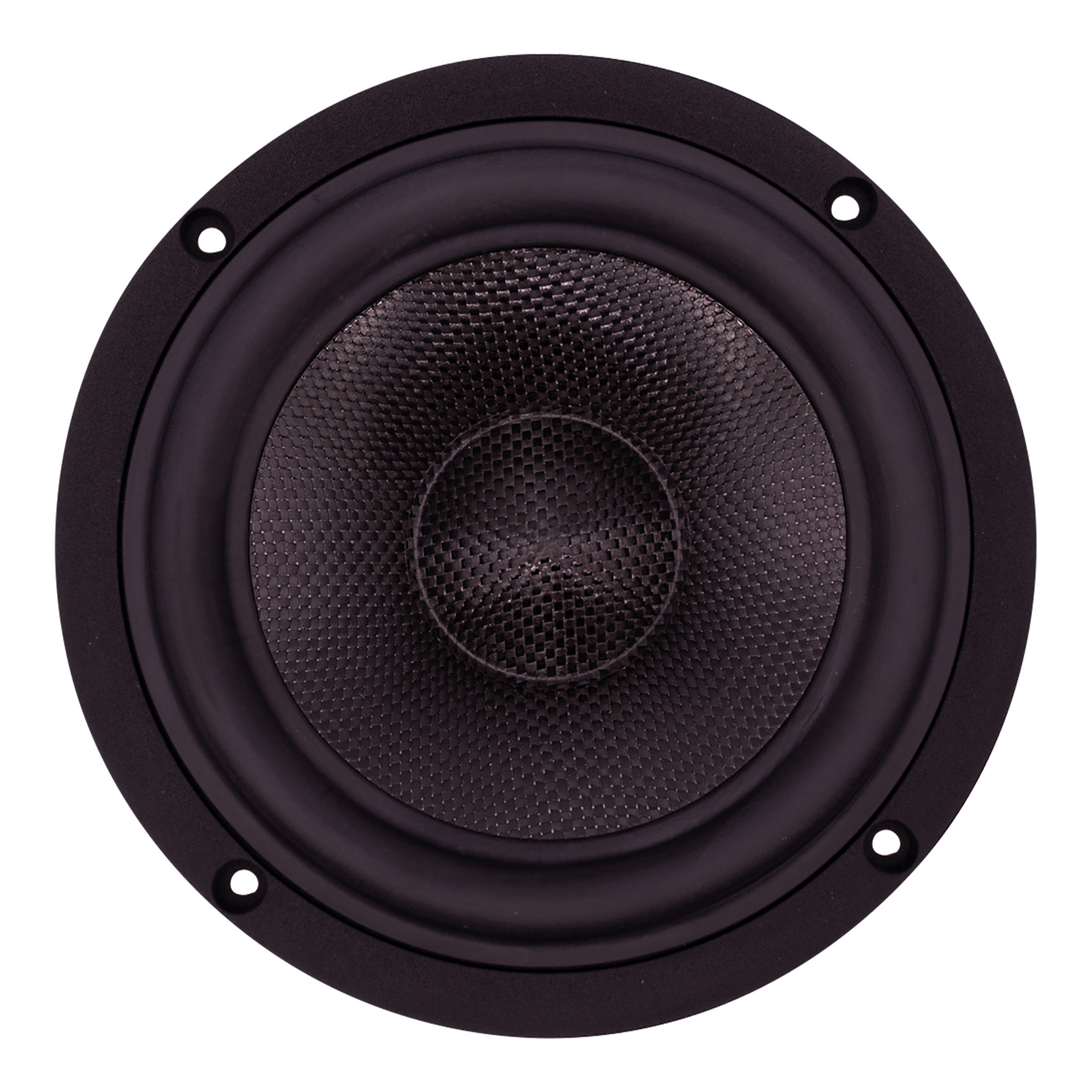

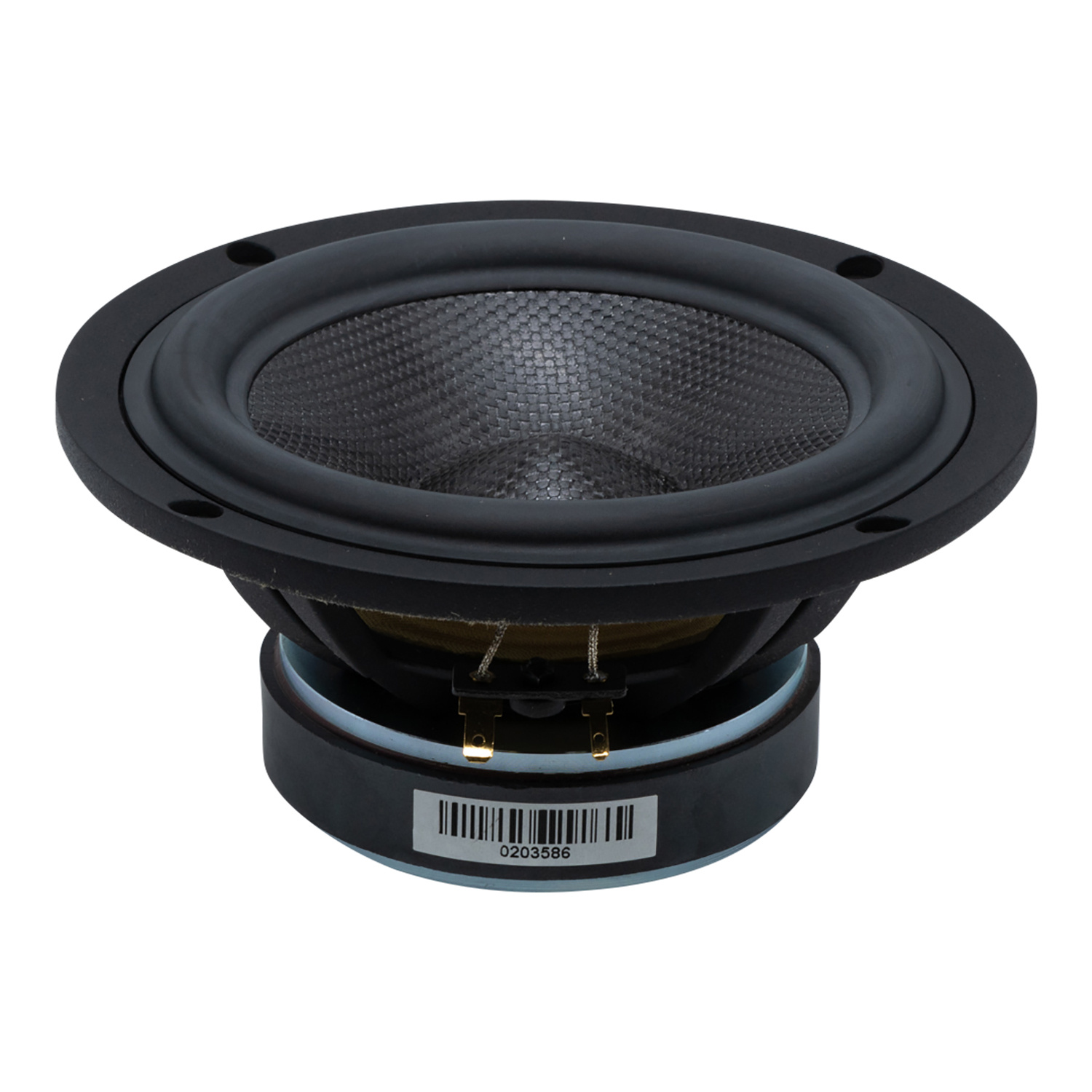

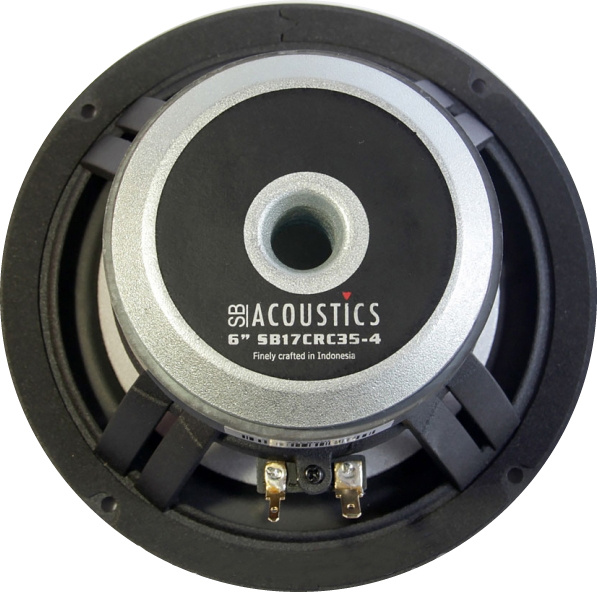

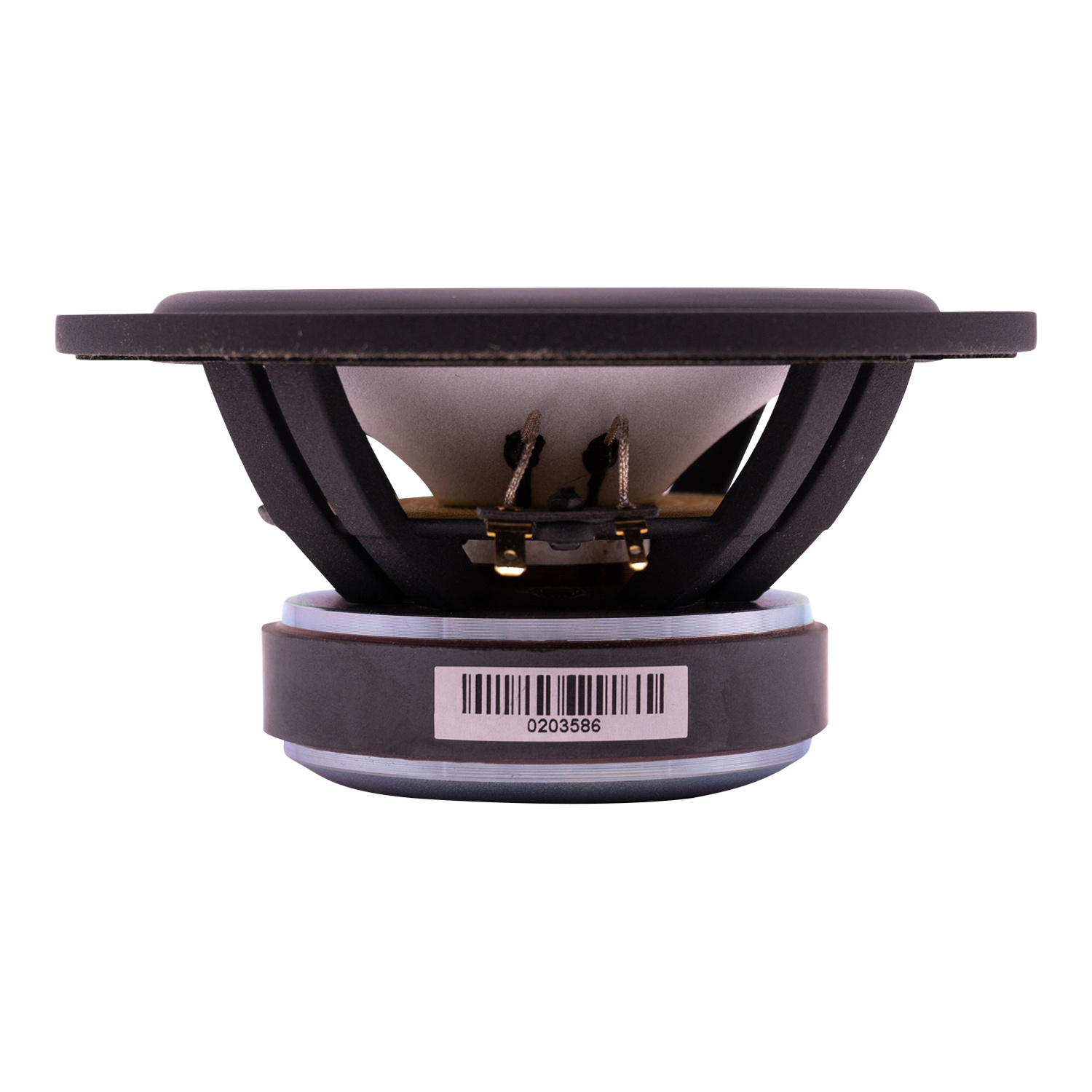

SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

Delivery time: 1-4 business days

  • Article code: SB17CRC35-4
  • Stock: 2 In stock

Rohacellᆴ/Carbon fibre sandwich cone for optimized stiffness/damping ratio - Vented cast aluminum chassis for optimum strength and low compression - Low damping rubber surround for improved transient response - Non-conducting fibre glass voice coil former

€ 92,45 Incl. 21% VAT

  • Buy 4 for €87,83 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

Highlights

  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Product Details

SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms



Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping.

Specifications

Specifications for: SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

  • Woofer Series Specific woofer production line of the manufacturer. CRC Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6”
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 0.65 kg/s
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance 4 Ohms
  • Sensitivity (2.83 V / 1 m) 90 dB
  • Frequency Response
  • Voice Coil Diameter 35.5 mm
  • Magnet Weight 0.54 kg
  • DC Resistance (Re) 3.1 Ω
  • Voice Coil Inductance (Le) 0.13 mH
  • Resonant Frequency (Fs) 31.5 Hz
  • Mechanical Q (Qms) 4.32
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 14.2 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.80 mm/N
  • Surface Area of Cone (Sd) 118 cm2
  • Volume of Displacement (Vd)
  • BL Product (BL) 5.0 Tm
  • Compliance Equivalent Volume (Vas) 35.5 liters
  • Maximum Linear Excursion (Xmax)
  • Driver's Mechanical Losses (Rms) 0.65 kg/s
  • Cone / Diaphragm Material Rohacell®/Carbon fibre sandwich cone
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
