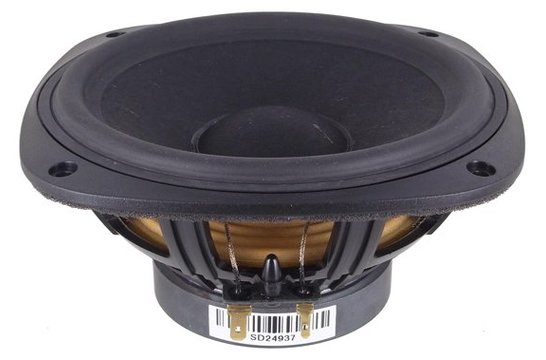

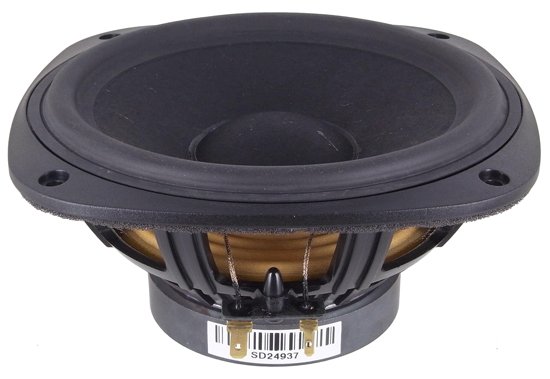

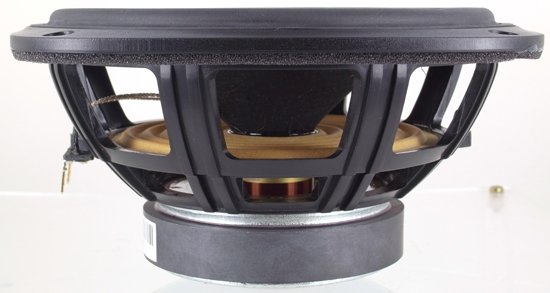

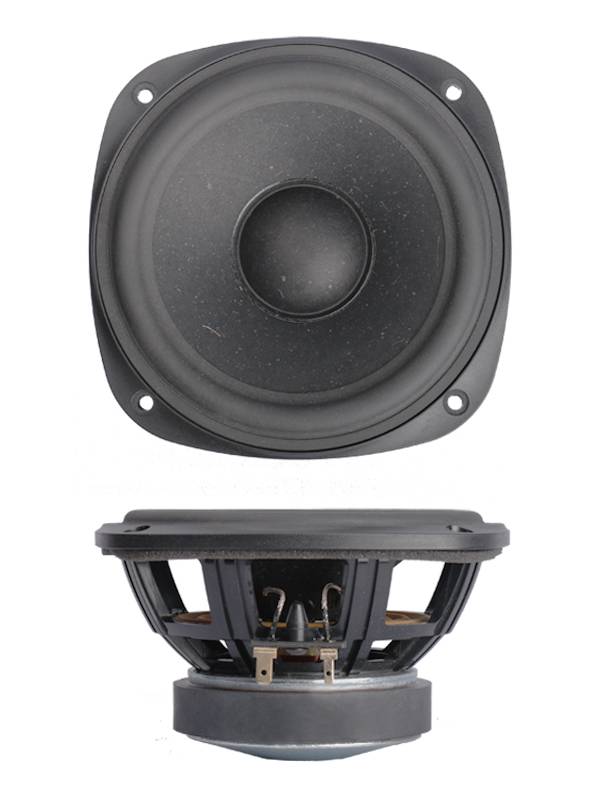

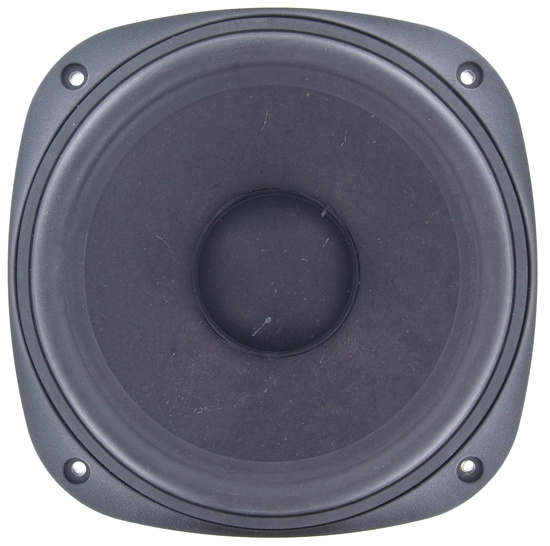

        SB16PFC25-4 6" Paper Cone Woofer

        SB16PFC25-4 6" Paper Cone Woofer

        €33,45

        SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 27,64€ 33,45 9 In stock
        • -5% Purchase 4 for only € 31,78 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Vented reinforced plastic chassis
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Optimized motor system
        • Vented coil former for low compression
        • Non-resonant long life lead wires



        Product details

        SB Acoustics SB16PFC25-4 6" Paper Cone Woofer



        The SB Acoustics SB16PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response. Optimized motor system, vented coil former for low compression and non-resonant long life lead wires.

        Show more

        Specifications

        Article number
        SB16PFC25-4
        Woofer Series
        PFC Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        40 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        89.5 dB
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.2 ohms
        Voice Coil Inductance (Le)
        0.56 mH
        Resonant Frequency (Fs)
        35 Hz
        Mechanical Q (Qms)
        2.76
        Electromagnetic Q (Qes)
        0.39
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        13.8 g
        Mechanical Compliance of Suspension (Cms)
        1.5 mm/N
        Surface Area of Cone (Sd)
        124 cm2
        BL Product (BL)
        5 Tm
        Compliance Equivalent Volume (Vas)
        1.15 ft.³
        Maximum Linear Excursion (Xmax)
        4.5 mm

        Show more

        5 of 5
        The spectral decay is amazingly good. Tight accurate bass with dynamic midrange. Used in Time Keeper monitor ,Tyler acoustis $ 2500. Bought one driver to experiment with and roll of with simple x over is smooth. Cross at 1800 to 2600 Hz no problem. For 35 bucks don't hesitate to get. Can vent to really make it throw some long wave lengths. Thanks Michael
        By Michael on 17 May 2022
        5 of 5
        Cheap and very good speaker.
        By Premysl S. on 24 June 2020
